ÜbersichtKey FeaturesNVIDIA Jetson Orin NX SOM support, up to 100 SPARSE (50 DENSE) INT8 TOPSNVIDIA Jetson Orin Nano SOM support, up to 40 SPARSE (20 DENSE) INT8 TOPSPOE SKU integrates 2x POE ports. Each port supports IEEE 802.3AFAnti Shock and VibrationWide Range Operating Temperature (-25 to 60°C)12-36V Phoenix type DC IN support2nd DC IN Interface (PD3.0 20V USB Type-C with Locking feature) for Mobile device application or Redundant power sourceWall Mount or DIN-Rail for Vertical IPC Installation (All SKU). Wall Mount or VESA Mount for Horizontal IPC Installation (BASIC SKU only)Carrier board reserved 2pcs Dual Lane MIPI-CSI2 connectors (Option)****MIPI-CSI2 camera need to be turned off before system going to sleep mode. It is current NVIDIA JetPack limitation.Spezifikation
Processor System
System on Module
NVIDIA Jetson Orin NX SOM 16GB support
(Basic SKU iEP-6010E-000, PoE SKU iEP-6010E-001, 5G SKU iEP-6010E-003)
NVIDIA Jetson Orin NX SOM 8GB support
(Basic SKU iEP-6011E-000)
NVIDIA Jetson Orin Nano SOM 8GB support
(Basic SKU iEP-6012E-000, PoE SKU iEP-6012E-001,5G SKU iEP-6012E-003)
NVIDIA Jetson Orin Nano SOM 4GB support
(Basic sku iEP-6013E-000)
Video
1 x HDMI 2.0 (Orin NX)/ 1.4 (Orin Nano)
Memory
16GB 128-bit LPDDR5 (Jetson Orin NX 16GB)
8GB 128-bit LPDDR5 (Jetson Orin NX 8GB)
8GB 128-bit LPDDR5 (Jetson Orin Nano 8GB)
4GB 64-bit LPDDR5 (Jetson Orin Nano 4GB)
TPM
TPM2.0
I/O
Ethernet
2 x Gigabit LAN
PoE (Option)
2x Intel I210AT ports, each port supports IEEE 802.3AF PoE
(Orin NX SOM 16GB PoE SKU iEP-6010E-001,
Orin Nano SOM 8GB PoE SKU iEP-6012E-001)
Serial Port
1 x RS-232, 1 x RS-232/422/485
(Pin9 default is N/A, +5V or +12V/1A software programmable)
USB
2 x USB 3.2 Gen 2x1 (one with Locking)
2 x USB 2.0, 1 x Micro USB 2.0 (Device mode only, for OS Flash)
Proprietary IO
(DPR connector is proprietary design of DIO, Power/GND, Remote Power Button signals and power/GND pins)
DPR connector: 1 x DB15 for 4*DI, 4*DO, GND, Power Pin(Default is N/A, +5V/1A software programmable), PowerOn, LED+, LED-, GND, Reset
(ISC connector is proprietary design of I2C, SPI, CANBUS Interface and Power/GND Pins.)
ISC connector: 1xDB15 for Power Pin(Default is N/A, +3V/1A software programmable) , 5 x GND, 1 x I2C, 1 x SPI, 1 x CANBUS
Add-on Feature / OS Support
2nd DC IN Interface
PD3.0 20V USB Type-C power adaptor interface (Locking feature),
It can be backup DC input when 1st DC IN is 21V~36V
Carrier board feature
Carrier board reserved 2pcs Dual Lane MIPI-CSI2 connectors (Option)**
**MIPI-CSI2 camera need to be turned off before system going to sleep mode.
It is current NVIDIA JetPack limitation.
OS Support
NVIDIA JetPack 5.1.2 *(e)
*(e) means estimation.
Expansion
SIM
1 x Nano SIM Card slot
RF& Antenna (Option)
up to 4 x 5G/4G LTE antenna + 2 x Wi-Fi antenna for 5G SKU
M.2 Socket
1 x M.2 (Key B, 3042/3052/2280)
-For PCIe Gen3 x1 / USB3.2 Gen2x1 5G module (Option)
(5G SKU Only, Orin NX SOM 16GB 5G SKU iEP-6010E-003,
Orin Nano SOM 8GB 5G SKU iEP-6012E-003)
-For PCIe Gen3 x1 / USB3.2 Gen2x1 4G LTE module (Option)
(5G SKU Only, Orin NX SOM 16GB 5G SKU iEP-6010E-003,
Orin Nano SOM 8GB 5G SKU iEP-6012E-003)
-For PCIe Gen3 x1 M.2 B Key 2280 SSD module (Option, Basic SKU Only)
1 x M.2 (Key E, 2230) for PCIe Gen3 x1 Wi-Fi and USB2.0 Bluetooth module
Storage
M.2
1 x M.2 (Key M, 2280) for wide temperature PCIe Gen3 x 4
NVMe SSD module (System Operating temperature -25° C~60° C)
1 x M.2 (Key M, 2280)for wide temperature PCIe Gen4 x 4
NVMe SSD module (System Operating temperature -25° C~55° C)
PCIe Gen4 x 4 SSD only supported by Orin NX SOM
Micro SD Card slot
1 x Micro SD Card Slot (UHS-I/SDR-50)
Power Requirements
DC Input
1st DC IN source:
12V~36V DC input, 80V Surge Protection. OVP, UVP, OCP,
Reverse Protection, Phoenix type connector
2nd DC IN source:
PD3.0 20V USB Type-C power adaptor interface (Locking feature),
It can be backup DC input when 1st DC IN is 21V~36V
AC to DC Adaptor (Option)
For Basic SKU:
120W Adapter, AC input 100-240Vac,
1.8A 50-60Hz, DC output 19V, 6.32A
For POE/5G SKU:
330W Adapter, AC input 100-240Vac,
4.2A 50-60Hz, DC output 24V, 13.75A
Environment
Operating Temp
-25~60° C (-13~140°F) for Basic sku, PoE sku, or 5G sku w/ 4G LTE Module when installed with WT SSD Gen3 x 4
-25~55° C (-13~131°F) for Basic sku, PoE sku, or 5G sku w/ 4G LTE Module when installed with WT SSD Gen4 x 4
-25~55° C (-13~131°F) for 5G sku w/ 5G Module when installed with WT SSD Gen4 x 4 or WT SSD Gen3 x 4
(w/ air flow 0.5~0.8m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~90% @ 45°C (non-condensing)
EMC
CE, FCC Class A (EN61000-6-4/-2)
(estimation)
Safety
LVD*(e)
*(e) means estimation.
Shock
IEC 60068-2-27, Operating Shock 100G with 11 ms duration, half sine wave
Vibration
IEC 60068-2-64, Operating Random Vibration 5 Grms, 5-500 Hz, 3 axes, 30 min/axis
Mechanical
Dimensions
Basic SKU : 55(W) x 170(H) x 134(D) mm
POE/5G SKU : 68(W) x 170(H) x 134(D) mm
Indicator
1 x Storage LED
1 x DC-IN LED
Function
Power on button with LED, OS Flash Button, Reset Tact Switch
Enable/Disable Auto power on Switch
Net Weight
Basic SKU: 1.3kg, 5G/POE SKU: 1.6kg
Mounting (Option)
Horizontal Wall mounting or VESA mounting bracket (Basic SKU only)
Vertical Wall mounting or Din Rail mounting bracket (All SKU)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-6010E SeriesMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage

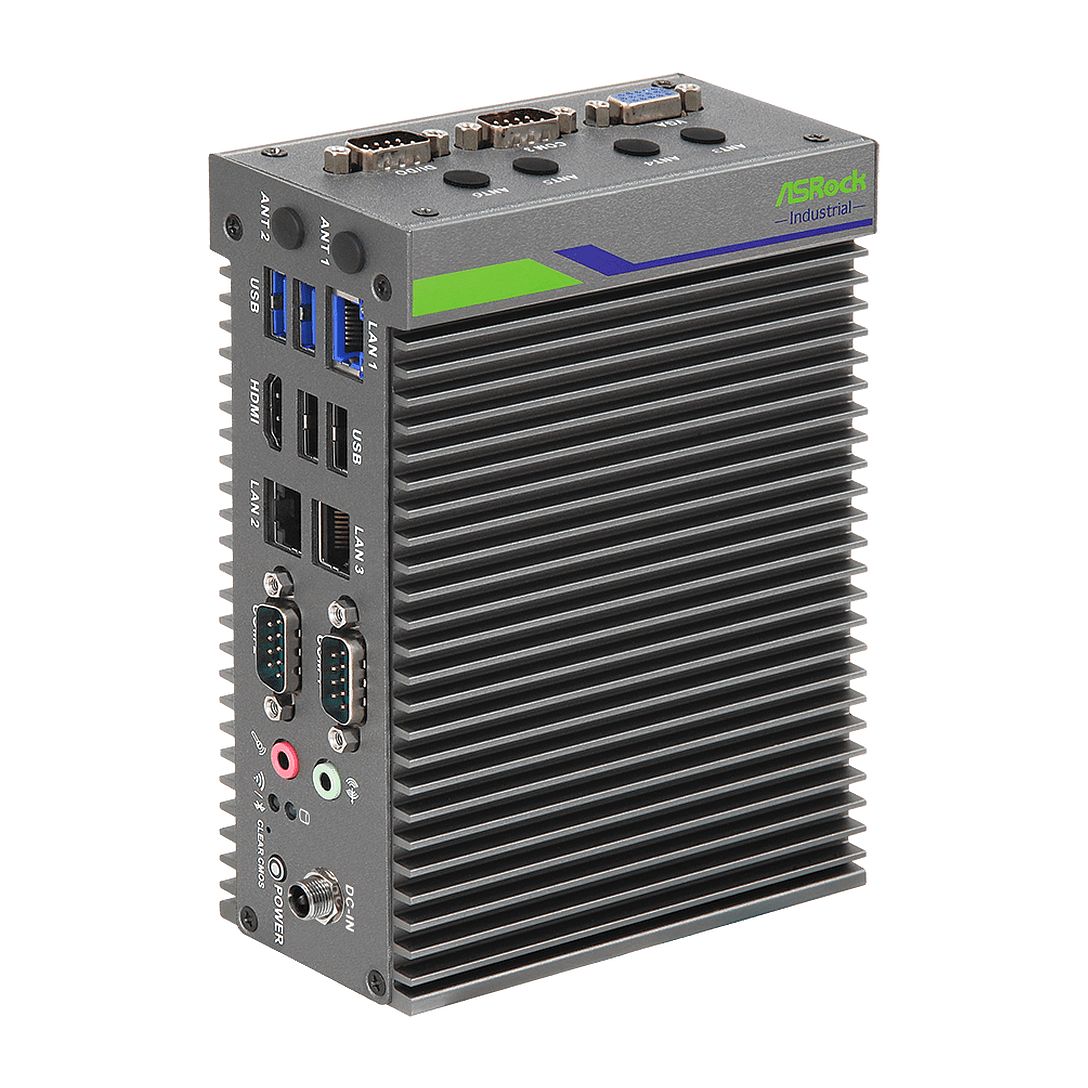

ASROCK Industrial iEP-5010G Series - Industrial IoT Controller Industreller IoT Controller mit Intel® Elkhart Lake Industrial IoT Controller - Latest and Powerful Intel®Atom®x6000RE Processor (Elkhart Lake)
