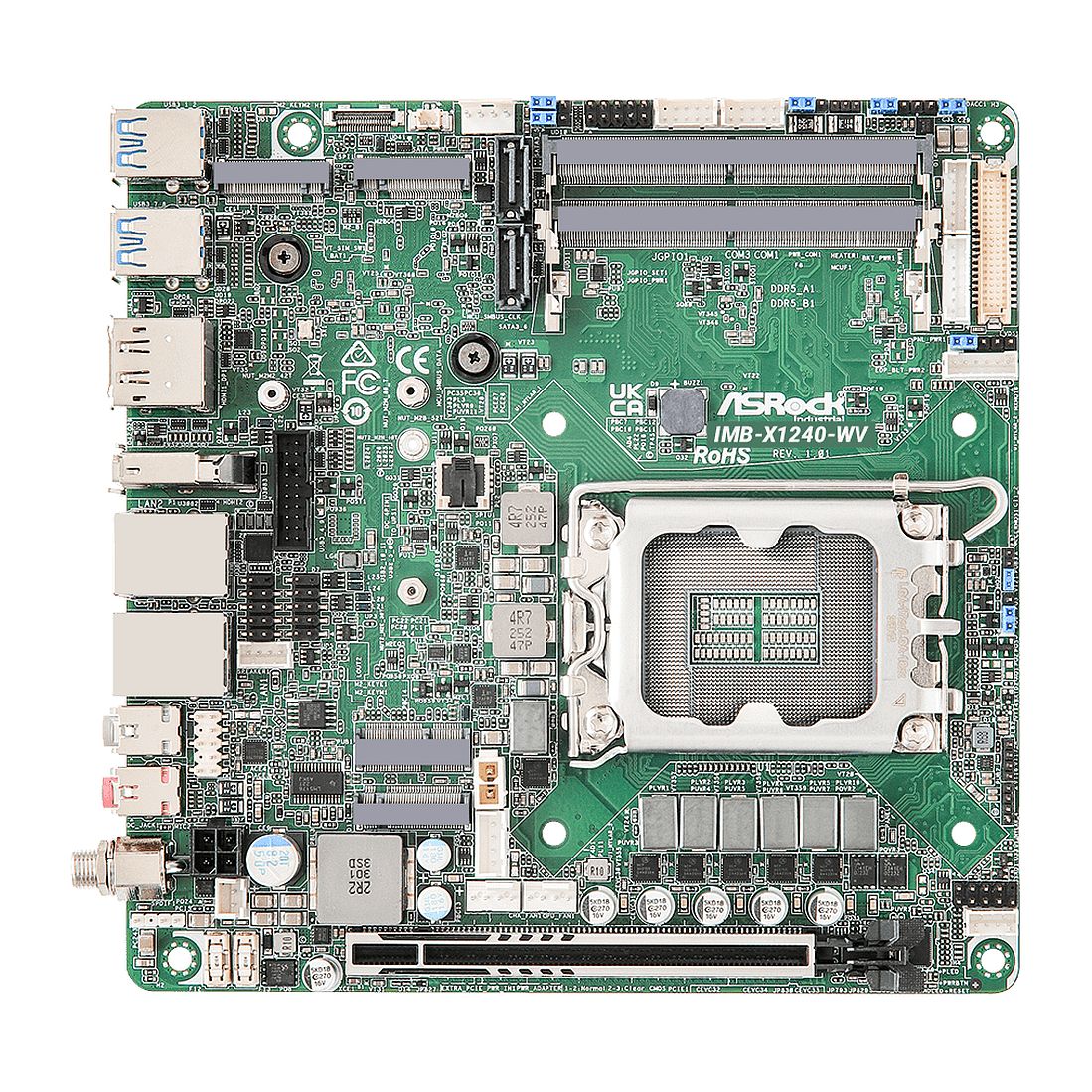

ASROCK Industrial IMB-X1240-WV - Mini-ITX Mainboard mit Intel® Raptor Lake Mini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1240-WV - Mini-ITX Mainboard mit Intel® Raptor LakeMini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset2 x 262-pin ECC/non-ECC SO-DIMM DDR5 4800 MHz , up to 64GB (32GB per DIMM)1 x PCIe x16 (Gen5), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4bTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/112~28V DC-In (Lockable DC Jack)Spezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset
Intel W680
Socket
LGA1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 2.5 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR5 4800 MHz
*If motherboard ambient temp. is over 55ºC, the memory thermal solution should be added to avoid thermal issue
Capacity
64 GB (32 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920x1200@60Hz
eDP
eDP 1.4b
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x16 (Gen5, Support riser card x8/x8)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I226V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector
2 x RJ-45
Rear I/O
HDMI
2 x HDMI 2.0b
DisplayPort
1 x DP 1.4a++
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
4 x USB 3.2 (Gen2)
Audio
2 (Mic-in, Line-out)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM1, COM3 (RS-232/422/485)
GPIO
4 x GPI, 4 x GPO
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA
2 x SATA3 (6Gb/s)
RAID
Intel VMD RAID 0/1
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1240-WVMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage

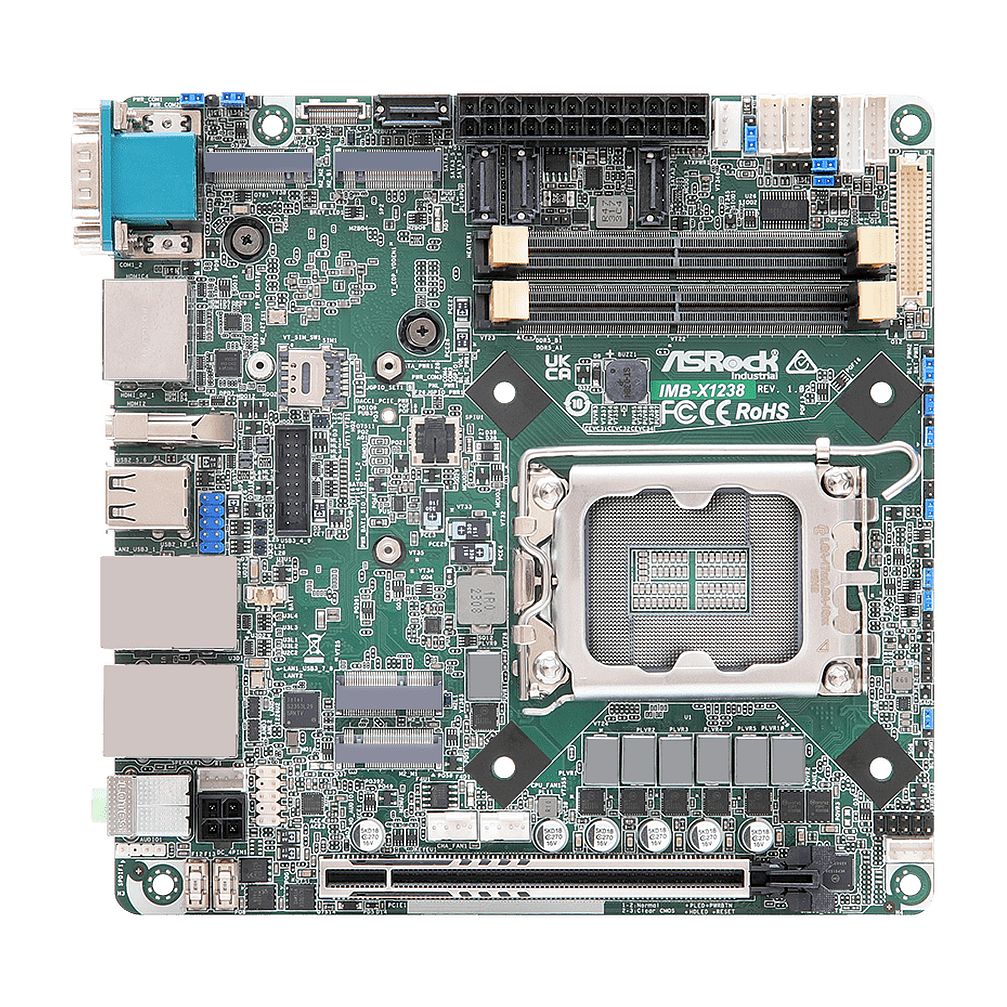

ASROCK Industrial IMB-X1238 - Mini-ITX Mainboard mit Intel® Raptor Lake Mini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1238 - Mini-ITX Mainboard mit Intel® Raptor LakeMini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset2 x 262-pin ECC/non-ECC SO-DIMM DDR5 4800 MHz , up to 64GB (32GB per DIMM)1 x PCIe x16 (Gen5), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 4 x COM, 4 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupports Quad display, 1 x HDMI 2.0b, 1 x HDMI 1.4b, 1 x DP 1.4a, 1 x LVDS or eDPTPM 2.0 onboard ICSupports Intel® vPro, AMT, VMD RAID 0/1/5/10ATX-PWR (24+4-pin) and +12V DC-In co-designSpezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset
Intel W680
Socket
LGA1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR5 4800 MHz
*If motherboard ambient temp. is over 55ºC, the memory heatsink should be added to avoid thermal issue
Capacity
64 GB (32 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
HDMI 1.4b
Max resolution up to 4096x2160@30Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920x1200@60Hz
eDP
Max resolution up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x16 (Gen5, Support riser card x8/x8)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I226V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
1 x HDMI 1.4b
DisplayPort
1 x DP 1.4a++
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
4 x USB 3.2 (Gen2)
2 x USB 2.0
Audio
2 (Mic-in, Line-out)
COM
COM1, COM2 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
COM3, COM4 (RS-232)
GPIO
4 x GPI, 4 x GPO
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA
4 x SATA3 (6Gb/s)
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+4-pin) and +12V DC-In co-design
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1238MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage

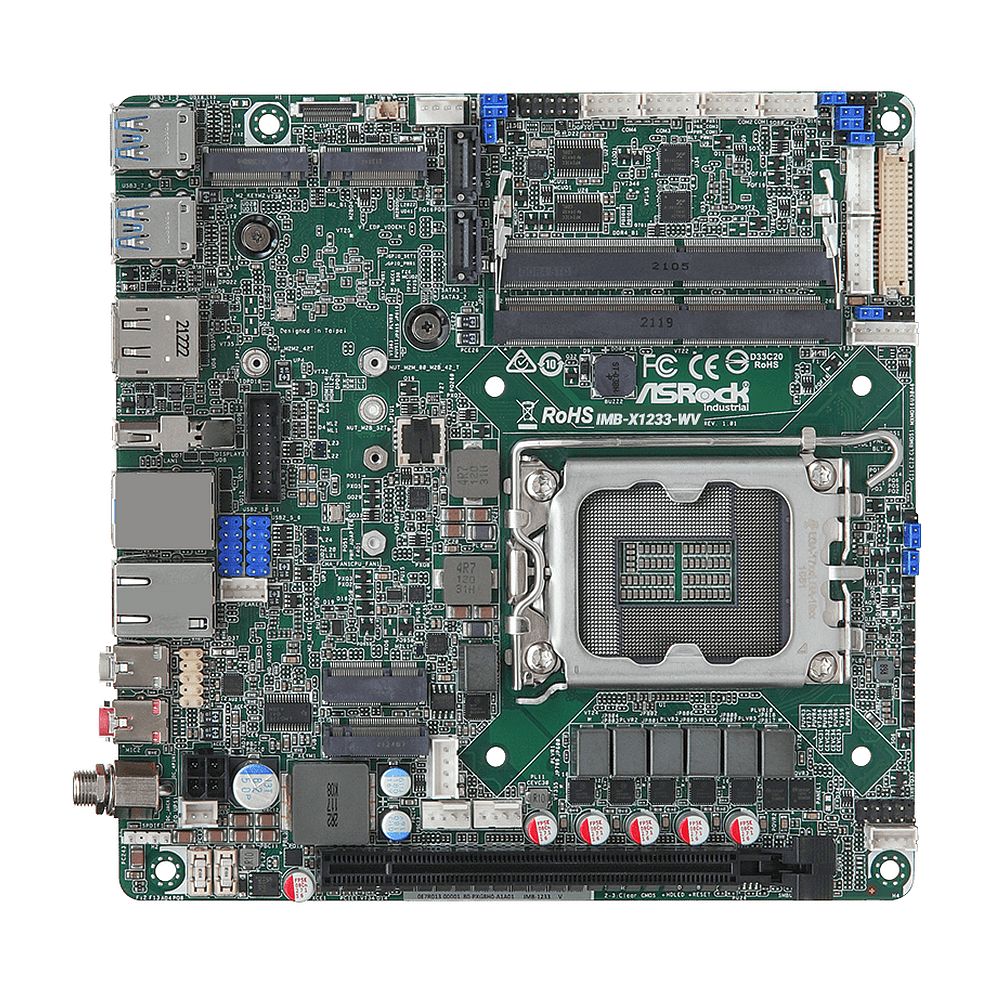

ASROCK Industrial IMB-X1233-WV - Mini-ITX Single-Board-Computer mit Intel® Raptor Lake Mini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1233-WV - Mini-ITX Single-Board-Computer mit Intel® Raptor LakeMini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset2 x 260-pin SO-DIMM ECC/non-ECC DDR4 3200 MHz , up to 64GB (32GB per DIMM)1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 4 x COM, 2 x SATA32 x Intel 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4bTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/112~28V DC-In (Lockable DC Jack)Spezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset
Intel W680
Socket
LGA1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.0-in, 17.0 cm x 17.0 cm x 2.5 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP
eDP1.4b
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x16 (Gen4, Support riser card x8/x8)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Rear I/O
Ethernet
2 x 2.5 Gigabit LAN
USB
4 x USB 3.2 (Gen2)
HDMI
1 x HDMI 2.0b
DisplayPort
2 x DP 1.4a++
Audio
2 (Mic-in, Line-out)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM1, COM2 (RS-232/422/485)
COM3, COM4 (RS-232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 onboard IC
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA
2 x SATA3 (6Gb/s)
RAID
Intel VMD RAID 0/1
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin plug PWR cable or DC Jack(Screw type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
1 x SATA Power Cable (14G000100410AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1233-WVMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial IMB-X1231 - Mini-ITX Single-Board-Computer mit Intel® Raptor Lake Mini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1231 - Mini-ITX Single-Board-Computer mit Intel® Raptor LakeMini-ITX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA32 x Intel 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGATPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX-PWR (24+4-pin) and +12V DC-In co-designSpezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset
Intel W680
Socket
LGA1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920x1200@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G/5G
PCIe
1 x PCIe x16 (Gen4, Support riser card x8/x8)
SIM Socket
1 x Socket connected to M.2 Key B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
2 x DP 1.4a++
VGA
1
Ethernet
2 x 2.5 Gigabit LAN
USB
4 x USB 3.2 (Gen2)
Audio
2 (Mic-in, Line-out)
COM
COM1, COM2 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM3, COM4, COM5 (RS-232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 onboard IC
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA
4 x SATA3 (6Gb/s)
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+4-pin) and +12V DC-In co-design
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
1 x SATA Power Cable (14G000100410AK)
1 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020780000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G020780000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1231MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
- Hersteller: ASROCK Industrial - Artikel: IMB-X1222-WV
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
- Hersteller: ASROCK Industrial - Artikel: IMB-X1222-WV

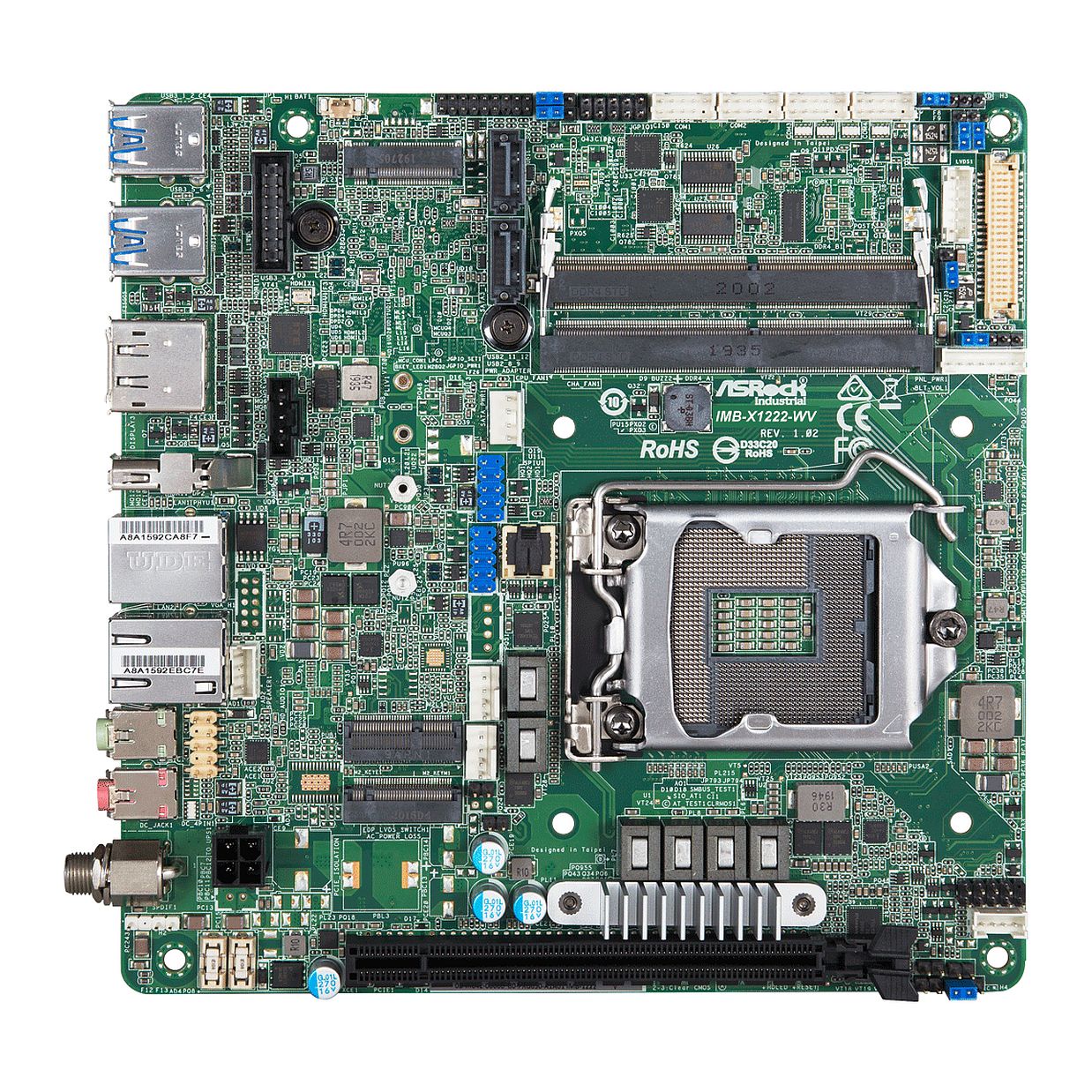

IMB-X1222-WV - Mini-ITX Single-Board-Computer von ASROCK Industrial x86 CPU
Technische Daten
Datenblatt
Handbuch
System Integration
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core™ Processorss, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
Chipset
Intel W480E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.0-in, 17.0 cm x 17.0 cm x 2.5 cm)
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU)
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
eDP
eDP 1.4, Max resolution up to 4096 x 2304@60Hz
MultiDisplay
Triple Display
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
Expansion Slot
PCIe
1 x PCIe x16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 /USB2.0 and SIM for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
2 x RJ-45
Rear I/O
DisplayPort
2 x DP 1.2
Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 (Gen1)
Audio
2 (Mic-in, Line-out)
HDMI
1 x HDMI 2.0a
DC Jack
1
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
4, COM1, 2 (support RS-232/422/485), COM3, 4 (support RS-232 only)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 onboard
LVDS
1, switch by BIOS default LVDS
eDP
1, switch by BIOS default LVDS
Speaker Header
1
SATA PWR Output
1
Thunderbolt header
1
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x4 or SATA3
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1/5/10
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~28V DC-in with 4 pin plug PWR cable or DC Jack (Screw type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
3 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package
3 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1222-WVMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
- Hersteller: ASROCK Industrial - Artikel: IMB-X1220-L
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
- Hersteller: ASROCK Industrial - Artikel: IMB-X1220-L
IMB-X1220-L - Mini-ITX Single-Board-Computer von ASROCK Industrial x86 CPU
Technische Daten
Datenblatt
Handbuch
System Integration
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core™ Processors, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
Chipset
Intel W480E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU)
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
MultiDisplay
Triple Display
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
Expansion Slot
PCIe
1 x PCIe x16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887/897 HD , High Definition Audio. Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT/vPro
Connector
2 x RJ-45
Rear I/O
DisplayPort
1 x DP 1.2
Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 (Gen1)
Audio
2 (Mic-in, Line-out)
COM
2 x COM (RS-232/422/485)
HDMI
1 x HDMI 2.0a
VGA
1
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
3 x COM (RS-232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 onboard
LVDS
1
Speaker Header
1
SATA PWR Output
1
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x4 or SATA3
SATA
4 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1/5/10
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+4-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020623000AK)
1 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020624000AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1220-LMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
- Hersteller: ASROCK Industrial - Artikel: IMB-V2000V
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
- Hersteller: ASROCK Industrial - Artikel: IMB-V2000V

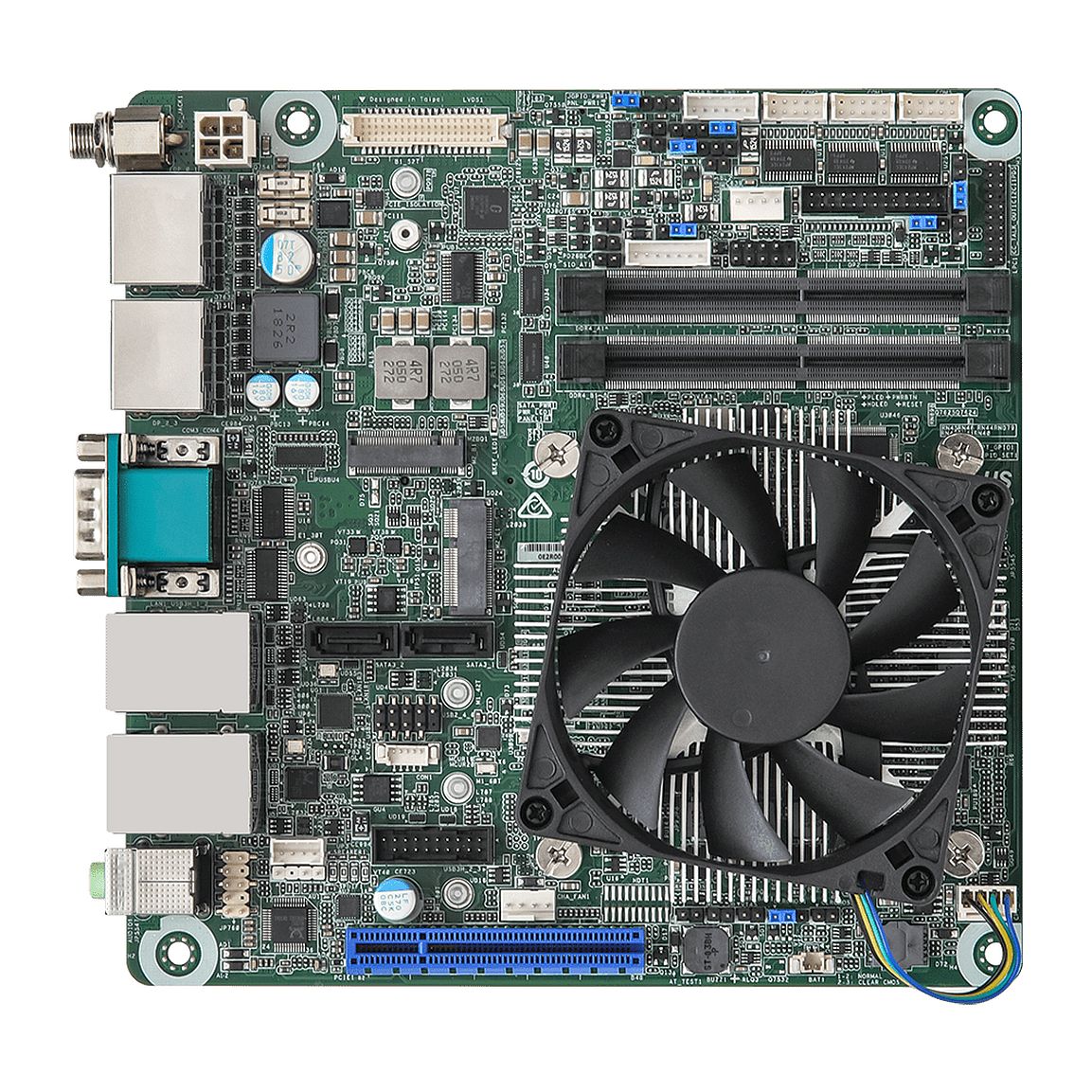

IMB-V2000V - Mini-ITX Single-Board-Computer von ASROCK Industrial mit AMD V2000 x86 CPU
Technische Daten
Datenblatt
Handbuch
System Integration
Processor System
CPU
AMD Ryzen™ Embedded V2000 SoC processors, up to 54W
V2516, 2.1GHz, 10-25W
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Graphics
DisplayPort
3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz
1 x DP 1.4, Max resolution up to 5120x2880 @120Hz
LVDS
LVDS shared with DP_1
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP shared with DP_0
Max resolution up to 3840x2160 @60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x8 (Gen3)
SIM Socket
1x SIM socket connected to M.2 key B
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV with 10/100/1000 Mbps
Support DASH
Connector
2 x RJ-45
Rear I/O
DisplayPort
3 x DP 1.2a, 1 x DP 1.4
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio
2 (Mic-in, Line-out)
COM
1 x COM (RS-232)
1 x COM (RS-232/422/485)
DC Jack
1 (Screw Type)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
3 x COM (RS-232)
GPIO
8 x GPI, 8 x GPO
TPM
TPM 2.0 onboard IC
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
SATA
2 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin plug PWR cable or DC Jack (Screw Type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package
1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-V2000VMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
- Hersteller: ASROCK Industrial - Artikel: IMB-V2000S
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
- Hersteller: ASROCK Industrial - Artikel: IMB-V2000S
IMB-V2000S - Mini-ITX Single-Board-Computer von ASROCK Industrial mit AMD V2000 x86 CPU
Technische Daten
Datenblatt
Handbuch
System Integration
Processor System
CPU
AMD Ryzen™ Embedded V2000 SoC processors, up to 54W
V2546, 3.0GHz, 35-54W
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Graphics
DisplayPort
3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz
1 x DP 1.4, Max resolution up to 5120x2880 @120Hz
LVDS
LVDS shared with DP_1
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP shared with DP_0
Max resolution up to 3840x2160 @60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x8 (Gen3)
SIM Socket
1x SIM socket connected to M.2 key B
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV with 10/100/1000 Mbps
Support DASH
Connector
2 x RJ-45
Rear I/O
DisplayPort
3 x DP 1.2a, 1 x DP 1.4
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio
2 (Mic-in, Line-out)
COM
1 x COM (RS-232)
1 x COM (RS-232/422/485)
DC Jack
1 (Screw Type)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
3 x COM (RS-232)
GPIO
8 x GPI, 8 x GPO
TPM
TPM 2.0 onboard IC
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
SATA
2 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin plug PWR cable or DC Jack (Screw Type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package
1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-V2000SMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
