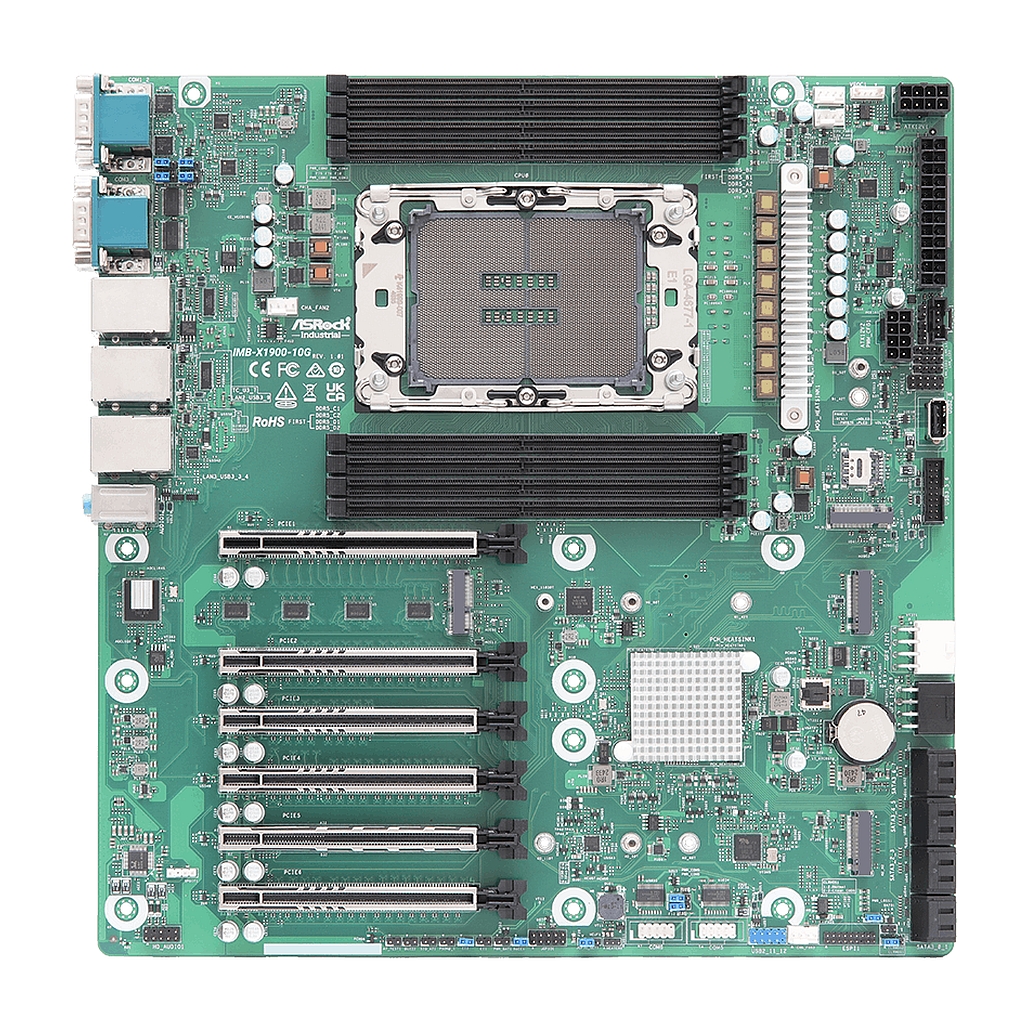

ASROCK Industrial IMB-X1900-10G - EATX MainboardIntel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 4400/4800 MHz, up to 2TB1 x PCIe x16 (Gen5), 3 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 1 x PCIe x4 (Gen4), 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA32 x Intel 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LANTPM 2.0 onboard ICSupport Intel® vPro, VMD RAID 0/1/5/10ATX PWR (8+8+24 Pin)Spezifikation
Processor System
CPU
Intel Xeon W-3500/3400 and W-2500/2400 Series Porcessors
Chipset
Intel W790
Socket
LGA4677
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
EATX (12-in x 11.7-in x 1.6-in, 30.5 cm x 29.7 cm x 4.0 cm)
Memory
Technology
Quad Channel ECC DDR5 4400/4800 MHz*
*1DPC 4800 MHz Natively for Xeon W9, Xeon W7 and Xeon W5
2DPC 4400 MHz Natively for Xeon W9, Xeon W7 and Xeon W5
Supports 4400 MHz Natively for Xeon W3, W5-3423 and W5-3433
Capacity
2TB
Socket
8 x 288-pin RDIMM/RDIMM-3DS
Expansion Slot
PCIe
1 x PCIe x16 Gen5 slot
4 x PCIe x16 Gen4 slot (PCIE3/PCIE4: single at x16 (PCIE4);
dual at x8 (PCIE3) / x8 (PCIE4))
1 x PCIe x16 Gen4 slot (PCIE5 supports x4 mode)
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I226V with 10/100/1000/2500 Mbps
LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector
3 x RJ-45
Rear I/O
Ethernet
1 x 10 Gigabit LAN
2 x 2.5 Gigabit LAN
USB
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM3, COM4 (RS-232)
COM1, COM2 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
2 x USB 2.0 (1 x 2.54 pitch header)
1 x USB 2.0 (vertical con)
COM
COM5, COM6 (RS-232)
GPIO
4 x GPI, 4 x GPO
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 and SATA3 for SSD
1 x M.2 (Key M, 2260/2280/25110) with PCIe Gen4 x4 for SSD
SATA
8 x SATA3, SATA3_0 shared with M.2 K ey M1
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 segments, 0,1,2…255sec
Power Requirements
Input PWR
1 x 24-pin ATX PWR connector
2 x 8-pin 12V PWR connector
1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40°C ~ 85°C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1900-10GMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.
Preis auf Anfrage
