ÜbersichtKey FeaturesCPUIntel® Alder Lake-N Processors N971 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 2.5 Gigabit LANSupports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)TPM 2.0 onboard IC9V~19V DC-In
CPU Produktfamilie: Intel® Alder Lake-N
Intel® N97 (6M Cache, bis zu 3.60 GHz)CPU-Varianten
CPU
Intel® N97
Processor Number
N97
Cache
6 MB Intel® Smart Cache
Max Turbo Frequency
3.60 GHz
Total Cores
4
Spezifikation
Processor System
CPU
Intel Alder Lake-N Processors N97
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A, Supports DP 1.4a display output)
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS232/422/485)
Audio Header
line in /out (share with audio Jack, by BIOS setting)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA Data/Power Cable (14G000104503AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-N97MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC-N6415 - NUC Single-Board-Computer mit Intel® Elkhart Lake NUC Motherboard - Intel®ElkHart Lake Processors N6415
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC-N6415 - NUC Single-Board-Computer mit Intel® Elkhart LakeNUC Motherboard - Intel®ElkHart Lake Processors N6415
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® ElkHart Lake Processors N64152 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2TPM onboard12V~19V DC-In
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Pentium® N6415 (1.5M Cache, bis zu 3.00 GHz)CPU-Varianten
CPU
Intel® Pentium® N6415
Processor Number
N6415
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel ElkHart Lake Processors
NUC-N6415 (N6415, QC, Max Speed up to 3.0GHz, 6.5W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Max 2 display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A)
1 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS232/422/485)
Audio Header
line in /out (share with audio Jack, by BIOS setting)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-N6415MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC-N6210 - NUC Single-Board-Computer NUC Motherboard - Intel®ElkHart Lake Processors N6210
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC-N6210 - NUC Single-Board-ComputerNUC Motherboard - Intel®ElkHart Lake Processors N6210
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® ElkHart Lake Processors N62102 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2TPM onboard12V~19V DC-InSpezifikation
Processor System
CPU
Intel ElkHart Lake Processors
NUC-N6210 (N6210, DC, Max Speed up to 2.6GHz, 6.5W
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Max 2 display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A)
1 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS232/422/485)
Audio Header
line in /out (share with audio Jack, by BIOS setting)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-N6210MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC-J6426 - NUC Single-Board-Computer mit Intel® Elkhart Lake NUC Motherboard - Intel®ElkHart Lake Processors J6426
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

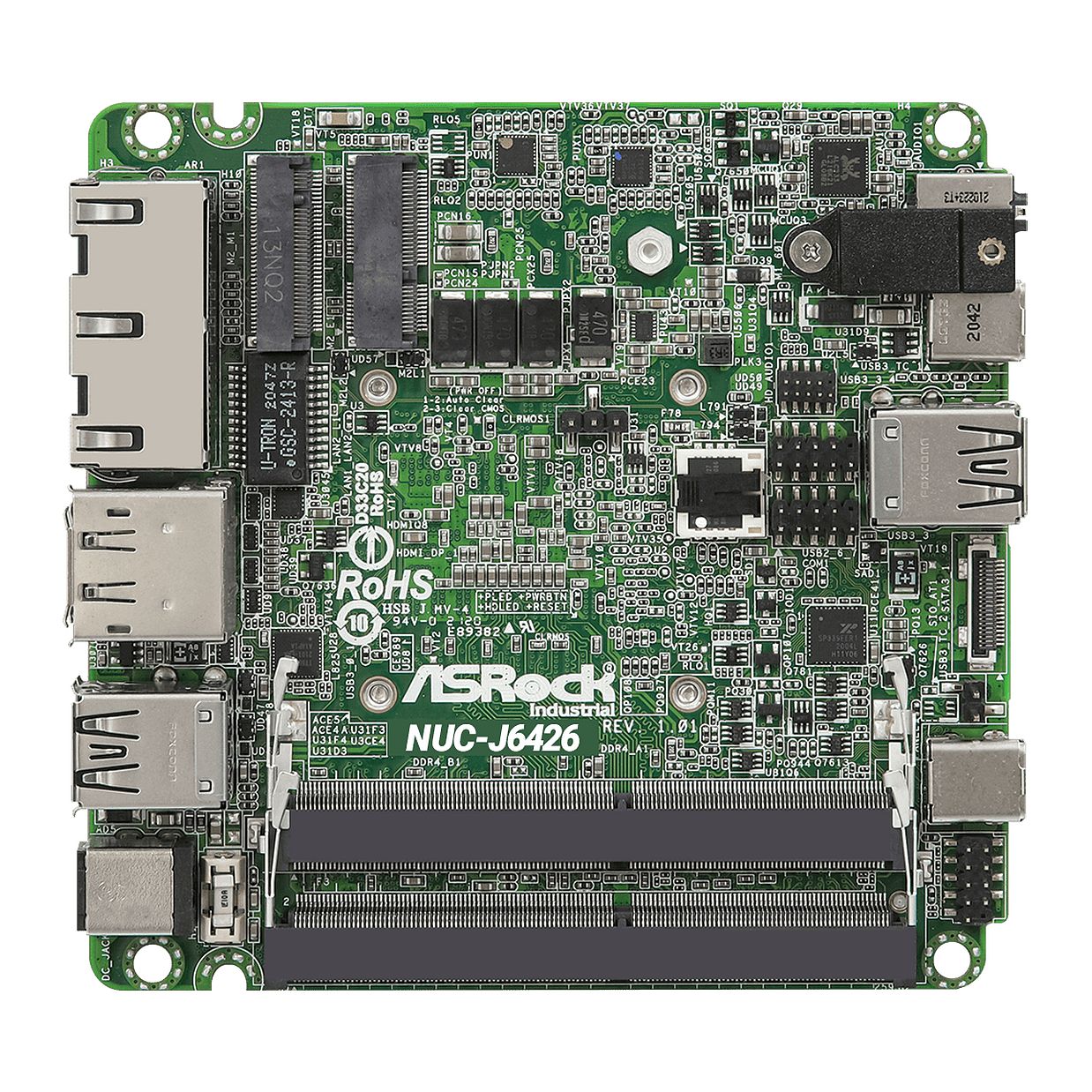

ASROCK Industrial NUC-J6426 - NUC Single-Board-Computer mit Intel® Elkhart LakeNUC Motherboard - Intel®ElkHart Lake Processors J6426
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® ElkHart Lake Processors J64262 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2TPM onboard12V~19V DC-In
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Pentium® J6426 (1.5M Cache, bis zu 3.00 GHz)CPU-Varianten
CPU
Intel® Pentium® J6426
Processor Number
J6426
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel ElkHart Lake Processors
NUC-J6426 (J6426, QC, Max Speed up to 3.0GHz, 10W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Max 2 display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A)
1 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS232/422/485)
Audio Header
line in /out (share with audio Jack, by BIOS setting)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-J6426MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC-J6412 - NUC Single-Board-Computer mit Intel® Elkhart Lake NUC Motherboard - Intel®ElkHart Lake Processors J6412
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC-J6412 - NUC Single-Board-Computer mit Intel® Elkhart LakeNUC Motherboard - Intel®ElkHart Lake Processors J6412
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® ElkHart Lake Processors J64122 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2TPM 2.0 onboard IC12V~19V DC-In
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, bis zu 2.60 GHz)CPU-Varianten
CPU
Intel® Celeron® J6412
Processor Number
J6412
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel ElkHart Lake Processors
NUC-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Max 2 display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A)
1 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS232/422/485)
Audio Header
line in /out (share with audio Jack, by BIOS setting)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-J6412MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
NUC-8665UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i7-8665UE x86 CPU
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
NUC-8665UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i7-8665UE x86 CPUCPU
CPU Produktfamilie: Intel® Whiskey Lake
Intel® Core™ i7-8665UE (8M Cache, bis zu 4.40 GHz)
Technische Daten
Datenblatt
System Integration
Processor System
CPU
Intel 8th Gen(Whiskey lake-U)Core™ Processors
NUC-8665UE(i7-8665UE QC, 1.8GHz, 15W)
Chipset
MCP
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen9 Graphics DX 12
HDMI
HDMI 1.4
Max resolution up to 4096 x 2160@24Hz
DisplayPort
DisplayPort 1.2a,
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB3.2 (Gen2)
Audio
1 (Mic-in or Line-out)
Rear I/O
HDMI
1 x HDMI 1.4
DisplayPort
2 xDP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2x USB3.2(Gen2)
DC Jack
1
Internal Connector
USB
2 x USB2.0 (1 x 2.00 pitch header)
COM
1 x COM (RS232/422/485)
TPM
TPM2.0 on board IC
SATA PWR Output
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3(6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
12V DC-in(DC Jack)
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=6.5mm (13G020295030AK)
1 x NUT M2 H=3.35mm (13G020295030AK)
1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK)
1 x SATA Data/Power Cable (14G000103111AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-8665UEMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
NUC-8365UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i5-8365UE x86 CPU
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
NUC-8365UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i5-8365UE x86 CPUCPU
CPU Produktfamilie: Intel® Whiskey Lake
Intel® Core™ i5-8365UE (6M Cache, bis zu 4.10 GHz)
Technische Daten
Datenblatt
Handbuch
System Integration
Processor System
CPU
Intel 8th Gen(Whiskey lake-U)Core™ Processors
NUC-8365UE(i5-8365UE QC, 1.6GHz, 15W)
Chipset
MCP
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen9 Graphics DX 12
HDMI
HDMI 1.4
Max resolution up to 4096 x 2160@24Hz
DisplayPort
DisplayPort 1.2a,
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB3.2 (Gen2)
Audio
1 (Mic-in or Line-out)
Rear I/O
HDMI
1 x HDMI 1.4
DisplayPort
2 xDP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2x USB3.2(Gen2)
DC Jack
1
Internal Connector
USB
2 x USB2.0 (1 x 2.00 pitch header)
COM
1 x COM (RS232/422/485)
TPM
TPM2.0 on board IC
SATA PWR Output
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3(6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
12V DC-in(DC Jack)
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK)
1 x SATA Data/Power Cable (14G000103111AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-8365UEMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
NUC-8145UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i3-8145UE x86 CPU
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
/* background-color: #ffffff; */ /* white */
background-color: #798490; /* light gray */
overflow: hidden;
/*font-family: 'Inter', sans-serif; */
font-family: 'Ubuntu', sans-serif;
}
li.menu-item {
color: white;
float: left;
/* margin-right: 10px; */
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;
padding: 7px 16px;
/* border-radius: 3px; */
}
li.menu-item a {
display: block;
color: white;
/* color: #2b3136; */
text-align: center;
text-decoration: none;
/* background-color: #f7c13d; */
background-color: #798490; /* dark gray */
padding: 7px 16px;
*/ border-radius: 3px; */
}
li.menu-item a:hover {
font-weight: bolder;
color: white;
/* background-color: #3d444d; */
background-color: #f7c13d; /* yellow */
}
.li.menu-item a:active {
/*
.li.menu-item :active { */
/* color: black; */
color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;
/* background-color: #f7c13d; */
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid Lavender;
text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
padding-left: 35px;
}
td {
padding-top: 15px;
padding-left: 35px;
padding-right: 25px;
vertical-align: top;
}
#prod_variants {
width: 100%;
border-collapse: collapse;
}
#prod_variants .column_1 {
width: 15%;
}
#prod_variants .column_2 {
width: 20%;
}
#prod_variants .column_3 {
width: 65%;
}
#prod_variants td {
padding: 5px;
}
/* toggle background color of table rows */
#prod_variants tr:nth-child(even) {
background-color: #f2f2f2;
}
NUC-8145UE - NUC Single-Board-Computer von ASROCK Industrial mit Intel® Whiskey Lake i3-8145UE x86 CPUCPU
CPU Produktfamilie: Intel® Whiskey Lake
Intel® Core™ i3-8145UE (4M Cache, bis zu 3.90 GHz)
Technische Daten
Datenblatt
System Integration
Processor System
CPU
Intel 8th Gen(Whiskey lake-U)Core™ Processors
NUC-8145UE(i3-8145UE DC, 2.2 GHz, 15W)
Chipset
MCP
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen9 Graphics DX 12
HDMI
HDMI 1.4
Max resolution up to 4096 x 2160@24Hz
DisplayPort
DisplayPort 1.2a,
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I219V with 10/100/1000 Mbps
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB3.2 (Gen2)
Audio
1 (Mic-in or Line-out)
Rear I/O
HDMI
1 x HDMI 1.4
DisplayPort
2 xDP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2x USB3.2(Gen2)
DC Jack
1
Internal Connector
USB
2 x USB2.0 (1 x 2.00 pitch header)
COM
1 x COM (RS232/422/485)
TPM
TPM2.0 on board IC
SATA PWR Output
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3(6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
12V DC-in(DC Jack)
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=6.5mm (13G020295030AK)
1 x NUT M2 H=3.35mm (13G020295030AK)
1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK)
1 x SATA Data/Power Cable (14G000103111AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC-8145UEMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.
Preis auf Anfrage
