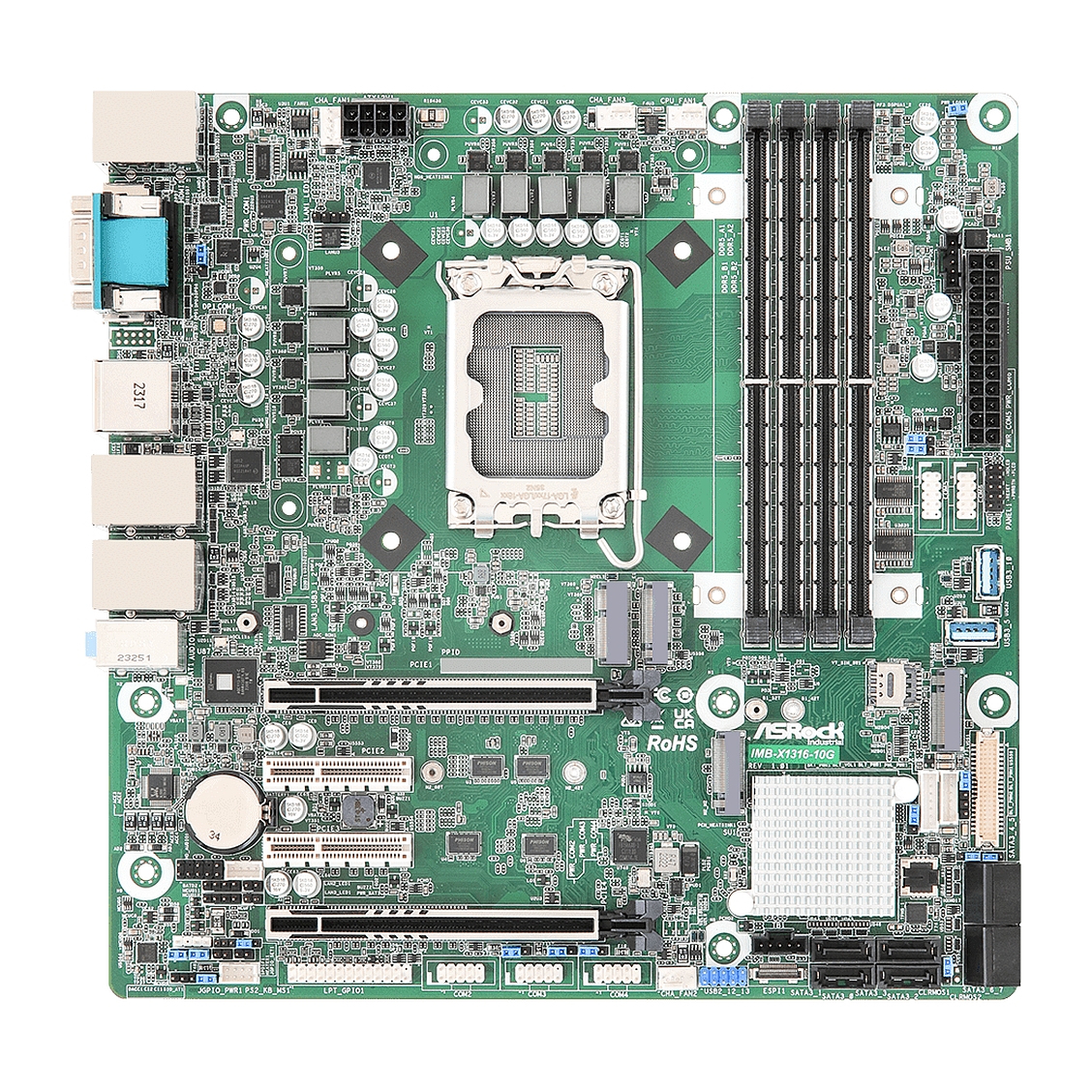

ASROCK Industrial IMB-X1316-10G - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400 MHz, up to 192GB (48GB per DIMM)1 x PCIex16 (Gen5), 1 x PCIex8 (Gen5), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2, 7 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA31 x Marvell 10 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDSTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX PWR (24+8 Pin)Spezifikation
Processor System
CPU
Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset
Intel W680
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Memory
Technology
ECC/non-ECC DDR5 4400 MHz (2DPC - 1DIMM)
ECC/non-ECC DDR5 4000 MHz (2DPC - 2DIMM 1R)
ECC/non-ECC DDR5 3600 MHz (2DPC - 2DIMM 2R)
Capacity
192GB (48GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
2 x HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2 slot, M.2 Key M2(M2_M2) is limited to install.
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I226LM with 10/100/1000/2500 Mbps, support vPro
LAN2: Intel I210AT with 10/100/1000 Mbps
LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector
3 x RJ-45
Rear I/O
HDMI
2 x HDMI 2.0b
DisplayPort
1 x DP++
Ethernet
1 x 10 Gigabit LAN
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 2.0
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen2 vertical Con
COM
COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only PCIE3 support)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1316-10GMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage

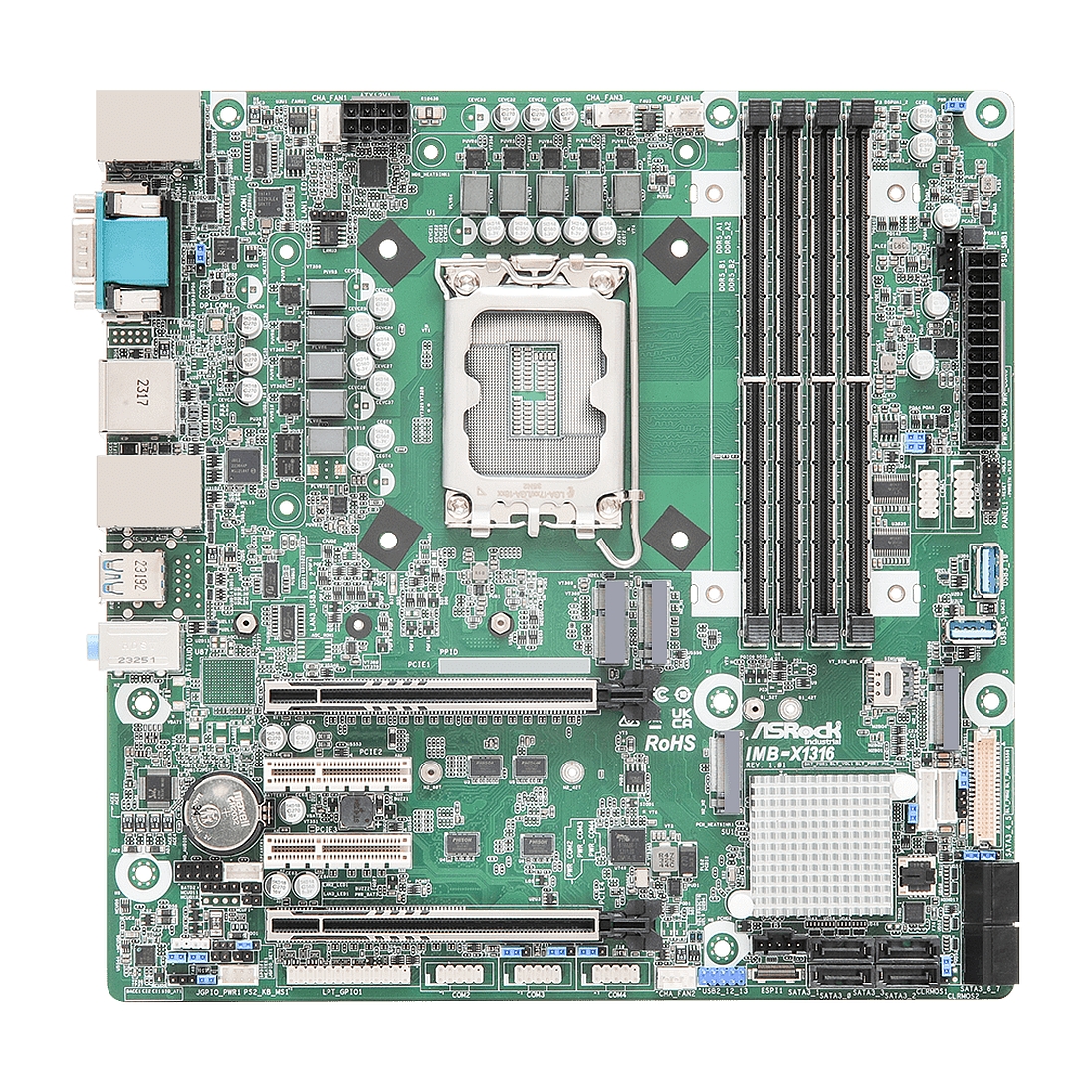

ASROCK Industrial IMB-X1316 - Micro-ATX Mainboard mit Intel® Raptor Lake Micro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1316 - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400 MHz, up to 192GB (48GB per DIMM)1 x PCIex16 (Gen5), 1 x PCIex8 (Gen5), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2, 7 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDSTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX PWR (24+8 Pin)Spezifikation
Processor System
CPU
Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset
Intel W680
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Memory
Technology
ECC/non-ECC DDR5 4400 MHz (2DPC - 1DIMM)
ECC/non-ECC DDR5 4000 MHz (2DPC - 2DIMM 1R)
ECC/non-ECC DDR5 3600 MHz (2DPC - 2DIMM 2R)
Capacity
192GB (48GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
2 x HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2 slot, M.2 Key M2(M2_M2) is limited to install.
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I226LM with 10/100/1000/2500 Mbps, support vPro
LAN2: Intel I210AT with 10/100/1000 Mbps
Connector
2 x RJ-45
Rear I/O
HDMI
2 x HDMI 2.0b
DisplayPort
1 x DP++
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 2.0
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen2 vertical Con
COM
COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only PCIE3 support)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1316MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial IMB-X1314 - Micro-ATX Mainboard mit Intel® Raptor Lake Micro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-X1314 - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset4 x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)1 x PCIex16 (Gen4), 1 x PCIex8 (Gen4), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA33 x Intel 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDSTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX PWR (24+8 Pin)Spezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset
Intel W680
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
128GB (32GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1);
dual at x8 (PCIE1) / x8 (PCIE3))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2/PCIE4 slot, M.2 Key M2(M2_M2) and M.2 Key E(M2_E1) are limited to install.
M.2
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN3: Intel I225LM/I225V with 10/100/1000/2500 Mbps
Connector
3 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.4a
VGA
1
Ethernet
3 x 2.5 Gigabit LAN
USB
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1, COM2 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard IC
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only support by PCIE4)
Storage
M.2
1 x M.2 (Key M, up to 25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020776000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G020776000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1314MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial IMB-X1313 - Micro-ATX Mainboard Micro ATX Motherboard - Intel®Xeon & 10th Gen (Comet lake-S) Core™ Processors with W480E chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

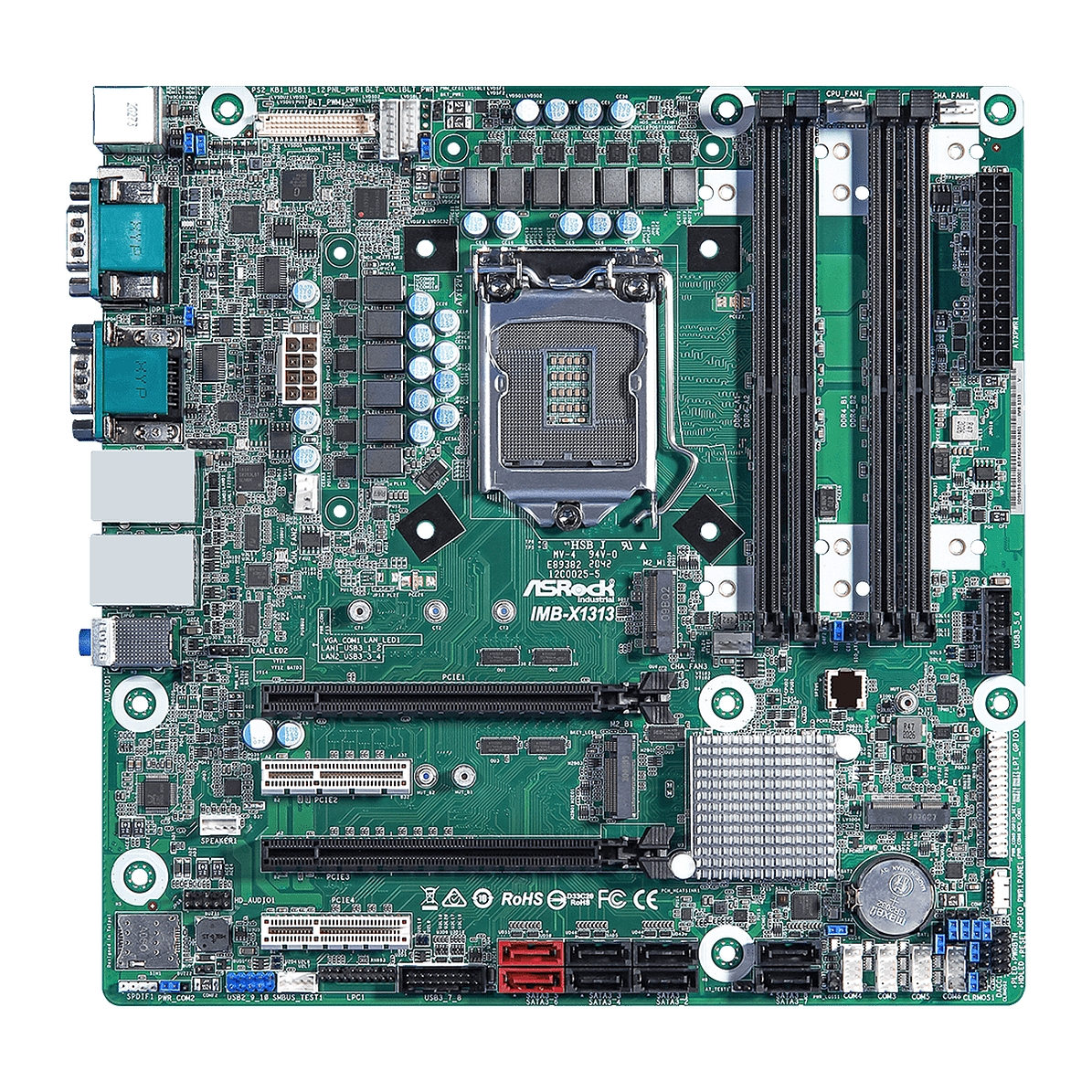

ASROCK Industrial IMB-X1313 - Micro-ATX MainboardMicro ATX Motherboard - Intel®Xeon & 10th Gen (Comet lake-S) Core™ Processors with W480E chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® Xeon & 10th Gen (Comet lake-S) Core™ Processors with W480E chipset4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GBSupport ECC Long DIMM memory modules1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen34 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.08 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LANSupport Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4 optional), 1 x HDMI 2.0aTPM 2.0 onboardSupports Intel® vPro, AMT, RAID 0/1/5/10ATX-PWR (24+8-pin)Spezifikation
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core™ Processors, Up to 125 W
Chipset
Intel W480E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU)
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
128GB
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096 x 2160@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Triple Display
eDP
eDP 1.4, Max resolution up to 4096 x 2304@60Hz
Expansion Slot
PCIe
2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
(PCIE1: Support riser card x8 / x8, x8 / x4 / x4)
2 x PCIe x4 Gen3
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB2.0 and SIM for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2
VGA
1
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 Gen2, 2 x USB 2.0
Audio
3 ( Line-In, Line-Out, Mic-In)
COM
2 x COM (RS-232/422/485)
PS2
1
Internal Connector
USB
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
4 x COM (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard
LVDS
1
Speaker Header
1
eDP
1 (BOM Option support)
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD
* Shared with SATA3_1 / SATA3_2 Ports
- When using M.2 PCIe x4 SSD, both SATA3_1 and SATA_2 Ports are disabled
- When using M.2 SATA SSD, only SATA3_1 Port is disabled, and SATA3_2 Port is available
SATA
8 x SATA3 (6Gb/s)
*Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID
Intel SATA RAID 0/1/5/10
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-X1313MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial IMB-1316 - Micro-ATX Mainboard mit Intel® Raptor Lake Micro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-1316 - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset4 x 288-pin Long-DIMM DDR5 4400 MHz, up to 192GB (48GB per DIMM)1 x PCIex16 (Gen5), 1 x PCIex8 (Gen5), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2, 6 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 2 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDSTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX PWR (24+8 Pin)Spezifikation
Processor System
CPU
Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset
Intel Q670
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Memory
Technology
DDR5 4400 MHz (2DPC - 1DIMM)
DDR5 4000 MHz (2DPC - 2DIMM 1R)
DDR5 3600 MHz (2DPC - 2DIMM 2R)
Capacity
192GB (48GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
2 x HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2 slot, M.2 Key M2(M2_M2) is limited to install.
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket
1x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I226LM with 10/100/1000/2500 Mbps, support vPro
LAN2: Intel I210AT with 10/100/1000 Mbps
Connector
2 x RJ-45
Rear I/O
HDMI
2 x HDMI 2.0b
DisplayPort
1 x DP++
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 2.0
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1 (RS-232/422/485)
Internal Connector
USB
1 x USB 3.2 Gen1 vertical Con
1 x USB 3.2 Gen2 vertical Con
COM
COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only PCIE3 support)
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G02P041000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-1316MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage

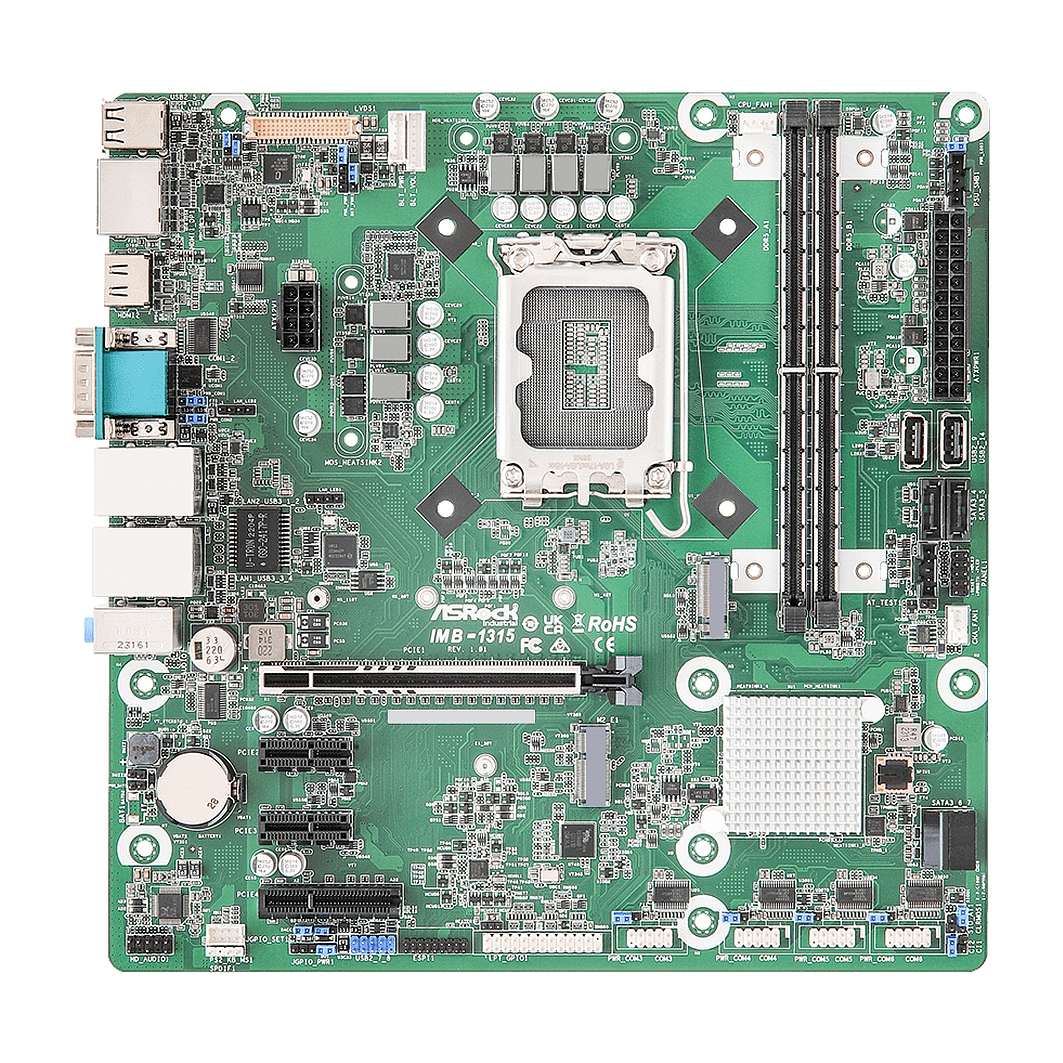

ASROCK Industrial IMB-1315 - Micro-ATX Mainboard mit Intel® Raptor Lake Micro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-1315 - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48 GB per DIMM)1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 4 x SATA32 x Intel 1 Gigabit LANSupports Triple display, 1 x HDMI 2.0b, 1 x HDMI 1.4b, 1 x DP 1.4a, 1 x LVDS or eDPTPM 2.0 onboard ICATX PWR (8+24 Pin)Spezifikation
Processor System
CPU
Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset
Intel H610
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.56-in, 24.4 cm x 24.4 cm x 3.97 cm)
Memory
Technology
Dual Channel DDR5 4800/5600 MHz*
* Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ.
Capacity
96GB (48GB per DIMM)
Socket
2 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 1.4b: Max resolution up to 4096 x 2160@30Hz
HDMI 2.0b: Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay
Triple Display
Expansion Slot
PCIe
1 x PCIe x16 (Gen5)
1 x PCIe x4 (Gen3)
2 x PCIe x1 (Gen3)
M.2
1 x M.2 (Key E, 2230) with CNVi for Wireless
Audio
Interface
Realtek ALC662 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I210AT with 10/100/1000 Mbps (Optional: supports PoE)
LAN2: Intel I219V with 10/100/1000 Mbps
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
1 x HDMI 1.4b
DisplayPort
1 x DP++
Ethernet
2 x 1 Gigabit LAN
USB
4 x USB 3.2 Gen1
2 x USB 2.0
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1 (RS-232/422/485), COM2 (RS-232)
Internal Connector
USB
4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)
COM
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1
Security
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIe x 1 for SSD
SATA
4 x SATA3
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G02P028000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G02P028000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-1315MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage

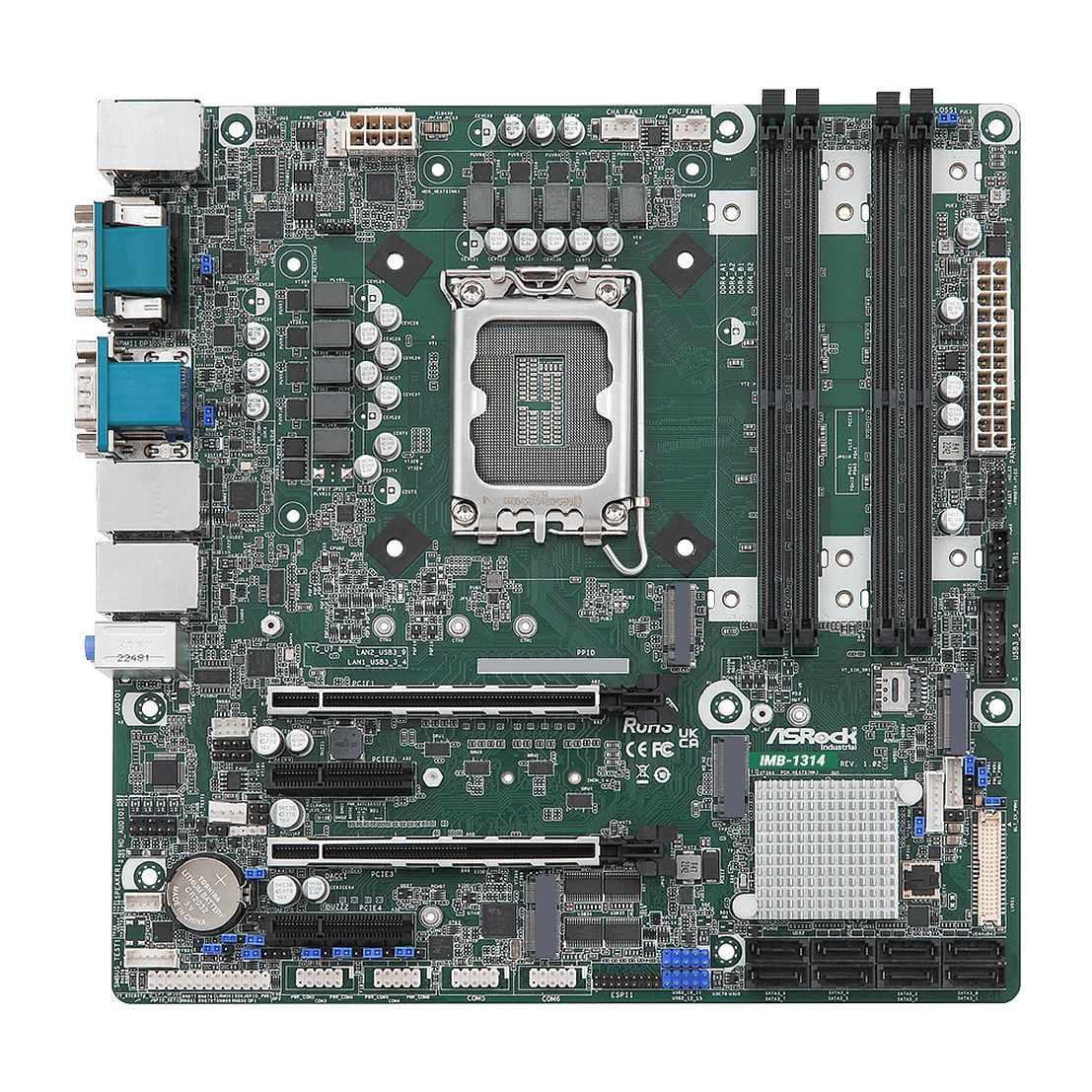

ASROCK Industrial IMB-1314 - Micro-ATX Mainboard mit Intel® Raptor Lake Micro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q..
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-1314 - Micro-ATX Mainboard mit Intel® Raptor LakeMicro ATX Motherboard - Intel®14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q..
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset4 x 288-pin Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)1 x PCIex16 (Gen4), 1 x PCIex8 (Gen4), 2 x PCIex4 (Gen4), 1 x USB3.2 Gen2x2, 5 x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA32 x Intel 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDSTPM 2.0 onboard ICSupports Intel® vPro, VMD RAID 0/1/5/10ATX PWR (24+8 Pin)Spezifikation
Processor System
CPU
Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors , up to 125W
Chipset
Intel Q670
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
128GB (32GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1);
dual at x8 (PCIE1) / x8 (PCIE3))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2/PCIE4 slot, M.2 Key M2(M2_M2) and M.2 Key E(M2_E1) are limited to install.
M.2
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.4a
VGA
1
Ethernet
2 x 2.5 Gigabit LAN
USB
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1, COM2 (RS-232/422/485)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard IC
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only support by PCIE4)
Storage
M.2
1 x M.2 (Key M, up to 25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020776000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G020776000AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-1314MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage

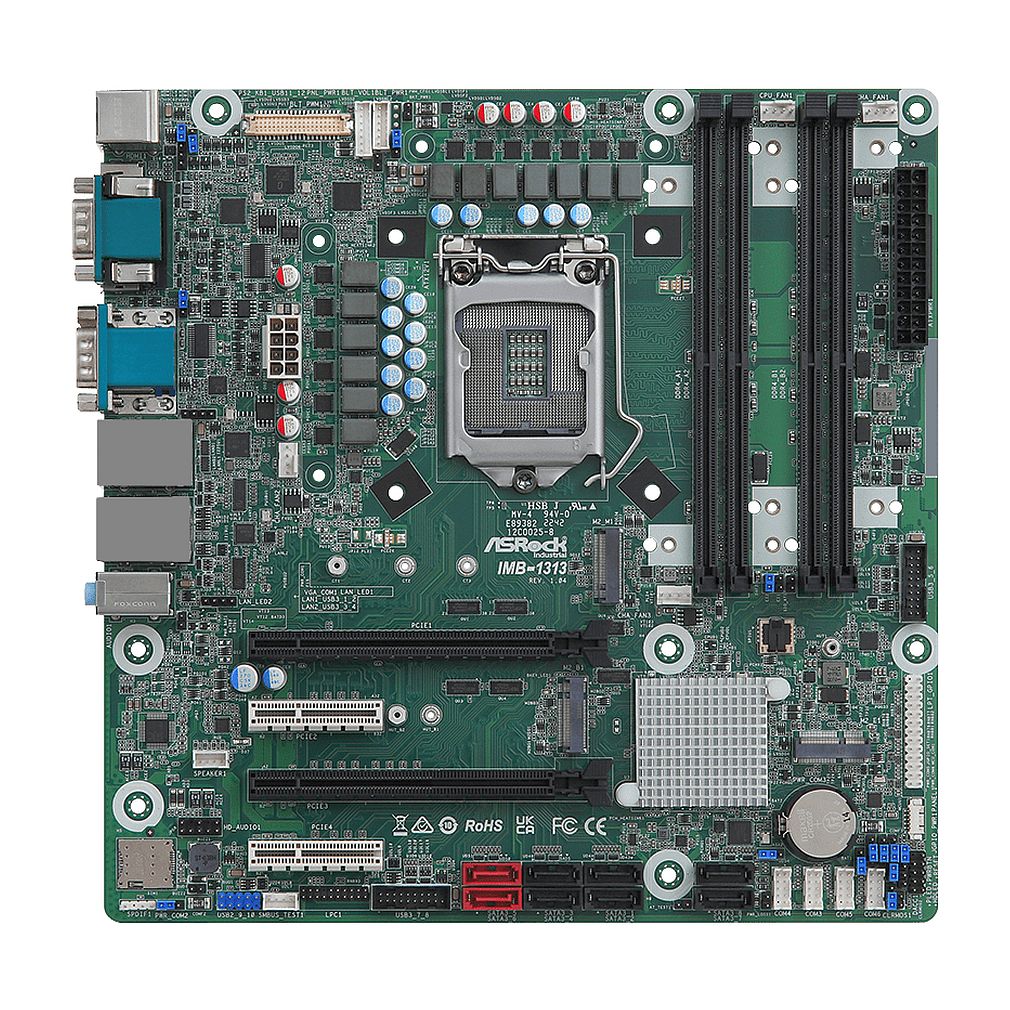

ASROCK Industrial IMB-1313 - Micro-ATX Mainboard Micro ATX Motherboard - Intel®10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial IMB-1313 - Micro-ATX MainboardMicro ATX Motherboard - Intel®10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen34 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.08 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LANSupport Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4 optional), 1 x HDMI 2.0aTPM 2.0 onboardSupports Intel® vPro, AMT, RAID 0/1/5/10ATX-PWR (24+8-pin)Spezifikation
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core™ Processors, up to 125 W
Chipset
Intel Q470E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
128GB
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz
DisplayPort
DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
VGA
Max resolution up to 1920 x 1200@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
Triple Display
eDP
eDP 1.4, Max resolution up to 4096 x 2304@60Hz
Expansion Slot
PCIe
2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1)/ x8 (PCIE3))
(PCIE1: Support riser card x8 / x8, x8 / x4 / x4)
2 x PCIe x4 Gen3
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2
VGA
1
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 Gen2, 2 x USB2.0
Audio
3 ( Line-In, Line-Out, Mic-In )
COM
2 x COM (RS-232/422/485)
PS2
1
Internal Connector
USB
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
6 x USB 2.0 (3 x 2.54 pitch header)
COM
4 x COM (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard
LVDS
1
Speaker Header
1
eDP
1 (BOM Option support)
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA and PCIe x4 for SSD
* Shared with SATA3_5 / SATA3_6 Ports
- When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled
- When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA
8 x SATA3 (6Gb/s)
*Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID
Intel SATA RAID 0/1/5/10
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package
3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: IMB-1313MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
