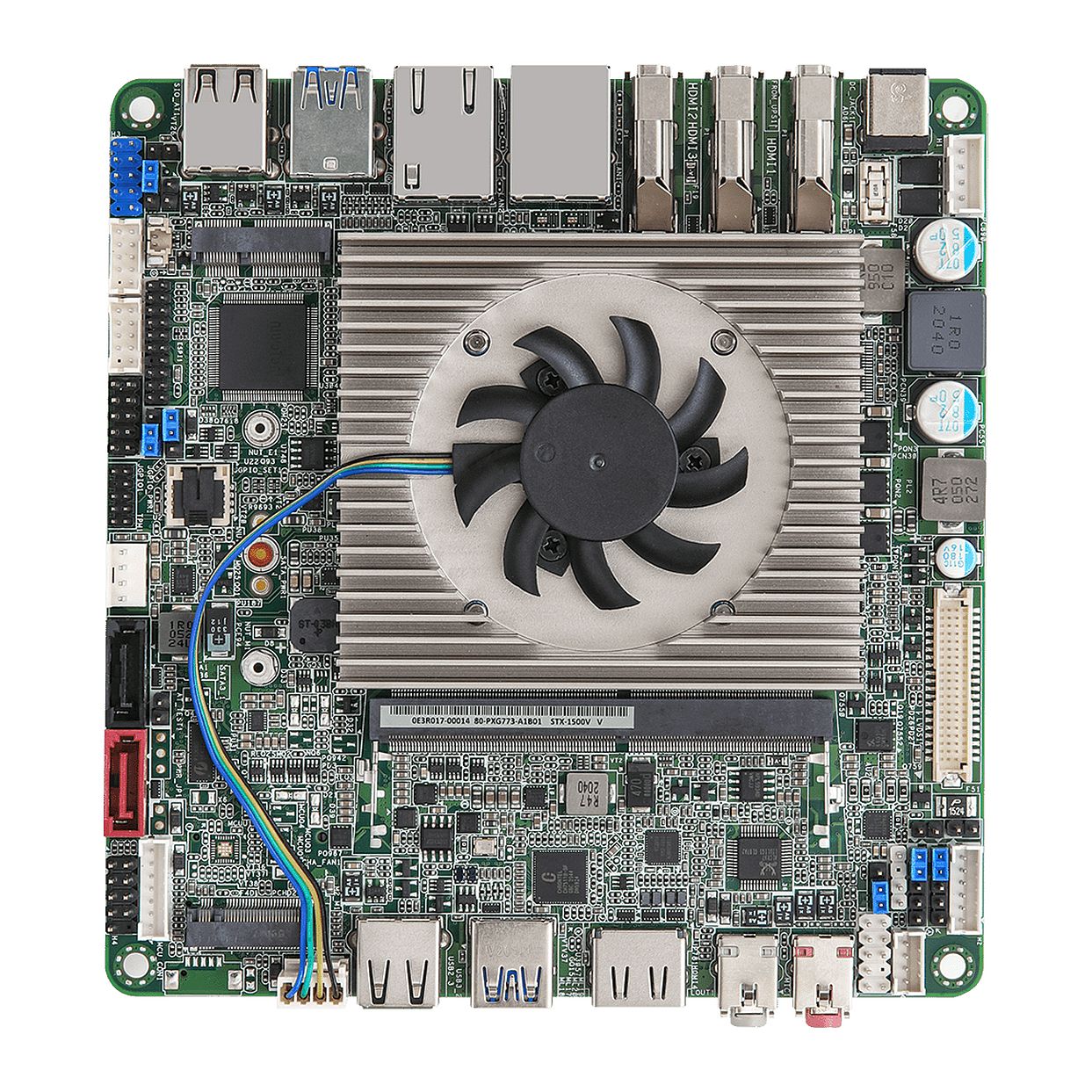

ASROCK Industrial STX-1500V - Mini-STX Mainboard mit Intel® Tiger LakeMini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® Tiger Lake-UP3 MCP Processor2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupport Quad display, 4 x HDMI 2.0a, 1 x LVDS, 1 x eDP 1.4TPM HeaderSupports Intel® RAID 0/112~28V DC-InSpezifikation
Processor System
CPU
Intel 11th Gen (Tiger Lake-UP3) Core™ Processors
I3-1115G4E, DC, Max Speed up to 3.9GHz, up to 28W
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics for i3 CPU
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219V with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2, 1 x USB2.0
HDMI
1 x HDMI 2.0a
Audio
2 (Mic-in, Line-out)
Rear I/O
HDMI
3 x HDMI 2.0a
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
COM
COM1 (RS232/422/485)
COM2 (RS232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1500VMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial STX-1500P - Mini-STX Mainboard mit Intel® Tiger Lake Mini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1500P - Mini-STX Mainboard mit Intel® Tiger LakeMini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Tiger Lake-UP3 MCP Processor2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupport Quad display, 4 x HDMI 2.0a, 1 x LVDS, 1 x eDP 1.4TPM 2.0 IC onboard, supports Intel® vProSupports Intel® RAID 0/112~28V DC-In
CPU Produktfamilie: Intel® Tiger Lake
Intel® Core™ i7-1185G7E (12M Cache, bis zu 4.40 GHz)CPU-Varianten
CPU
Intel® Core™ i7-1185G7E
Processor Number
i7-1185G7E
Cache
12 MB Intel® Smart Cache
Max Turbo Frequency
4.40 GHz
Total Cores
4
Total Threads
8
Spezifikation
Processor System
CPU
Intel 11th Gen (Tiger Lake-UP3) Core™ Processors
i7-1185G7E, QC, Max Speed up to 4.4GHz, up to 28W
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics for i7 CPU
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2, 1 x USB2.0
HDMI
1 x HDMI 2.0a
Audio
2 (Mic-in, Line-out)
Rear I/O
HDMI
3 x HDMI 2.0a
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
COM
COM1 (RS232/422/485)
COM2 (RS232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 IC onboard
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1500PMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial STX-1500M - Mini-STX Mainboard mit Intel® Tiger Lake Mini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1500M - Mini-STX Mainboard mit Intel® Tiger LakeMini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Tiger Lake-UP3 MCP Processor2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupport Quad display, 1 x LVDS, 1 x eDP 1.4, 4 x HDMI 2.0aTPM 2.0 IC onboard, supports Intel® vProSupports Intel® RAID 0/112~28V DC-In
CPU Produktfamilie: Intel® Tiger Lake
Intel® Core™ i5-1145G7E (8M Cache, bis zu 4.10 GHz)CPU-Varianten
CPU
Intel® Core™ i5-1145G7E
Processor Number
i5-1145G7E
Cache
8 MB Intel® Smart Cache
Max Turbo Frequency
4.10 GHz
Total Cores
4
Total Threads
8
Spezifikation
Processor System
CPU
Intel 11th Gen (Tiger Lake-UP3) Core™ Processors
i5-1145G7E, QC, Max Speed up to 4.1GHz, up to 28W
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics for i5 CPU
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2, 1 x USB2.0
HDMI
1 x HDMI 2.0a
Audio
2 (Mic-in, Line-out)
Rear I/O
HDMI
3 x HDMI 2.0a
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
COM
COM1 (RS232/422/485)
COM2 (RS232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM 2.0 IC onboard
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1500MMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial STX-1500E - Mini-STX Mainboard mit Intel® Tiger Lake Mini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1500E - Mini-STX Mainboard mit Intel® Tiger LakeMini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Tiger Lake-UP3 MCP Processor2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupport Quad display, 4 x HDMI 2.0a, 1 x LVDS, 1 x eDP 1.4TPM HeaderSupports Intel® RAID 0/112~28V DC-In
CPU Produktfamilie: Intel® Tiger Lake
Intel® Celeron® 6305E (4M Cache, 1.80 GHz)CPU-Varianten
CPU
Intel® Celeron® 6305E
Processor Number
6305E
Cache
4 MB Intel® Smart Cache
Total Cores
2
Total Threads
2
Spezifikation
Processor System
CPU
Intel 11th Gen (Tiger Lake-UP3) Core™ Processors
Celeron 6305E, DC, 1.8GHz, 15W
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics for Celeron CPU
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219V with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2, 1 x USB2.0
HDMI
1 x HDMI 2.0a
Audio
2 (Mic-in, Line-out)
Rear I/O
HDMI
3 x HDMI 2.0a
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
COM
COM1 (RS232/422/485)
COM2 (RS232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1500EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial STX-1500 - Mini-STX Mainboard mit Intel® Tiger Lake Mini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1500 - Mini-STX Mainboard mit Intel® Tiger LakeMini-STX Motherboard - Intel®Tiger Lake-UP3 MCP Processor
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Tiger Lake-UP3 MCP Processor2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA31 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LANSupport Quad display, 4 x HDMI 2.0a, 1 x LVDS, 1 x eDP1.4TPM Header (STX-1500E/STX-1500V)TPM 2.0 IC onboard, supports Intel® vPro (STX-1500M/STX-1500P)Supports Intel® RAID 0/112~28V DC-In
CPU Produktfamilie: Intel® Tiger Lake
Intel® Core™ i7-1185G7E (12M Cache, bis zu 4.40 GHz)Intel® Core™ i5-1145G7E (8M Cache, bis zu 4.10 GHz)Intel® Celeron® 6305E (4M Cache, 1.80 GHz)CPU-Varianten
CPU
Intel® Core™ i7-1185G7E
Intel® Core™ i5-1145G7E
Intel® Celeron® 6305E
Processor Number
i7-1185G7E
i5-1145G7E
6305E
Cache
12 MB Intel® Smart Cache
8 MB Intel® Smart Cache
4 MB Intel® Smart Cache
Total Cores
4
4
2
Total Threads
8
8
2
Max Turbo Frequency
4.40 GHz
4.10 GHz
Spezifikation
Processor System
CPU
Intel 11th Gen (Tiger Lake-UP3) Core™ Processors
- STX-1500P (i7-1185G7E, QC, Max Speed up to 4.4GHz, up to 28W)
- STX-1500M (i5-1145G7E, QC, Max Speed up to 4.1GHz, up to 28W)
- STX-1500V (I3-1115G4E, DC, Max Speed up to 3.9GHz, up to 28W)
- STX-1500E (Celeron 6305E, DC, 1.8GHz, 15W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics for i7/i5 CPU
Intel UHD Graphics for i3/Celeron CPU
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay
Quad Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
STX-1500E/STX-1500V:
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219V with 10/100/1000 Mbps
STX-1500M/STX-1500P:
LAN1: Intel I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2, 1 x USB2.0
HDMI
1 x HDMI 2.0a
Audio
2 (Mic-in, Line-out)
Rear I/O
HDMI
3 x HDMI 2.0a
Ethernet
1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
COM
COM1 (RS232/422/485)
COM2 (RS232)
GPIO
4 x GPI, 4 x GPO
TPM
STX-1500M/STX-1500P: TPM 2.0 IC onboard
STX-1500E/STX-1500V: TPM Header
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA
2 x SATA3 (6Gb/s)
RAID
Intel SATA RAID 0/1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Bulk Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package
1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1500MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage

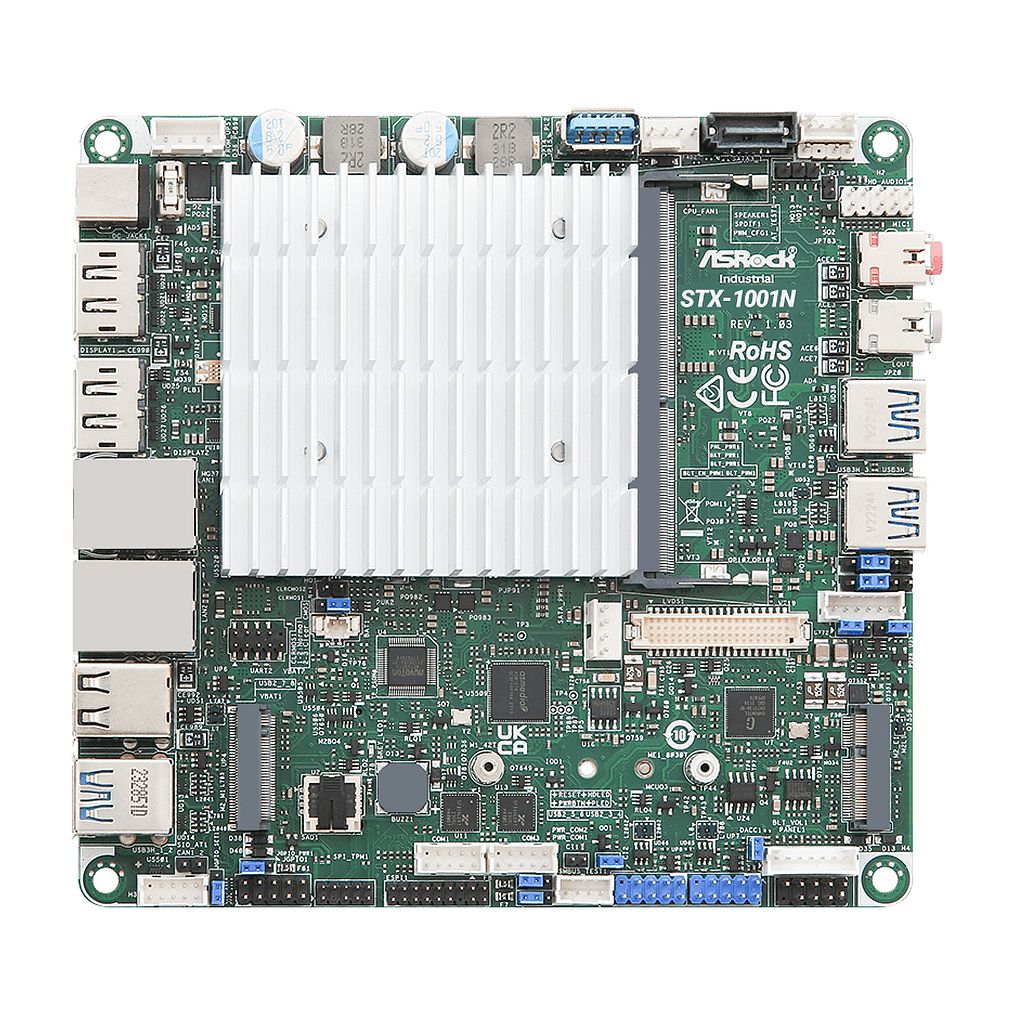

ASROCK Industrial STX-1001N - Mini-STX Single-Board-Computer mit Intel® Elkhart Lake Mini-STX Motherboard - Intel®Elkhart Lake SoC Processor N6415
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1001N - Mini-STX Single-Board-Computer mit Intel® Elkhart LakeMini-STX Motherboard - Intel®Elkhart Lake SoC Processor N6415
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Elkhart Lake SoC Processor N64151 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 2 x COM, 1 x SATA31 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LANSupports triple display, 2 x DP1.2, 1 x LVDS or eDPTPM Header12~28V DC-In
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Pentium® N6415 (1.5M Cache, bis zu 3.00 GHz)CPU-Varianten
CPU
Intel® Pentium® N6415
Processor Number
N6415
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel Elkhart Lake SoC Processor
N6415, QC, Max Speed Up to 3.0GHz, 6.5 W
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in x 1-in, 14.0 cm x 14.7 cm x 2.5 cm)
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen11 Graphics
DisplayPort
DisplayPort 1.2 and DP 1.2++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
eDP
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1,USB 3.2 Gen2, and USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key_B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Realtek RTL8111H-CG with 10/100/1000 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 (Gen1)
Audio
2 (Mic-in, Line-out)
Rear I/O
DisplayPort
DISPLAY1: DP1.2++, DISPLAY2: DP1.2
Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabite LAN
USB
2 x USB 3.2 (Gen1)
2 x USB 2.0
Internal Connector
USB
1 x USB 3.2 Gen2 (1 x Type-A vertical con)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM1, COM3(RS-232/422/485)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output
1
Speaker Header
1
CAN Bus
2 x CAN Bus (1 x 2.00 pitch header)
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 for SSD
SATA
1 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1001NMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial STX-1001L - Mini-STX Single-Board-Computer mit Intel® Elkhart Lake Mini-STX Motherboard - Intel®Elkhart Lake SoC Processor N6210
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1001L - Mini-STX Single-Board-Computer mit Intel® Elkhart LakeMini-STX Motherboard - Intel®Elkhart Lake SoC Processor N6210
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® Elkhart Lake SoC Processor N62101 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 2 x COM, 1 x SATA31 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LANSupports Triple display, 2 x DP1.2, 1 x LVDS or eDPTPM Header12~28V DC-InSpezifikation
Processor System
CPU
Intel Elkhart Lake SoC Processor
N6210, DC, Max Speed Up to 2.6GHz, 6.5 W
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in x 1-in, 14.0 cm x 14.7 cm x 2.5 cm)
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen11 Graphics
DisplayPort
DisplayPort 1.2 and DP 1.2++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
eDP
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1,USB 3.2 Gen2, and USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key_B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Realtek RTL8111H-CG with 10/100/1000 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen1
Audio
2 (Mic-in, Line-out)
Rear I/O
DisplayPort
DISPLAY1: DP1.2++, DISPLAY2: DP1.2
Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabite LAN
USB
2 x USB 3.2 Gen1
2 x USB 2.0
Internal Connector
USB
1 x USB 3.2 Gen2 (1 x Type-A vertical con)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM1, COM3(RS-232/422/485)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 for SSD
SATA
1 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 70ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1001LMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial STX-1001J - Mini-STX Mainboard mit Intel® Elkhart Lake Mini-STX Motherboard - Intel®Elkhart Lake SoC Processor J6412
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial STX-1001J - Mini-STX Mainboard mit Intel® Elkhart LakeMini-STX Motherboard - Intel®Elkhart Lake SoC Processor J6412
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Elkhart Lake SoC Processor J64121 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 2 x COM, 1 x SATA31 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LANSupports triple display, 2 x DP1.2, 1 x LVDS or eDPTPM Header12~28V DC-In
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, bis zu 2.60 GHz)CPU-Varianten
CPU
Intel® Celeron® J6412
Processor Number
J6412
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel Elkhart Lake SoC Processor
J6412, QC, Max Speed Up to 2.6GHz, 10 W
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Form Factor
Dimensions
Mini-STX (5.5-in x 5.8-in x 1-in, 14.0 cm x 14.7 cm x 2.5 cm)
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen11 Graphics
DisplayPort
DisplayPort 1.2 and DP 1.2++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
eDP
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1,USB 3.2 Gen2, and USB 2.0 and SIM for 4G/5G
SIM Socket
1 x Socket connected to M.2 Key_B
Audio
Interface
Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Realtek RTL8111H-CG with 10/100/1000 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 (Gen1)
Audio
2 (Mic-in, Line-out)
Rear I/O
DisplayPort
DISPLAY1: DP1.2++, DISPLAY2: DP1.2
Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabite LAN
USB
2 x USB 3.2 (Gen1)
2 x USB 2.0
Internal Connector
USB
1 x USB 3.2 Gen2 (1 x Type-A vertical con)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM1, COM3(RS-232/422/485)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 for SSD
SATA
1 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12~28V DC-In
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: STX-1001JMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
