ÜbersichtKey FeaturesCPUIntel® Core™ Ultra processors (Meteor Lake-H)2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M,1 x M.2 Key E (WiFi-6E Module)1 x Intel 2.5 Gigabit LANSupports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)Intel® PTTSupports Intel® vPro, VMD RAID 0/119V Power Adapter117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
CPU Produktfamilie: Intel® Meteor Lake
Intel® Core™ Ultra 7 processor 155H (24M Cache, bis zu 4.80 GHz)CPU-Varianten
CPU
Intel® Core™ Ultra 7 processor 155H
Processor Number
155H
Cache
24 MB Intel® Smart Cache
Max Turbo Frequency
4.8 GHz
Total Cores
16
Total Threads
22
Processor Base Power
28 W
Spezifikation
Processor System
CPU
Intel Core™ Ultra processors (Meteor Lake-H)
NUCS BOX-155H (6P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR5 5600 MHz
Capacity
96GB (48 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a/2.1, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
Intel I226LM with 10/100/1000/2500 Mbps
Connector
1 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.1 TMDS
Ethernet
1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD
RAID
Intel VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~24V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
TPM
Intel PTT
Certifications
CE, FCC
Packing List
1 x 19V/120W Power Adapter (Core Ultra 7)
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUCS BOX-155HMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUCS BOX-1360P/D4 - AI BOX Computer AI Box Computer mit Intel® Raptor Lake Fanned BOX - Intel®13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

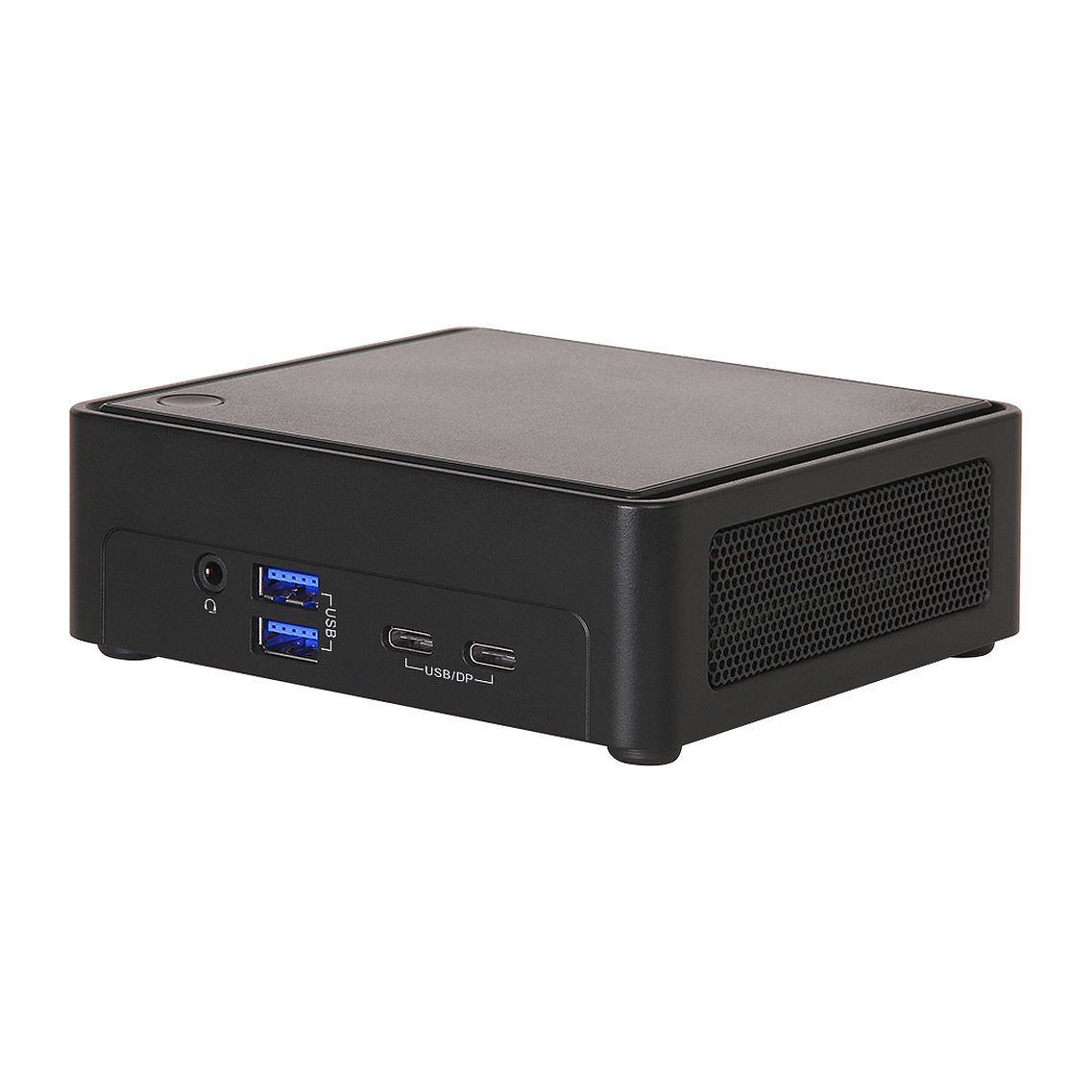

ASROCK Industrial NUCS BOX-1360P/D4 - AI BOX Computer AI Box Computer mit Intel® Raptor LakeFanned BOX - Intel®13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)1 x Intel 2.5 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)TPM 2.0 onboard ICSupports Intel® vPro19V/90W Power Adapter117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned BareboneSpezifikation
Processor System
CPU
Intel 13th Gen (Raptor Lake-P) Core™ Processors
NUCS BOX-1360P/D4( i7-1360P, 4P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
Connector
1 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
TPM
TPM 2.0 onboard IC
Certifications
CE, FCC
Packing List
1 x 19V/90W Power Adapter
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUCS BOX-1360P/D4MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial NUCS BOX-1340P/D4 - AI BOX Computer AI Box Computer mit Intel® Raptor Lake Fanned BOX - Intel®13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUCS BOX-1340P/D4 - AI BOX Computer AI Box Computer mit Intel® Raptor LakeFanned BOX - Intel®13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)1 x Intel 2.5 Gigabit LANSupports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)TPM 2.0 onboard ICSupports Intel® vPro19V/90W Power Adapter117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned BareboneSpezifikation
Processor System
CPU
Intel 13th Gen (Raptor Lake-P) Core™ Processors
NUCS BOX-1340P/D4( i5-1340P, 4P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
Connector
1 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
TPM
TPM 2.0 onboard IC
Certifications
CE, FCC
Packing List
1 x 19V/90W Power Adapter
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUCS BOX-1340P/D4MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial NUCS BOX-125H - AI BOX Computer AI Box Computer mit Intel® Meteor Lake Fanned BOX - Intel®Core™ Ultra processors (Meteor Lake-H)
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUCS BOX-125H - AI BOX Computer AI Box Computer mit Intel® Meteor LakeFanned BOX - Intel®Core™ Ultra processors (Meteor Lake-H)
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Core™ Ultra processors (Meteor Lake-H)2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M,1 x M.2 Key E (WiFi-6E Module)1 x Intel 2.5 Gigabit LANSupports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)Intel® PTTSupports Intel® vPro, VMD RAID 0/119V Power Adapter117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
CPU Produktfamilie: Intel® Meteor Lake
Intel® Core™ Ultra 5 processor 125H (18M Cache, bis zu 4.50 GHz)CPU-Varianten
CPU
Intel® Core™ Ultra 5 processor 125H
Processor Number
125H
Cache
18 MB Intel® Smart Cache
Max Turbo Frequency
4.5 GHz
Total Cores
14
Total Threads
18
Processor Base Power
28 W
Spezifikation
Processor System
CPU
Intel Core™ Ultra processors (Meteor Lake-H)
NUCS BOX-125H (4P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR5 5600 MHz
Capacity
96GB (48 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a/2.1, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
Intel I226LM with 10/100/1000/2500 Mbps
Connector
1 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.1 TMDS
Ethernet
1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD
RAID
Intel VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~24V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
TPM
Intel PTT
Certifications
CE, FCC
Packing List
1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUCS BOX-125HMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC BOX-N97 - Fanned Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-N Fanned BOX - Intel®Alder Lake-N Processors N97
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC BOX-N97 - Fanned Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-NFanned BOX - Intel®Alder Lake-N Processors N97
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185

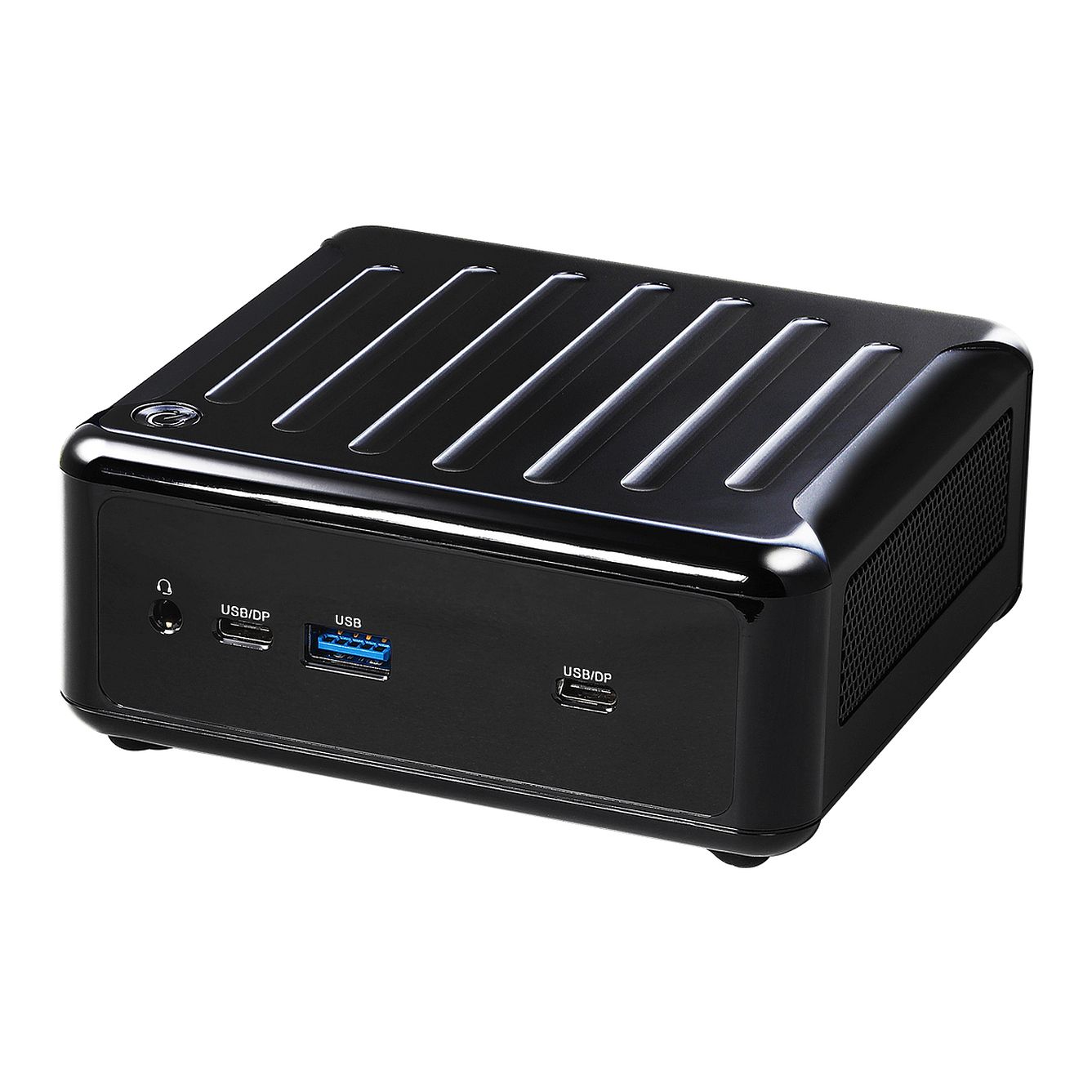

ÜbersichtKey FeaturesCPUIntel® Alder Lake-N Processors N971 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi Module), 1 x SATA32 x Realtek 2.5 Gigabit LANSupports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)TPM 2.0 onboard IC19V/65W Power Adapter117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
CPU Produktfamilie: Intel® Alder Lake-N
Intel® N97 (6M Cache, bis zu 3.60 GHz)CPU-Varianten
CPU
Intel® N97
Processor Number
N97
Cache
6 MB Intel® Smart Cache
Max Turbo Frequency
3.60 GHz
Total Cores
4
Spezifikation
Processor System
CPU
Intel Alder Lake-N Processors N97
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wifi-Fi 6E 802.11ax + BT 5.2
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Internal Connector
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
Certifications
CE, FCC
Packing List
1 x 19V/65W Power Adapter
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC BOX-N97MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC BOX-J6412 - Fanned Embedded BOX PC Embedded Box PC mit Intel® Elkhart Lake Fanned BOX - Intel®ElkHart Lake Processors J6412
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC BOX-J6412 - Fanned Embedded BOX PC Embedded Box PC mit Intel® Elkhart LakeFanned BOX - Intel®ElkHart Lake Processors J6412
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® ElkHart Lake Processors J64122 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi Module), 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.4TPM 2.0 onboard IC19V/65W Power Adapter117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, bis zu 2.60 GHz)CPU-Varianten
CPU
Intel® Celeron® J6412
Processor Number
J6412
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel ElkHart Lake Processors
NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Dual-Display
Expansion Slot
M.2/WLAN
1 x 802.11ac + BT 4.2
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.4
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
1 x 19V/65W Power Adapter
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
Certifications
CE, FCC
Packing List
1 x 19V/65W Power Adapter
1 x VESA mount bracket
TPM
TPM 2.0 onboard IC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC BOX-J6412MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial NUC BOX-6305E - AI BOX Computer AI Box Computer Fanned BOX - Intel®11th Gen (Tiger Lake-UP3) Core™ Processors Celeron 6305E
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

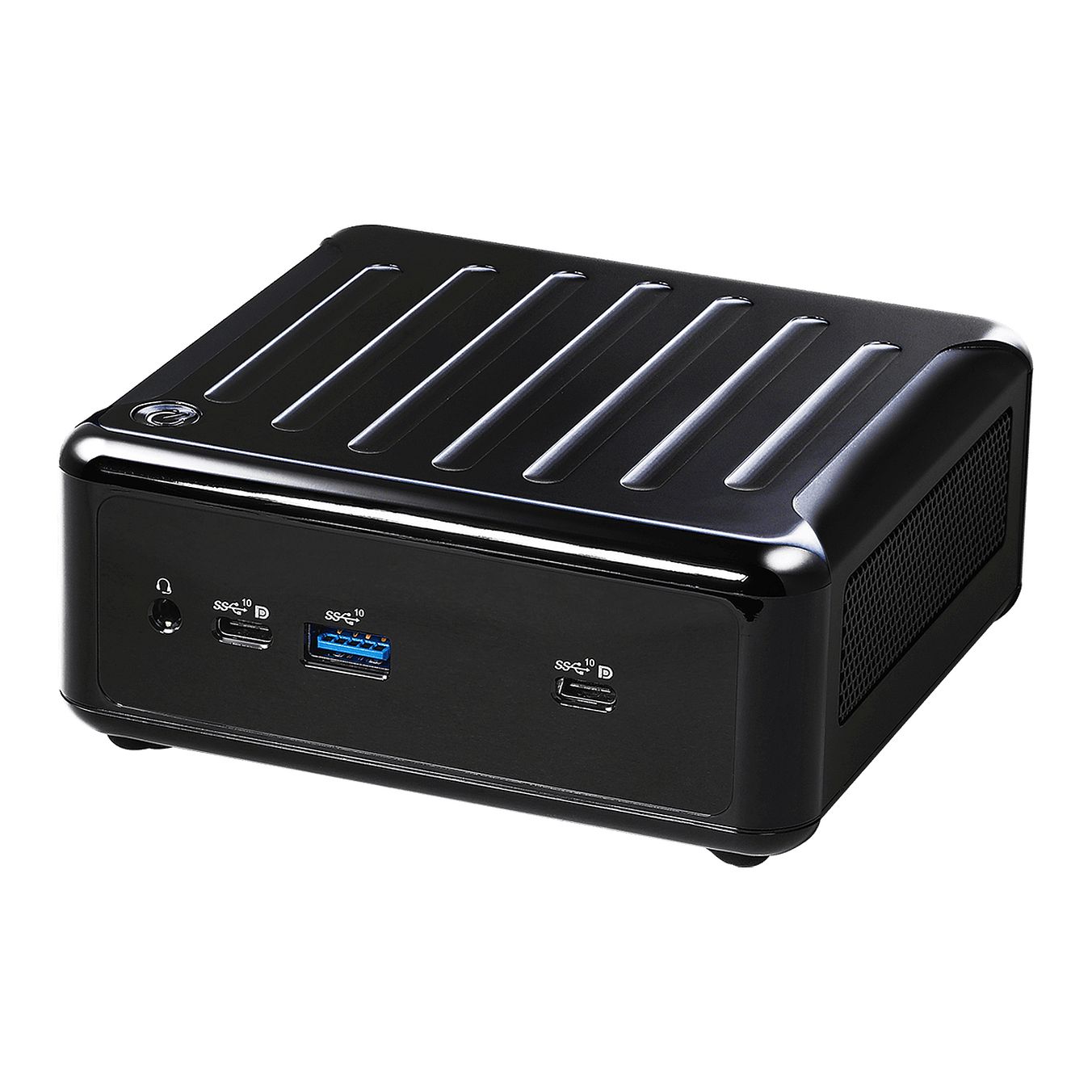

ASROCK Industrial NUC BOX-6305E - AI BOX Computer AI Box ComputerFanned BOX - Intel®11th Gen (Tiger Lake-UP3) Core™ Processors Celeron 6305E
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 11th Gen (Tiger Lake-UP3) Core™ Processors Celeron 6305E2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi module), 1 x SATA31 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C)TPM 2.0 onboard IC19V/90W Power Adapter110.0 x 117.5 x 47.85mm, Fanned BareboneSpezifikation
Processor System
CPU
Celeron 6305E, DC, 1.8GHz
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Intel I219V with 10/100/1000 Mbps
LAN2: Intel I225LM/I225V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A, Supports DP1.4 display output)
* For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.4
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
19V/90W Power Adapter
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Plastic
Mounting
VESA mounting
Dimensions (L x W x H)
110.0 x 117.5 x 47.85mm
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10
Certifications
CE, FCC Class A
Packing List
1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Longivity Support
No
TPM
TPM 2.0 onboard IC
Accessories
Gift Package
2 x SCREW M2*2,D=5 (13G020302034AK)
1 x NUT M2 H=3.35mm (13G020271010AK)
1 x AC PWR CORD (14G110000212AK)
1 x NUC BOX-TGL SERIES QIG (15G06M098000AI)
1 x 19V/90W Power Adapter(04G266001100AI)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC BOX-6305EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial NUC BOX-155H - AI BOX Computer AI Box Computer mit Intel® Meteor Lake Fanned BOX - Intel®Core™ Ultra processors (Meteor Lake-H)
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial NUC BOX-155H - AI BOX Computer AI Box Computer mit Intel® Meteor LakeFanned BOX - Intel®Core™ Ultra processors (Meteor Lake-H)
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Core™ Ultra processors (Meteor Lake-H)2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x M.2 Key M,1 x M.2 Key E (WiFi-6E Module), 1 x SATA32 x Intel 2.5 Gigabit LANSupports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)Intel® PTTSupports Intel® vPro, VMD RAID 0/119V Power Adapter117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
CPU Produktfamilie: Intel® Meteor Lake
Intel® Core™ Ultra 7 processor 155H (24M Cache, bis zu 4.80 GHz)CPU-Varianten
CPU
Intel® Core™ Ultra 7 processor 155H
Processor Number
155H
Cache
24 MB Intel® Smart Cache
Max Turbo Frequency
4.8 GHz
Total Cores
16
Total Threads
22
Processor Base Power
28 W
Spezifikation
Processor System
CPU
Intel Core™ Ultra processors (Meteor Lake-H)
NUC BOX-155H (6P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR5 5600 MHz
Capacity
96GB (48 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 2.1/ 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN
1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Intel I226LM with 10/100/1000/2500 Mbps
LAN2: Intel I226V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.1 TMDS
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
SATA
1 x SATA3.0 (6.0 Gb/s)
RAID
Intel VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~24V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
Weight
Net Weight:1.0Kg
Others
OS Support
Windows 10/11
TPM
Intel PTT
Certifications
CE, FCC
Packing List
1 x 19V/120W Power Adapter (Core Ultra 7)
1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: NUC BOX-155HMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
