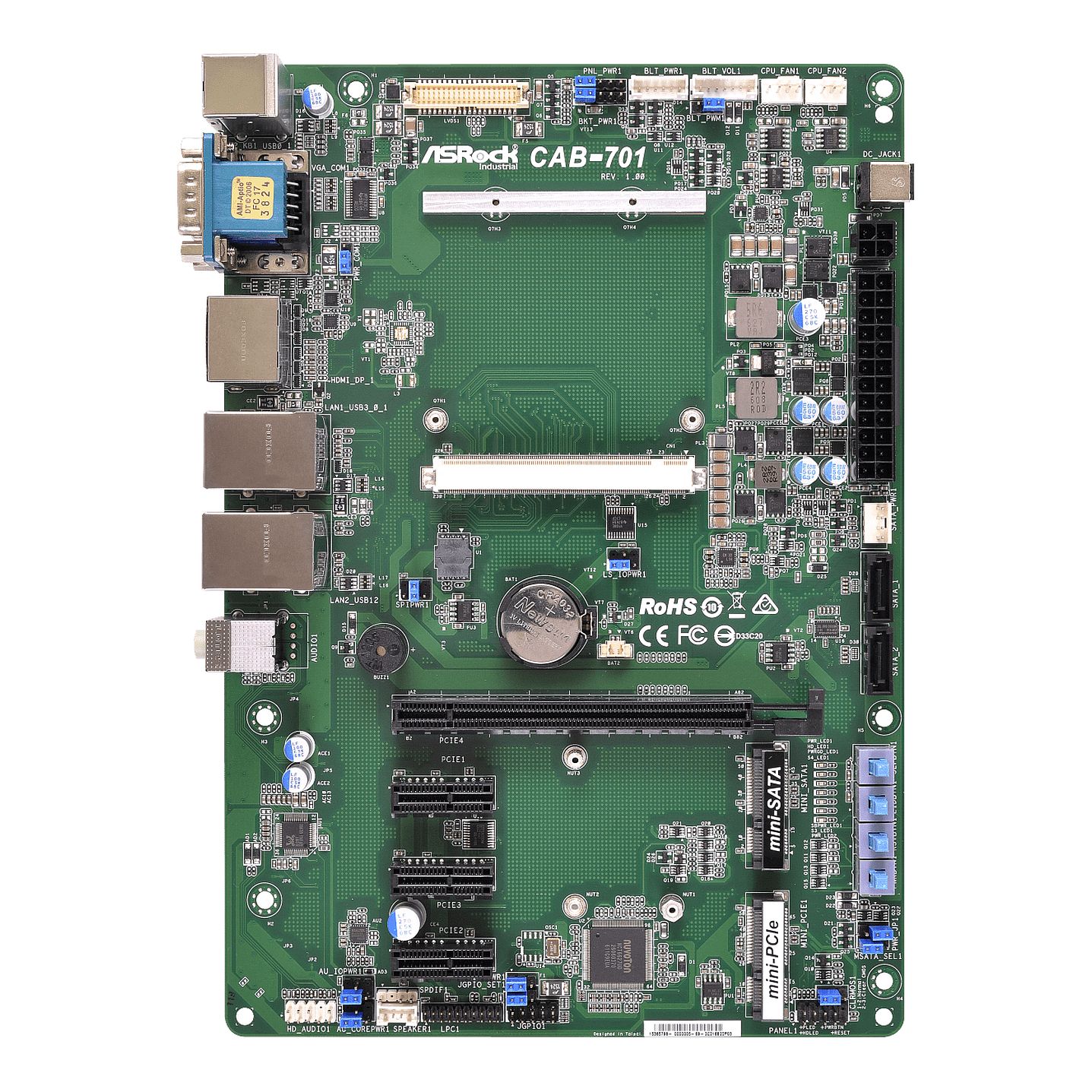

ASROCK Industrial CAB-701 - Qseven Carrier Board QSeven Motherboard - Supports Qseven Module
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial CAB-701 - Qseven Carrier BoardQSeven Motherboard - Supports Qseven Module
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesSupports Qseven Module1 x HDMI, 1 x DisplayPort, 1 x LVDS1 x USB 3.0, 5 x USB 2.0 , 2 x SATA33 x PCIe x1 slot1 x Mini-PCIe1 x mSATA2 x Intel LAN12~24V DC-inSpezifikation
Form Factor
Dimensions
Micro ATX (9.6-in x 6.7-in, 24.4 cm x 17.0 cm)
Expansion Slot
PCIe
3 x PCIe x1
mini-PCIe
2 x Half/Full size
Ethernet
Controller/ Speed
2 x Intel I211 with 10/100/1000 Mbps
Rear I/O
HDMI
1
DisplayPort
2
Ethernet
1
USB
1 x USB 3.0 , 5 x USB 2.0
Audio
2
COM
2 x COM (RS-232)
PS2
1
Internal Connector
GPIO
4 x GPI , 4 x GPO
LVDS
1
SATA PWR Output
1
Storage
SATA
2 x SATA3
mSATA
1xfull , shared with SATA_2
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V~24V DC-In
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
