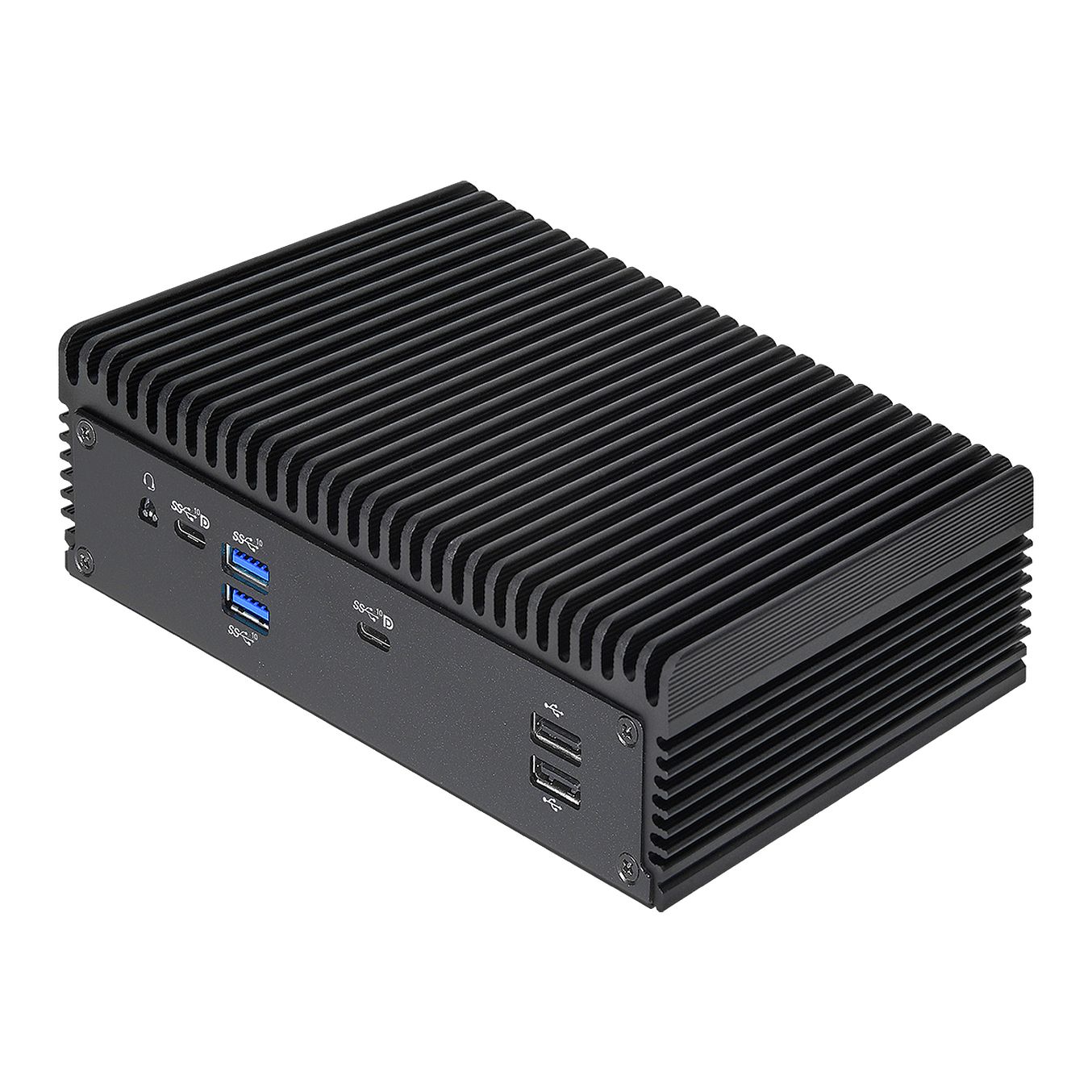

ASROCK Industrial iBOX-V2000V - Fanless Embedded BOX PC Embedded Box PCFanless Embedded BOX PC - AMD Ryzen™ Embedded V2516
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesAMD Ryzen™ Embedded V25162 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA31 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)TPM 2.0 onboard IC19V/90W Power Adapter171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PCSpezifikation
Processor System
CPU
V2516, 6C, Max Speed up to 3.95GHz
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Memory
Technology
Dual Channel non-ECC/ECC DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Graphics
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV (Dash) with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.2a display output)
2 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2a
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 2.0
COM
1 x COM (RS-232)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
19V/90W Power Adapter
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")
Weight
Net Weight:1.6Kg
Others
OS Support
Windows 10
Certifications
CE, FCC
Packing List
1 x 19V/90W Power Adapter
1 x VESA mount bracket
TPM
TPM 2.0 onboard IC
Accessories
Bulk Package
2 x SCREW M2*2,D=5
1 x IBOX VESA MOUNT BRKT
1 x BRACKET FOR M.2 W/2*SCREW
1 x 19V/90W Power Adapter
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-V2000VMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iBOX-V2000M - Fanless Embedded BOX PC Embedded Box PC Fanless Embedded BOX PC - AMD Ryzen™ Embedded V2718
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-V2000M - Fanless Embedded BOX PC Embedded Box PCFanless Embedded BOX PC - AMD Ryzen™ Embedded V2718
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesAMD Ryzen™ Embedded V27182 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA31 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LANSupports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)TPM 2.0 onboard IC19V/90W Power Adapter171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PCSpezifikation
Processor System
CPU
V2718, 8C, Max Speed up to 4.15GHz
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Memory
Technology
Dual Channel non-ECC/ECC DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Graphics
HDMI
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV (Dash) with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.2a display output)
2 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2a
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 2.0
COM
1 x COM (RS-232)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
19V/90W Power Adapter
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")
Weight
Net Weight:1.6Kg
Others
OS Support
Windows 10
Certifications
CE, FCC
Packing List
1 x 19V/90W Power Adapter
1 x VESA mount bracket
TPM
TPM 2.0 onboard IC
Accessories
Bulk Package
2 x SCREW M2*2,D=5
1 x IBOX VESA MOUNT BRKT
1 x BRACKET FOR M.2 W/2*SCREW
1 x 19V/90W Power Adapter
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-V2000MMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial iBOX-V1000M - Fanless Embedded BOX PC Embedded Box PC Fanless Embedded BOX PC - AMD Ryzen™ Embedded V-Series V1605B
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

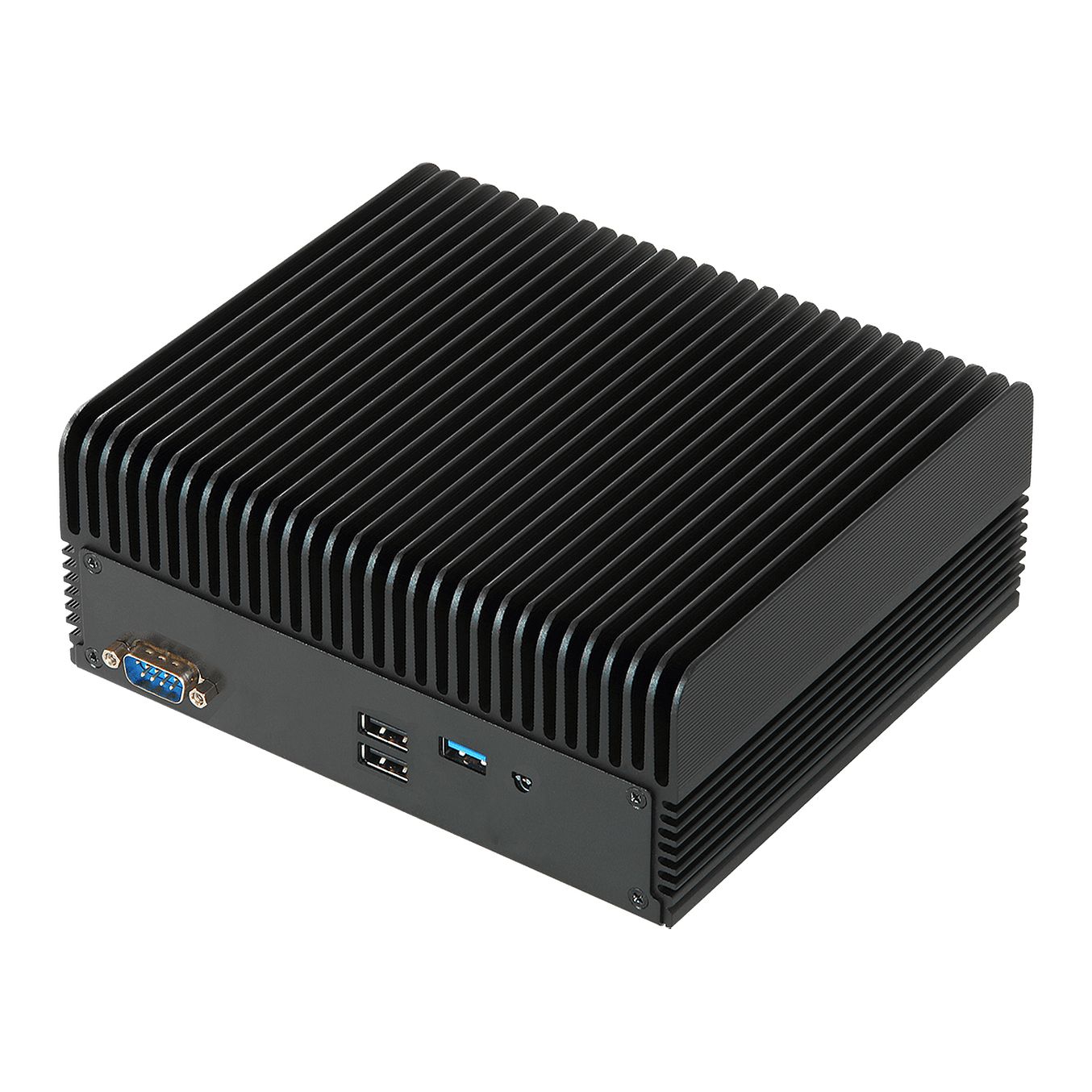

ASROCK Industrial iBOX-V1000M - Fanless Embedded BOX PC Embedded Box PCFanless Embedded BOX PC - AMD Ryzen™ Embedded V-Series V1605B
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesAMD Ryzen™ Embedded V-Series V1605B2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz with ECC support (16GB per DIMM)3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports triple display, 1 x HDMI 2.0, 2 x DP 1.2aTPM Header12V DC-In171.8 x 150 x 71.5 mm, Fanless BareboneSpezifikation
Processor System
CPU
AMD Ryzen™ Embedded V-Series (V1605B, QC, up to 3.6GHz)
Chipset
SoC
BIOS
AMI SPI 64 Mbit
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Vega 8 Graphics
HDMI
HDMI 2.0
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2a
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 (Gen1) + 2 x USB 2.0
COM
1 x COM (RS-232)
Audio
1 x Mic-In & Line-Out Combo Jack
Rear I/O
HDMI
1 x HDMI 2.0
DisplayPort
2 x DP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2 x USB 3.2(Gen2)
DC Jack
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
1 x 12V/96W Power Adapter
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC (With extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
10% ~ 90%
Storage Humidity
10% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mounting bracket, Wall mounting
Dimensions (L x W x H)
171.8 x 150 x 71.5 mm
Weight
Net Weight: 2.2kg
Others
OS Support
Windows 10
Certifications
CE, FCC Class A
Packing List
1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-V1000MMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iBOX-R1000V - Fanless Embedded BOX PC Embedded Box PC Fanless Embedded BOX PC - AMD Ryzen™ Embedded R-Series R1505G
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-R1000V - Fanless Embedded BOX PC Embedded Box PCFanless Embedded BOX PC - AMD Ryzen™ Embedded R-Series R1505G
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesAMD Ryzen™ Embedded R-Series R1505G2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz with ECC support (16GB per DIMM)3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports triple display, 1 x HDMI 2.0, 2 x DP 1.2aTPM Header12V DC-In171.8 x 150 x 71.5 mm, Fanless BareboneSpezifikation
Processor System
CPU
AMD Ryzen™ Embedded R-Series
R1505G, DC, up to 3.3GHz
Chipset
SoC
BIOS
AMI SPI 64 Mbit
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Vega 3 Graphics
HDMI
HDMI 2.0
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2a
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 (Gen1) + 2 x USB 2.0
COM
1 x COM (RS-232)
Audio
1 (Mic-in or Line-out)
Rear I/O
HDMI
1 x HDMI2.0
DisplayPort
2 x DP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2 x USB 3.2(Gen2)
DC Jack
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
1 x 12V/96W Power Adapter
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC (With extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
10% ~ 90%
Storage Humidity
10% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mounting bracket, Wall mounting
Dimensions (L x W x H)
171.8 x 150 x 71.5 mm
Weight
Net Weight: 2.2kg
Others
OS Support
Windows 10
Certifications
CE, FCC Class A
Packing List
1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-R1000VMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iBOX-R1000M - Fanless Embedded BOX PC Embedded Box PC Fanless Embedded BOX PC - AMD Ryzen™ Embedded R-Series R1606G
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-R1000M - Fanless Embedded BOX PC Embedded Box PCFanless Embedded BOX PC - AMD Ryzen™ Embedded R-Series R1606G
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesAMD Ryzen™ Embedded R-Series R1606G2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz with ECC support (16GB per DIMM)3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA32 x Realtek 1 Gigabit LANSupports triple display, 1 x HDMI 2.0, 2 x DP 1.2aTPM Header12V DC-In171.8 x 150 x 71.5 mm, Fanless BareboneSpezifikation
Processor System
CPU
AMD Ryzen™ Embedded R-Series
R1606G, DC, up to 3.5GHz
Chipset
SoC
BIOS
AMI SPI 64 Mbit
Memory
Technology
Dual Channel DDR4 2400 MHz
Capacity
32 GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon™ Vega 3 Graphics
HDMI
HDMI 2.0
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2a
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple Display
Expansion Slot
M.2
1 x Key E(2230) with PCIex1 and USB2.0 for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Ethernet
Controller/ Speed
2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 (Gen1) + 2 x USB 2.0
COM
1 x COM (RS-232)
Audio
1 (Mic-in or Line-out)
Rear I/O
HDMI
1 x HDMI2.0
DisplayPort
2 x DP 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2 x USB 3.2(Gen2)
DC Jack
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA
1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec
Power Requirements
Input PWR
1 x 12V/96W Power Adapter
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC (With extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
10% ~ 90%
Storage Humidity
10% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mounting bracket, Wall mounting
Dimensions (L x W x H)
171.8 x 150 x 71.5 mm
Weight
Net Weight: 2.2kg
Others
OS Support
Windows 10
Certifications
CE, FCC Class A
Packing List
1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Accessories
Bulk Package
2 x SCREW M2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-R1000MMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iBOX-N97 R2 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-N Fanless Embedded BOX PC - Intel®Alder Lake-N SoC Processor N97
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-N97 R2 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-NFanless Embedded BOX PC - Intel®Alder Lake-N SoC Processor N97
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Alder Lake-N SoC Processor N971 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB6 x USB 3.2 Gen2, 1 x M.2 Key E, 1 x M.2 Key M, 1 x COM, 1 x SATA32 x Realtek 2.5 Gigabit LANSupports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (From Type-C)TPM 2.0 onboard IC19V/65W Power Adapter135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
CPU Produktfamilie: Intel® Alder Lake-N
Intel® N97 (6M Cache, bis zu 3.60 GHz)CPU-Varianten
CPU
Intel® N97
Processor Number
N97
Cache
6 MB Intel® Smart Cache
Max Turbo Frequency
3.60 GHz
Total Cores
4
Spezifikation
Processor System
CPU
Intel Alder Lake-N SoC Processors
iBOX-N97 R2 (N97, QC, Max Speed Up to 3.6GHz, 12W)
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Audio
Interface
Realtek ALC256, High Definition Audio
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
COM
1 x COM (RS-232)
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280 (Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
1 x 19V/65W Power Adapter
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp.
peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
135 x 110 x 44.5mm (5.31" x 4.33" x 1.75")
Weight
Net Weight: 0.7kg
Others
OS Support
Windows 10/11
TPM
TPM 2.0 onboard IC
Certifications
CE, FCC
Packing List
1 x 19V/65W Power Adapter
1 x Wall mount kit
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-N97 R2MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iBOX-N97 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-N Fanless Embedded BOX PC - Intel®Alder Lake-N SoC Processor N97
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-N97 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Alder Lake-NFanless Embedded BOX PC - Intel®Alder Lake-N SoC Processor N97
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® Alder Lake-N SoC Processor N971 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB6 x USB 3.2 Gen2, 1 x M.2 Key E, 1 x M.2 Key M, 1 x SATA32 x Realtek 2.5 Gigabit LANSupports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (From Type-C)TPM 2.0 onboard IC19V/65W Power Adapter135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
CPU Produktfamilie: Intel® Alder Lake-N
Intel® N97 (6M Cache, bis zu 3.60 GHz)CPU-Varianten
CPU
Intel® N97
Processor Number
N97
Cache
6 MB Intel® Smart Cache
Max Turbo Frequency
3.60 GHz
Total Cores
4
Spezifikation
Processor System
CPU
Intel Alder Lake-N SoC Processors
iBOX-N97( N97, QC, Max Speed Up to 3.6GHz, 12W)
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Memory
Technology
Single Channel DDR4 3200 MHz
Capacity
32GB
Socket
1 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Triple-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Audio
Interface
Realtek ALC256, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
2 x RJ-45
Front I/O
USB
2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
2 x HDMI 2.0b
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
1 x 19V/65W Power Adapter
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)
Storage Temp
-40° C ~ 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
135 x 110 x 44.5mm (5.31" x 4.33" x 1.75")
Weight
Net Weight: 0.7Kg
Others
OS Support
Windows 10/11
Certifications
CE, FCC
TPM
TPM 2.0 onboard IC
Packing List
1 x 19V/65W Power Adapter
1 x Wall mount kit
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-N97MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial iBOX-J6412 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Elkhart Lake Fanless Embedded BOX PC - Intel®ElkHart Lake SoC Processors J6412
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iBOX-J6412 - Fanless Embedded BOX PC Embedded Box PC mit Intel® Elkhart LakeFanless Embedded BOX PC - Intel®ElkHart Lake SoC Processors J6412
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesCPUIntel® ElkHart Lake SoC Processors J64122 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA32 x Realtek 1 Gigabit LANSupports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2TPM 2.0 onboard IC19V/65W Power Adapter135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
CPU Produktfamilie: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, bis zu 2.60 GHz)CPU-Varianten
CPU
Intel® Celeron® J6412
Processor Number
J6412
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
Spezifikation
Processor System
CPU
Intel ElkHart Lake SoC Processors
iBOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32GB (16 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay
Dual-Display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector
2 x RJ-45
Front I/O
USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
1 x USB 2.0
Audio
1 (headphone & microphone jack)
Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack
1
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
1 x 19V/65W Power Adapter
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
135 x 110 x 44.5mm (5.31" x 4.33" x 1.75")
Weight
Net Weight: 0.7kg
Others
OS Support
Windows 10/11
Certifications
CE, FCC
Packing List
1 x 19V/65W Power Adapter
1 x Wall mounting kit
TPM
TPM 2.0 onboard IC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iBOX-J6412MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
