ÜbersichtKey FeaturesIntel® 14th Gen Core™ Processors with H610 Chipset2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)1 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E4 x USB 3.2 Gen2x1, 2 x USB 2.0 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 14th Gen Core™ Processors
Chipset
Intel H610
Socket
LGA 1700
Memory
Technology
Dual Channel DDR5 5600MHz
Capacity
96 GB (48 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1
and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B1, 2280/3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
1 x M.2 (Key B2, 3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(2 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio..
Ethernet
Controller/ Speed
2 x Intel i226IT (1 vPro Support)
2 x Intel i226IT (PoE Support, each port supports IEEE 802.3AT PoE,
PoE output max.30W/single port or 30W/two ports shared)
Connector
5 x RJ45
Rear I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
5 x Intel 2.5G LAN
USB
4 x USB 3.2 Gen2x1, 2 x USB 2.0 Gen2x1,
1 x USB2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
Protection, COM5- Isolation Protection , COM6)
2 x RS232 (COM3, COM4)
DIO
8DIs/8DOs
Storage
M.2
1 x M.2 (Key M, 2242/2280/22110/25110)
with Gen3 x4 for NVMe SSD
SATA
4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration with SSD
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94" x 9.64" x 4.31")
Net Weight
6.5kg
Others
OS Support
Windows 10 & Linux
TPM
TPM 2.0
Real-Time Enablement
TSN, TCC support under YOCTO
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9032EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iEP-9030E - Compact Edge AIoT Platform Kompakte Edge AIoT Platform Compact Edge AIoT Platform - Intel®14th Gen Core™ Processors with R680E Chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

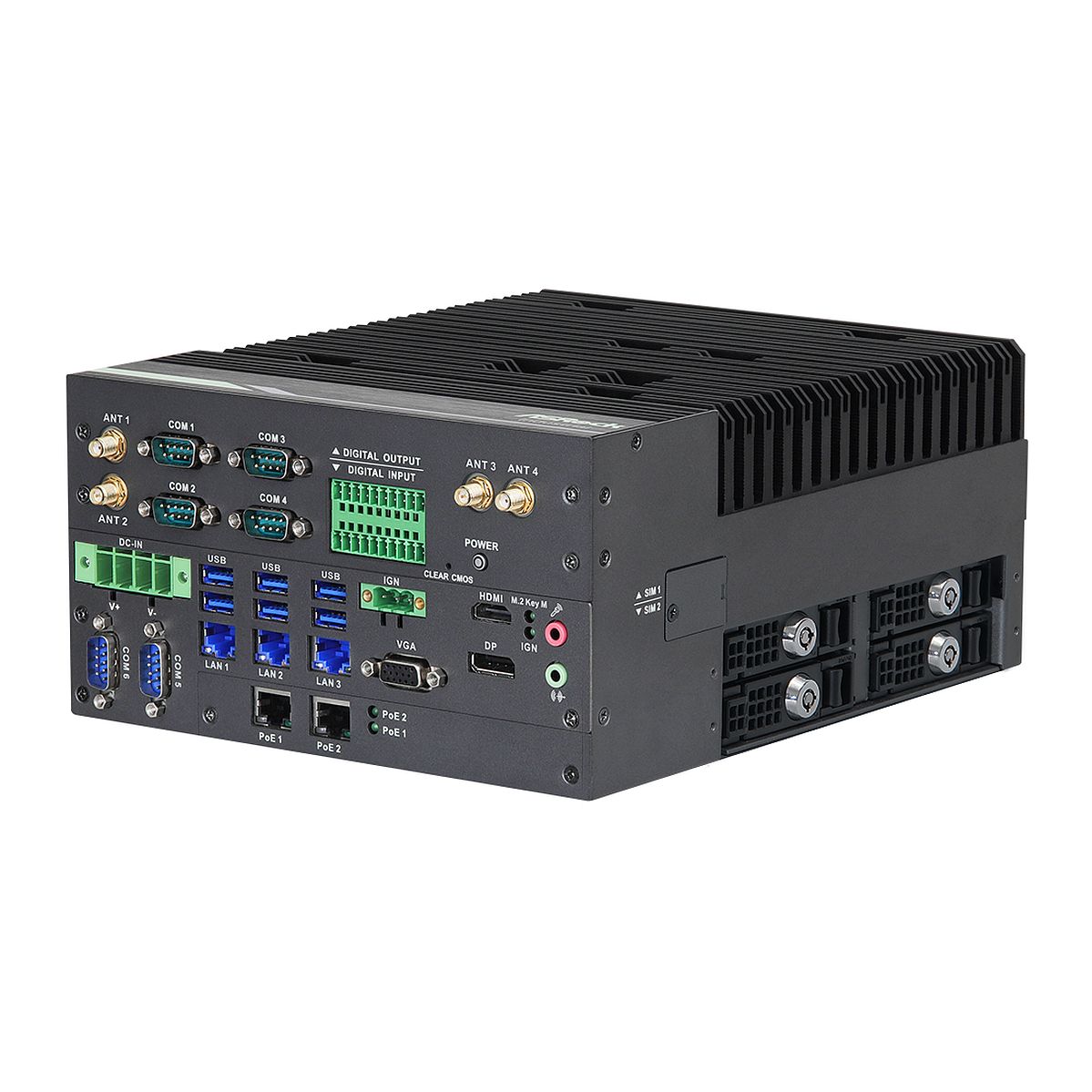

ASROCK Industrial iEP-9030E - Compact Edge AIoT Platform Kompakte Edge AIoT PlatformCompact Edge AIoT Platform - Intel®14th Gen Core™ Processors with R680E Chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 14th Gen Core™ Processors with R680E Chipset2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 14th Gen Core™ Processors
Chipset
Intel R680E
Socket
LGA 1700
Memory
Technology
Dual Channel DDR5 5600MHz
(ECC memory supported by R680E + Selected CPU)
Capacity
96 GB (48 GB per DIMM)
Socket
2 x 262-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1
and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B1, 2280/3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
1 x M.2 (Key B2, 3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(2 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed
3 x Intel i226IT (1 vPro Support)
2 x Intel i226IT (PoE Support, each port supports IEEE 802.3AT PoE,
PoE output max.30W/single port or 30W/two ports shared)
Connector
5 x RJ45
Rear I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
5 x Intel 2.5G LAN
USB
6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
Protection, COM5- Isolation Protection, COM6)
2 x RS232 (COM3, COM4)
DIO
8DIs/8DOs
Storage
M.2
1 x M.2 (Key M1, 2242/2260/2280/22110/25110) with Gen4 x4 for NVMe SSD
1 x M.2 (Key M2, 2242/2280/22110/25110) with Gen3 x4 for NVMe SSD
SATA
4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration with SSD
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94" x 9.64" x 4.31")
Net Weight
6.5kg
Others
OS Support
Windows 10 & Linux
TPM
TPM 2.0
Real-Time Enablement
TSN, TCC support under YOCTO
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9030EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.Datenblatt
Preis auf Anfrage
ASROCK Industrial iEP-9022E - Compact Edge AIoT Platform Kompakte Edge AIoT Platform Compact Edge AIoT Platform - Intel®13th Gen Core™ Processors with H610 Chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iEP-9022E - Compact Edge AIoT Platform Kompakte Edge AIoT PlatformCompact Edge AIoT Platform - Intel®13th Gen Core™ Processors with H610 Chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th Gen Core™ Processors with H610 Chipset2 x 260-pin DDR4 SO-DIMM up to 64GB (32GB per DIMM)1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO4 x Intel 2.5G LAN (2 support PoE)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 13th Gen Core™ Processors
Chipset
Intel H610
Socket
LGA 1700
Memory
Technology
Dual Channel DDR4 2933MHz
Capacity
64 GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
mini-PCIe
1 x Full/Half size with PCIe Gen3 x1 and USB 2.0
1 x Full/Half size with PCIe Gen3 x1
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB2.0 for 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(1 connected to Mini PCIe, 1 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed
4 x Intel 2.5G LAN (2 support PoE, PoE output max.15.4W/port,
each port supports IEEE 802.3AF PoE)
Connector
4 x RJ45
Front I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
4 x 2.5G LAN
USB
2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0,
1 x USB 2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485
2 x RS232
DIO
8DIs/8DOs
Storage
SATA
4 x SATA3 (6Gb/s)
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
202mm (W) x 244mm (D) x 108.7mm (H) (7.95" x 9.61" x 4.28")
Net Weight
6.5kg
Others
OS Support
Windows 10 & Linux
TPM
TPM 2.0
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9022EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial iEP-9020E - Compact Edge AIoT Platform Kompakte Edge AIoT Platform Compact Edge AIoT Platform - Intel®13th Gen Core™ Processors with R680E Chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iEP-9020E - Compact Edge AIoT Platform Kompakte Edge AIoT PlatformCompact Edge AIoT Platform - Intel®13th Gen Core™ Processors with R680E Chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 13th Gen Core™ Processors with R680E Chipset4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe6 x USB 3.2 Gen2x1, 6 x C OM, 4 x SA TA3, 8 x DI, 8 x DO5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 13th Gen Core™ Processors
Chipset
Intel R680E
Socket
LGA 1700
Memory
Technology
Dual Channel DDR4 2933MHz
(ECC memory supported by R680E + Selected CPU)
Capacity
128 GB (32 GB per DIMM)
Socket
4 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
mini-PCIe
2 x Full/Half size with PCIe Gen3 x1 and USB 2.0
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1
and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B, 2280/3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 ofr 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(1 connected to Mini PCIe, 1 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed
5 x Intel 2.5G LAN(2 support PoE, each port supports IEEE 802.3AF PoE,
PoE output max.15.4W/port), (1 supports vPro)
Connector
5 x RJ45
Front I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
5 x 2.5G LAN
USB
6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485
2 x RS232
DIO
8DIs/8DOs
Storage
M.2
1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD
SATA
4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C (-40°F~158°F)
46W~65W CPU: -40°C~50°C (-40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C (-40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration with SSD
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
202mm (W) x 244mm (D) x 108.7mm (H) (7.95" x 9.61" x 4.28")
Weight
6.5kg
Others
OS Support
Windows 10 & Linux
TPM
TPM 2.0
Real-Time Enablement
TSN, TCC support under YOCTO
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9020EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial iEP-9012E - Compact Edge AIoT Platform Kompakte Edge AIoT Platform Intelligent Edge Platform - Intel®12th Gen Core™ Processors with H610 Chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iEP-9012E - Compact Edge AIoT Platform Kompakte Edge AIoT PlatformIntelligent Edge Platform - Intel®12th Gen Core™ Processors with H610 Chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 12th Gen Core™ Processors with H610 Chipset2 x 260-pin DDR4 SO-DIMM up to 64GB (32GB per DIMM)1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 6 x C OM, 4 x SATA3, 8 x DI, 8 x DO4 x Intel 2.5G LAN (2 support PoE)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 12th Gen Core™, Pentium or Celeron Processors
Chipset
Intel H610
Socket
LGA 1700
Memory
Technology
Dual Channel DDR4 2933MHz
Capacity
64 GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
mini-PCIe
1 x Full/Half size with PCIe Gen3 x1 and USB 2.0
1 x Full/Half size with PCIe Gen3 x1
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB 2.0 for Wi-Fi/BT module
1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 / USB 2.0 for 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(1 connected to Mini PCIe, 1 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed
4 x Intel 2.5G LAN (2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port)
Connector
4 x RJ45
Front I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
4 x 2.5G LAN
USB
2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0,
1 x USB2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485
2 x RS232
DIO
8DIs/8DOs
Storage
SATA
4 x SATA3 (6Gb/s)
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50 G, half sine 11ms duration with SSD
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
202mm (W) x 244mm (D) x 108.7mm (H) (7.95" x 9.61" x 4.28")
Weight
6.5kg
Others
OS Support
Windows 10 & Linux
TPM
TPM 2.0
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9012EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
ASROCK Industrial iEP-9010E - Compact Edge AIoT Platform Kompakte Edge AIoT Platform Intelligent Edge Platform - Intel®12th Gen Core™ Processors with R680E Chipset
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial iEP-9010E - Compact Edge AIoT Platform Kompakte Edge AIoT PlatformIntelligent Edge Platform - Intel®12th Gen Core™ Processors with R680E Chipset
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datenblatt
Handbuch
System Integration
Unverbindliche Beratung: +49(0)7665 9390 185
ÜbersichtKey FeaturesIntel® 12th Gen Core™ Processors with R680E Chipset4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)1 x Displayport, 1 x HDMI 2.0b, 1 x VGASpezifikation
Processor System
CPU
Intel 12th Gen Core™, Pentium or Celeron Processors
Chipset
Intel R680E
Socket
LGA 1700
Memory
Technology
Dual Channel DDR4 2933MHz
(ECC memory supported by R680E + Selected CPU)
Capacity
128 GB (32 GB per DIMM)
Socket
4 x 260-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
Expansion Slot
mini-PCIe
2 x Full/Half size with PCIe Gen3 x1 and USB 2.0
RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 for 4G / 5G
SIM Socket
2 x Nano SIM Card slot
(1 connected to Mini PCIe, 1 connected to M.2 Key B)
Audio
Interface
Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed
5 x Intel 2.5G LAN
(2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port), (1 supports vPro)
Connector
5 x RJ45
Front I/O
DisplayPort
1
HDMI
1
VGA
1
Ethernet
5 x 2.5G LAN
USB
6 x USB 3.2 Gen2x1, 1 x USB 2.0 intemal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485
2 x RS232
DIO
8DIs/8DOs
Storage
M.2
1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD
SATA
4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5" HDD/SSD Tray
CFast
1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp
35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp
-40°C~85°C ( -40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration with SSD
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical
Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
202mm (W) x 244mm (D) x 108.7mm (H) (7.95" x 9.61" x 4.28")
Weight
6.5kg
Others
OS Support
Windows 10 & Linux
SW Support
ACRN (https://projectacrn.org/)
TPM
TPM 2.0
Real-Time Enablement
TSN, TCC support under YOCTO
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: iEP-9010EMCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN.Technische Unterstützung & System Integration Services
Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert.DatenblattHandbuch
Preis auf Anfrage
