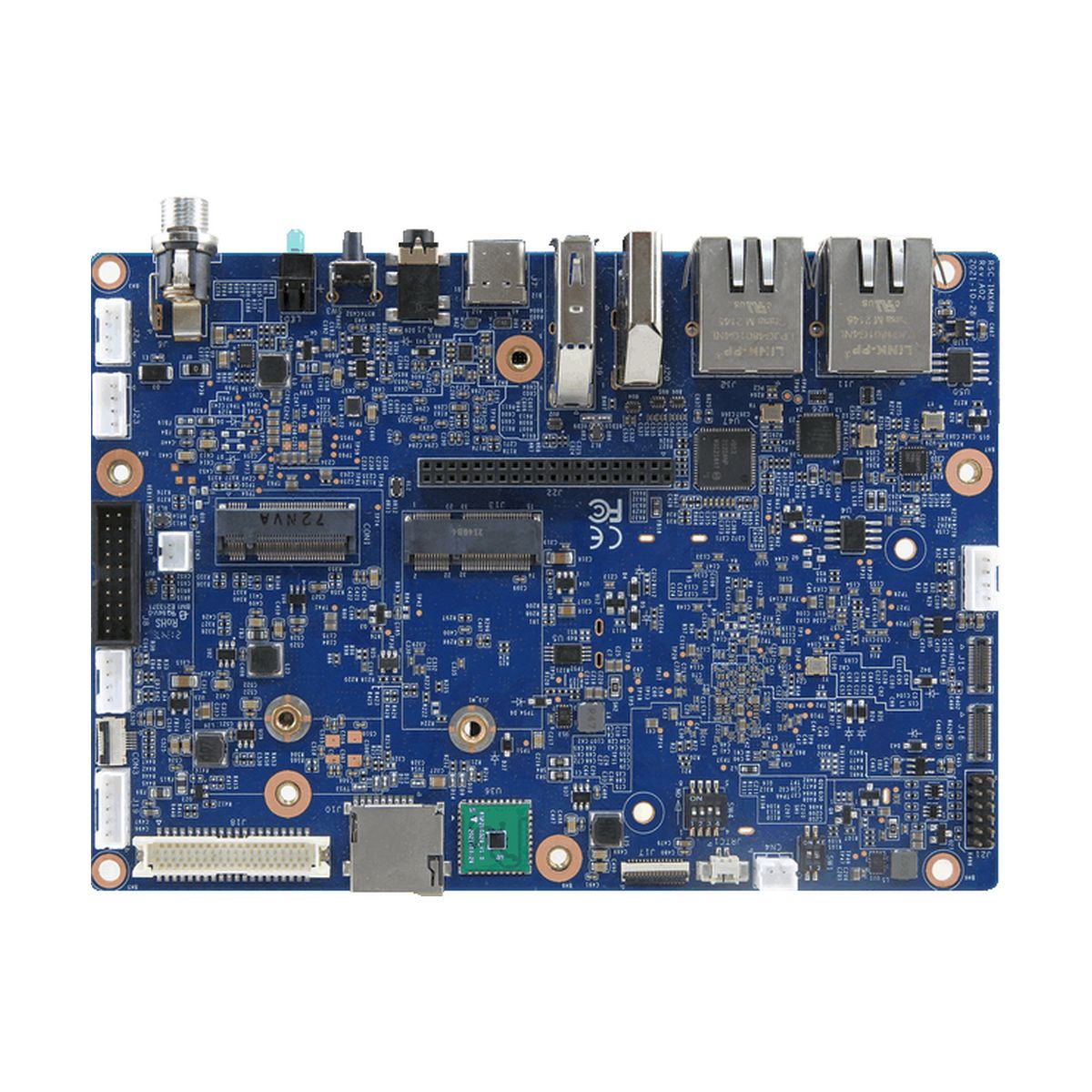

RSC-IMX8M
Avalue RSC-IMX8M - ARM-based SBC Single-Board-Computer CPU: NXP® i.MX8M, Chipset: Quad Core, USB/SATA/COM/LAN: 2/2/3/4, Display: HDMI / LVDS / MIPI DSI
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue RSC-IMX8M - ARM-based SBC Single-Board-ComputerCPU: NXP® i.MX8M, Chipset: Quad Core, USB/SATA/COM/LAN: 2/2/3/4, Display: HDMI / LVDS / MIPI DSIOverviewKey FeaturesNXP® i.MX8M Quad ARM Cortex A53 Quad Core Up to 1.5GHz; Cortex-M4 core processor(Default)16GB eMMC2GB Onboard LPDDR4 Memory (expandable up to 4GB Max)- industry(Default)Display (HDMI / LVDS / MIPI DSI)Dual GLANJTAGOTG USB 3.0 Type C (Data only)USB 3.0 Type AUSB 3.0 Pin HeaderMIC inLine ourSpeaker outHand Phone outWatch dog / I2C / MIPI CSI 1/2 functionM.2 Key E Socket (For WIFI/BT)M.2 Key B Socket + SIM Socket (For LTE)DC IN 12~24VIndustry Operating temperature：-40~85 Degree (Default)Consumer Operating temperature：0~85 DegreeOS Support Linux Yocto 2.5 (First) & Android 10 (coming soon)Specification-System Information-ProcessorNXP® i.MX8M Quad ARM Cortex A53 Quad Core Up to 1.5GHz; Cortex-M4 core processorSystem Memory2GB RAMStorageStorageeMMC 16GBI/OUSB PortOTG USB 3.0 Type C (Data only)
USB 3.0 Type A
USB 3.0 Pin HeaderCOM PortExtend Board (4 x RS232/485 , 1 x GPIO)(Default)External I/O Connector1 x USB 3.0 Type A(Vertical type)
2x RJ45 connector with indicate LED
Industry Version：2pcs(Default) , Consumer Version：1pcs
1 x HDMI connector (Vertical type)
1 x USB 3.0 Type C
1 x Micro SD socket
1 x Reset
1 x Power LED (Green)Internal I/O Connector1 x Front Panel connector
2 x MIPI CSI connector
1 x DC connector with lock Header
1 x TAG connector
1 x MIPI DSI connector
1 x LVDS connector
1 x Back Light connector
1 x I2C connector
1 x USB connector
1 x 2230 M.2 for WiFi/BT (PCIe& USB Channel)
1 x 3042 M.2 for 3G/4G Module (USB Only)
1 x SIM Socket connector
1 x 2x20P Header connector
1 x 1x2P Header (R) connector
1 x 1x2P Header (L) connector
1 x Line-Out Header with 12V out
1 x Mic-In Header connectorDisplayMultiple DisplayDisplay (HDMI / LVDS / MIPI DSI)CertificationsCertification InformationCE
FCC Class BEthernetLAN ChipsetLAN 1: Intel I210
LAN 2: AR8033Ethernet Interface2 x RJ45 Connectors for Dual Gigabit LAN
Industry Version：2pcs(Default)
Consumer Version：1pcsMechanical & EnvironmentalOperating TemperatureIndustry Operating temperature：-40~85 Degree (Default)
Consumer Operating temperature：0~85 DegreeStorage Temperature-40°C ~ 85°COperating Humidity0% ~ 90% Relative Humidity, Non-condensingWeight0.16kgPower RequirementDC 12 ~ 24V Power InputPower ModeDC JackDimension (L x W)(146.05mm x 101.6mm)Software SupportOS InformationLinux Yocto 2.5 (First)
Android Version 10Ordering InformationOrdering InformationRSC-IMX8M-XXXAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: RSC-IMX8MProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue

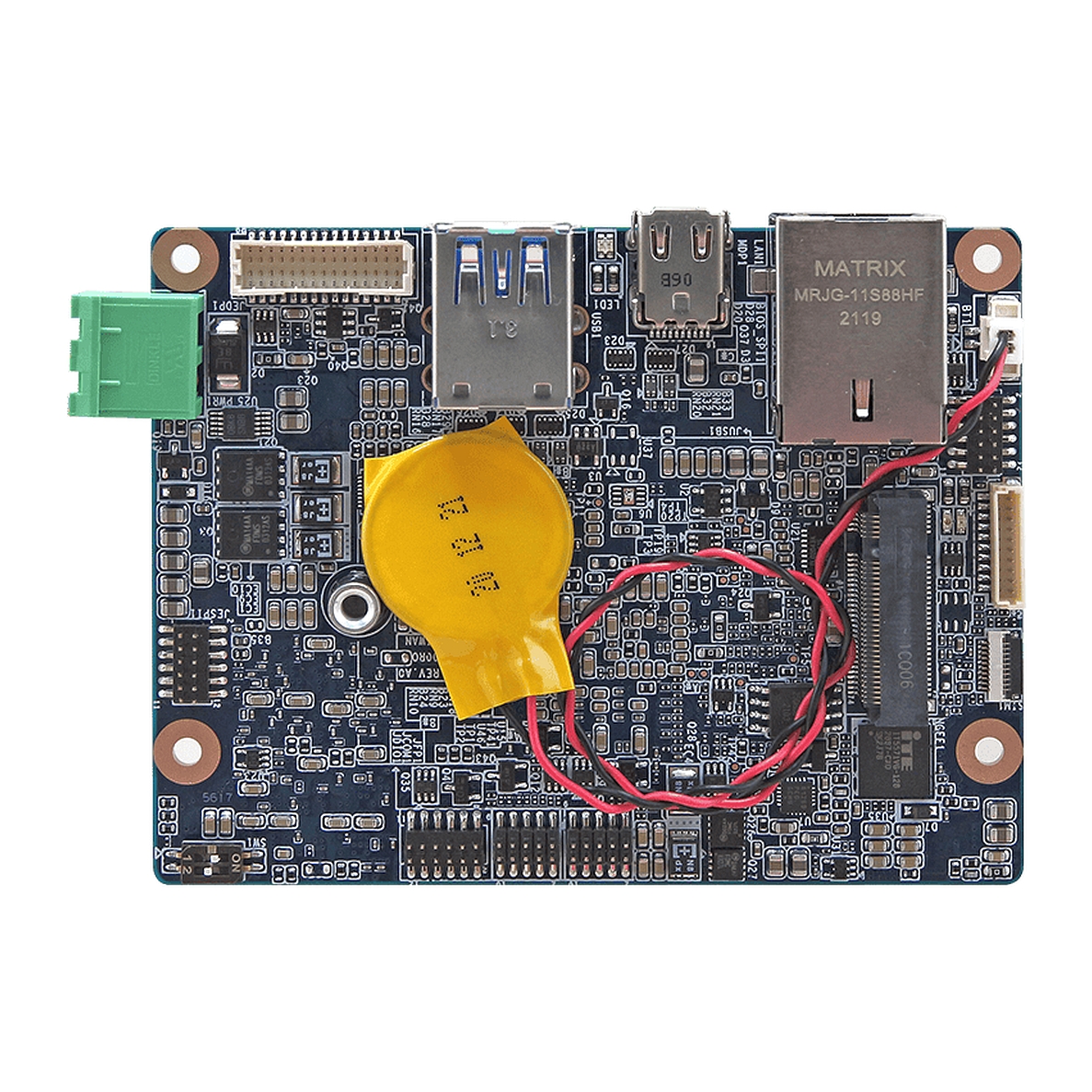

EZX-EHLP
Avalue EZX-EHLP - 1.8" SBC Single-Board-Computer CPU: Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processor, USB/SATA/COM/LAN: 6/0/1/1, Display: 1 x Mini DP / 1 x eDP
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EZX-EHLP - 1.8" SBC Single-Board-ComputerCPU: Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processor, USB/SATA/COM/LAN: 6/0/1/1, Display: 1 x Mini DP / 1 x eDPOverviewKey FeaturesIntel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processors (Bottom Layer Soldered Processor)Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option)Dual Display, Mini DP, eDP 1.3Single Intel® I210AT/IT Gigabit EthernetM.2 Key-B 3042/2242 Bridge Bracket to 3052 (with PCIe x2 (Via OEM BIOS Request) or Default (PCIe x1+USB2.0/USB3.0), or (SATAIII+ USB2.0/USB3.0), SIM Slot for SSD/LTE/IO Cards) with FPC Connector1 x Dual Deck USB3.1 Gen2 Type A for 2 x USB 3.1 Gen2 at I/O, 4 x USB 2.0 by Pin Header1 x RS-232/422/485DC in +12VSpecificationSystem InformationProcessorOnboard Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor (with CPU Bottom Mounted)Platform Controller HubIntegratedSystem MemoryOnboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option)I/O ChipsetEC iTE IT5571Watchdog TimerH/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./stepBIOSAMI BIOS, 256Mbit SPI Flash ROMH/W Status MonitorCPU & System Temperature Monitoring Voltages MonitoringTPMOnboard eMMC 5.1 64GBExpansionExpansion1 x M.2 Type B 3042/2242 Bridge Bracket to 3052
(with PCI-e x2 via OEM BIOS Request
or Default PCI-e x1+USB2.0/USB3.0,
or SATA III+ USB2.0/USB3.0,
SIM Slot for SSD/LTE/IO Cards)
*Default is PCI-e x1/SATA III+USB2.0/USB3.0Support WWAN+GNSS or NVMe SSDStorageStorage1 x M.2 Type BDisplayGraphic ChipsetIntel® UHD GraphicsSpec. & ResolutionMini DP: Max Resolution 4096x2160@60Hz
eDP1.3: Max Resolution 4096x2160@60HzMultiple DisplayDual DisplayEthernetLAN Chipset1 x Intel I210AT/IT Gigabit EthernetEthernet Interface1 x 10/100/1000 Base-Tx GbE CompatibleLAN Port1 x RJ-45Software SupportOSWindows 10, LinuxCertificationCertification InformationCE, FCC Class, RoHS CompliantI/OUSB2 x USB 3.1 Gen2
4 x USB2.0COM Port1 x RS232/422/485DIO1 x 8-bit GPIOMechanical & EnvironmentalOperating Temp.0~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom N/J Series CPU SKU
-20~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom x6000E Series CPU SKUStorage Temp.-40°C ~ 75°C (-40°F ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.66lbs (0.3Kgs)Power RequirementDC in +12VPower ModeAT/ATX (Default Setting: ATX)Dimension (L x W)3.31" x 2.55" (84mm x 65mm)Ordering InformationOrdering InformationEZX-EHLP-J6412-A1R
EZX-EHLP/J6412/1COM/6USB/1LAN/A1
EZX-EHLP-J6413-A1R
EZX-EHLP/J6413/1COM/6USB/1LAN/A1
EZX-EHLP-X11E-A1R
EZX-EHLP/x6211E/1COM/6USB/1LAN/A1
EZX-EHLP-X13E-A1R
EZX-EHLP/x6413E/1COM/6USB/1LAN/A1
EZX-EHLP-X12RE-A1R
EZX-EHLP/x6212RE/1COM/6USB/1LAN/A1
Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor 1.8 SBC MotherboardProduct Variants / AccessoriesEZX-EHLP-J6412-A1REZX-EHLP/J6412/1COM/6USB/1LAN/A1EZX-EHLP-J6413-A1REZX-EHLP/J6413/1COM/6USB/1LAN/A1EZX-EHLP-X11E-A1REZX-EHLP/x6211E/1COM/6USB/1LAN/A1EZX-EHLP-X13E-A1REZX-EHLP/x6413E/1COM/6USB/1LAN/A1EZX-EHLP-X12RE-A1REZX-EHLP/x6212RE/1COM/6USB/1LAN/A1All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EZX-EHLPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue

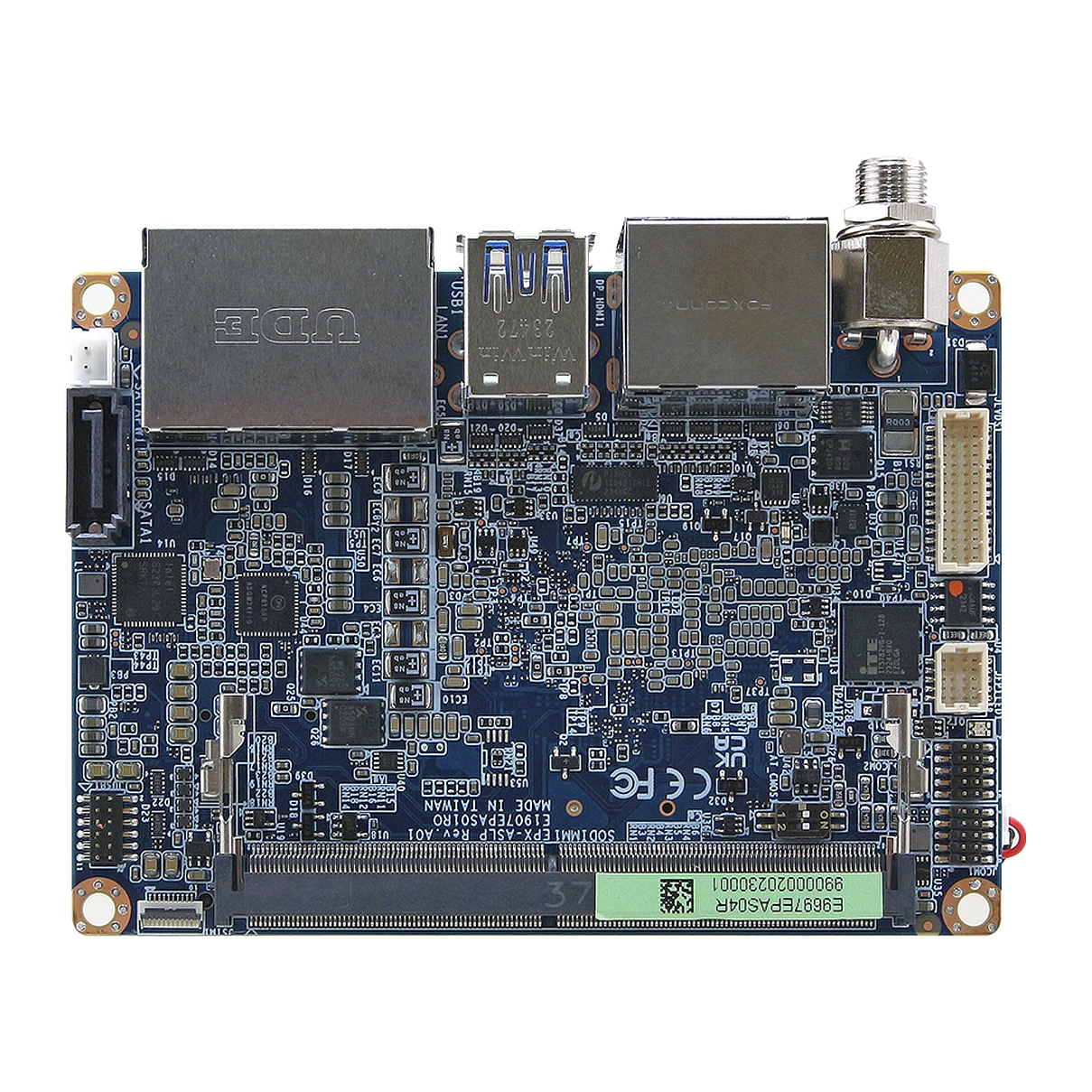

EPX-TWLP
Avalue EPX-TWLP - Pico-ITX Single-Board-Computer CPU: Intel® Processor N-series, USB/SATA/COM/LAN: 6/1/2/2, Display: 1 x HDMI / 1 x DP / 1 x LVDS
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EPX-TWLP - Pico-ITX Single-Board-ComputerCPU: Intel® Processor N-series, USB/SATA/COM/LAN: 6/1/2/2, Display: 1 x HDMI / 1 x DP / 1 x LVDSOverviewKey FeaturesIntel® Processor N-seriesBottom Layer Soldered ProcessorTriple Display, DP 1.4a, HDMI 2.0b, 1 x 1CH LVDSDual Intel® Gigabit Ethernet, 2.5GbEDual Expansion Slot, M.2 Key-B, M.2 Key-EDC in +12VAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EPX-TWLPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue

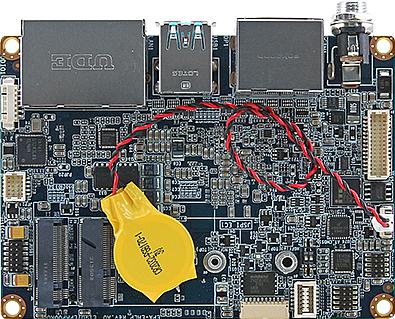

EPX-EHLP
Avalue EPX-EHLP - 2.5" SBC Pico-ITX Single-Board-Computer with Intel® Elkhart Lake CPU: Intel® Atom® x6000E and Intel® Celeron® Series Processor, USB/SATA/COM/LAN: 6/0/2/2, Display: 2 x DP / 1 x LVDS
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EPX-EHLP - 2.5" SBC Pico-ITX Single-Board-Computer with Intel® Elkhart LakeCPU: Intel® Atom® x6000E and Intel® Celeron® Series Processor, USB/SATA/COM/LAN: 6/0/2/2, Display: 2 x DP / 1 x LVDSOverviewKey FeaturesSupported CPUsIntel® Atom® x6000E and Intel® Celeron® Series Processors with CPU Bottom Mounted1 x 260-pin DDR4 2666MHz SO-DIMM supports up to 32GB (Only Atom® x6000 Series Processors support IBECC)1 x Dual stack DP, Single channel 18/24-bits LVDS2 x Intel® i226LM/IT 2.5G Gigabit Ethernet1 x M.2 (2242/2260) B-Key, 1 x M.2 (2230) E-Key support Wifi module4 x USB 2.0 by pin header, 1 x dual stack USB 3.1 Gen2 at I/O1 x RS232, 1 x RS232/422/485, 4-bit GPIODC in +12V
CPU-Product Family: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, up to 2.60 GHz)Intel® Celeron® J6413 (1.5M Cache, up to 3.00 GHz)CPU-Variants
CPU
Intel® Celeron® J6413
Intel® Celeron® J6412
Processor Number
J6413
J6412
Cache
1.5 MB L2 Cache
1.5 MB L2 Cache
Total Cores
4
4
Total Threads
4
4
PCI Express Revision
3.0
3.0
Specification-System Information-ProcessorIntel® Atom® x6000E and Celeron® Series processorsSystem Memory1 x 260-pin DDR4 2666MHz SO-DIMM supports up to 32GBI/O ChipsetEC iTE IT5571BIOS InformationAMI 256Mbit SPI BIOSWatchdog TimerH/W Reset: 1sec. ~ 65535sec./min. and 1sec. or
1min./stepH/W Status MonitorMonitoring System Temperature and Voltage with Auto Throttling ControlExpansionExpansion1 x M.2 Type B 2242/2260 with (1 x PCI-e x2 via OEM BIOS request) or (1 x PCI-e x1 + USB3.1 GEN 1)-Default or (1 x SATA III + USB3.1 GEN 1), USB2.0 Signal support SSD. (Default: SATA)I/OUSB Port4 x USB 2.0 by pin header
1 x dual stack USB 3.1 Gen2 at I/OCOM Port1 x RS232, 1 x RS232/422/485DIO1 x 4-bit GPIODisplayGraphic ChipsetIntel® UHD Graphics for 10th Gen Intel® ProcessorsSpec. & ResolutionOne dual deck DP(Upper DP, Lower DP++): 4096 x 2160@60 Hz
LVDS: 1366x768 Single channel 18/24-bits LVDS (Chrontel CH7511B-BF (CH7511B-BFI for wide temp version) eDP to LVDS)LVDS1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS ConverterEthernetLAN Chipset2 x Intel® i226LM(i226IT for wide temp version) 2.5 Gigabit EthernetEthernet Interface10/100/1000 Base-Tx GbE compatible
2.5 Gigabit EthernetLAN Port2 x RJ45Mechanical & EnvironmentalOperating Temperature0~60°C (32~140°F) Elkhart Lake J Series CPU SKU
-20~60°C (-4~140°F) Elkhart Lake Atom Series CPU SKU
w/HDD/SSD, ambient with 0.5 m/s Air flowStorage Temperature-40°C ~ 75°C (-40°F ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.66lbs (0.3Kgs)Power Requirement+12VPower ModeAT/ATXDimension (L x W)3.94” x 2.83” (100mm x 72mm)Ordering InformationOrdering InformationEPX-EHLP-J6412-A1R
EPX-EHLP-J6413-A1R
EPX-EHLP-X11E-A1R
EPX-EHLP-X13E-A1R
Intel® Celeron®/Atom™ SoC BGA Processor 2.5" Pico ITX SBC MotherboardAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EPX-EHLPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue
EPX-ASLP
Avalue EPX-ASLP - Pico-ITX Single-Board-Computer CPU: Intel® N97 and Atom® x7000RE series processo, USB/SATA/COM/LAN: 6/1/2/2, Display: 1 x HDMI / 1 x DP / 1 x LVDS
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EPX-ASLP - Pico-ITX Single-Board-ComputerCPU: Intel® N97 and Atom® x7000RE series processo, USB/SATA/COM/LAN: 6/1/2/2, Display: 1 x HDMI / 1 x DP / 1 x LVDSOverviewKey FeaturesIntel® Processor N97 & Atom® x7000RE series processorsBottom Layer Soldered ProcessorTriple Display, DP 1.4a, HDMI 2.0b, 1 x 1CH LVDSDual Intel® Gigabit Ethernet, 2.5GbEDual Expansion Slot, M.2 Key-B, M.2 Key-EDC in +12VSpecificationSystem InformationProcessorIntel® Processor N97System Memory1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.I/O ChipsetEC IC: IT5782 or Equivalent
Fintek_F81435N or Equivalent for COM portWatchdog TimerH/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./StepBIOSAMI BIOS, 256Mbit SPI Flash ROMH/W Status MonitorCPU temperature monitoring
Voltages monitoring
CPU fan speed controlTPMSupport fTPMBoardPICO ITXExpansionExpansion1 x M.2 Type B 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards)
*Default is Default: SATA)
*1 x 10Pin FPC connector for Micro SIM card adapter
*Micro SIM card to SIM card adapter by optional
1 x M.2 Type E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal.StorageStorage1 x M.2 (Type B)
1 x SATA IIIDisplayGraphic ChipsetIntel® UHD GraphicsSpec. & ResolutionHDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1366 x 768 Single channel 18/24-bitsMultiple DisplayTriple DisplayLVDS1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS ConverterEthernetLAN Chipset2 x Intel® i226V (i226IT for wide temp version) 2.5 Gigabit EthernetEthernet Interface2.5 Gigabit EthernetLAN Port2 x RJ45Software SupportOSWindows 11, Linux
Note: Windows 11 is not a LTSC release and will be supported on the Intel CCG Client roadmap.
NEX Network & Edge customers may install non-LTSC releases(e.g. Win11) on NEX Network & Edge processors.CertificationCertification InformationCE, FCC, RoHS CompliantI/OUSB2 x USB 3.2 Gen2 at IO
4 x USB2.0 by Pin headerCOM Port1 x RS-232
1 x RS-232/422/485SATA1 x SATA IIIDIO1 x 4-bit GPIOMechanical & EnvironmentalOperating Temp.CPU N97 for Standard Temperature: 0°C ~ 60°C with 0.5m/s Air Flow Fanless
TBC for CPU skus: Extend Temperature: 0°C ~ 60°C with 0.5m/s Air Flow with FanStorage Temp.-40°C ~ 75°C (-40°F ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.66lbs (0.3Kgs)Power RequirementDC in +12VPower ModeAT/ATX (Default Setting: ATX)Dimension (L x W)3.94" x 2.83" (100mm x 72mm)Ordering InformationOrdering InformationTBCAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EPX-ASLPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue
EMX-WHLGP
Avalue EMX-WHLGP - Thin Mini-ITX Single-Board-Computer with Intel® Whiskey Lake Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX Motherboard
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

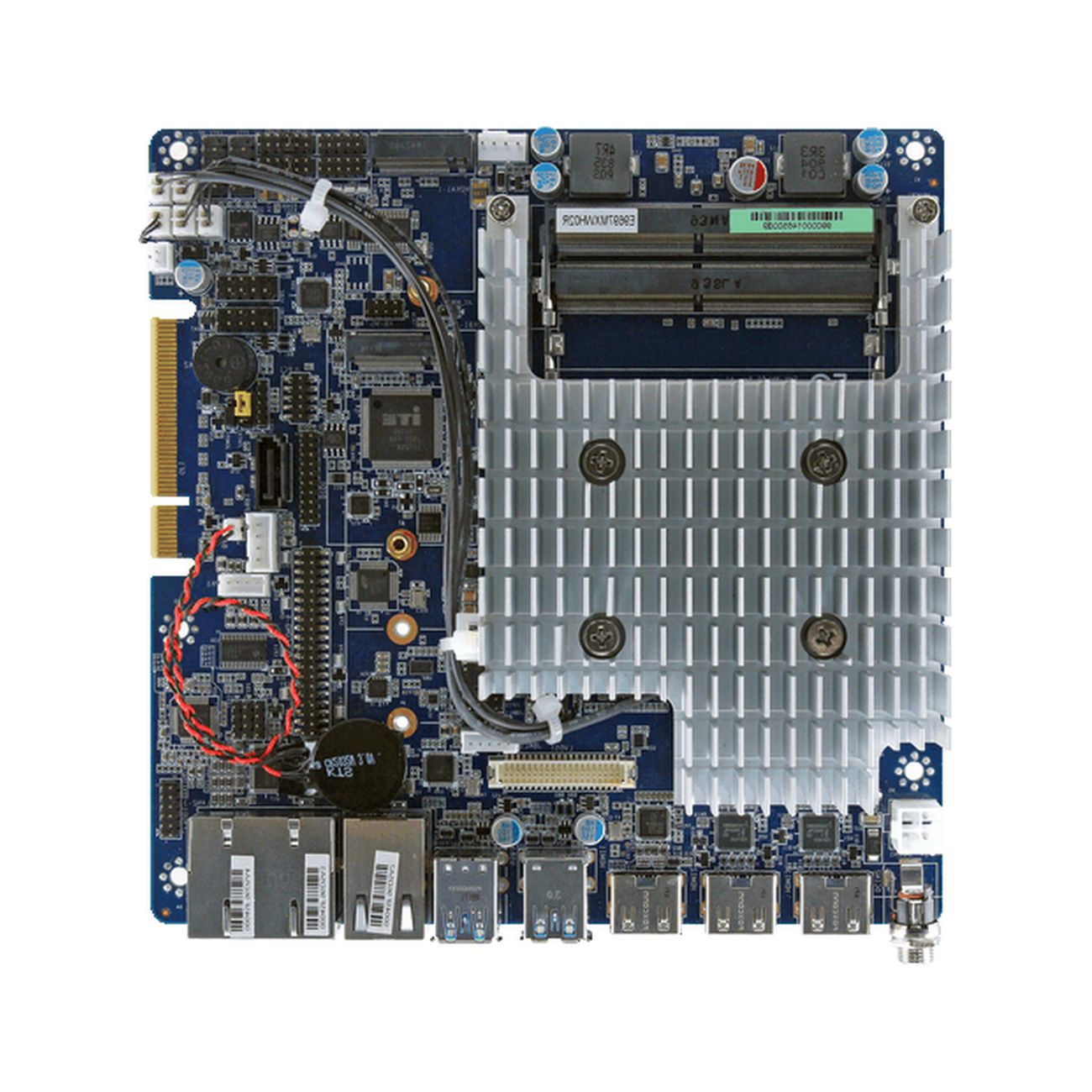

Avalue EMX-WHLGP - Thin Mini-ITX Single-Board-Computer with Intel® Whiskey LakeOnboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX MotherboardOverviewKey FeaturesSupported CPUsOnboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron®BGA ProcessorTwo 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)2 x HDMI + 1 x HDMI/Dual-channel LVDS (default LVDS)1 x Intel® I219LM Gigabit Ethernet PHY, 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)Realtek ALC888S Audio Codec, TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal), 1 x M.2 Key B 3042/2242/2260/2280 support WWAN+GNSS or SSD with 1 x SIM card slot1 x SATA III, 1 x SATA Power, 4 x USB 2.0, 3 x USB 3.1, 1 x USB Type C(USB 3.1 Gen1)1 x PCI-e x 8 Golden Finger (1 x PCI-e x 1, 1 x PCI-e x 4, 1 x SATA III, 1 x USB 2.0)4 x RS232, 2 x RS232/422/485, 16-bit GPIOMic-in, Line-out, 1 S/PIDFDC in +12V~24V
CPU-Product Family: Intel® Whiskey Lake
Intel® Core™ i7-8665UE (8M Cache, up to 4.40 GHz)Intel® Core™ i5-8365UE (6M Cache, up to 4.10 GHz)Intel® Core™ i3-8145UE (4M Cache, up to 3.90 GHz)Intel® Celeron® 4305UE (2M Cache, 2.00 GHz)CPU-Variants
CPU
Intel® Core™ i7-8665UE
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
Intel® Celeron® 4305UE
Processor Number
i7-8665UE
i5-8365UE
i3-8145UE
4305UE
Cache
8 MB Intel® Smart Cache
6 MB Intel® Smart Cache
4 MB Intel® Smart Cache
2 MB Intel® Smart Cache
Total Cores
4
4
2
2
Total Threads
8
8
4
2
PCI Express Revision
3.0
3.0
3.0
3.0
Max Turbo Frequency
4.40 GHz
4.10 GHz
3.90 GHz
Specification-System Information-ProcessorIntel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz)
Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz)
Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz)
Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz)System MemoryTwo 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)I/O ChipsetEC IT8528E-IBIOS InformationAMI 256Mbit SPI BIOSWatchdog TimerH/W Reset: 1sec. ~ 65535sec./min. and 1sec. or
1min./stepH/W Status MonitorMonitoring System Temperature and Voltage with Auto Throttling ControlTPM1 x onboard TPM2.0ExpansionExpansion1 x M.2 Key B 3042/2242/2260/2280 (with 1 x PCI-e x 1 (default) or SATA by BIOS), USB 2.0 with 1 x SIM card slot, support WWAN+GNSS or SSD with 1 x SIM card slot, support WWAN+GNSS or SSD.
1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal)I/OUSB Port3 x USB 3.1, 1 x USB Type C (USB 3.1 Gen1, without DP signal) at I/O
4 x USB 2.0COM Port4 x RS232
2 x RS232/422/485SATA1 x SATA Power
1 x SATA IIIDIO1 x 16-bit GPIODisplayGraphic ChipsetIntel® Processor GraphicsSpec. & Resolution3 x HDMI 1.4b: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz
2CH 18/24bits LVDS 1920 x 1080 (Chrontel. CH7511B eDP to LVDS Converter)Multiple DisplayTriple DisplayLVDS2CH 18/24bits LVDS 1920 x 1080
Chrontel. CH7511B eDP to LVDS ConverterAudioAudio CodecRealtek ALC888S supports 2-CHAudio InterfaceMic-in, Line-outAudio AmplifierTI TPA3113D2PWP Stereo Class-D 6W x 2EthernetLAN Chipset1 x Intel® I219LM Gigabit Ethernet PHYv
2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)Ethernet Interface10/100/1000 Base-Tx GbE compatibleLAN Port3 x RJ45Mechanical & EnvironmentalOperating Temperature-20~ 60°C (-68 ~ 140°F), 60°C with 0.5 m/s air flowStorage Temperature-40 ~ 75°C (-40 ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.88lbs (0.4Kgs)Power Requirement+12V~24VPower ModeAT/ATXDimension (L x W)6.69” x 6.69” (170mm x 170mm)Ordering InformationOrdering InformationOnboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX MotherboardEMX-WHLGP-430-B1R (w/o heatsink)/ EMX-WHLGP-43B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-814-B1R (w/o heatsink)/ EMX-WHLGP-81B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-836-B1R (w/o heatsink)/ EMX-WHLGP-83B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-866-B1R (w/o heatsink)/ EMX-WHLGP-86B1-01R (w/heatsink and heater, wide temp)Note: EMX-WHLGP standard package does not include I/O shields due to LAN 2 & 3 port exceed standard Thin MiniITX chassis. Customer need to make customized changes on chassis.All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-WHLGPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue
EMX-TGLP

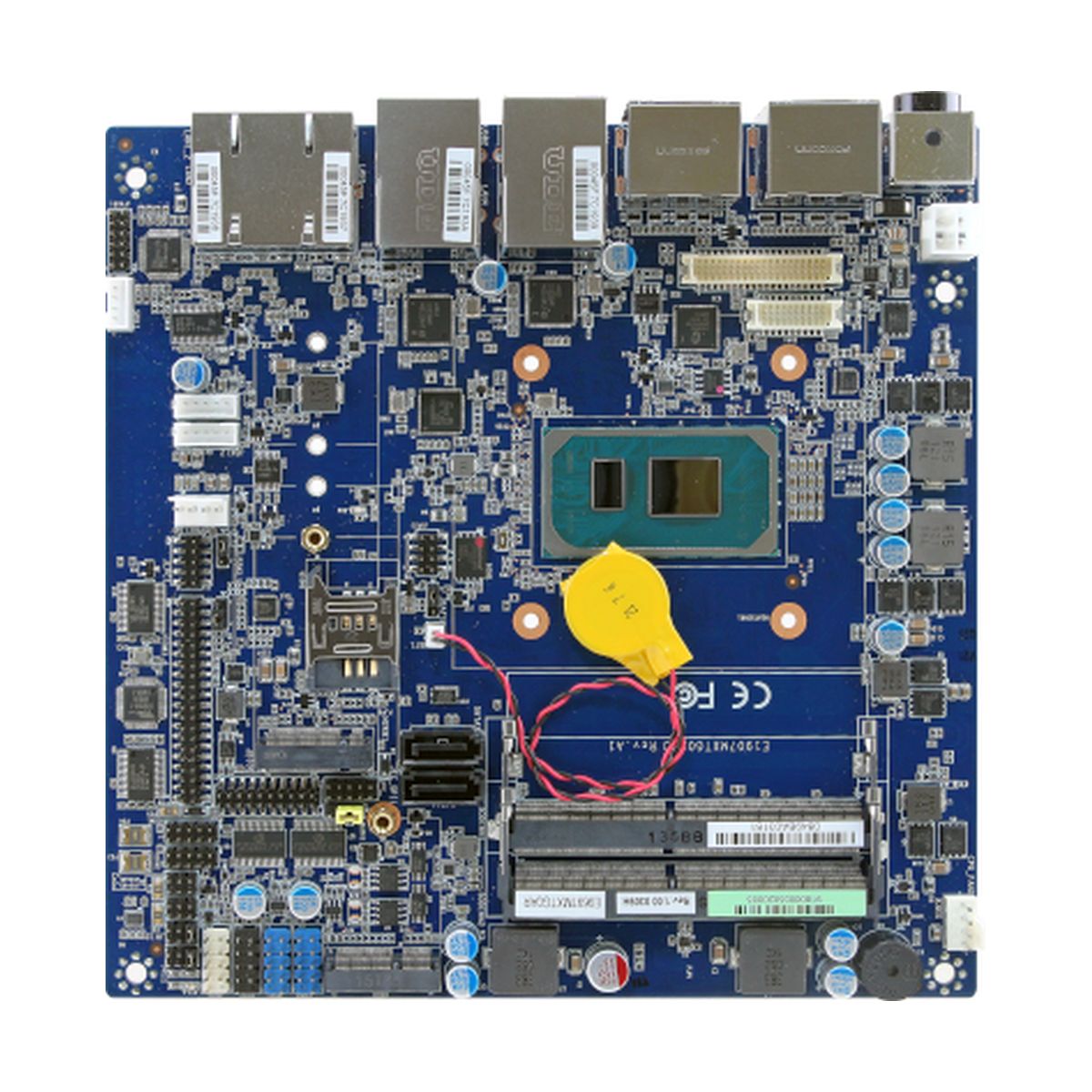

Avalue EMX-TGLP - Mini-ITX Single-Board-Computer with Intel® Tiger Lake 11th Gen Intel® Core™ SoC i7/i5/i3 & Celeron BGA Processor Mini ITX Motherboard
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EMX-TGLP - Mini-ITX Single-Board-Computer with Intel® Tiger Lake11th Gen Intel® Core™ SoC i7/i5/i3 & Celeron BGA Processor Mini ITX MotherboardOverviewKey FeaturesSupported CPUsOnboard 11th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for quadruple independent displays)1 x Intel® I226LM/IT 2.5 Gigabit Ethernet1 x Intel® I219LM Gigabit Ethernet PHY2 x Intel® I210AT/IT Gigabit Ethernet (BOM optional)Realtek ALC888STI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD*SATA 2 share with M.2 key B SATA1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)GPIO 16bitOnboard NuvoTon NPCT754AADYX support TPM 2.0Support Line-out & Mic-in & Front audio pin-headerDC in +12V~24V
CPU-Product Family: Intel® Tiger Lake
Intel® Core™ i7-1185GRE (12M Cache, up to 4.40 GHz)Intel® Core™ i7-1185G7E (12M Cache, up to 4.40 GHz)Intel® Core™ i5-1145GRE (8M Cache, up to 4.10 GHz)Intel® Core™ i5-1145G7E (8M Cache, up to 4.10 GHz)Intel® Core™ i3-1115GRE (6M Cache, up to 3.90 GHz)Intel® Core™ i3-1115G4E (6M Cache, up to 3.90 GHz)Intel® Celeron® 6305E (4M Cache, 1.80 GHz)CPU-Variants
CPU
Processor Number
Cache
Total Cores
Total Threads
Max Turbo Frequency
Intel® Core™ i7-1185GRE
i7-1185GRE
12 MB Intel® Smart Cache
4
8
4.40 GHz
Intel® Core™ i7-1185G7E
i7-1185G7E
12 MB Intel® Smart Cache
4
8
4.40 GHz
Intel® Core™ i5-1145GRE
i5-1145GRE
8 MB Intel® Smart Cache
4
8
4.10 GHz
Intel® Core™ i5-1145G7E
i5-1145G7E
8 MB Intel® Smart Cache
4
8
4.10 GHz
Intel® Core™ i3-1115GRE
i3-1115GRE
6 MB Intel® Smart Cache
2
4
3.90 GHz
Intel® Core™ i3-1115G4E
i3-1115G4E
6 MB Intel® Smart Cache
2
4
3.90 GHz
Intel® Celeron® 6305E
6305E
4 MB Intel® Smart Cache
2
2
Specification-System Information-ProcessorIntel® Core™ i7-1185G7E, i7-1185GRE (up to 4.4GHz, quad-core, 12M Cache, TDP: 28/15/12W)*
Intel® Core™ i5-1145G7E, i5-1145GRE (up to 4.1GHz, quad-core, 8M Cache, TDP: 28/15/12W)*
Intel® Core™ i3-1115G4E, i3-1115GRE (up to 3.9GHz, dual-core, 6M Cache, TDP: 28/15/12W)*
Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15W)System Memory2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)I/O ChipsetEC iTE IT8528EBIOS InformationAMI uEFI BIOS, 256Mbit SPI Flash ROMWatchdog TimerH/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./stepH/W Status MonitorCPU temperature monitoring
Voltages monitoring
CPU fan speed controlTPMOnboard NuvoTon NPCT754AADYX support TPM 2.0ExpansionExpansion1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD
*SATA 2 share with M.2 key B SATA
1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)I/OUSB Port3 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 at I/O
4 x USB2.0 by pin headerCOM Port4 x RS232
2 x RS232/422/485SATA1 x SATA Power
2 x SATA IIIDIO1 x 16-bit GPIODisplayGraphic ChipsetIntel® 12th Generation CPU integratedSpec. & ResolutionDP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz
DP3+DP4 (DP1.4): Max: 7680 x 4320@60 Hz
Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, check Max: 7680 x 4329@60 Hz
Intel resolution as below:
2 x DP++ : 1920 x 1080@60 Hz
2 x DP: 4096 x 2304@60 Hz
LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
eDP 4096 x 2304@60 Hz
*2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for full height
(Maximum: 6 for quadruple independent displays)Multiple Display2 x DP++/2 x DP++/1 x LVDS/1 x eDP
(Maximum: 6 for quadruple independent displays)LVDS2CH 18/24bits LVDS 1920 x 1080
Chrontel. CH7511B eDP to LVDS ConverterAudioAudio CodecRealtek ALC888SAudio InterfaceSupport Line-out & Mic-in & Front audio pin-headerAudio Amplifier2 x Stereo Class-D 6W Audio AmplifierEthernetLAN Chipset1 x Intel® I226LM/IT 2.5 Gigabit Ethernet
1 x Intel® I219LM Gigabit Ethernet PHY
2 x Intel® I210AT/IT Gigabit Ethernet (BOM optional)Ethernet Interface10/100/1000 Base-Tx & & 2.5 GbE compatibleLAN Port4 x RJ45Mechanical & EnvironmentalOperating TemperatureIntel@ wide temperature CPU SKU Support: -20~60C
Intel@ standard CPU SKU support: 0~60CStorage Temperature-40 ~ 75°C (-40 ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.88lbs (0.4Kgs)Power Requirement+12V~24VPower ModeAT/ATXDimension (L x W)6.69” x 6.69” (170mm x 170mm)Software SupportOS InformationWin10 64bit
LinuxOrdering InformationOrdering InformationEMX-TGLP-S05-A2R (Celeron, Thin, 2DP/2LAN, Standard Temp.)
EMX-TGLP-S15-A2R (Core i3, Thin, 2DP/2LAN, Standard Temp.)
EMX-TGLP-S45-A2R (Core i5, Thin, 2DP/2LAN, Standard Temp.)
EMX-TGLP-S85-A2R (Core i7, Thin, 2DP/2LAN, Standard Temp.)
EMX-TGLP-W15-A2-1R (Core i3, Thin, 2DP/2LAN, Wide Temp.)
EMX-TGLP-W45-A2-1R (Core i5, Thin, 2DP/2LAN, Wide Temp.)
EMX-TGLP-W85-A2-1R (Core i7, Thin, 2DP/2LAN, Wide Temp.)
EMX-TGLP-W15-A2R (Core i3, Full, 4DP/4LAN, Wide Temp.)
EMX-TGLP-W45-A2R (Core i5, Full, 4DP/4LAN, Wide Temp.)
EMX-TGLP-W85-A2R (Core i7, Full, 4DP/4LAN, Wide Temp.)
Intel® 11th Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Mini ITX MotherboardAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-TGLPProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
Avalue
EMX-TGLC

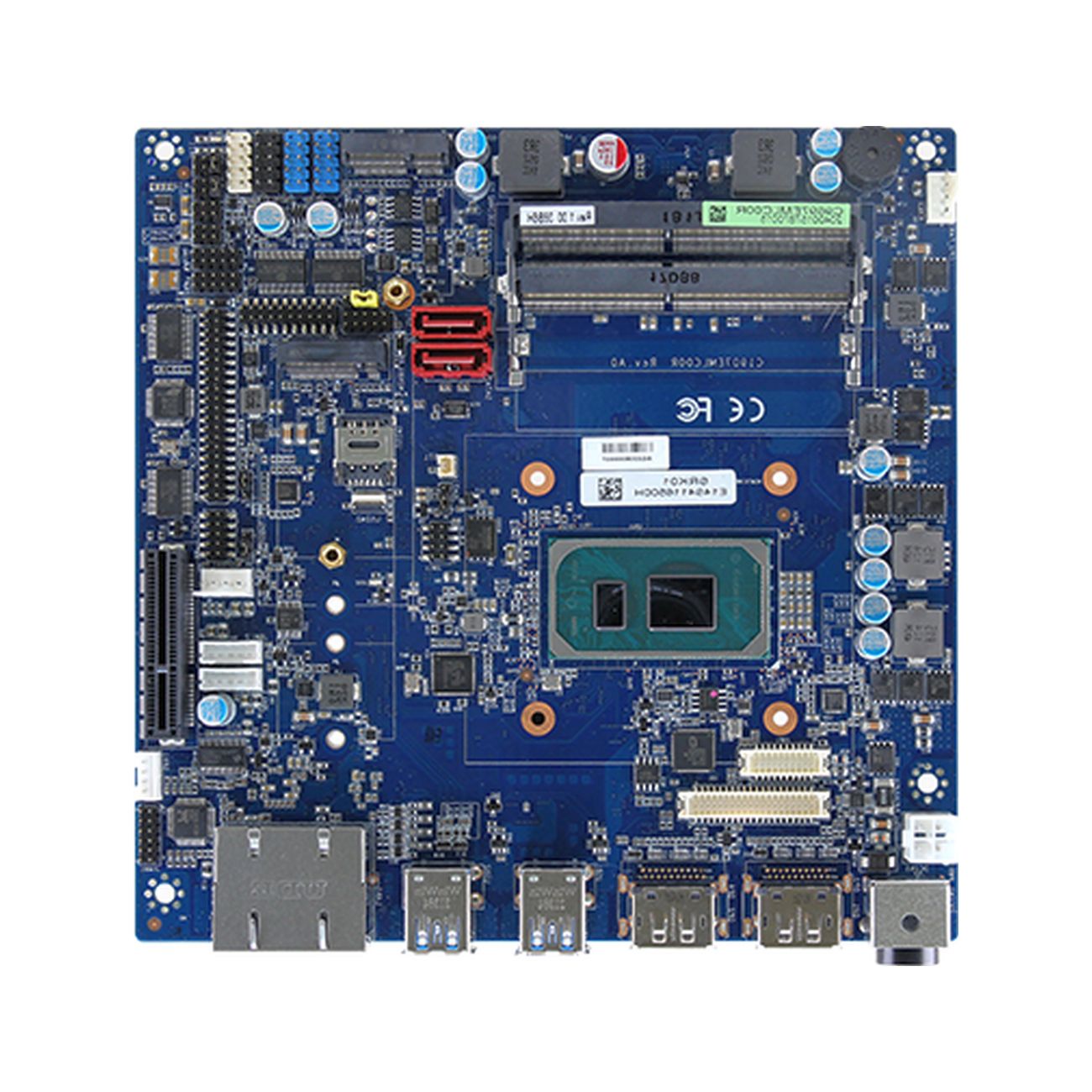

Avalue EMX-TGLC - Mini-ITX Single-Board-Computer with Intel® Tiger Lake CPU: 11th Gen Intel® Core™ SoC i5/i3 & Celeron®, Chipset: Integrated, USB/SATA/COM/LAN: 8/2/6/2, Display: 2 x DP++ / 1 x LVDS / 1 x eDP (Quadruple independent displays)
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue EMX-TGLC - Mini-ITX Single-Board-Computer with Intel® Tiger LakeCPU: 11th Gen Intel® Core™ SoC i5/i3 & Celeron®, Chipset: Integrated, USB/SATA/COM/LAN: 8/2/6/2, Display: 2 x DP++ / 1 x LVDS / 1 x eDP (Quadruple independent displays)OverviewKey FeaturesSupported CPUsOnboard 11th Gen. Intel® Core™ SoC i5/i3 ® BGA Processor (Support Consumer CPU SKU)2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)2 x DP++, 1 x LVDS, 1 x eDP (Quadruple independent displays)1 x Intel® I226LM 2.5 Gigabit Ethernet1 x Intel® I219LM Gigabit Ethernet PHYRealtek ALC897 co-lay ALC888S (Default: Realteck ALC897)TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD*SATA 2 share with M.2 key B SATA1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)1 x PCI-e x4 slot support PCI-2 x2(Gen3) deviceGPIO 16bitOnboard NuvoTon NPCT754AADYX support TPM 2.0Support Line-out & Mic-in & Front audio pin-headerDC in +12V~24V
CPU-Product Family: Intel® Tiger Lake
Intel® Celeron® 6305E (4M Cache, 1.80 GHz)CPU-Variants
CPU
Intel® Celeron® 6305E
Processor Number
6305E
Cache
4 MB Intel® Smart Cache
Total Cores
2
Total Threads
2
Specification-System Information-ProcessorIntel® Core™ i5-1135G7 (up to 4.2GHz, quad-core, 8M Cache, TDP: 15W
Intel® Core™ i3-1115G4 (up to 3.0GHz, dual-core, 6M Cache, TDP: 15W
Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15WSystem Memory2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)I/O ChipsetEC iTE IT8528EBIOS InformationAMI uEFI BIOS, 256Mbit SPI Flash ROMWatchdog TimerH/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./stepH/W Status MonitorCPU temperature monitoring
Voltages monitoring
CPU fan speed controlTPMOnboard NuvoTon NPCT754AADYX support TPM 2.0ExpansionExpansion1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD
*SATA 2 share with M.2 key B SATA
1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)
1 x PCI-e x4 slot support PCI-e x2(Gen3) device *Only support 25W Slot, +V12A total current is 8.7A.I/OUSB Port3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1 at I/O
4 x USB2.0 by pin headerCOM Port4 x RS232
2 x RS232/422/485SATA1 x SATA Power
2 x SATA IIIDIO1 x 16-bit GPIODisplayGraphic ChipsetIntel® 12th Generation CPU integratedSpec. & ResolutionDP1+DP2 (DP1.4): Max: 7680 x 4329@60 Hz
Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, DVT check Max: 7680 x 4329@60 Hz
Note: This resolution is actual test result. Intel resolution as below:
2 x DP++ : 1920 x 1080@60 Hz
LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
eDP 4096 x 2304@60 Hz
*2 x DP++, LVDS, eDP
(Quadruple independent displays)Multiple Display2 x DP++/1 x LVDS/1 x eDP
(Quadruple independent displays)LVDS2CH 18/24bits LVDS 1920 x 1080
Chrontel. CH7511B eDP to LVDS ConverterAudioAudio CodecRealtek ALC897 co-lay ALC888SAudio InterfaceSupport Line-out & Mic-in & Front audio pin-headerAudio Amplifier2 x Stereo Class-D 6W Audio AmplifierEthernetLAN Chipset1 x Intel® I226LM 2.5 Gigabit Ethernet
1 x Intel® I219LM Gigabit Ethernet PHYEthernet Interface10/100/1000 Base-Tx GbE compatibleLAN Port2 x RJ45Mechanical & EnvironmentalOperating TemperatureIntel@ standard CPU SKU support: 0~60CStorage Temperature-40 ~ 75°C (-40 ~ 167°F)Operating Humidity40°C @ 95% Relative Humidity, Non-condensingWeight0.88lbs (0.4Kgs)Power Requirement+12V~24VPower ModeAT/ATXDimension (L x W)6.69” x 6.69” (170mm x 170mm)Software SupportOS InformationWin10 64bit
LinuxOrdering InformationOrdering InformationEMX-TGLC-15-A1R (Core i3, Thin, 2DP/2LAN, Standard Temp.)
EMX-TGLC-35-A1R (Core i5, Thin, 2DP/2LAN, Standard Temp.)
Intel® 11th Gen. Core™ SoC i5/i3 ®BGA Processor Mini ITX MotherboardAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-TGLCProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
