EMX-TGLP
Price on request

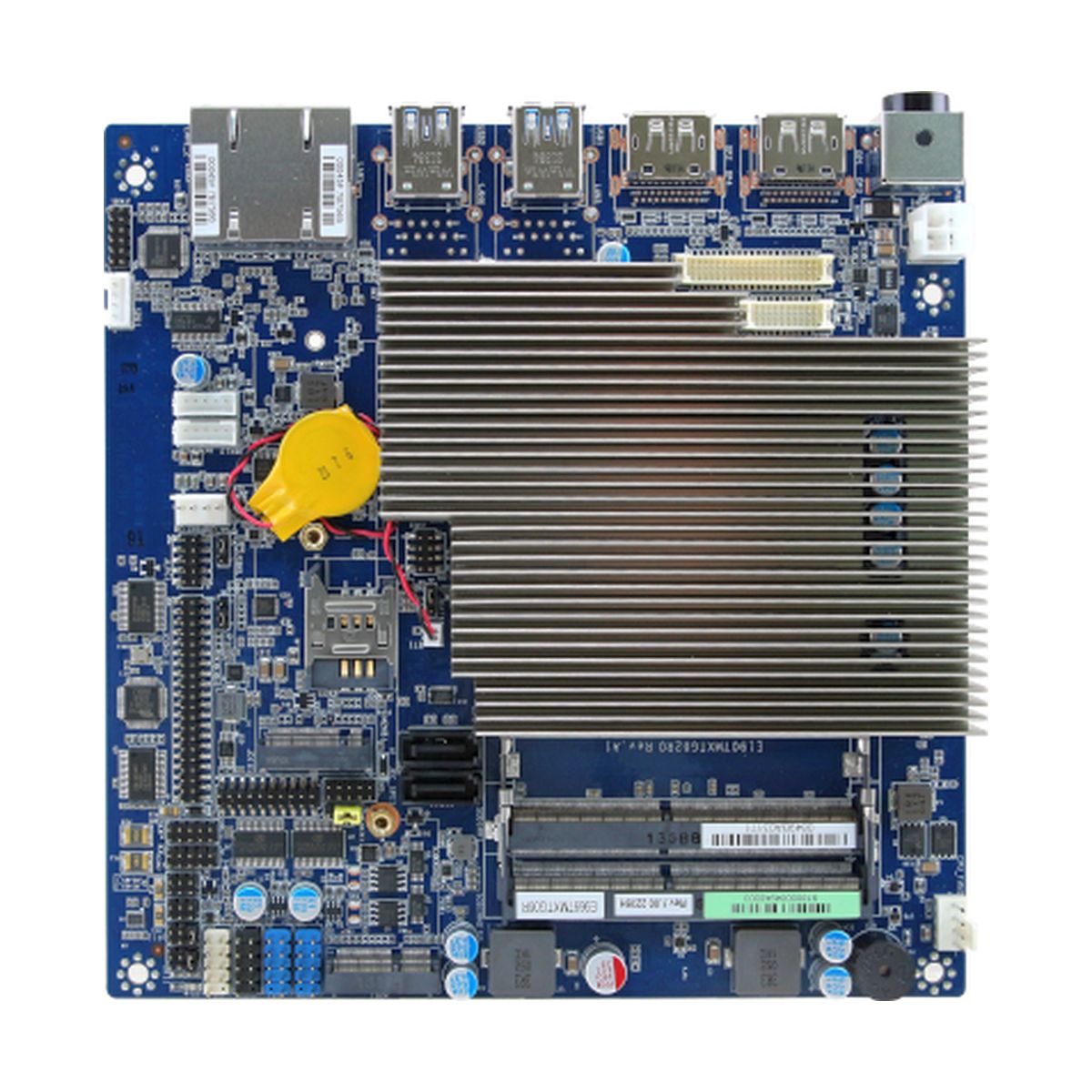

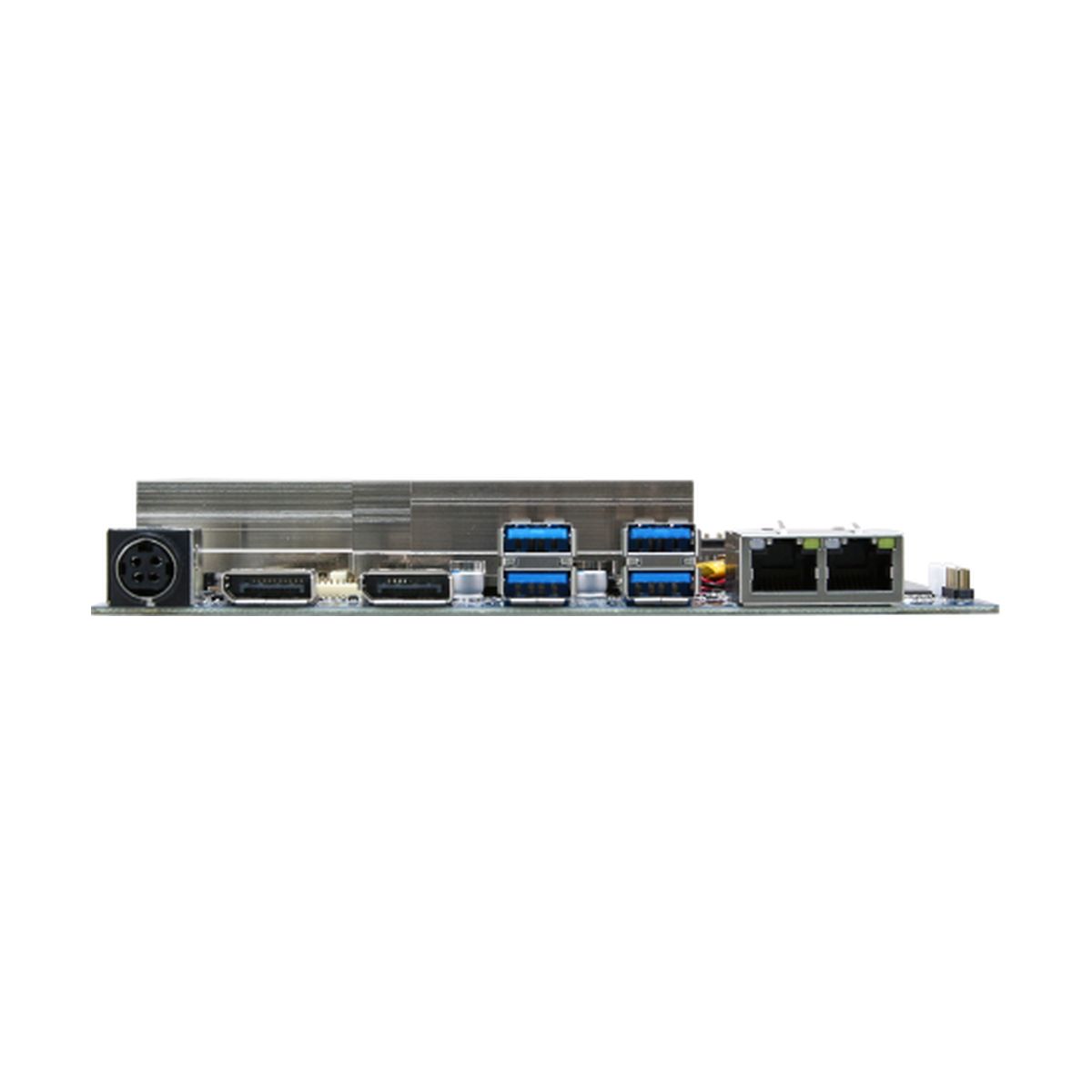

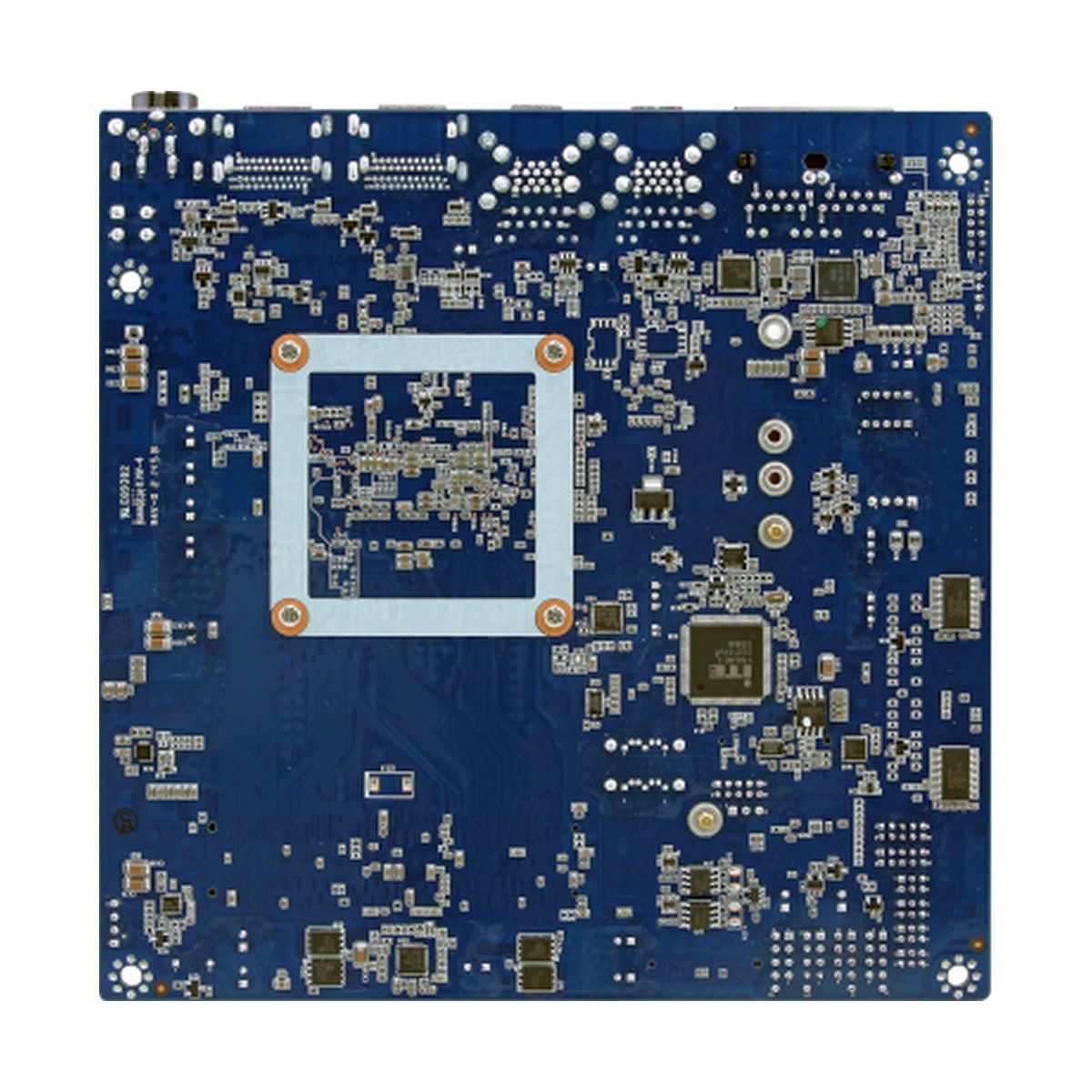

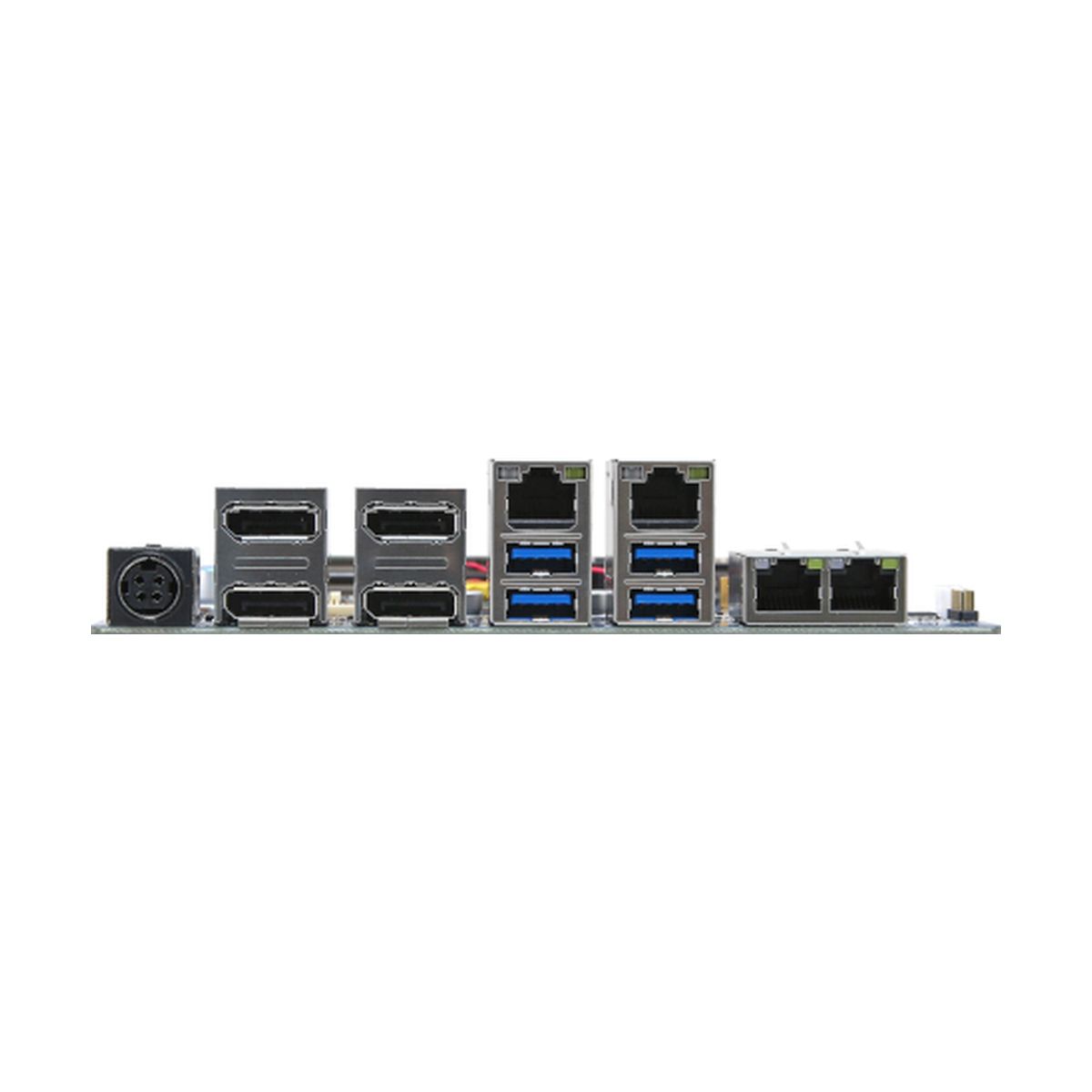

| Avalue EMX-TGLP - Mini-ITX Single-Board-Computer with Intel® Tiger Lake |
|---|
| 11th Gen Intel® Core™ SoC i7/i5/i3 & Celeron BGA Processor Mini ITX Motherboard |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Total Cores | Total Threads | Max Turbo Frequency |
|---|---|---|---|---|---|
| Intel® Core™ i7-1185GRE | i7-1185GRE | 12 MB Intel® Smart Cache | 4 | 8 | 4.40 GHz |
| Intel® Core™ i7-1185G7E | i7-1185G7E | 12 MB Intel® Smart Cache | 4 | 8 | 4.40 GHz |
| Intel® Core™ i5-1145GRE | i5-1145GRE | 8 MB Intel® Smart Cache | 4 | 8 | 4.10 GHz |
| Intel® Core™ i5-1145G7E | i5-1145G7E | 8 MB Intel® Smart Cache | 4 | 8 | 4.10 GHz |
| Intel® Core™ i3-1115GRE | i3-1115GRE | 6 MB Intel® Smart Cache | 2 | 4 | 3.90 GHz |
| Intel® Core™ i3-1115G4E | i3-1115G4E | 6 MB Intel® Smart Cache | 2 | 4 | 3.90 GHz |
| Intel® Celeron® 6305E | 6305E | 4 MB Intel® Smart Cache | 2 | 2 |
| Specification |
|---|
-System Information-
| Processor | Intel® Core™ i7-1185G7E, i7-1185GRE (up to 4.4GHz, quad-core, 12M Cache, TDP: 28/15/12W)* Intel® Core™ i5-1145G7E, i5-1145GRE (up to 4.1GHz, quad-core, 8M Cache, TDP: 28/15/12W)* Intel® Core™ i3-1115G4E, i3-1115GRE (up to 3.9GHz, dual-core, 6M Cache, TDP: 28/15/12W)* Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15W) |
|---|---|
| System Memory | 2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only) |
| I/O Chipset | EC iTE IT8528E |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Onboard NuvoTon NPCT754AADYX support TPM 2.0 |
Expansion
| Expansion | 1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD *SATA 2 share with M.2 key B SATA 1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal) |
|---|
I/O
| USB Port | 3 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 at I/O 4 x USB2.0 by pin header |
|---|---|
| COM Port | 4 x RS232 2 x RS232/422/485 |
| SATA | 1 x SATA Power 2 x SATA III |
| DIO | 1 x 16-bit GPIO |
Display
| Graphic Chipset | Intel® 12th Generation CPU integrated |
|---|---|
| Spec. & Resolution | DP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz DP3+DP4 (DP1.4): Max: 7680 x 4320@60 Hz Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, check Max: 7680 x 4329@60 Hz Intel resolution as below: 2 x DP++ : 1920 x 1080@60 Hz 2 x DP: 4096 x 2304@60 Hz LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP 4096 x 2304@60 Hz *2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for full height (Maximum: 6 for quadruple independent displays) |
| Multiple Display | 2 x DP++/2 x DP++/1 x LVDS/1 x eDP (Maximum: 6 for quadruple independent displays) |
| LVDS | 2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter |
Audio
| Audio Codec | Realtek ALC888S |
|---|---|
| Audio Interface | Support Line-out & Mic-in & Front audio pin-header |
| Audio Amplifier | 2 x Stereo Class-D 6W Audio Amplifier |
Ethernet
| LAN Chipset | 1 x Intel® I226LM/IT 2.5 Gigabit Ethernet 1 x Intel® I219LM Gigabit Ethernet PHY 2 x Intel® I210AT/IT Gigabit Ethernet (BOM optional) |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx & & 2.5 GbE compatible |
| LAN Port | 4 x RJ45 |
Mechanical & Environmental
| Operating Temperature | Intel@ wide temperature CPU SKU Support: -20~60C Intel@ standard CPU SKU support: 0~60C |
|---|---|
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.88lbs (0.4Kgs) |
| Power Requirement | +12V~24V |
| Power Mode | AT/ATX |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
Software Support
| OS Information | Win10 64bit Linux |
|---|
Ordering Information
| Ordering Information | EMX-TGLP-S05-A2R (Celeron, Thin, 2DP/2LAN, Standard Temp.) EMX-TGLP-S15-A2R (Core i3, Thin, 2DP/2LAN, Standard Temp.) EMX-TGLP-S45-A2R (Core i5, Thin, 2DP/2LAN, Standard Temp.) EMX-TGLP-S85-A2R (Core i7, Thin, 2DP/2LAN, Standard Temp.) EMX-TGLP-W15-A2-1R (Core i3, Thin, 2DP/2LAN, Wide Temp.) EMX-TGLP-W45-A2-1R (Core i5, Thin, 2DP/2LAN, Wide Temp.) EMX-TGLP-W85-A2-1R (Core i7, Thin, 2DP/2LAN, Wide Temp.) EMX-TGLP-W15-A2R (Core i3, Full, 4DP/4LAN, Wide Temp.) EMX-TGLP-W45-A2R (Core i5, Full, 4DP/4LAN, Wide Temp.) EMX-TGLP-W85-A2R (Core i7, Full, 4DP/4LAN, Wide Temp.) Intel® 11th Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Mini ITX Motherboard |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-TGLP Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
