EMX-TGLC
Price on request

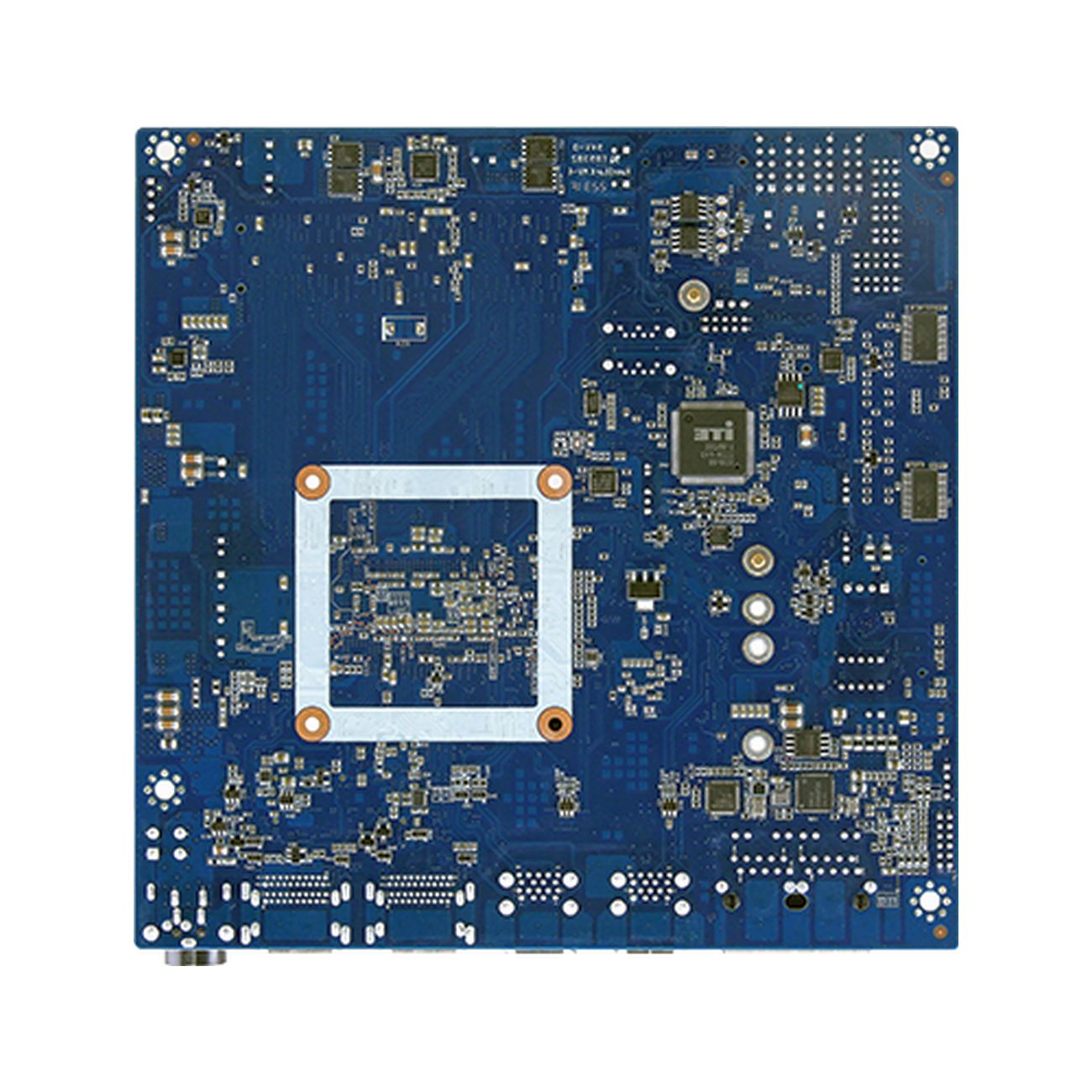

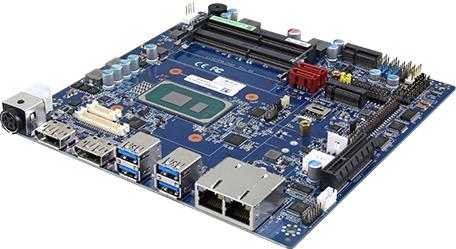

| Avalue EMX-TGLC - Mini-ITX Single-Board-Computer with Intel® Tiger Lake |
|---|
| CPU: 11th Gen Intel® Core™ SoC i5/i3 & Celeron®, Chipset: Integrated, USB/SATA/COM/LAN: 8/2/6/2, Display: 2 x DP++ / 1 x LVDS / 1 x eDP (Quadruple independent displays) |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® 6305E |
|---|---|
| Processor Number | 6305E |
| Cache | 4 MB Intel® Smart Cache |
| Total Cores | 2 |
| Total Threads | 2 |
| Specification |
|---|
-System Information-
| Processor | Intel® Core™ i5-1135G7 (up to 4.2GHz, quad-core, 8M Cache, TDP: 15W Intel® Core™ i3-1115G4 (up to 3.0GHz, dual-core, 6M Cache, TDP: 15W Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15W |
|---|---|
| System Memory | 2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only) |
| I/O Chipset | EC iTE IT8528E |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Onboard NuvoTon NPCT754AADYX support TPM 2.0 |
Expansion
| Expansion | 1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD *SATA 2 share with M.2 key B SATA 1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal) 1 x PCI-e x4 slot support PCI-e x2(Gen3) device *Only support 25W Slot, +V12A total current is 8.7A. |
|---|
I/O
| USB Port | 3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1 at I/O 4 x USB2.0 by pin header |
|---|---|
| COM Port | 4 x RS232 2 x RS232/422/485 |
| SATA | 1 x SATA Power 2 x SATA III |
| DIO | 1 x 16-bit GPIO |
Display
| Graphic Chipset | Intel® 12th Generation CPU integrated |
|---|---|
| Spec. & Resolution | DP1+DP2 (DP1.4): Max: 7680 x 4329@60 Hz Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, DVT check Max: 7680 x 4329@60 Hz Note: This resolution is actual test result. Intel resolution as below: 2 x DP++ : 1920 x 1080@60 Hz LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP 4096 x 2304@60 Hz *2 x DP++, LVDS, eDP (Quadruple independent displays) |
| Multiple Display | 2 x DP++/1 x LVDS/1 x eDP (Quadruple independent displays) |
| LVDS | 2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter |
Audio
| Audio Codec | Realtek ALC897 co-lay ALC888S |
|---|---|
| Audio Interface | Support Line-out & Mic-in & Front audio pin-header |
| Audio Amplifier | 2 x Stereo Class-D 6W Audio Amplifier |
Ethernet
| LAN Chipset | 1 x Intel® I226LM 2.5 Gigabit Ethernet 1 x Intel® I219LM Gigabit Ethernet PHY |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ45 |
Mechanical & Environmental
| Operating Temperature | Intel@ standard CPU SKU support: 0~60C |
|---|---|
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.88lbs (0.4Kgs) |
| Power Requirement | +12V~24V |
| Power Mode | AT/ATX |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
Software Support
| OS Information | Win10 64bit Linux |
|---|
Ordering Information
| Ordering Information | EMX-TGLC-15-A1R (Core i3, Thin, 2DP/2LAN, Standard Temp.) EMX-TGLC-35-A1R (Core i5, Thin, 2DP/2LAN, Standard Temp.) Intel® 11th Gen. Core™ SoC i5/i3 ®BGA Processor Mini ITX Motherboard |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-TGLC Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
