COM-HPC®
Avalue
ESM-HRPL

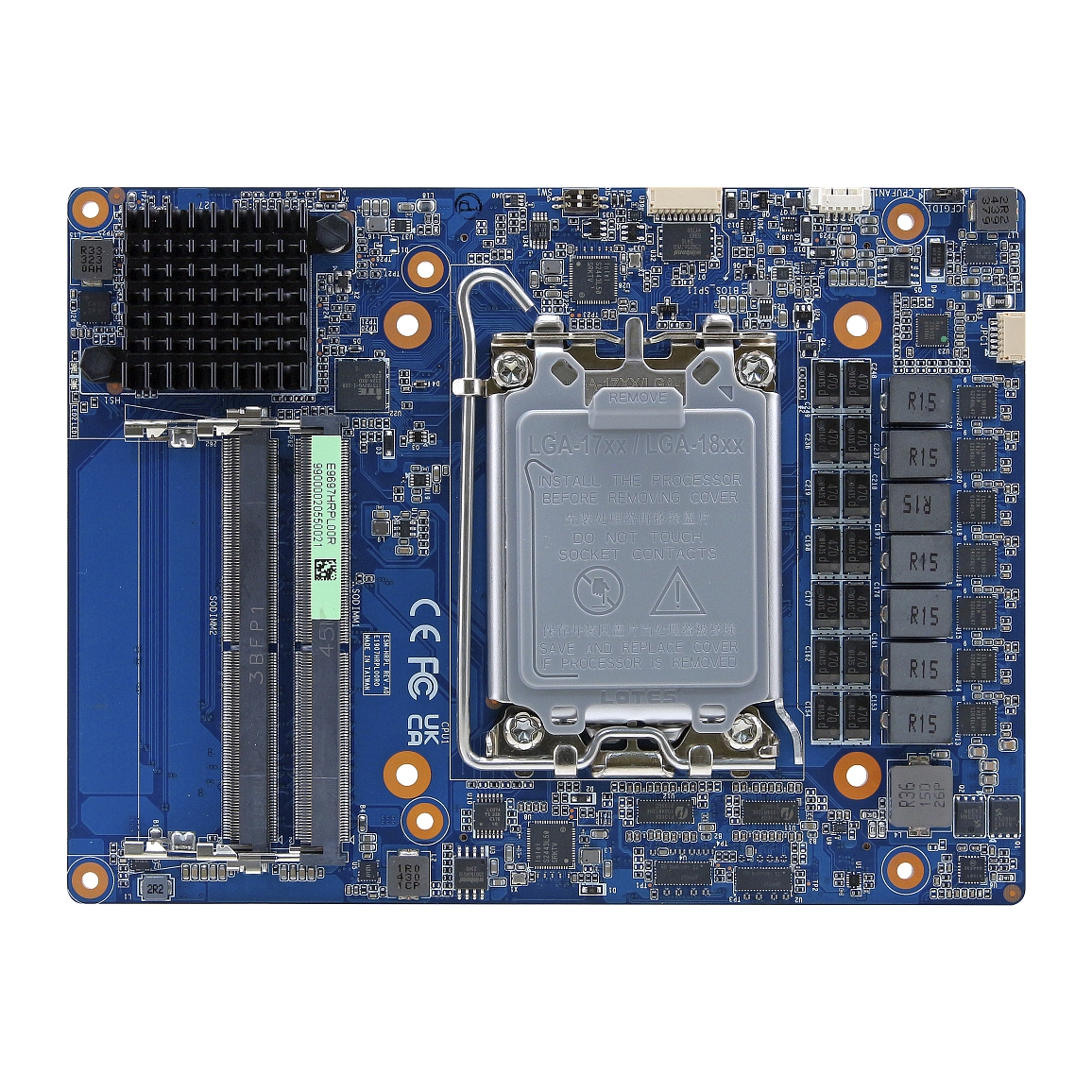

Avalue ESM-HRPL - COM-HPC CPU Module CPU: Intel® 12/13/14th Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 65W Max, Chipset: Intel® R680E chipsets, USB/SATA/COM/LAN: 10/2/0/2, Display: 3 x DDI, 1 x eDP
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
Avalue ESM-HRPL - COM-HPC CPU ModuleCPU: Intel® 12/13/14th Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 65W Max, Chipset: Intel® R680E chipsets, USB/SATA/COM/LAN: 10/2/0/2, Display: 3 x DDI, 1 x eDPOverviewKey FeaturesIntel® R680E chipsetIntel® 12/13/14th Core™ i9/i7/i5/i3 Processor, supports up to 65W Max4 x 262-Pin DDR5 SO-DIMM supports up to 128GB, 3600~4000MT/s, optional ECC support (CPU depending)1 x PCIex16 Gen5, 1 x PEGx4, 2 x PCIex4, 9 x PCIex1 Gen3, 1 x PCIex1 Gen3 for BMC2 x Intel® i226-V 2.5G Gigabit Ethernet Controller3 x DDI, 1 x eDP4 x USB3.2 Gen2x2, 8 x USB2.0, 2x SATAIII1 x Audio, 1 x I2C, 1 x SMBus, 1 x GSPI, 1 x IPMB, 1 x SPIStandard 0°C ~ 60°C (32°F ~ 140°F)All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: ESM-HRPLProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
