EPX-ASLP
Price on request

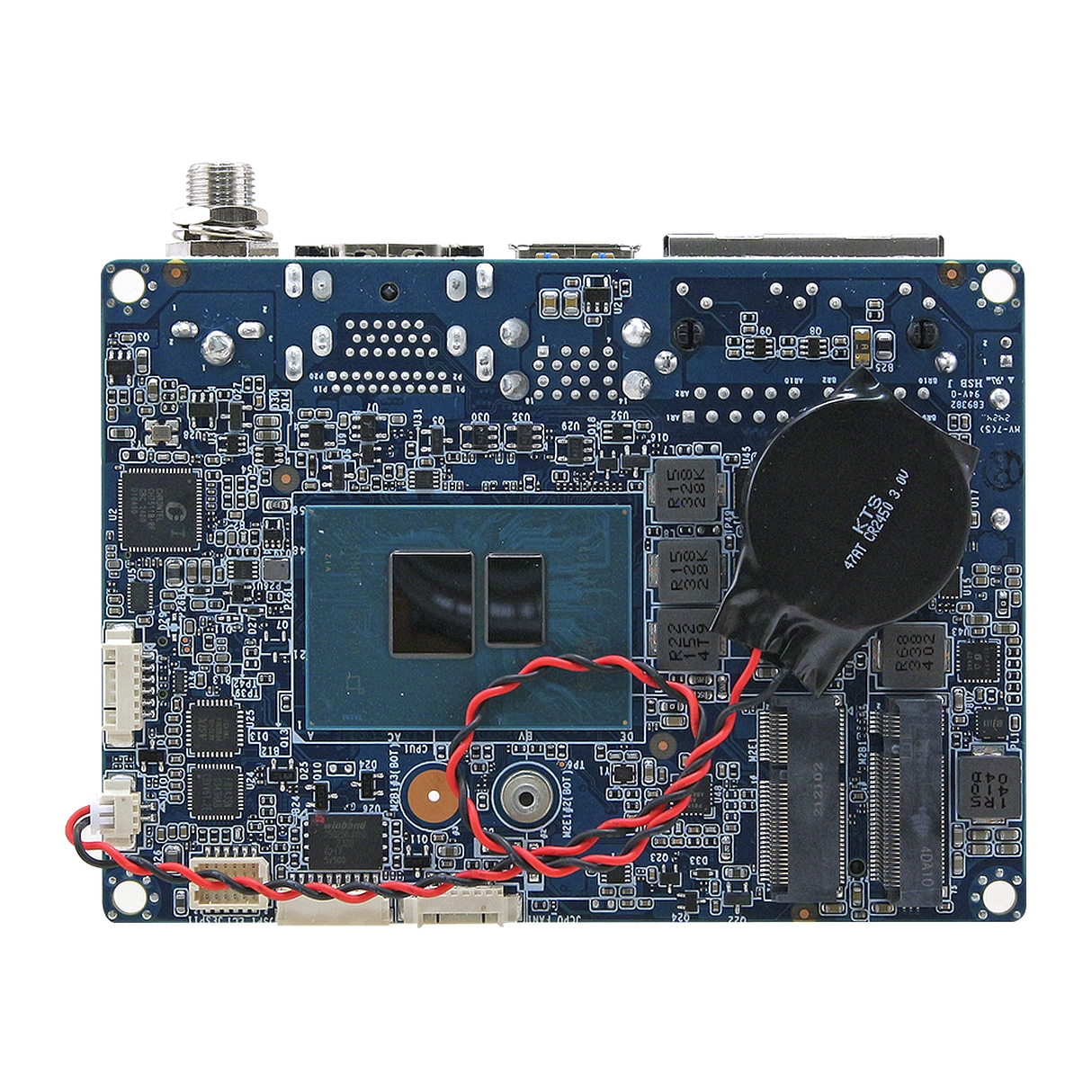

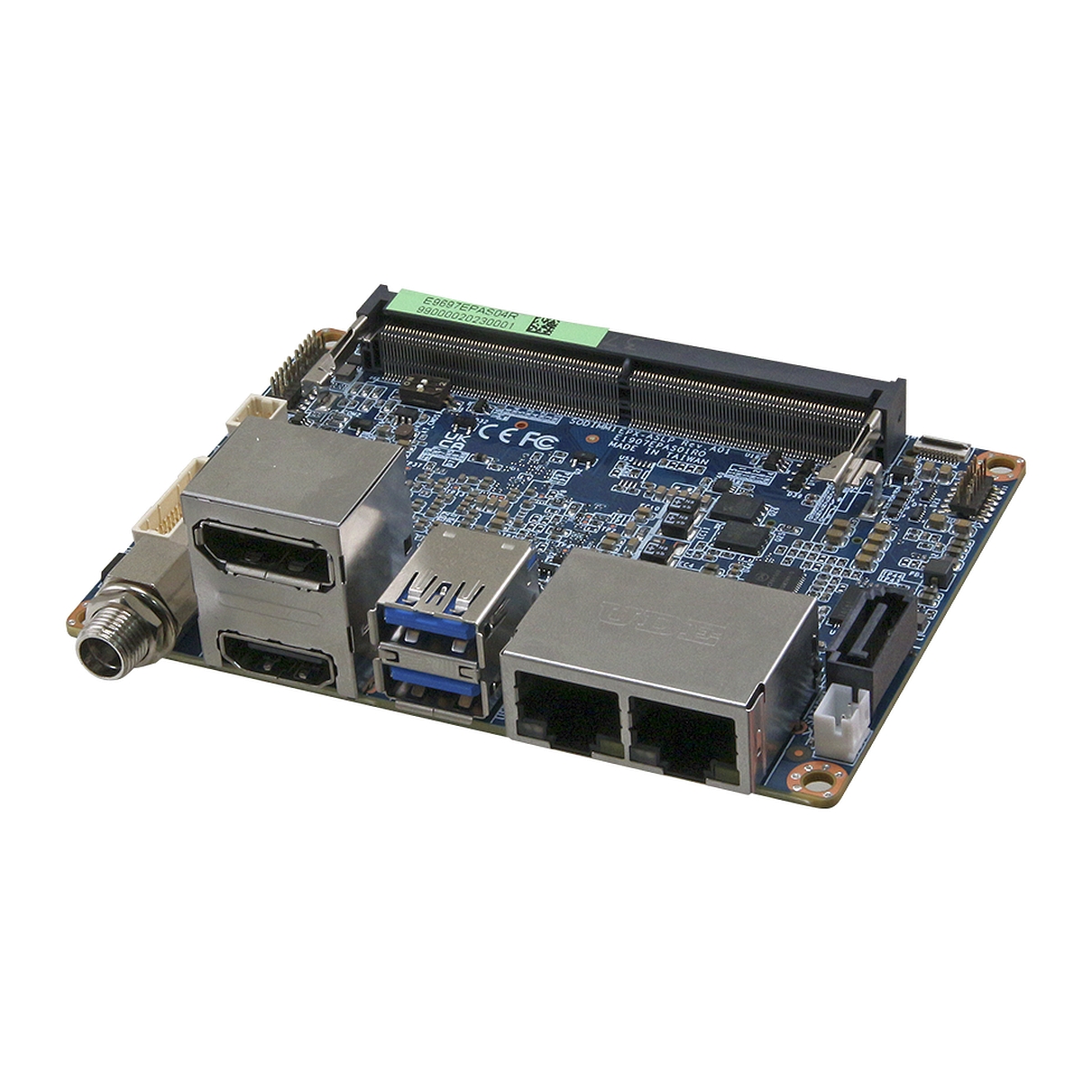

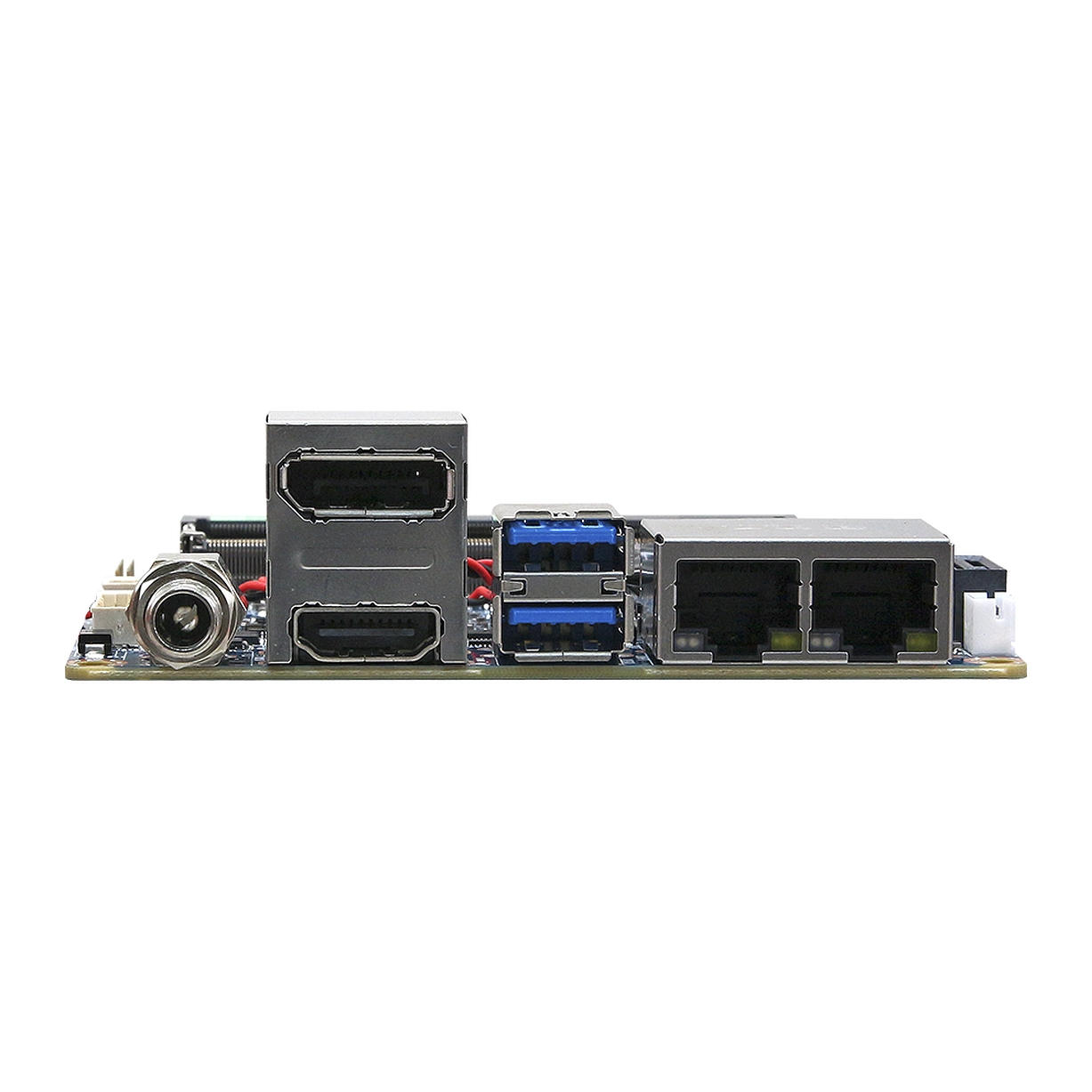

| Avalue EPX-ASLP - Pico-ITX Single-Board-Computer |
|---|
| CPU: Intel® N97 and Atom® x7000RE series processo, USB/SATA/COM/LAN: 6/1/2/2, Display: 1 x HDMI / 1 x DP / 1 x LVDS |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
System Information
| Processor | Intel® Processor N97 |
|---|---|
| System Memory | 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max. |
| I/O Chipset | EC IC: IT5782 or Equivalent Fintek_F81435N or Equivalent for COM port |
| Watchdog Timer | H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step |
| BIOS | AMI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Support fTPM |
| Board | PICO ITX |
Expansion
| Expansion | 1 x M.2 Type B 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards) *Default is Default: SATA) *1 x 10Pin FPC connector for Micro SIM card adapter *Micro SIM card to SIM card adapter by optional 1 x M.2 Type E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal. |
|---|
Storage
| Storage | 1 x M.2 (Type B) 1 x SATA III |
|---|
Display
| Graphic Chipset | Intel® UHD Graphics |
|---|---|
| Spec. & Resolution | HDMI 2.0b Max resolution 4096 x 2160@60Hz DP 1.4a Max resolution 4096 x 2160@60Hz LVDS 1366 x 768 Single channel 18/24-bits |
| Multiple Display | Triple Display |
| LVDS | 1CH 18/24bits LVDS 1366x768 Chrontel. CH7511B eDP to LVDS Converter |
Ethernet
| LAN Chipset | 2 x Intel® i226V (i226IT for wide temp version) 2.5 Gigabit Ethernet |
|---|---|
| Ethernet Interface | 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ45 |
Software Support
| OS | Windows 11, Linux Note: Windows 11 is not a LTSC release and will be supported on the Intel CCG Client roadmap. NEX Network & Edge customers may install non-LTSC releases(e.g. Win11) on NEX Network & Edge processors. |
|---|
Certification
| Certification Information | CE, FCC, RoHS Compliant |
|---|
I/O
| USB | 2 x USB 3.2 Gen2 at IO 4 x USB2.0 by Pin header |
|---|---|
| COM Port | 1 x RS-232 1 x RS-232/422/485 |
| SATA | 1 x SATA III |
| DIO | 1 x 4-bit GPIO |
Mechanical & Environmental
| Operating Temp. | CPU N97 for Standard Temperature: 0°C ~ 60°C with 0.5m/s Air Flow Fanless TBC for CPU skus: Extend Temperature: 0°C ~ 60°C with 0.5m/s Air Flow with Fan |
|---|---|
| Storage Temp. | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.66lbs (0.3Kgs) |
| Power Requirement | DC in +12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 3.94" x 2.83" (100mm x 72mm) |
Ordering Information
| Ordering Information | TBC |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EPX-ASLP Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
