EZX-EHLP

Price on request

Product number: EZX-EHLP

Product information "EZX-EHLP"

Avalue EZX-EHLP - 1.8" SBC Single-Board-Computer CPU: Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processor, USB/SATA/COM/LAN: 6/0/1/1, Display: 1 x Mini DP / 1 x eDP

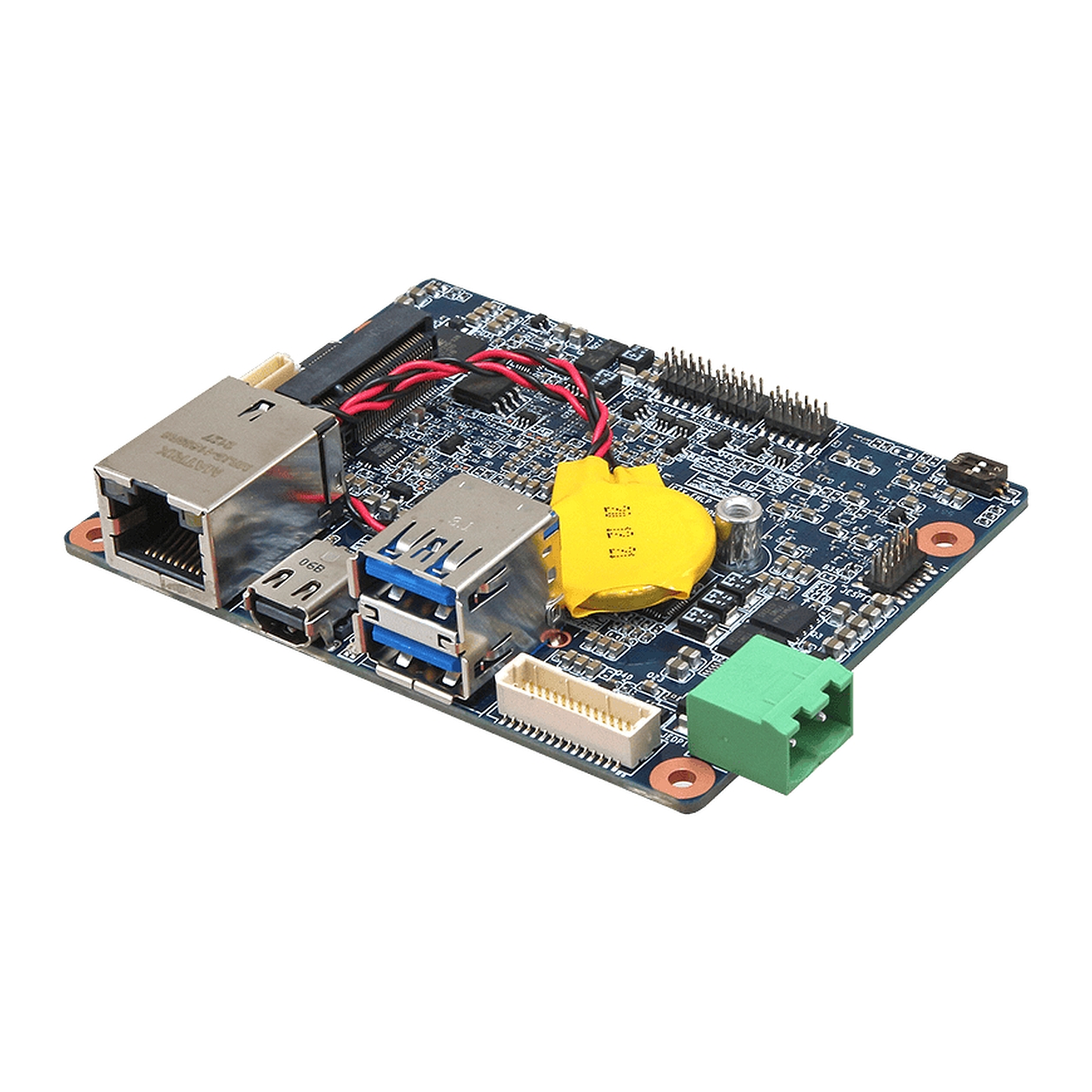

Avalue EZX-EHLP - 1.8" SBC Single-Board-Computer
CPU: Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processor, USB/SATA/COM/LAN: 6/0/1/1, Display: 1 x Mini DP / 1 x eDP

Overview

Key Features
Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processors (Bottom Layer Soldered Processor) Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option) Dual Display, Mini DP, eDP 1.3 Single Intel® I210AT/IT Gigabit Ethernet M.2 Key-B 3042/2242 Bridge Bracket to 3052 (with PCIe x2 (Via OEM BIOS Request) or Default (PCIe x1+USB2.0/USB3.0), or (SATAIII+ USB2.0/USB3.0), SIM Slot for SSD/LTE/IO Cards) with FPC Connector 1 x Dual Deck USB3.1 Gen2 Type A for 2 x USB 3.1 Gen2 at I/O, 4 x USB 2.0 by Pin Header 1 x RS-232/422/485 DC in +12V

Key Features

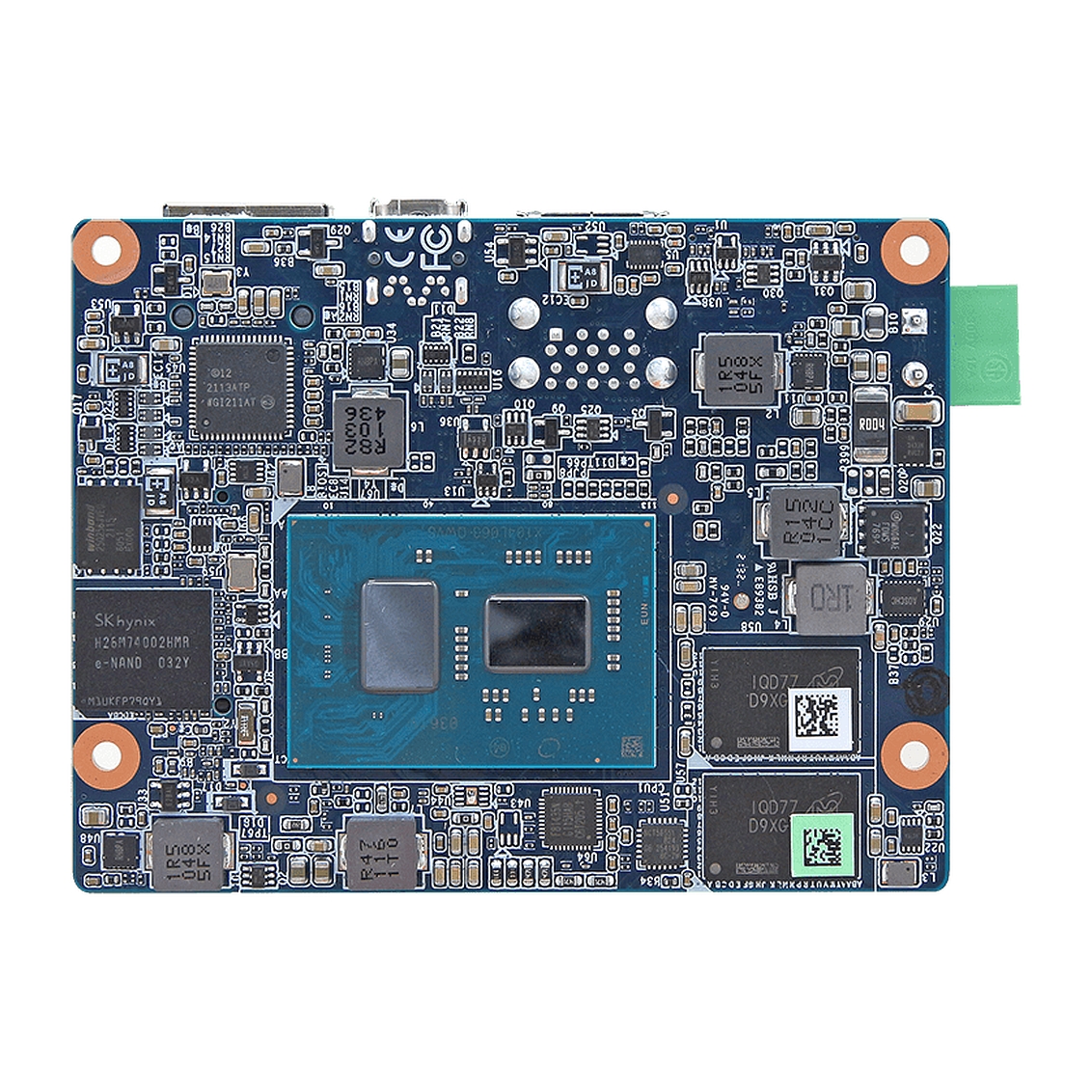

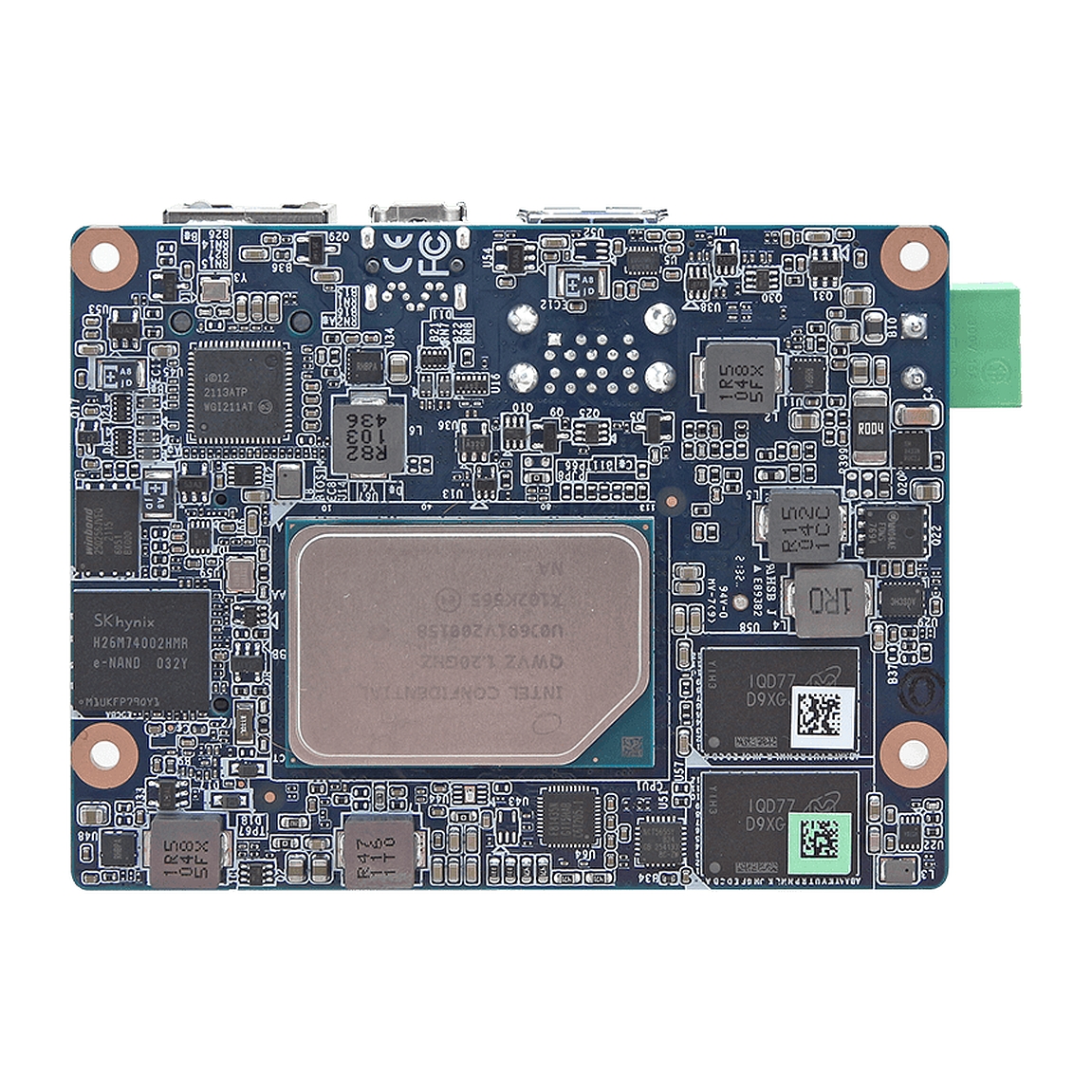

Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® J Series Processors (Bottom Layer Soldered Processor)
Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option)
Dual Display, Mini DP, eDP 1.3
Single Intel® I210AT/IT Gigabit Ethernet
M.2 Key-B 3042/2242 Bridge Bracket to 3052 (with PCIe x2 (Via OEM BIOS Request) or Default (PCIe x1+USB2.0/USB3.0), or (SATAIII+ USB2.0/USB3.0), SIM Slot for SSD/LTE/IO Cards) with FPC Connector

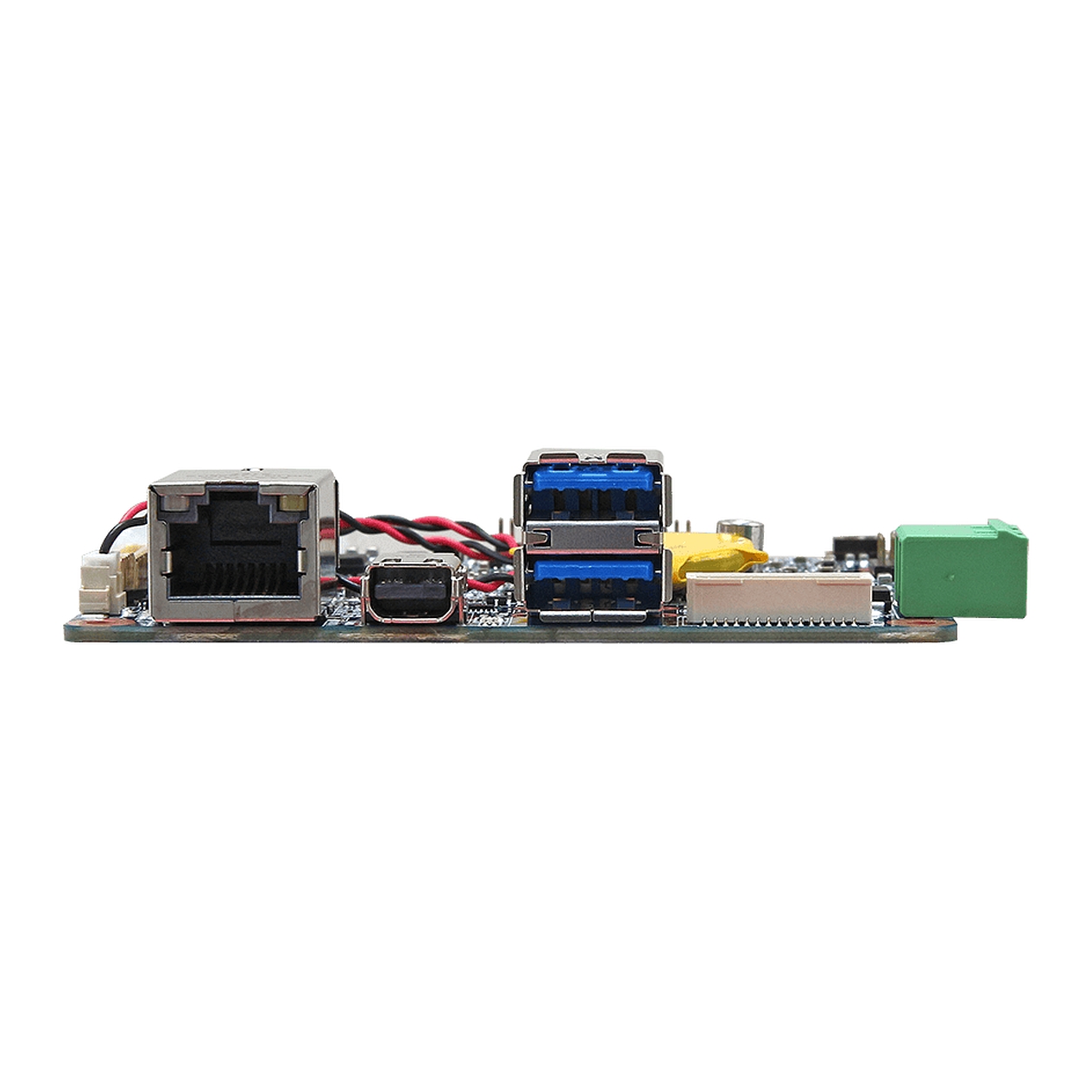

1 x Dual Deck USB3.1 Gen2 Type A for 2 x USB 3.1 Gen2 at I/O, 4 x USB 2.0 by Pin Header
1 x RS-232/422/485
DC in +12V

Specification

System Information

Processor	Onboard Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor (with CPU Bottom Mounted)
Platform Controller Hub	Integrated
System Memory	Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option)
I/O Chipset	EC iTE IT5571
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
BIOS	AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor	CPU & System Temperature Monitoring Voltages Monitoring
TPM	Onboard eMMC 5.1 64GB

Expansion

Expansion	1 x M.2 Type B 3042/2242 Bridge Bracket to 3052 (with PCI-e x2 via OEM BIOS Request or Default PCI-e x1+USB2.0/USB3.0, or SATA III+ USB2.0/USB3.0, SIM Slot for SSD/LTE/IO Cards) *Default is PCI-e x1/SATA III+USB2.0/USB3.0Support WWAN+GNSS or NVMe SSD

Storage

Storage	1 x M.2 Type B

Display

Graphic Chipset	Intel® UHD Graphics
Spec. & Resolution	Mini DP: Max Resolution 4096x2160@60Hz eDP1.3: Max Resolution 4096x2160@60Hz
Multiple Display	Dual Display

Ethernet

LAN Chipset	1 x Intel I210AT/IT Gigabit Ethernet
Ethernet Interface	1 x 10/100/1000 Base-Tx GbE Compatible
LAN Port	1 x RJ-45

Software Support

OS	Windows 10, Linux

Certification

Certification Information	CE, FCC Class, RoHS Compliant

I/O

USB	2 x USB 3.1 Gen2 4 x USB2.0
COM Port	1 x RS232/422/485
DIO	1 x 8-bit GPIO

Mechanical & Environmental

Operating Temp.	0~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom N/J Series CPU SKU -20~60°C, w/HDD/SSD, Ambient with 0.5 m/s Air Flow Atom x6000E Series CPU SKU
Storage Temp.	-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.66lbs (0.3Kgs)
Power Requirement	DC in +12V
Power Mode	AT/ATX (Default Setting: ATX)
Dimension (L x W)	3.31" x 2.55" (84mm x 65mm)

Ordering Information

Ordering Information	EZX-EHLP-J6412-A1R EZX-EHLP/J6412/1COM/6USB/1LAN/A1 EZX-EHLP-J6413-A1R EZX-EHLP/J6413/1COM/6USB/1LAN/A1 EZX-EHLP-X11E-A1R EZX-EHLP/x6211E/1COM/6USB/1LAN/A1 EZX-EHLP-X13E-A1R EZX-EHLP/x6413E/1COM/6USB/1LAN/A1 EZX-EHLP-X12RE-A1R EZX-EHLP/x6212RE/1COM/6USB/1LAN/A1 Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor 1.8 SBC Motherboard

Product Variants / Accessories

EZX-EHLP-J6412-A1R
EZX-EHLP/J6412/1COM/6USB/1LAN/A1
EZX-EHLP-J6413-A1R
EZX-EHLP/J6413/1COM/6USB/1LAN/A1
EZX-EHLP-X11E-A1R
EZX-EHLP/x6211E/1COM/6USB/1LAN/A1
EZX-EHLP-X13E-A1R
EZX-EHLP/x6413E/1COM/6USB/1LAN/A1
EZX-EHLP-X12RE-A1R
EZX-EHLP/x6212RE/1COM/6USB/1LAN/A1

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EZX-EHLP
