EMX-WHLGP

Avalue

Price on request

Product number: EMX-WHLGP

Product information "EMX-WHLGP"

Avalue EMX-WHLGP - Thin Mini-ITX Single-Board-Computer with Intel® Whiskey Lake Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX Motherboard

Avalue EMX-WHLGP - Thin Mini-ITX Single-Board-Computer with Intel® Whiskey Lake
Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX Motherboard

Overview

Key Features	Supported CPUs
Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron®BGA Processor Two 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only) 2 x HDMI + 1 x HDMI/Dual-channel LVDS (default LVDS) 1 x Intel® I219LM Gigabit Ethernet PHY, 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT) Realtek ALC888S Audio Codec, TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier 1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal), 1 x M.2 Key B 3042/2242/2260/2280 support WWAN+GNSS or SSD with 1 x SIM card slot 1 x SATA III, 1 x SATA Power, 4 x USB 2.0, 3 x USB 3.1, 1 x USB Type C(USB 3.1 Gen1) 1 x PCI-e x 8 Golden Finger (1 x PCI-e x 1, 1 x PCI-e x 4, 1 x SATA III, 1 x USB 2.0) 4 x RS232, 2 x RS232/422/485, 16-bit GPIO Mic-in, Line-out, 1 S/PIDF DC in +12V~24V	CPU-Product Family: Intel® Whiskey Lake Intel® Core™ i7-8665UE (8M Cache, up to 4.40 GHz) Intel® Core™ i5-8365UE (6M Cache, up to 4.10 GHz) Intel® Core™ i3-8145UE (4M Cache, up to 3.90 GHz) Intel® Celeron® 4305UE (2M Cache, 2.00 GHz)

Key Features

Supported CPUs

Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron®BGA Processor
Two 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)
2 x HDMI + 1 x HDMI/Dual-channel LVDS (default LVDS)
1 x Intel® I219LM Gigabit Ethernet PHY, 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)
Realtek ALC888S Audio Codec, TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal), 1 x M.2 Key B 3042/2242/2260/2280 support WWAN+GNSS or SSD with 1 x SIM card slot
1 x SATA III, 1 x SATA Power, 4 x USB 2.0, 3 x USB 3.1, 1 x USB Type C(USB 3.1 Gen1)
1 x PCI-e x 8 Golden Finger (1 x PCI-e x 1, 1 x PCI-e x 4, 1 x SATA III, 1 x USB 2.0)
4 x RS232, 2 x RS232/422/485, 16-bit GPIO
Mic-in, Line-out, 1 S/PIDF
DC in +12V~24V

CPU-Product Family: Intel® Whiskey Lake

CPU-Variants

CPU	Intel® Core™ i7-8665UE	Intel® Core™ i5-8365UE	Intel® Core™ i3-8145UE	Intel® Celeron® 4305UE
Processor Number	i7-8665UE	i5-8365UE	i3-8145UE	4305UE
Cache	8 MB Intel® Smart Cache	6 MB Intel® Smart Cache	4 MB Intel® Smart Cache	2 MB Intel® Smart Cache
Total Cores	4	4	2	2
Total Threads	8	8	4	2
PCI Express Revision	3.0	3.0	3.0	3.0
Max Turbo Frequency	4.40 GHz	4.10 GHz	3.90 GHz

Specification

-System Information-

Processor	Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz) Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz) Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz) Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz)
System Memory	Two 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)
I/O Chipset	EC IT8528E-I
BIOS Information	AMI 256Mbit SPI BIOS
Watchdog Timer	H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
TPM	1 x onboard TPM2.0

Expansion

Expansion	1 x M.2 Key B 3042/2242/2260/2280 (with 1 x PCI-e x 1 (default) or SATA by BIOS), USB 2.0 with 1 x SIM card slot, support WWAN+GNSS or SSD with 1 x SIM card slot, support WWAN+GNSS or SSD. 1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal)

I/O

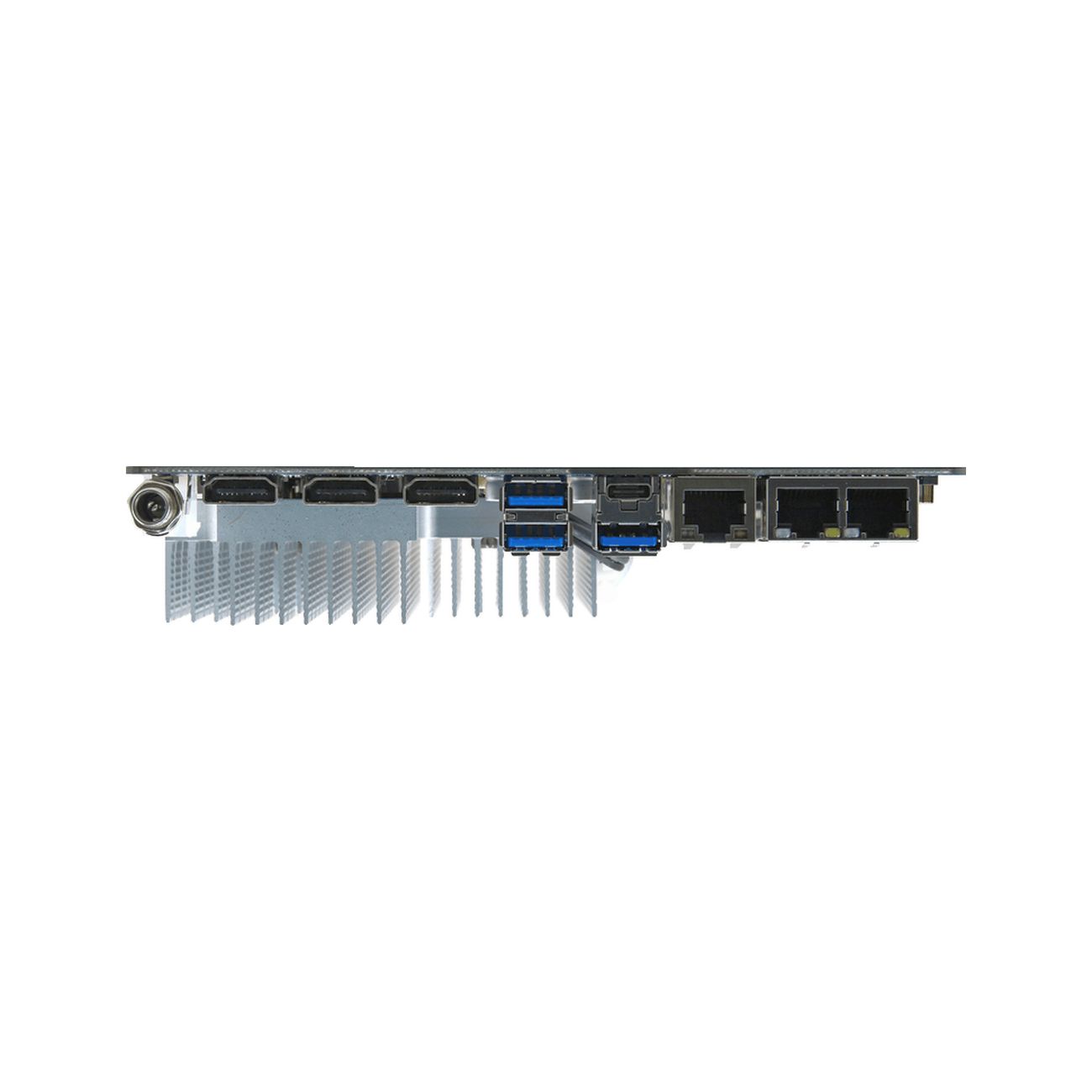

USB Port	3 x USB 3.1, 1 x USB Type C (USB 3.1 Gen1, without DP signal) at I/O 4 x USB 2.0
COM Port	4 x RS232 2 x RS232/422/485
SATA	1 x SATA Power 1 x SATA III
DIO	1 x 16-bit GPIO

Display

Graphic Chipset	Intel® Processor Graphics
Spec. & Resolution	3 x HDMI 1.4b: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz 2CH 18/24bits LVDS 1920 x 1080 (Chrontel. CH7511B eDP to LVDS Converter)
Multiple Display	Triple Display
LVDS	2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter

Audio

Audio Codec	Realtek ALC888S supports 2-CH
Audio Interface	Mic-in, Line-out
Audio Amplifier	TI TPA3113D2PWP Stereo Class-D 6W x 2

Ethernet

LAN Chipset	1 x Intel® I219LM Gigabit Ethernet PHYv 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	3 x RJ45

Mechanical & Environmental

Operating Temperature	-20~ 60°C (-68 ~ 140°F), 60°C with 0.5 m/s air flow
Storage Temperature	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.88lbs (0.4Kgs)
Power Requirement	+12V~24V
Power Mode	AT/ATX
Dimension (L x W)	6.69” x 6.69” (170mm x 170mm)

Ordering Information

Ordering Information	Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX MotherboardEMX-WHLGP-430-B1R (w/o heatsink)/ EMX-WHLGP-43B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-814-B1R (w/o heatsink)/ EMX-WHLGP-81B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-836-B1R (w/o heatsink)/ EMX-WHLGP-83B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-866-B1R (w/o heatsink)/ EMX-WHLGP-86B1-01R (w/heatsink and heater, wide temp)Note: EMX-WHLGP standard package does not include I/O shields due to LAN 2 & 3 port exceed standard Thin MiniITX chassis. Customer need to make customized changes on chassis.

Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX MotherboardEMX-WHLGP-430-B1R (w/o heatsink)/ EMX-WHLGP-43B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-814-B1R (w/o heatsink)/ EMX-WHLGP-81B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-836-B1R (w/o heatsink)/ EMX-WHLGP-83B1-01R (w/heatsink and heater, wide temp)EMX-WHLGP-866-B1R (w/o heatsink)/ EMX-WHLGP-86B1-01R (w/heatsink and heater, wide temp)Note: EMX-WHLGP standard package does not include I/O shields due to LAN 2 & 3 port exceed standard Thin MiniITX chassis. Customer need to make customized changes on chassis.

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-WHLGP
