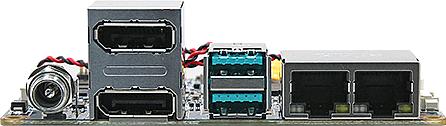

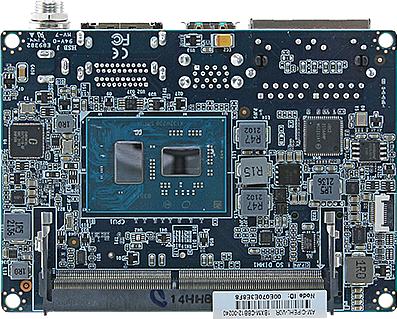

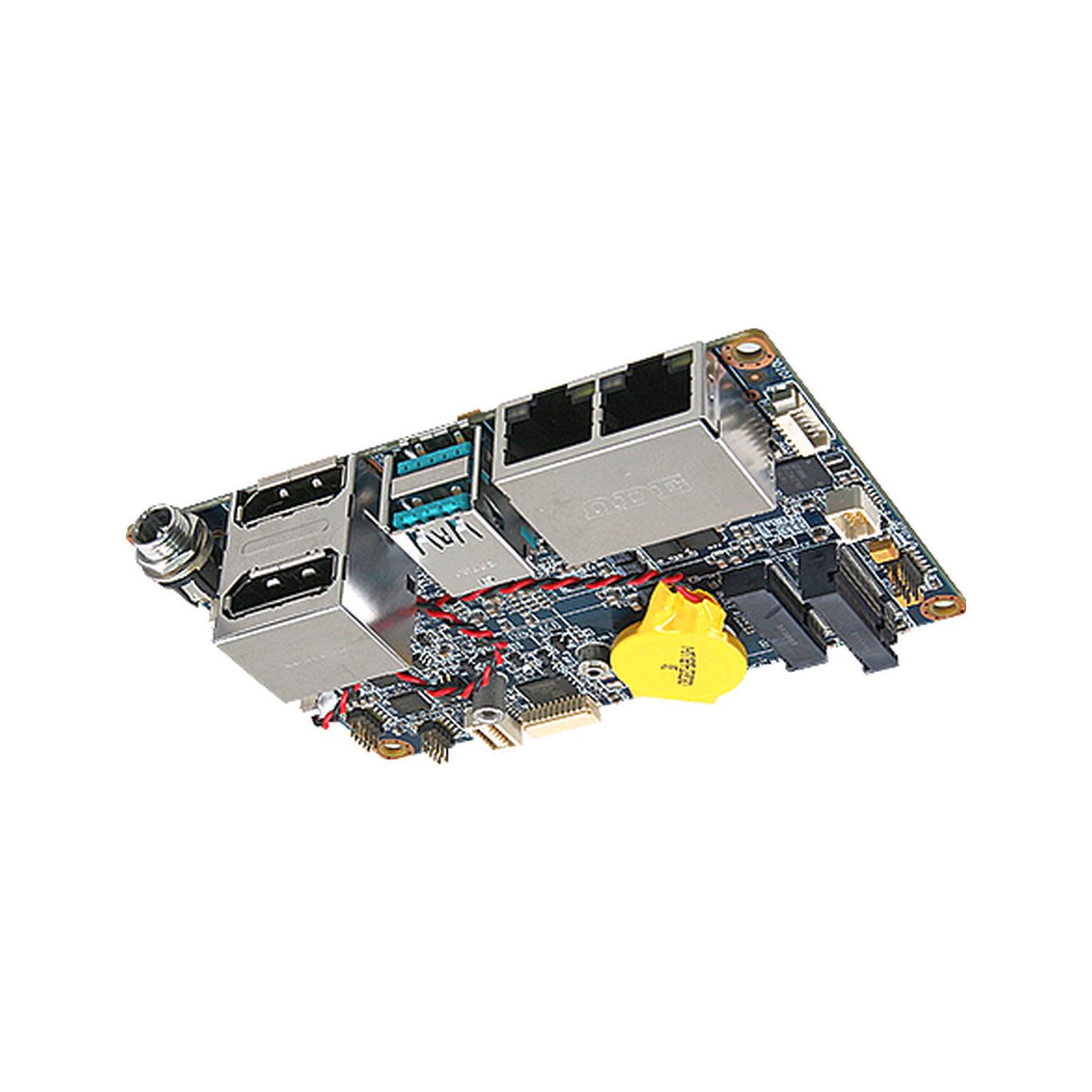

| Avalue EPX-EHLP - 2.5" SBC Pico-ITX Single-Board-Computer with Intel® Elkhart Lake |
|---|
| CPU: Intel® Atom® x6000E and Intel® Celeron® Series Processor, USB/SATA/COM/LAN: 6/0/2/2, Display: 2 x DP / 1 x LVDS |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® J6413 | Intel® Celeron® J6412 |
|---|---|---|
| Processor Number | J6413 | J6412 |
| Cache | 1.5 MB L2 Cache | 1.5 MB L2 Cache |
| Total Cores | 4 | 4 |
| Total Threads | 4 | 4 |
| PCI Express Revision | 3.0 | 3.0 |
| Specification |
|---|
-System Information-
| Processor | Intel® Atom® x6000E and Celeron® Series processors |
|---|---|
| System Memory | 1 x 260-pin DDR4 2666MHz SO-DIMM supports up to 32GB |
| I/O Chipset | EC iTE IT5571 |
| BIOS Information | AMI 256Mbit SPI BIOS |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature and Voltage with Auto Throttling Control |
Expansion
| Expansion | 1 x M.2 Type B 2242/2260 with (1 x PCI-e x2 via OEM BIOS request) or (1 x PCI-e x1 + USB3.1 GEN 1)-Default or (1 x SATA III + USB3.1 GEN 1), USB2.0 Signal support SSD. (Default: SATA) |
|---|
I/O
| USB Port | 4 x USB 2.0 by pin header 1 x dual stack USB 3.1 Gen2 at I/O |
|---|---|
| COM Port | 1 x RS232, 1 x RS232/422/485 |
| DIO | 1 x 4-bit GPIO |
Display
| Graphic Chipset | Intel® UHD Graphics for 10th Gen Intel® Processors |
|---|---|
| Spec. & Resolution | One dual deck DP(Upper DP, Lower DP++): 4096 x 2160@60 Hz LVDS: 1366x768 Single channel 18/24-bits LVDS (Chrontel CH7511B-BF (CH7511B-BFI for wide temp version) eDP to LVDS) |
| LVDS | 1CH 18/24bits LVDS 1366x768 Chrontel. CH7511B eDP to LVDS Converter |
Ethernet
| LAN Chipset | 2 x Intel® i226LM(i226IT for wide temp version) 2.5 Gigabit Ethernet |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ45 |
Mechanical & Environmental
| Operating Temperature | 0~60°C (32~140°F) Elkhart Lake J Series CPU SKU -20~60°C (-4~140°F) Elkhart Lake Atom Series CPU SKU w/HDD/SSD, ambient with 0.5 m/s Air flow |
|---|---|
| Storage Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.66lbs (0.3Kgs) |
| Power Requirement | +12V |
| Power Mode | AT/ATX |
| Dimension (L x W) | 3.94” x 2.83” (100mm x 72mm) |
Ordering Information
| Ordering Information | EPX-EHLP-J6412-A1R EPX-EHLP-J6413-A1R EPX-EHLP-X11E-A1R EPX-EHLP-X13E-A1R Intel® Celeron®/Atom™ SoC BGA Processor 2.5" Pico ITX SBC Motherboard |
|---|
