conga-TC675
Preis auf Anfrage
Produktnummer:
conga-TC675
Produktinformationen "conga-TC675"

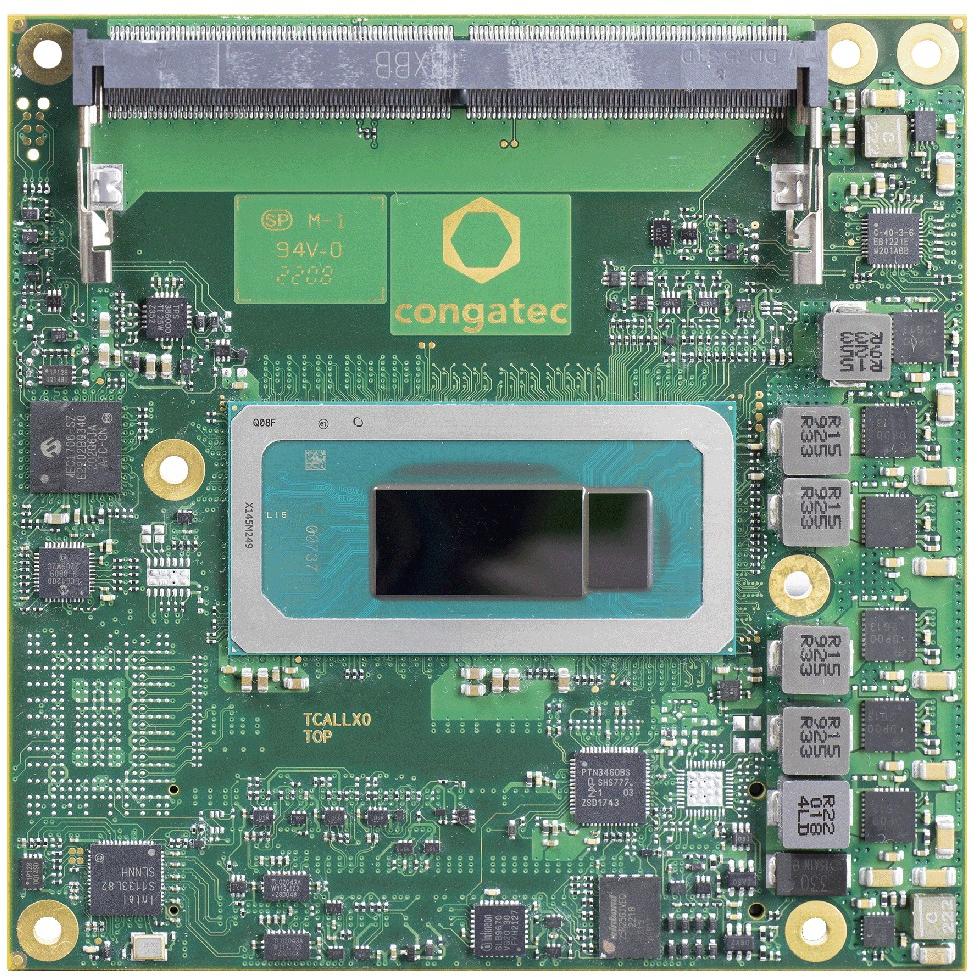

| congatec conga-TC675 - COM Express Compact Type 6 CPU-Modul mit Intel® Raptor Lake |
|---|
| COM Express Type 6 Compact module based on 13th Gen Intel® Core™ embedded mobile processors (code name "Raptor Lake") |
| Übersicht |
|---|
| CPU-Varianten |
|---|
| CPU | Processor Number | Cache | Max Turbo Frequency | Total Cores | Total Threads | Processor Base Power |
|---|---|---|---|---|---|---|
| Intel® Core™ i7-13800HRE | i7-13800HRE | 24 MB Intel® Smart Cache | 5.00 GHz | 14 | 20 | 45 W |
| Intel® Core™ i7-13800HE | i7-13800HE | 24 MB Intel® Smart Cache | 5.00 GHz | 14 | 20 | 45 W |
| Intel® Core™ i7-1370PRE | i7-1370PRE | 24 MB Intel® Smart Cache | 4.80 GHz | 14 | 20 | 28 W |
| Intel® Core™ i7-1370PE | i7-1370PE | 24 MB Intel® Smart Cache | 4.80 GHz | 14 | 20 | 28 W |
| Intel® Core™ i7-1365UE | i7-1365UE | 12 MB Intel® Smart Cache | 4.90 GHz | 10 | 12 | 15 W |
| Intel® Core™ i5-13600HE | i5-13600HE | 18 MB Intel® Smart Cache | 4.80 GHz | 12 | 16 | 45 W |
| Intel® Core™ i5-1350PRE | i5-1350PRE | 12 MB Intel® Smart Cache | 4.60 GHz | 12 | 16 | 28 W |
| Intel® Core™ i5-1340PE | i5-1340PE | 12 MB Intel® Smart Cache | 4.50 GHz | 12 | 16 | 28 W |
| Intel® Core™ i5-1335UE | i5-1335UE | 12 MB Intel® Smart Cache | 4.50 GHz | 10 | 12 | 15 W |
| Intel® Core™ i3-13300HRE | i3-13300HRE | 12 MB Intel® Smart Cache | 4.60 GHz | 8 | 12 | 45 W |
| Intel® Core™ i3-13300HE | i3-13300HE | 12 MB Intel® Smart Cache | 4.60 GHz | 8 | 12 | 45 W |
| Intel® Core™ i3-1320PRE | i3-1320PRE | 12 MB Intel® Smart Cache | 4.50 GHz | 8 | 12 | 28 W |
| Intel® Core™ i3-1320PE | i3-1320PE | 12 MB Intel® Smart Cache | 4.50 GHz | 8 | 12 | 28 W |
| Intel® Core™ i3-1315UE | i3-1315UE | 10 MB Intel® Smart Cache | 4.50 GHz | 6 | 8 | 15 W |
| Intel® U300E | U300E | 8 MB Intel® Smart Cache | 4.30 GHz | 5 | 6 | 15 W |
| Spezifikation |
|---|
| Formfactor | COM Express Compact |
| CPU | Intel® Core™ i7-13800HE(6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)Intel® Core™ i7-1370PE(6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)Intel® Core™ i7-1365UE(2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)Intel® Core™ i5-13600HE(4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)Intel® Core™ i7-13800HRE(6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)Intel® Core™ i7-1370PRE(6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)Intel® Core™ i7-1365URE(2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)Intel® Core™ i5-1350PRE(4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)Intel® Core™ i5-1345URE(2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)Intel® Core™ i3-13300HRE(4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, 45W)Intel® Core™ i3-1320PRE(4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)Intel® Core™ i3-1315URE(2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)Intel® Core™ i5-1335UE(2 P-cores 1.3GHz up to 4.5GHz, 8 E-cores 1.1GHz up to 3.3GHz, 12MB cache, 15W)Intel® Core™ i5-1340PE(4 P-cores 1.8GHz up to 4.5GHz, 8 E-cores 1.3GHz up to 3.3GHz, 12MB cache, 28W)Intel® Core™ i3-1320PE(4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)Intel® Core™ i3-1315UE(2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)Intel® Core™ i3-13300HE(4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, )Intel® U300E(1 P-core 1.1GHz up to 4.3GHz, 4 E-cores 0.9GHz up to 3.2GHz, 8MB cache, 15W ) |
| DRAM | 2 SO-DIMM sockets for DDR5 memory modules up to 48 GB RAM each (max. 96 GB RAM system capacity) |up to 5200 MT/s |
| Ethernet | 2.5 GbE with TSN support via Intel® i226 Ethernet controller series |
| I/O Interfaces | Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P-and U-Series)up to 8 PCIe Gen3up to 2x USB44 x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0up to 2x SATAup to 2x UARTCAN (opt.)GPIOsSPILPC busSM-BusI²C bus |
| Mass storage | NVMe x4 SSD (optional) |
| Graphics | Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs |
| congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection |
| embedded BIOS Features | AMI Aptio UEFI32 Mbyte serial SPI with congatec Embedded BIOS featureOEM LogoOEM CMOS DefaultsLCD ControlDisplay Auto DetectionBacklight ControlFlash Update |
| Security | Trusted Platform Module (TPM 2.0) |
| Power Management | ACPI 5.0a with battery support |
| Operating Systems | Microsoft® Windows 11Microsoft® Windows 11 IoT EnterpriseMicrosoft® Windows® 10Microsoft® Windows 10 IoT EnterpriseLinuxYocto |
| Hypervisor | RTS Real-Time Hypervisor |
| Temperature | Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°CIndustrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C |
| Humidity | Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond. |
| Video Interfaces | Up to 3x DDI (2x shared with USB4) | LVDS or eDP| VGA (optional) |
| Size | 95 x 95 mm (3,74" x 3,74") |
| Produktvarianten / Zubehör |
|---|
| 045300 | conga-TC675/i7-13800HE | COM Express Type 6 Compact module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 045301 | conga-TC675/i7-1370PE | COM Express Type 6 Compact module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 045302 | conga-TC675/i7-1365UE | COM Express Type 6 Compact module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045303 | conga-TC675/i5-13600HE | COM Express Type 6 Compact module based on Intel® Core™ i5-13600HE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 045304 | conga-TC675/i5-1340PE | COM Express Type 6 Compact module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 045305 | conga-TC675/i5-1335UE | COM Express Type 6 Compact module based on Intel® Core™ i5-1335UE processor with 2 P-cores 1.3GHz up to 4.5GHz Turbo and 8 E-cores 1.1GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045306 | conga-TC675/i3-13300HE | COM Express Type 6 Compact module based on Intel® Core™ i3-13300HE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) |
| 045307 | conga-TC675/i3-1320PE | COM Express Type 6 Compact module based on Intel® Core™ i3-1320PE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) |
| 045308 | conga-TC675/i3-1315UE | COM Express Type 6 Compact module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045309 | conga-TC675/U300E | COM Express Type 6 Compact module based on Intel® U300E processor with 1 Pcore 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) |
| 045310 | conga-TC675/i7-13800HRE | COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) |
| 045311 | conga-TC675/i7-1370PRE | COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 045312 | conga-TC675/i7-1365URE | COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| 045314 | conga-TC675/i5-1350PRE | COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 045315 | conga-TC675/i5-1345URE | COM Express Type 6 Compact module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| 045316 | conga-TC675/i3-13300HRE | COM Express Type 6 Compact module based on Intel® Core™ i3-13300HRE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) |
| 045317 | conga-TC675/i3-1320PRE | COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) |
| 045318 | conga-TC675/i3-1315URE | COM Express Type 6 Compact module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) |
| Zubehör |
|---|
| 049755 | conga-TC670/HSP-HP-T | Standard heatspreader for high performance COM Express module conga-TC670 with integrated heat pipes, 11mm height. All standoffs are M2.5mm threaded. |
| 049754 | conga-TC670/HSP-HP-B | Standard heatspreader for high performance COM Express module conga-TC670 with integrated heat pipes, 11mm height. All standoffs are with 2.7mm bore hole. |
| 049753 | conga-TC670/CSP-HP-T | Standard passive cooling solution for high performance COM Express module conga-TC670/675 with integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded. |
| 049752 | conga-TC670/CSP-HP-B | Standard passive cooling solution for high performance COM Express module conga-TC670/675 with integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole. |
| 049751 | conga-TC670/CSA-HP-T | Standard active cooling solution for high performance COM Express module conga-TC670/675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded. |
| 049750 | conga-TC670/CSA-HP-B | Standard active cooling solution for high performance COM Express module conga-TC670/675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. |
| 068930 | DDR5-SODIMM-5600 (8GB) | DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, commercial temp 0°C to +60°C |
| 068931 | DDR5-SODIMM-5600 (16GB) | DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, commercial temp 0°C to +60°C |
| 068932 | DDR5-SODIMM-5600 (32GB) | DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, commercial temp 0°C to +60°C |
| 068933 | DDR5-SODIMM-5600 (48GB) | DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, commercial temp 0°C to +60°C |
| 068935 | DDR5-SODIMM-5600 (8GB) / i-temp | DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, industrial temp -40°C to +85°C |
| 068936 | DDR5-SODIMM-5600 (16GB) / i-temp | DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, industrial temp -40°C to +85°C |
| 068937 | DDR5-SODIMM-5600 (32GB) / i-temp | DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, industrial temp -40°C to +85°C |
| 068938 | DDR5-SODIMM-5600 (48GB) / i-temp | DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, industrial temp -40°C to +85°C |
| 065810 | conga-TEVAL2 | Evaluation carrier board for COM Express Type6 Rev. 3.0 modules. |
| 27000001 | Design-In Training | Design-Training to develop carrier boards for Computer on Modules |
| Bitte stellen Sie sicher, dass Sie stets die aktuellsten Version der Produktspezifikationen des Herstellers verwenden. Hersteller-Produktseite: conga-TC675 MCTX Mobile & Embedded Computers GmbH IST UM DIE RICHTIGKEIT UND AKTUALITÄT DER DATEN AUF DIESER WEBSEITE BEMÜHT, ÜBERNIMMT JEDOCH KEINERLEI ZUSICHERUNG BEZÜGLICH DES INHALTS. EINE HAFTUNG ODER GARANTIE FÜR DIE AKTUALITÄT, RICHTIGKEIT UND VOLLSTÄNDIGKEIT DER ZUR VERFÜGUNG GESTELLTEN INFORMATIONEN IST FOLGLICH AUSGESCHLOSSEN. |
| Technische Unterstützung & System Integration Services |
|---|
- Produktvarianten -
COM Express Type 6 Compact module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i5-13600HE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i5-1335UE processor with 2 P-cores 1.3GHz up to 4.5GHz Turbo and 8 E-cores 1.1GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-13300HE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-1320PE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® U300E processor with 1 Pcore 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-13300HRE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)
Preis auf Anfrage
COM Express Type 6 Compact module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)
Preis auf Anfrage
Gerne unterstützen wir Sie dabei, die optimale Hardwareplattform für Ihre Anwendung auszuwählen und in Betrieb zu nehmen.
Diskutieren Sie Ihre Anforderungen mit uns. Gerne bringen wir unsere Erfahrungen mit ein, um Ihre Ideen schnell umzusetzen.
Unter der Nummer +49 (0)7665/9390-185 erreichen Sie uns telefonisch (montags bis freitags von 8:00 Uhr bis 20:00 Uhr).
Alternativ können Sie uns selbstverständlich gerne jederzeit über das nachfolgende Kontaktformular kontaktieren.
Sollten Sie uns telefonisch nicht erreichen können, bitten wir um eine kurze Nachricht über das Kontaktformular – wir melden uns schnellstmöglich bei Ihnen.
Bitte beachten Sie, dass sich unser Angebot ausschließlich an Gerätehersteller richtet. Wir verkaufen nicht an Privatpersonen oder Wiederverkäufer.
