SLP-WHG-EtherCAT
Price on request

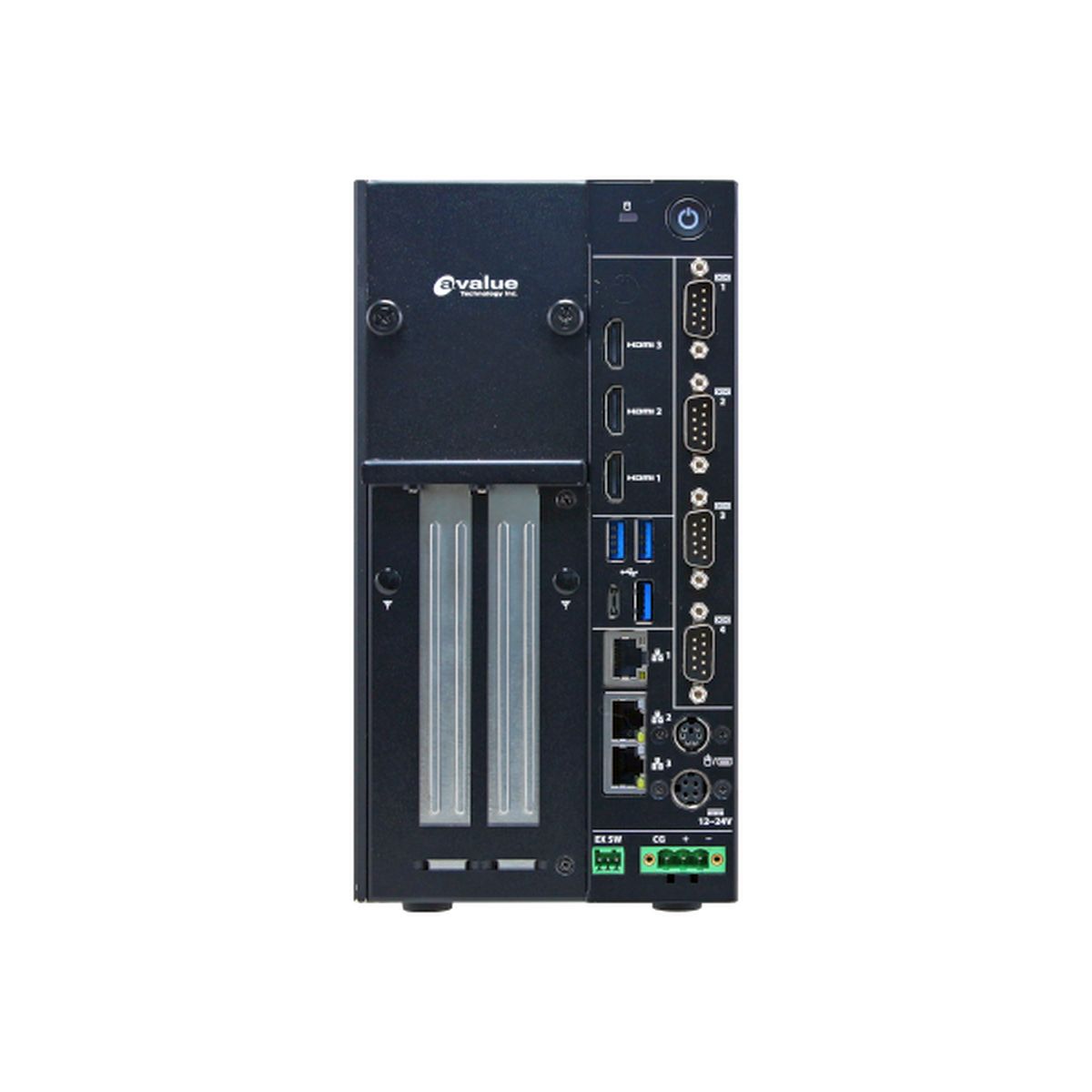

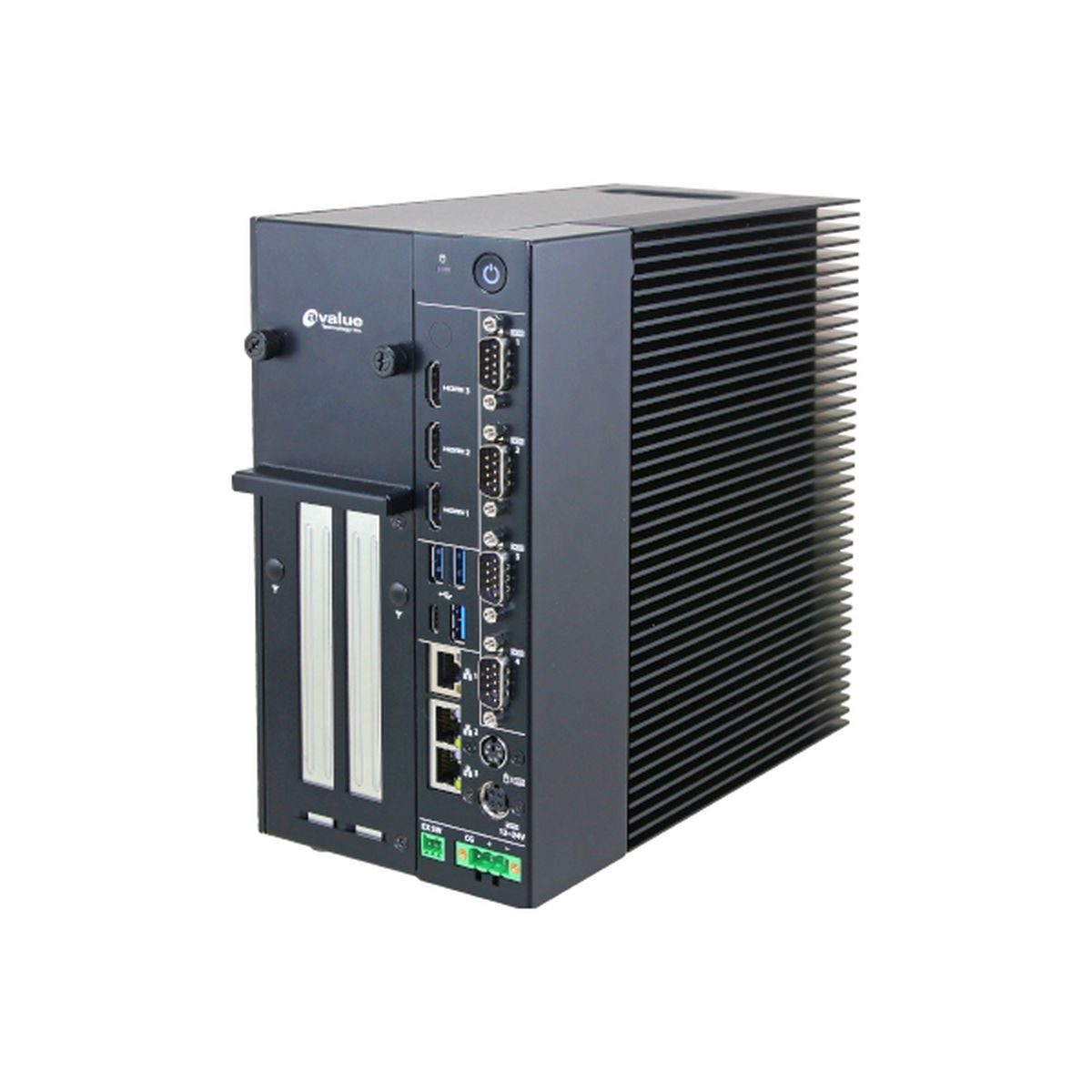

| Avalue SLP-WHG-EtherCAT - Expandable Computing System Embedded Box PC with Intel® Whiskey Lake |
|---|
| 8th Gen Intel® Core™ Processor Core™ SoC i7/i5/i3 & Celeron® BGA Processor Fanless Expandable Slot PC EtherCAT Master Controller |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Whiskey Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Core™ i7-8665UE | Intel® Core™ i5-8365UE | Intel® Core™ i3-8145UE | Intel® Celeron® 4305UE |
|---|---|---|---|---|
| Processor Number | i7-8665UE | i5-8365UE | i3-8145UE | 4305UE |
| Cache | 8 MB Intel® Smart Cache | 6 MB Intel® Smart Cache | 4 MB Intel® Smart Cache | 2 MB Intel® Smart Cache |
| Total Cores | 4 | 4 | 2 | 2 |
| Total Threads | 8 | 8 | 4 | 2 |
| PCI Express Revision | 3.0 | 3.0 | 3.0 | 3.0 |
| Max Turbo Frequency | 4.40 GHz | 4.10 GHz | 3.90 GHz |
| Specification |
|---|
-System Information-
| Processor | Onboard 8th Gen Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor Intel® Core™ i7-8665UE (15W, 8M Cache, up to 2.0 GHz) Intel® Core™ i5-8365UE (15W, 8M Cache, up to 1.8 GHz) Intel® Core™ i3-8145UE (15W, 4M Cache, up to 1.6 GHz) Intel® Core™ Celeron 4305UE (15W, 2M Cache) |
|---|---|
| System Memory | 2 x 260-pin SODIMM socket Max. up to 32GB DDR4 2133MT/s |
| BIOS Information | AMI uEFI BIOS 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | Monitoring CPU & System Temperature and Voltage |
| TPM | Onboard TPM 2.0 |
| SBC | EMX-WHLGP |
Expansion
| M.2 | 1 x M.2 Key-A 2230 for Wi-Fi & BT Module 1 x M.2 Key-B 3042/2242/2260/2280, support SATA 3/PCIe lll x 1/USB 2.0 and internal SIM slot 1 |
|---|---|

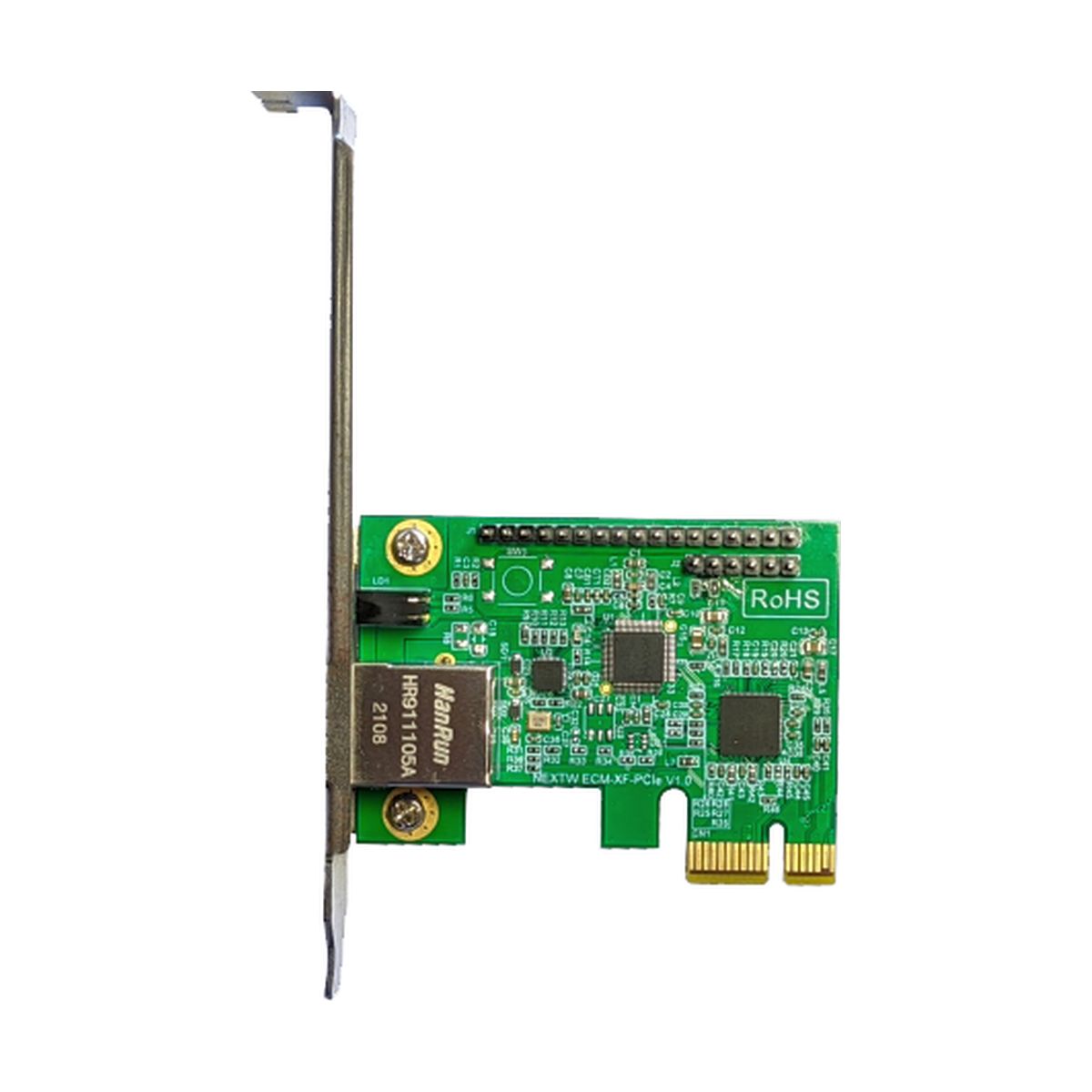

| PCIe | 1 x PCIe*1 slot 1 x PCIe*4 slot w/EtherCAT Master Card: Compliant with PCI Express 2.0 Single-lane (X1) PCI Express (Connector: RJ45 x1) |
Storage
| Storage | 1 x M.2 Key-B 3042/2242/2260/2280, support SSD(share with expansion slot) 1 x 2.5” Drive Bay (internal) |
|---|
I/O
| USB Port | 3 x USB3.1 Gen1 1 x USB Type C w/o ALT mode |
|---|---|
| COM Port | 4 x RS-232 |
| SIM Slot | 1 x internal SIM slot |
| Antenna | 2 x Antenna with dust cover |
| Wire-Control Power On/Off | 2-Pin Terminal Block |
| PS/2 | 1 x PS/2 Keyboard 1 x PS/2 Mouse |
System Control
| Power Button | 1 x Power On/Off |
|---|---|
| LED Indicator | 1 x Power LED 1 x HDD LED |
Display
| Graphic Chipset | Intel® Processor Graphics |
|---|---|
| Spec. & Resolution | 3 x HDMI 1.4b: 3840 x 2160 @ 30 Hz |
| Multiple Display | Triple Display |
Certifications
| Certification Information | CE/FCC Class A |
|---|
Ethernet
| LAN Chipset | 1 x Intel® I219-LM 2 x Intel® I210-IT |
|---|---|
| LAN Port | 3 x RJ-45 GbE 1 x RJ45 for EtherCAT |
Power Requirement
| DC Input | DC in +12V ~ +24V), wide voltage |
|---|---|
| DC Input Connector | 3-Pin Terminal Block (V+. V-, GND) |
| Power Mode | AT/ATX (ATX is default setting) |
Mechanical & Environmental
| Operating Temperature | 5~50°C (41˚F ~ 122˚F) w/Industrial SSD, ambient w/ 0.5m/s air flow |
|---|---|
| Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 217 mm x 115 mm x 220 mm |
| Weight | 2.6 kg (System) 3.4 kg (w_Package) |
| Vibration Test | With SSD : 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
| Shock Test | With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| Drop | Complied with ISTA 2A |
Software Support
| OS Information | Win 10 64bit Linux |
|---|
