REV-SA02

Avalue

Price on request

Product number: REV-SA02

Product information "REV-SA02"

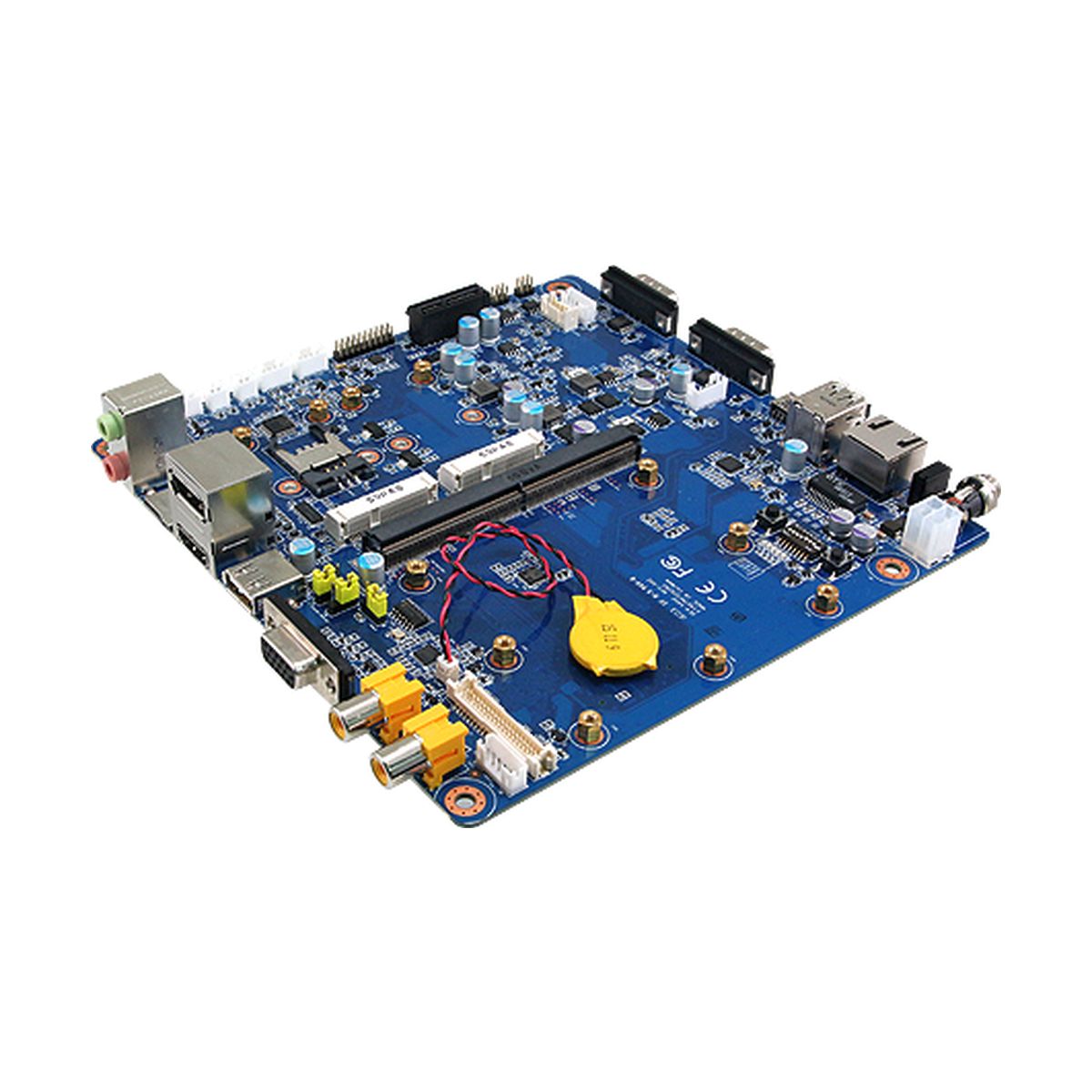

Avalue REV-SA02 - SMARC Carrier Board SMARC specification compliant

Avalue REV-SA02 - SMARC Carrier Board
SMARC specification compliant

Overview

Key Features
SMARC specification compliant Display Port, HDMI, LVDS 2 CVBS 1 GLAN 2 COM(RS232), 2 COM(RS485) , 1 USB Double Deck , 1 USB Pin Header ,1 Mini USB , 1 Mini USB(OTG) 1 mPCIe SD socket, 1 PCIe x1, 1 Mini-PCIe , SIM Socket MIPI CSI Line out , AMIC in , DMIC in , SPK Out GPIO 2X8 , 2 CAN Battery Charger , Power Button , Power LED ,

Specification

I/O

External I/O Connector	2 RCA, 90D 1 RJ45 connector for GBE (with LED) 1 SD Socket , 90D 1 Mini USB , OTG 1 USB 2.0 1 USB Type A 2.0 double deck HDMI Displayport VGA 2 RS232 RST Switch Power Switch Power LED (Green / Yellow) DIP SW
Internal I/O Connector	Camera : FPC ,0.5mm,20p Speaker : speaker connector x2 D-MIC Mini PCIe connector(SATA) Mini PCIe connector(USB) Sim Card GPIO : One 10 x 2, pitch 2.00mm Header I2C : One 1 x 5, pitch 2.00mm Header USB2.0: 1 x 5, pitch 2.00mm Wafer PCIE-1 Battery charger connect LVDS Connect One 20 x 2, pitch 1.25mm Wafer Inverter Connector One 5p, pitch 2.00mm Wafer 2 RS485 : 4p, pitch 2.00mm Wafer 2 CAN : 4p, pitch 2.00mm Wafer WB (reserve)

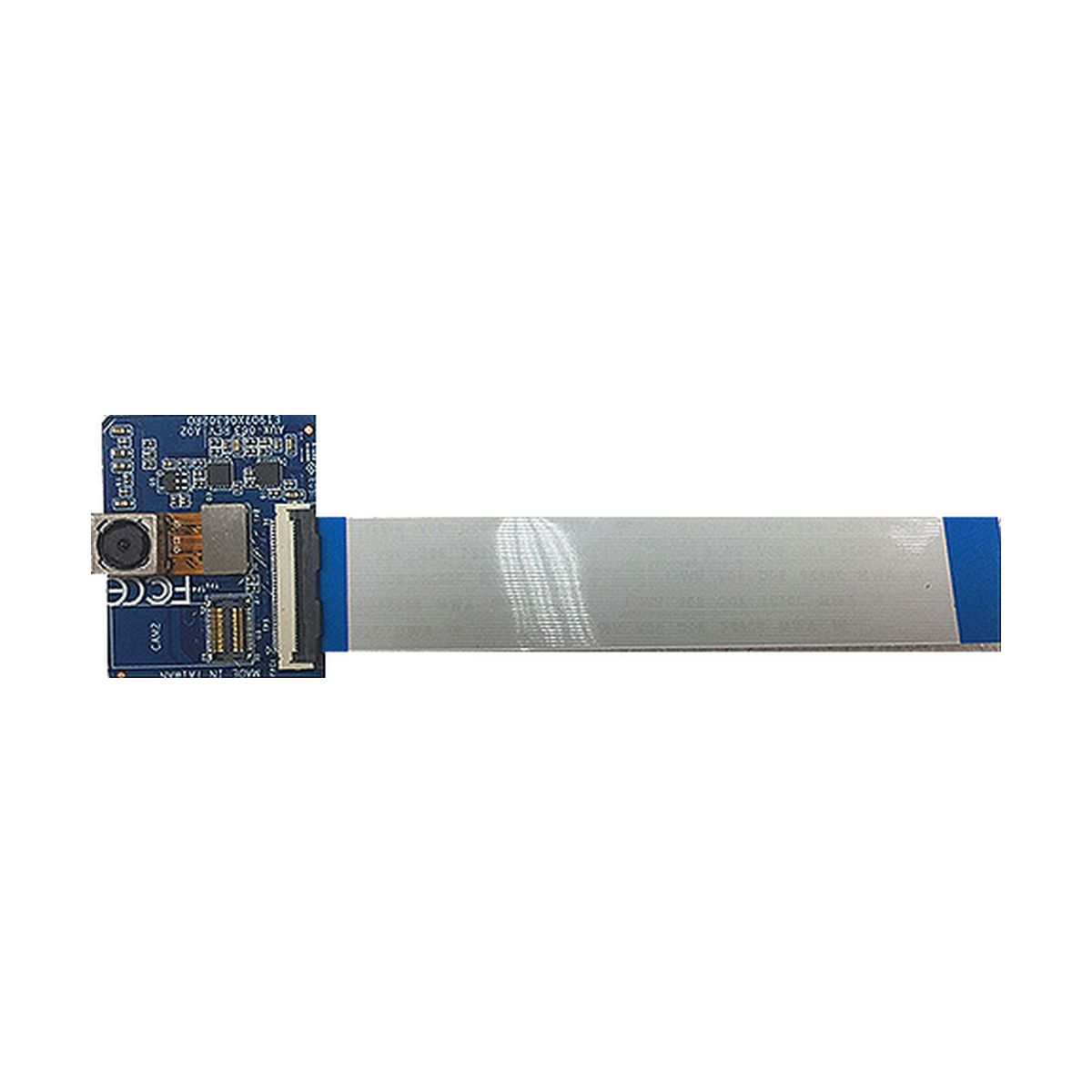

Camera	Optional MIPI Camera

Audio

I2C/I2S/HDA Socket	I2C/I2S/HDA Socket for different Audio codec
Audio codec accessory board	Line out/Line in/AMIC , DMIC in interface X86 platform => ALC892 ARM platform => WM8962

Ethernet

Ethernet Interface	1 RJ45 connector for GBE (with LED)

Mechanical & Environmental

Operating Temperature	-40 ~ 85°C
Storage Temperature	-40 ~ 85°C
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Power Requirement	DC +12V
Power Mode	Power jack with lock
Dimension (L x W)	170mm x 170mm (Mini ITX Form Factor)

Ordering Information

Ordering Information	REV-SA0200A1R-00Mini ITX SMARC Carrier Board (A1)REVK-IMX6-03R-00MIPI CMOS Camera KITBCC-WLAN-04RWi-Fi 802.11a/b/g/n/ac + Bluetooth4.1 Module with PCI-e Half-Mini Card
