NUC-TGU
Price on request
| Avalue NUC-TGU - Compact Computing System Embedded Box PC with Intel® Tiger Lake |
|---|
| CPU: 11th Gen Intel® Core™ i7/i5/i3 Processor, LAN: 2, COM: 2, USB: 6 |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i3-1115G4E |
|---|---|---|---|
| Processor Number | i7-1185G7E | i5-1145G7E | i3-1115G4E |
| Cache | 12 MB Intel® Smart Cache | 8 MB Intel® Smart Cache | 6 MB Intel® Smart Cache |
| Max Turbo Frequency | 4.40 GHz | 4.10 GHz | 3.90 GHz |
| Total Cores | 4 | 4 | 2 |
| Total Threads | 8 | 8 | 4 |
| Specification |
|---|
System Information
| Processor | Intel® Core™ Processor i7-1165G7 (15W) Intel® Core™ Processor i5-1135G7 (15W) Intel® Core™ Processor i3-1115G4 (15W) Intel® Core™ Processor i7-1185G7E (15W) Intel® Core™ Processor i5-1145G7E (15W) Intel® Core™ Processor i3-1115G4E (15W) |
|---|---|
| System Memory | 1 x 260-pin DDR4 SODIMM Socket, Supports Up to 32GB DDR4 3200MTs SDRAM |
| I/O Chipset | EC ITE IT5571VG-I-128/CX |
| BIOS Information | AMI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage with Auto Throttling Control |
| TPM | TPM2.0 |
| iAMT | Above Core i5 (selected SKUs) |
| SBC | NCM-TGU |
-Expansion-
| M.2 | 1 x M.2 Key-M 2280 (PCIe Gen4 x 4) 1 x M.2 Key-B 2242/3042/3052 with Internal SIM Slot (PCIe, SATA, USB 2.0) 1 x M.2 Key-E 2230 (PCIe, USB 2.0) |
|---|
-Storage-
| M.2 | 1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4) 1 x M.2 Key-B 2242 ((PCIe Gen4 x1, SATA3) |
|---|
-Front I/O-
| USB Port | 2 x USB 2.0 |
|---|---|
| COM Port | 2 x RS232/422/485 (BIOS) |
| Audio | 1 x Line-Out, 1 x Mic-In |
| Power Button | 1 x Power On/Off w/LED |
| LED Indicator | 1 x Data Access 1 x Wi-Fi 1 x LTE |

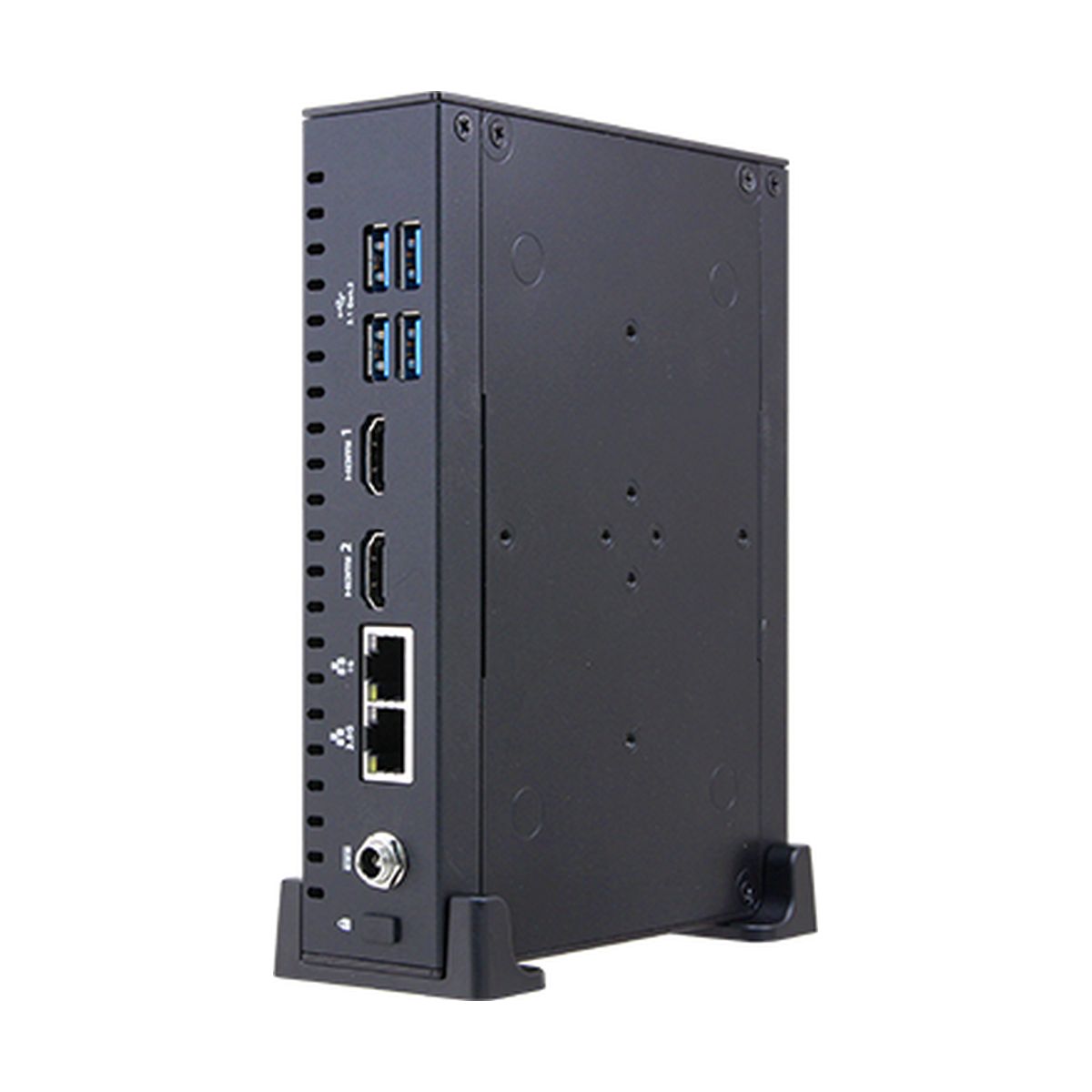

-Rear I/O-
| USB Port | 4 x USB 3.2 Gen.2 (10Gbp/s) |
|---|---|
| HDMI | 2 x HDMI 2.0b |
| RJ-45 | 2 x RJ45 |
-Right I/O-
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
|---|
-Left I/O-
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
|---|
-Display-
| Graphic Chipset | Intel® Iris® Xe Graphics (i7-1165G7/i5-1135G7) Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4) |
|---|---|
| Resolution | 2 x HDMI 2.0b: 4096x2304@60Hz |
-Audio-
| Audio Codec | RealTek ALC888S-VD2-GR |
|---|
-Ethernet-
| LAN Chipset | 1 x Intel® I225-LM 1 x Intel® I219-LM |
|---|---|
| Specification | 10/100/1000/2.5 Gigabit (I225-LM) 10/100/1000 Gigabit (I219-LM) |
-Power Requirement-
| DC Input Voltage | +12V |
|---|---|
| DC Input Connector | 1 x Lockable DC Jack |
| ACPI | Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | AC to DC Adapter |
-Software Support-
| OS Information | Win10, Win11, Linux |
|---|
-Certification-
| Certification Information | CE, FCC Class B, UKCA Wi-Fi 6E certified |
|---|
Power Requirement
| Adapter | AC to DC Adapter |
|---|
Mechanical & Environmental
| Operating Temperature | With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow |
|---|---|
| Storage Temperature | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”) |
| Weight | 0.85kg |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| IP Rating | 40 |
| Mounting Kit | Table Stand/Din Rail/VESA |
| Kensington Lock | 1 x Kensington Lock |
| Construction | Aluminum + Metal |
Ordering Information
| Ordering Information | NUC-TGU-I7-A1-1R 11th Gen Intel®Core™ Processor i7-1165G7 Fanless NUC Slim System NUC-TGU-I5-A1-1R 11th Gen Intel®Core™ Processor i5-1135G7 Fanless NUC Slim System NUC-TGU-I3-A1-1R 11th Gen Intel®Core™ Processor i3-1115G4 Fanless NUC Slim System NUC-TGU-I7E-A1-1R 11th Gen Intel®Core™ Processor i7-1185G7E Fanless NUC Slim System NUC-TGU-I5E-A1-1R 11th Gen Intel®Core™ Processor i5-1145G7E Fanless NUC Slim System NUC-TGU-I3E-A1-1R 11th Gen Intel®Core™ Processor i3-1115G4E Fanless NUC Slim SystemE1702031831R Australia Power Cord E1702031833R USA Power Cord E1702031834R Japan Power CordE170P060380R UK Power Cord E1702031000R EU Power Cord |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: NUC-TGU Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
