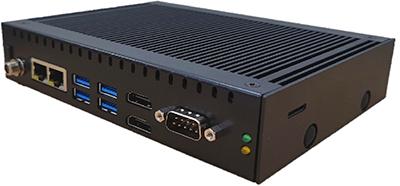

| Avalue NUC-EHL - Compact Computing System Embedded Box PC with Intel® Elkhart Lake |
|---|
| CPU: Intel® Celeron® Processor J6412, LAN: 2, COM: 2, USB: 6 |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® J6412 |
|---|---|
| Processor Number | J6412 |
| Cache | 1.5 MB L2 Cache |
| Total Cores | 4 |
| Total Threads | 4 |
| PCI Express Revision | 3.0 |
| Specification |
|---|
System Information
| Processor | Intel® Elkhart Lake Celeron® Processor J6412 |
|---|---|
| System Memory | 1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz |
| I/O Chipset | EC ITE IT5571VG |
| BIOS Information | AMI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage with Auto Throttling Control |
| TPM | TPM2.0 |
| SBC | NCM-EHL |
-Expansion-
| M.2 | 1 x M.2 Key-B 2242/3042 with Internal SIM Slot (PCIe, USB 2.0) 1 x M.2 Key-E 2230 (PCIe, USB 2.0) |
|---|
-Storage-
| M.2 | 1 x M.2 Key-B, 2242 (SATA3) |
|---|---|
| SD Card | 1 x Micro-SD Card Slot |
-Front I/O-
| USB Port | 2 x USB 2.0 |
|---|---|
| COM Port | 1 x RS232/422/485 (BIOS) |
| Audio | 1 x Line-Out, 1 x Mic-In |
| Power Button | 1 x Power On/Off w/ LED |
-Rear I/O-
| USB Port | 4 x USB 3.2 Gen.2 (10Gbp/s) |
|---|---|
| COM Port | 1 x RS232/422/485 (BIOS) |
| HDMI | 2 x HDMI 2.0b |
| RJ-45 | 2 x RJ45 |
| LED Indicator | 1 x Power on/off LED 1 x Storage Access LED |
-Right I/O-
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
|---|
-Left I/O-
| Antenna | 2 x Antenna Mounting with Dust Protection Cover 1 x Micro-SD Card Slot |
|---|
-Display-
| Graphic Chipset | Intel® UHD Graphics for 10th Gen Intel® Processors |
|---|---|
| Resolution | 2 x HDMI 2.0b: 4096x2304@60Hz |
-Audio-
| Audio Codec | RealTek ALC888S-VD2-GR |
|---|
-Ethernet-
| LAN Chipset | 2 x Intel® I225-LM |
|---|---|
| Specification | 10/100/1000/2.5 Gigabit |
-Power Requirement-
| DC Input Voltage | + 12Vdc (Optional DC 12~24V) |
|---|---|
| DC Input Connector | 1 x Lockable DC Jack |
| ACPI | Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | 12V/5A AC-DC 60W Adapter |
-Software Support-
| OS Information | Win10, Win11, Linux |
|---|
-Certification-
| Certification Information | CE, FCC Class B, UKCA Wi-Fi 6E RF certified |
|---|
Mechanical & Environmental
| Operating Temperature | With extended temperature peripherals: 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow |
|---|---|
| Storage Temperature | -30°C~70°C(-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”) |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| IP Rating | 40 |
| Mounting Kit | Table Stand (Default) Din Rail/VESA (Optional) |
| Kensington Lock | 1 x Kensington Lock |
| Construction | Aluminum + Metal |
Ordering Information
| Ordering Information | NUC-EHL-J12-A1-1R Intel® Celeron® J6412 Fanless NUC Slim System |
|---|
