ESM-ZXE
Price on request

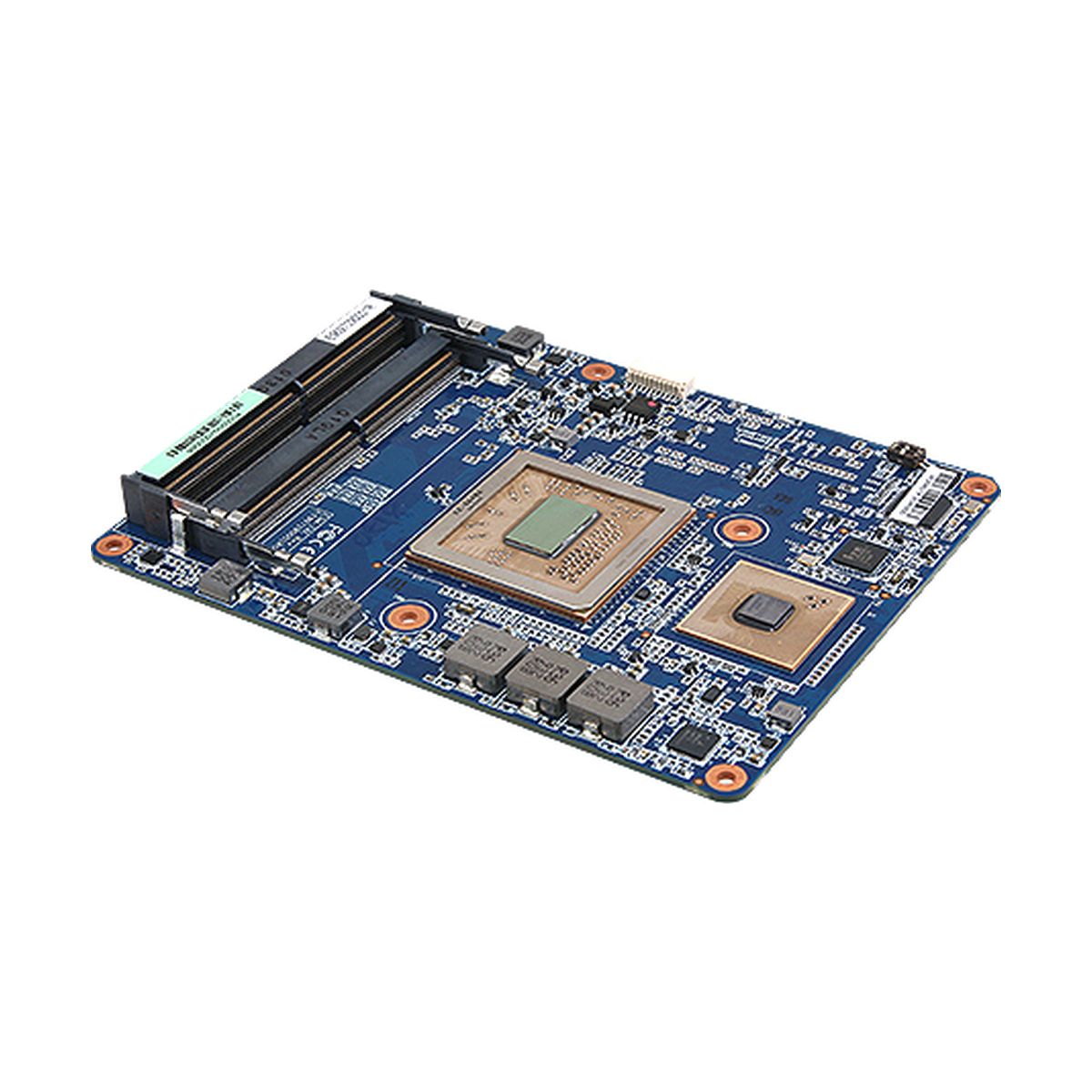

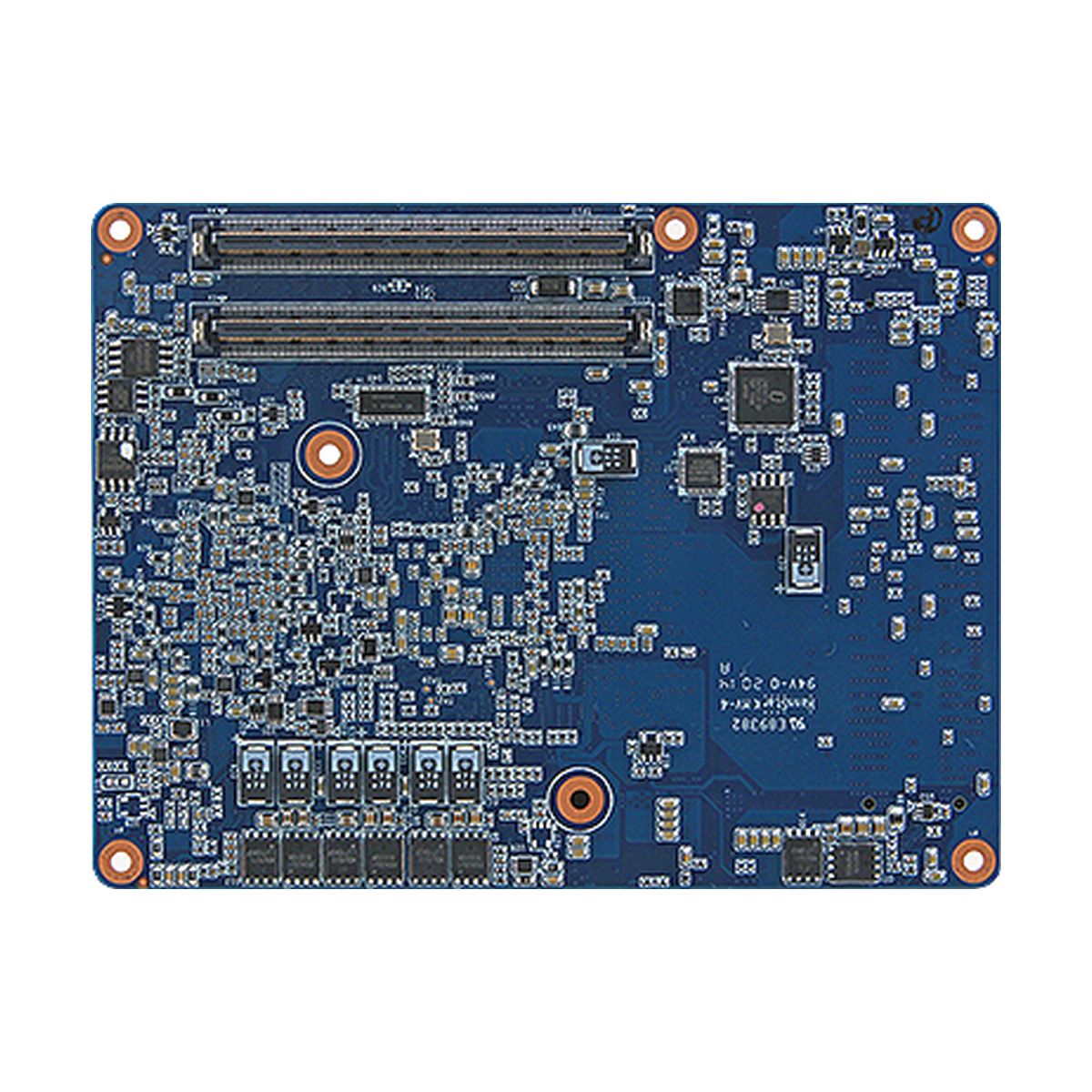

| Avalue ESM-ZXE - COM Express Type 6 CPU Module |
|---|
| PICMG COM R3.0 Type 6 module with Zhaoxin E KX-6000 series 4 core BGA CPU |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
-System Information-
| Processor | Zhaoxin E KX-6000 series KX- 6640A 4core 2.6 GHz BGA CPU TDP 35W KX- 6640MA 4core 2.2 GHz BGA CPU TDP 25W |
|---|---|
| System Memory | 2 x 260-Pin DDR4 2666MHz SO-DIMM, supports 8G/16G & up to 32GB (Non-ECC) |
| I/O Chipset | I/O extended IC ZX-200 (optional) |
| BIOS Information | AMI BIOS, 64 Mbit SPI Flash ROM (Not support BIOS Boot Selection (BIOS_DIS0#, BIOS_DIS1#) |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. and 1sec./step |
| H/W Status Monitor | Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control |
| TPM | TCM (Nations IC-Z32H330TC-SQN-611) Optional,support under Linux and from Windows 10 RS3 version |
I/O
| USB Port | Max. 6 x USB 2.0 (*Up to Max. 8 x USB 2.0 only on models KX- 6640A & KX- 6640MA with ZX-200) Max. 2 x USB3.0 (*Up to Max. 4 x USB3.0 Gen.1 (5 Gbps) only on models KX- 6640A & KX- 6640MA with ZX-200) |
|---|---|
| SMBus | SMBus |
| SATA | Max.2x SATAIII 6.0Gb/s (*Max. 4 x SATAIII 6.0Gb/s (when KX- 6640A+ ZX-200 & KX- 6640MA+ ZX-200) |
| DIO | 8bit GPIO, WDG/HW monitor/FAN |
| UART | 2 x UART(2-wire) |
| PCIe | KX- 6640A Configuration1：5PCIEX1+1PCIEX8 (default) Configuration2：5PCIEX1+2PCIEX4 Configuration3：1PCIEX1+1PCIEX4+1PCIEX8 Configuration4：1PCIEX1+3PCIEX4 Configuration5：3PCIEX1+1PCIEX2+1PCIEX8 KX- 6640MA (CPU TDP will change from 25W to 26W when use PCIex8) Configuration1：5PCIEX1+1PCIEX4 (default) Configuration2：1PCIEX1+1PCIEX4+2PCIEX4 Configuration3：3PCIEX1+1PCIEX2+1PCIEX4 KX- 6640A+ZX200 Configuration1：4PCIEX1(Gen2) (default) Configuration2：1PCIEX4 (Gen2) KX- 6640MA+ZX200 Configuration1：4PCIEX1(Gen2) (default) Configuration2：1PCIEX4 (Gen2) |
| Other | LPC, I2C |
Display
| Graphic Chipset | N/A |
|---|---|
| Spec. & Resolution | HDMI 2.0: 4096 x 2160 @ 60Hz (only 3840x2160@60Hz is tested, 4096 x 2160 @ 60Hz needs to be further validated when device is available) DP 1.2a: 4096 x 2304 @60Hz, (only 3840 x 2160@60Hz is tested, 4096 x 2160 @ 60Hz needs to be further validated when device is available) LVDS (via eDP-to-LVDS 7511 IC): 1920x1080 @60Hz, Dual-channel 18/24-bit VGA: 1920x1080 @60Hz |
| Multiple Display | Supporting 3 display (2 display with clone mode, 1 display with extend mode) LVDS (HDMI or DP) + VGA + DDI (HDMI or DP) |
| Digital Display Interface | HDMI/DP |
Audio
| Audio Codec | Zhaoxin HD audio I/F |
|---|
Ethernet
| LAN Chipset | 1xIntel 210AT Gigabit Ethernet |
|---|
Mechanical & Environmental
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F), with airflow 0.5m/s |
|---|---|
| Storage Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.44lbs (0.2kg) |
| Power Requirement | +9~ +19V |
| ACPI | Single power ATX Support S0, S3, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX |
| Dimension (L x W) | 125 x 95 mm (3.74” x 4.92”) |
Software Support
| OS Information | Microsoft® Windows 10 64-bit/Windows 7 Linux (NeoKylin DT V7.0), Ubuntu 16.04.5 |
|---|
Ordering Information
| Ordering Information | ESM-ZXE-6640A-A1RZhaoxin COM Express Module Type 6 on board KX-6640A CPU (0~+60 degrees), without TCM ESM-ZXE-6640MA-A1R Zhaoxin COM Express Module Type 6 on board KX-6640MA CPU (0~+60 degrees),without TCM ESM-ZXE-40AZ-A1RZhaoxin COM Express Module Type 6 on board KX-6640A CPU+ZX-200 (0~+60 degrees),without TCM ESM-ZXE-40MAZ-A1RZhaoxin COM Express Module Type 6 on board KX-6640MA CPU+ZX-200 (0~+60 degrees),without TCM EEV-EX16-A1RmATX Ev. Board for COMe Type 6 A1 ACC-ESMZXE-CL-1RCooler for ESM-ZXE W/FAN H=61mm ACC-ESMZXE-CL-2RCooler for ESM-ZXE W/FAN H=61mm with pad for board with ZX-200ACC-ESMZXE-SD-1RHeatspreader for ESM-ZXE H=8 mmACC-ESMZXE-SD-2RHeatspreader for ESM-ZXE H=8 mm with pad for board with ZX-200 |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: ESM-ZXE Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
