ESM-TGH
Price on request

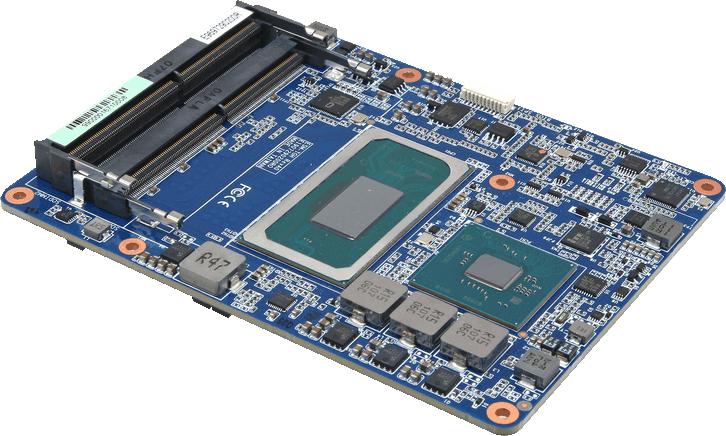

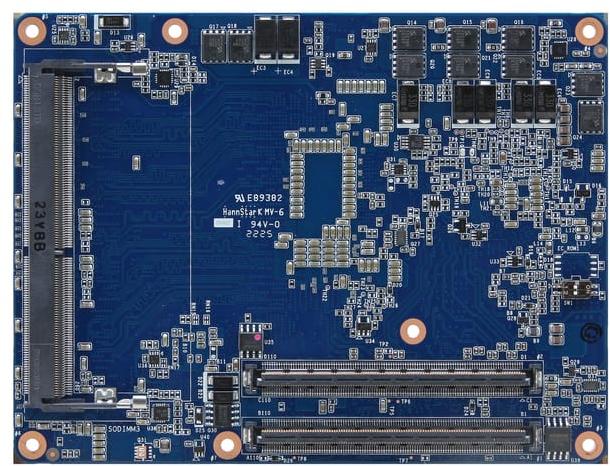

| Avalue ESM-TGH - COM Express Type 6 CPU Module with Intel® Tiger Lake |
|---|
| PICMG COM R3.0 Type 6 module with Intel® 11th Generation Xeon®, Core™ i7/i5/i3, Celeron® BGA Processors |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Total Cores | Total Threads | Max Turbo Frequency |
|---|---|---|---|---|---|
| Intel® Core™ i7-11850HE | i7-11850HE | 24 MB Intel® Smart Cache | 8 | 16 | 4.70 GHz |
| Intel® Core™ i5-11500HE | i5-11500HE | 12 MB Intel® Smart Cache | 6 | 12 | 4.50 GHz |
| Intel® Core™ i3-11100HE | i3-11100HE | 8 MB Intel® Smart Cache | 4 | 8 | 4.40 GHz |
| Intel® Xeon® W-11865MRE | W-11865MRE | 24 MB Intel® Smart Cache | 8 | 16 | 4.70 GHz |
| Intel® Xeon® W-11155MRE | W-11155MRE | 8 MB Intel® Smart Cache | 4 | 8 | 4.40 GHz |
| Intel® Celeron® 6600HE | 6600HE | 8 MB Intel® Smart Cache | 2 | 2 |
| Specification |
|---|
-System Information-
| Processor | Mobile 11th Generation Intel® Xeon® Core™ and Celeron® Processors - 10nm processer Xeon® W-11865MRE* 45W (35W cTDP), 8C/16T (ECC) Xeon® W-11155MRE* 45W (35W cTDP), 4C/8T (ECC) Core™ i7-11850HE* 45W (35W cTDP), 8C/16T (non-ECC) Core™ i5-11500HE* 45W (35W cTDP), 6C/12T (non-ECC) Core™ i3-11100HE* 45W (35W cTDP), 4C/8T (non-ECC) Celeron® 6600HE* 35W, 2C/2T (non-ECC) |
|---|---|
| Platform Controller Hub | RM590E QM580E HM570E |
| System Memory | Up to 3x 260-pin DDR4-3200 SO-DIMM slot up to 32 GByte each (96 GByte total) |
| I/O Chipset | EC (ITE IT5571) |
| BIOS Information | AMI uEFI BIOS, 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. and 1sec./step |
| H/W Status Monitor | Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control |
| TPM | TPM2.0 |
I/O
| USB Port | 4 x USB 3.2 Gen.2x1 (10 Gbps) 8 x USB 2.0 |
|---|---|
| SATA | 4 x SATA3.0 (6.0Gb/s) |
| DIO | 8bit GPIO(NCT5655Y) |
| MIO | 4 x SATAIII 6.0Gb/s 1xLPC (via eSPI to LPC bridge), I2C, SMBus, 2 x UART(2-wire) |
| HDMI | HDMI 2.0b |
Display
| Graphic Chipset | Gen 12 Intel® UHD Graphics (Xe architecture) |
|---|---|
| Spec. & Resolution | HDMI 2.0b: 4096x 2304 @ 60Hz DP 1.4: 4096x 2304 @60Hz LVDS: 1920x 1080 @60Hz, support Dual-channel 18/24-bit LVDS (via eDP-to-LVDS IC CH7511B) VGA: 1920x 1200 @60Hz (via DP to VGA IC Chrontel® 7517A) eDP 1.4b: 4096x 2304 @60Hz (Optional) (Per Intel design guide, need to add Redriver, Redriver in carrier board to fine tune the signal of DP1.4) (Only support 4Lanes 2560x1440 & 2Lanes 1920x1080) |
| Multiple Display | Supporting 4 display up to 2K (3DDI+eDP) |
| DDI | HDMI/DP (default) |
| Interface | Dual-channel 18/24-bit LVDS (LVDS via CH7511B) |
Software Support
| OS | Microsoft® Windows 10 64-bit Linux (Kernel>5.8) |
|---|
Ethernet
| LAN Chipset | Intel®i225LM/IT |
|---|---|
| Ethernet Interface | 10/100/1000/2500 Base-Tx GbE compatible |
Mechanical & Environmental
| Operating Temperature | Operating Standard: 0 ~ 60 °C (32 ~ 140 °F) Operating Industrial (build option with selected SKUs): -40°C ~ 75°C (-40°F ~ 167°F) |
|---|---|
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.44lbs (0.2kg) |
| Power Requirement | +9~ +19V |
| ACPI | Single power ATX Support S0, S4, S5 ACPI 5.0a Compliant |
| Power Mode | AT/ATX |
| Dimension (L x W) | 125*95 mm (3.74” x 4.92”) |
