EPC-TGU
Price on request

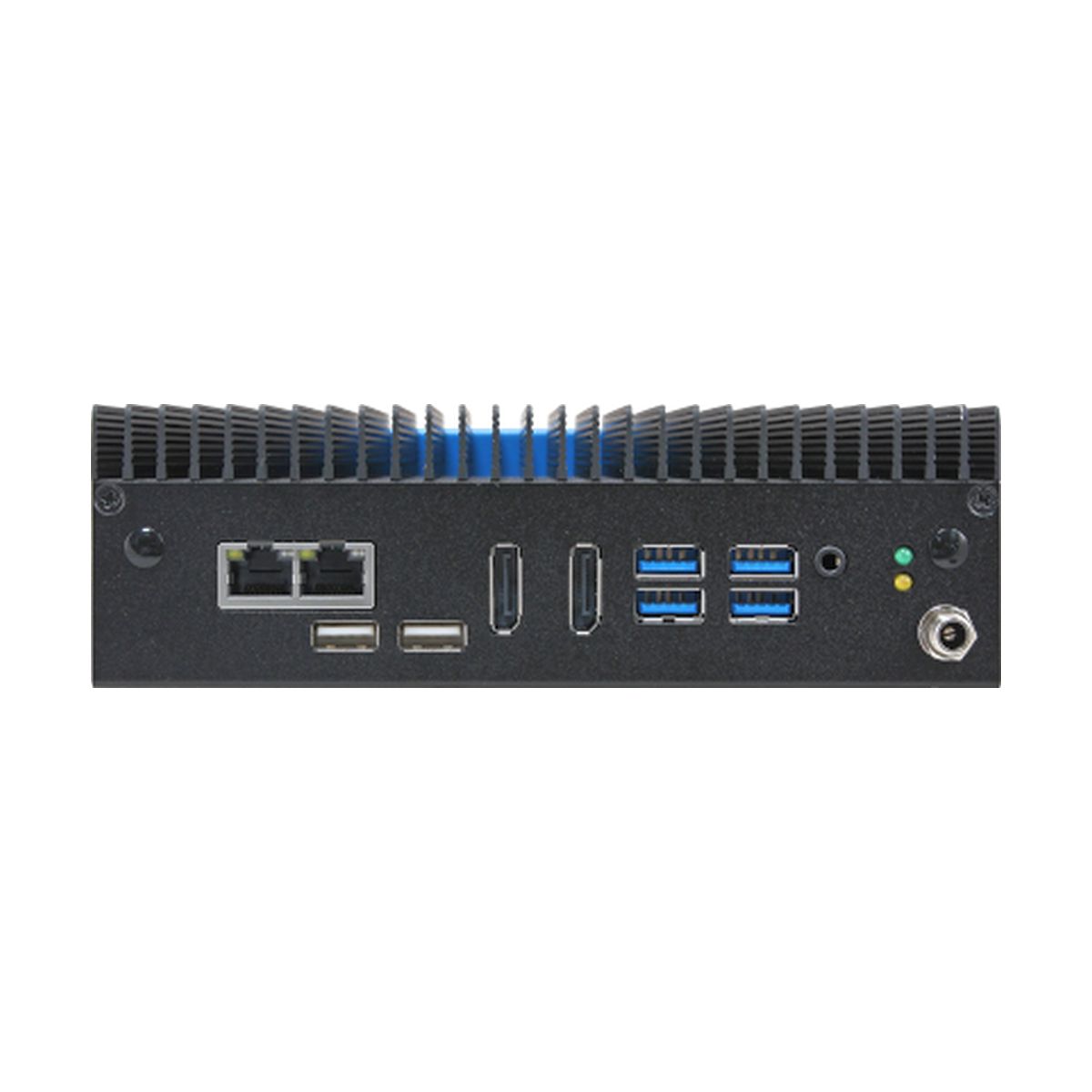

| Avalue EPC-TGU - Compact Computing System Embedded Box PC with Intel® Tiger Lake |
|---|
| CPU: 11th Gen Intel® Core™ i7/i5/i3/Celeron® Processor, LAN: 2, COM: 2, USB: 6 |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® 6305E |
|---|---|
| Processor Number | 6305E |
| Cache | 4 MB Intel® Smart Cache |
| Total Cores | 2 |
| Total Threads | 2 |
| Specification |
|---|
System Information
| Processor | Intel® Core™ Processor i7- 1185G7E (15W) Intel® Core™ Processor i5- 1145G7E (15W) Intel® Core™ Processor i3- 1115G4E (15W) Intel® Celeron® Processor 6305E (15W) |
|---|---|
| System Memory | 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MTs |
| I/O Chipset | EC ITE IT8882 |
| BIOS Information | AMI uEFI BIOS 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | System temperature monitoring and Voltages monitoring |
| RAID | RAID 0/1 (SATA) |
| TPM | TPM 2.0 |
| iAMT | Above Core i5 (selected SKUs) |
| SBC | ECM-TGU |
-Expansion-
| M.2 | 1 x M.2 Key-M 2242 (PCIe Gen4 x 4) 1 x M.2 Key-B 2242/3042 with Internal SIM Slot (SATA, USB 2.0) 1 x M.2 Key-E 2230 (PCIe, USB 2.0) |
|---|
-Storage-
| M.2 | 1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4) 1 x M.2 Key-B 2242/3042 (SATA) |
|---|---|
| 2.5” Drive Bay | 1 x Internal 2.5” Drive Bay (7mm) |
-Front I/O-
| COM Port | 2 x RS232/422/485 (BIOS) |
|---|---|
| Power Button | 1 x Power Button |
-Rear I/O-
| USB Port | 4 x USB 3.2 Gen.2 (10Gbp/s) 2 x USB 2.0 |
|---|---|
| DP | 2 x DP++ |
| Audio | 1 x Combo Jack (Mic-In, Line-Out) |
| RJ-45 | 2 x RJ45 (Max. Up to 3-RJ45 in project base) |
| LED Indicator | 1 x Power On/Off 1 x Storage Access |
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
-Display-
| Graphic Chipset | Intel® Iris® Xe Graphics (i7-1185G7E/i5-1145G7E) Intel® Iris® UHD Graphics (i3-1115G4E/6305E) |
|---|---|
| Resolution | DP++ 1.4: 4096x2304@60Hz DP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz |
-Audio-
| Audio Codec | Realtek ALC888S |
|---|
-Ethernet-
| LAN Chipset | 2 x Intel® I226LM |
|---|---|
| Specification | 2 x 10/100/1000/2.5 Gigabit (I226LM) |
-Power Requirement-
| DC Input Voltage | Typical 12/24Vdc |
|---|---|
| DC Input Connector | Lockable DC Jack |
| ACPI | Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | 60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option) Note1: 60W for general mode (storage, communication, display, USB port, room temp.) Nore2: 120W for full load mode (general mode pluses max. workload and operating temp.) |
-Software Support-
| OS Information | Win10, Win11, Linux |
|---|
-Certification-
| Certification Information | CE, FCC Class B, UKCA |
|---|
Mechanical & Environmental
| Operating Temperature | With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow |
|---|---|
| Storage Temperature | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 177mm x 123mm x 55mm (7” x 4.8” x 2.2") |
| Vibration Test | With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
| Shock Test | With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Mounting Kit | Stand Wall Mount kit |
| Construction | Aluminum + Metal |
Ordering Information
| Ordering Information | EPC-TGU-85-B1-1R 11th Gen Intel®Core™ Processor i7-1185G7E Fanless Compact System EPC-TGU-45-B1-1R 11th Gen Intel®Core™ Processor i5-1145G7E Fanless Compact System EPC-TGU-15-B1-1R 11th Gen Intel®Core™ Processor i3-1115G4E Fanless Compact System EPC-TGU-05-B1-1R 11th Gen Intel®Celeron 6305E Fanless Compact SystemE1702031831R Australia Power Cord E1702031833R USA Power CordE1702031834R Japan Power Cord E170P060380R UK Power Cord E1702031000R EU Power Cord |
|---|
