EPC-EHL-8COM
Price on request
| Avalue EPC-EHL-8COM - Compact Computing System Embedded Box PC with Intel® Elkhart Lake |
|---|
| CPU: Intel Atom® x6413E Processor, LAN: 2, COM: 8, USB: 4 |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Intel Atom® x6413E |
|---|---|
| Processor Number | 6413E |
| Cache | 1.5 MB L2 Cache |
| Total Cores | 4 |
| Total Threads | 4 |
| PCI Express Revision | 3.0 |
| Specification |
|---|
System Information
| Processor | Intel Atom® x6413E Processor (1.5M Cache, up to 3.00 GHz, 9W) |
|---|---|
| System Memory | 1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MTs |
| BIOS Information | AMI uEFI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | Monitoring System Temperature and Voltage with Auto Throttling Control |
| TPM | TPM 2.0 |
-Expansion-
| M.2 | 1 x M.2 (Key-B, 2242/3042, PCIex2, or ( PCIex1+USB3.1 GEN1), or (SATAIII + USB 3.1 GEN2), USB2.0, SIM Slot for LTE Cards) *Default is PCIex1/SATAIII+USB3.1 GEN1, others through BIOS Modification. 1 x M.2 (Key-E, 2230, PCIex1, USB2.0) |
|---|
-Storage-
| M.2 | 1 x M.2 (Key-B, 2242) |
|---|---|
| 2.5” Drive Bay | 1 x 2.5” Drive Bay (7mm) |
-Front I/O-
| COM Port | 4 x RS232 |
|---|---|
| Power Button | 1 x Power Button |
| LED Indicator | 1 x Storage Access LED |

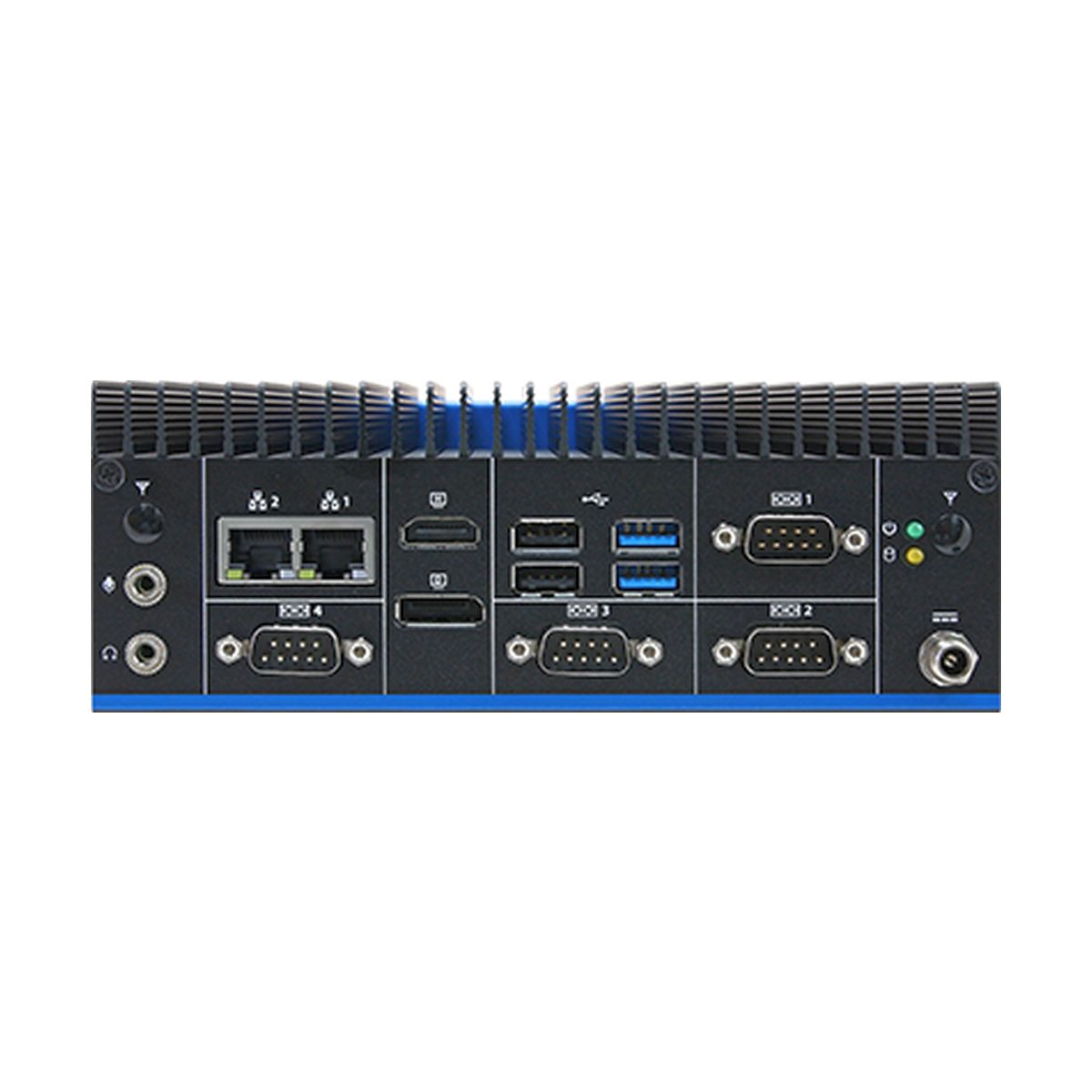

-Rear I/O-
| USB Port | 2 x USB 3.1 Gen2 (10Gbps) 2 x USB2.0 |
|---|---|
| COM Port | 4 x RS232 |
| HDMI | 1 x HDMI 2.0b |
| DP | 1 x DP 1.4a |
| Audio | 1 x Mic-in, 1 x Line-out |
| RJ-45 | 2 x RJ45 |
| LED Indicator | 1 x Power on/off LED 1 x Storage Access LED |
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
-Right I/O-
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
|---|
-Display-
| Graphic Chipset | Intel® UHD Graphics for 10th Gen Intel® Processors |
|---|---|
| Resolution | 1 x HDMI 2.0b Max resolution 4096x2160@60Hz 1 x DP 1.4a Max resolution 4096x2160@60Hz |
-Audio-
| Audio Codec | Realtek ALC888S |
|---|
-Ethernet-
| LAN Chipset | 2 x Intel® I226IT |
|---|---|
| Specification | 2 x 10/100/1000/2.5G Base-Tx GbE compatible |
-Power Requirement-
| DC Input Voltage | Typical +9~36Vdc |
|---|---|
| DC Input Connector | 1 x Lockable DC Jack |
| Adapter | Input: 100 ~ 240Vdc/ 50 ~ 60Hz Output: 12V/5A AC-DC 60W Adapter |
-Software Support-
| OS Information | Win10, Win11, Linux |
|---|
-Certification-
| Certification Information | CE, FCC Class B |
|---|
Mechanical & Environmental
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) with 0.2m/s air flow -40°C ~ 70°C (-40°F ~ 158°F) with 0.5m/s air flow |
|---|---|
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 177 x 123 x 65mm |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, 3Axis, 6 Face |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Mounting Kit | Wall Mount Kit (Default) |
| Construction | Aluminum + Metal |
Ordering Information
| Ordering Information | EPC-EHL-X13-B1-3R Intel® ATOM® Processor x6413E Fanless Compact System, w/8COME1702031831R Australia Power Cord E1702031833R USA Power Cord E170P060380R UK Power CordE1702031000R EU Power Cord |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EPC-EHL-8COM Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
