EMX-R680P

Price on request

Product number: EMX-R680P

Product information "EMX-R680P"

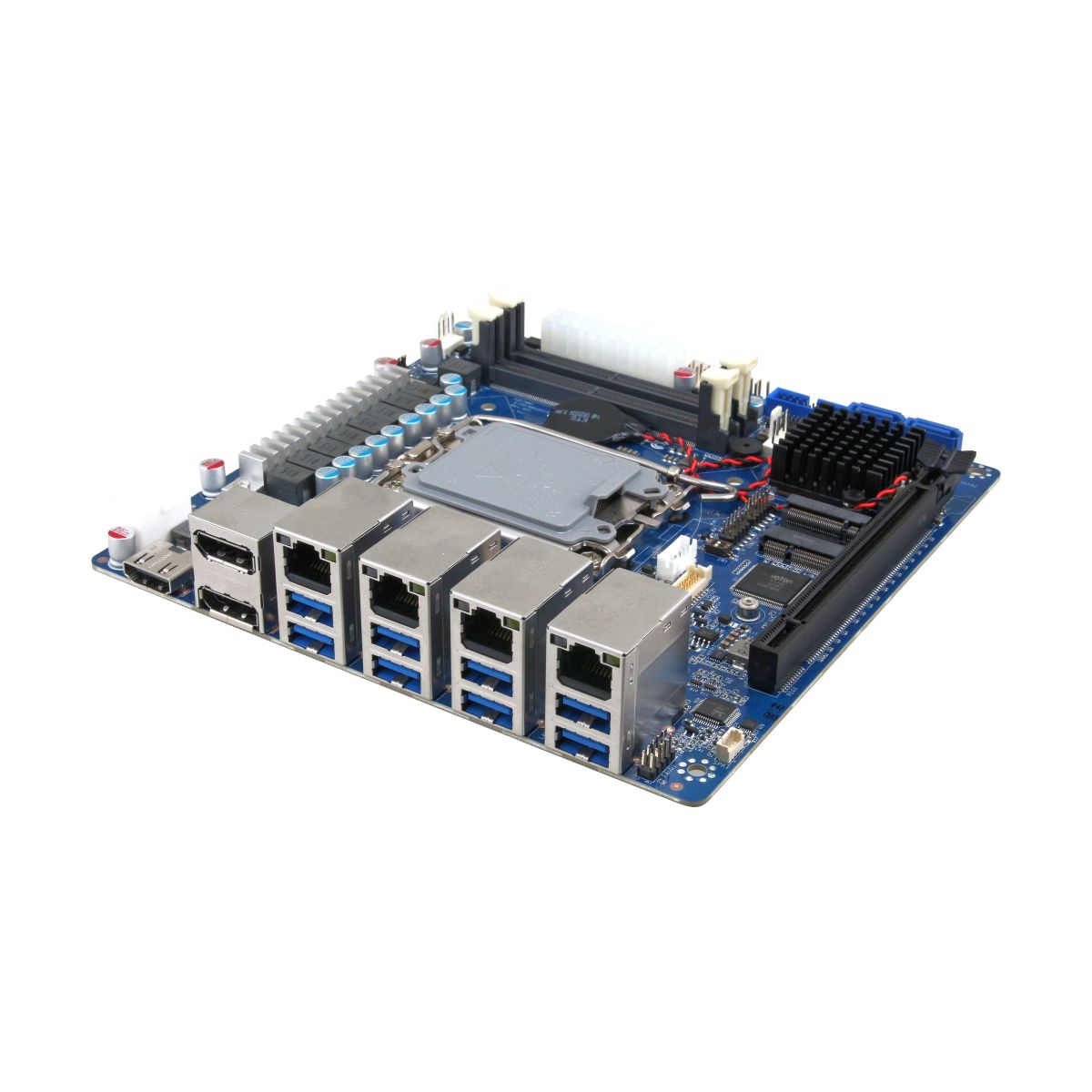

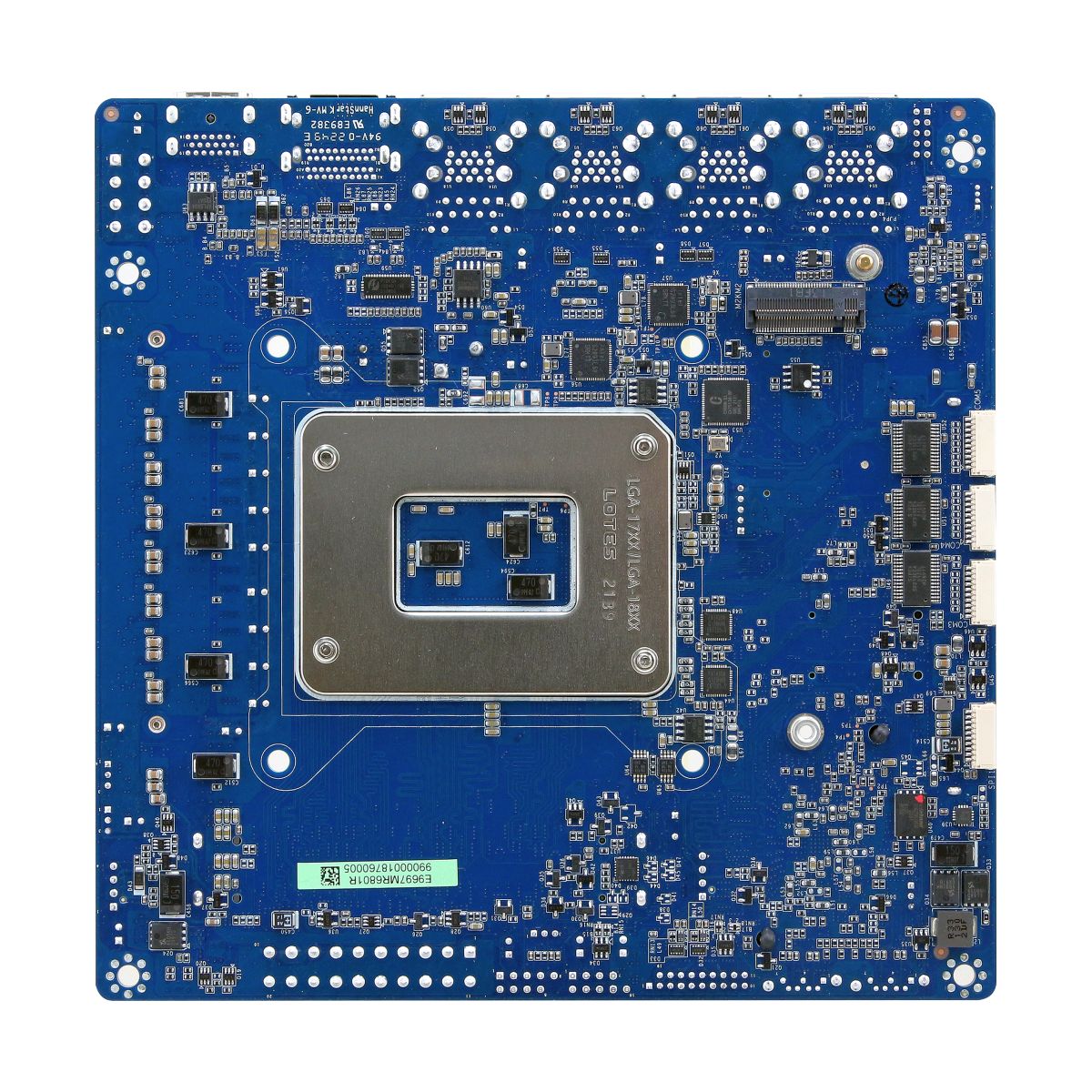

EMX-R680P - Mini-ITX Single-Board-Computer from Avalue x86 CPU EMX-R680P - Mini-ITX Single-Board-Computer from Avalue x86 CPU

Key Features
Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Support LGA 1700 CPU Up to 35/65/125W Max Intel® R680E Chipset 2 x SODIMM up to 64GB Dual Channel DDR5 4800MHz 4 x Intel® i226-LM 2.5 Gigabit Controller Realtek ALC888S with Stereo Class D 2W4Ω x 2 2 x DP++, 1 x HDMI 2.1b (LSPCON support): 8K@60Hz 1 x 2CH LVDS or eDP 2 x SATA III 4 x USB 3.2 Gen 2 & 4x USB 3.2 Gen 1 in I/O, 2 x USB 3.2 Gen 1, 2 x USB 2.0 via headers 1 x PCIe x 16 Gen 5 1 x M.2 (2230) E-Key, supports Wi-Fi module with PCIe x 2 Gen 4 & USB 2.0 2 x M.2 (2242/2280) M-Key, supports PCI-e x 4 Gen 4 SSD 2 x RS232/422/485, 3 x RS232 16-bits GPIO, support RAID 0, 1 ATX Power

Key Features

Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Support LGA 1700 CPU Up to 35/65/125W Max
Intel® R680E Chipset
2 x SODIMM up to 64GB Dual Channel DDR5 4800MHz
4 x Intel® i226-LM 2.5 Gigabit Controller
Realtek ALC888S with Stereo Class D 2W4Ω x 2
2 x DP++, 1 x HDMI 2.1b (LSPCON support): 8K@60Hz
1 x 2CH LVDS or eDP
2 x SATA III
4 x USB 3.2 Gen 2 & 4x USB 3.2 Gen 1 in I/O, 2 x USB 3.2 Gen 1, 2 x USB 2.0 via headers
1 x PCIe x 16 Gen 5
1 x M.2 (2230) E-Key, supports Wi-Fi module with PCIe x 2 Gen 4 & USB 2.0
2 x M.2 (2242/2280) M-Key, supports PCI-e x 4 Gen 4 SSD
2 x RS232/422/485, 3 x RS232
16-bits GPIO, support RAID 0, 1 ATX Power

System Information
Processor	Intel® 12th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor
Platform Controller Hub	Intel® R680E Chipset
System Memory	2 x SO-DIMM Up to 64GB Dual Channel DDR5 4800MHz
I/O Chipset	NuvoTon NCT6126D Ver.B (eSPI super IO)
BIOS Information	AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor	CPU temperature monitoringt, Voltage monitoringt, CPU fan speed controlt
Board	Mini ITX Board

Expansion
Expansion	1 x PCIe x 16 Gen 5 1 x M.2 (2230) E-Key, support Wi-Fi module with PCIe x 2 Gen 4 & USB 2.0 2 x M.2 (2242/2280) M-Key, support PCI-e x 4 Gen 4 SSD

I/O

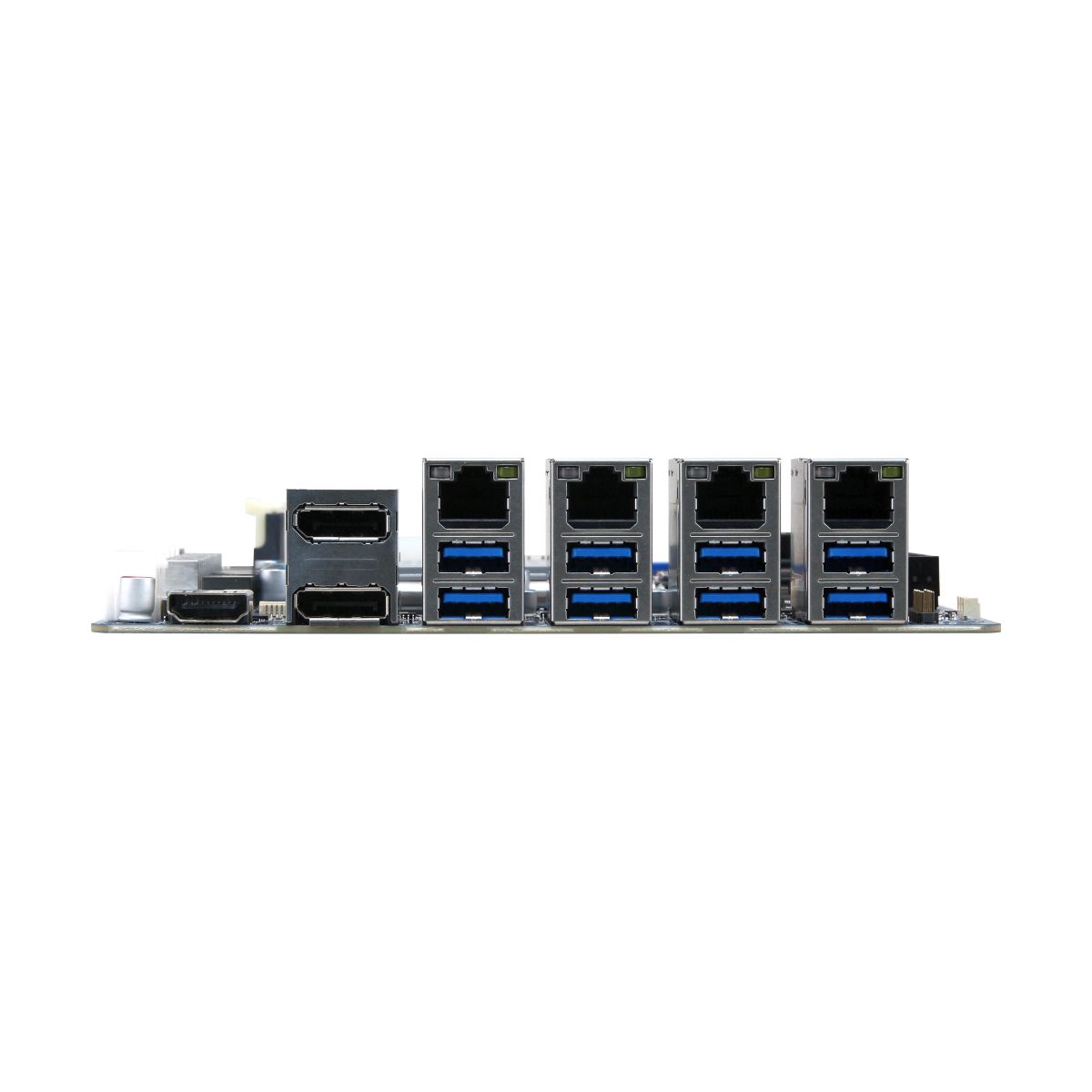

USB Port	4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 1 by pin header 2 x USB 2.0 by pin header
COM Port	2 x RS232/422/485 by BIOS selection at I/O (COM1~2) 3 x RS232(COM3-5) without DB9 (pin9 without Power)
SATA	2 x SATA III
DIO	1 x 16-bit GPIO

Display
Graphic Chipset	Intel® 12th Generation CPU Integrated
Spec. & Resolution	2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz 1 x HDMI 2.1b (supported with LSPCON): 8K@60Hz 1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1920 x 1080@60Hz (2 Lanes)
Multiple Display	4 Independent Displays
LVDS	Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1920 x 1080@60Hz (2 Lanes)

Ethernet
LAN Chipset	4 x Intel® i226LM 2.5 Gigabit Controller
LAN Port	4 x 2.5 Gigabit Ethernet

Mechanical & Environmental
Operating Temperature	0~55°C (32~131°F)
Storage Temperature	-40 ~ 75°C
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.44 kg TBC
Power Requirement	+12V / +5V / 5VSB /+3.3V /-12V
ACPI	Single power ATX Support S0, S3, S4, S5
Power Mode	AT / ATX mode Switchable Through Jumper
Dimension (L x W)	6.7" x 6.7" (170mm x 170mm)

Ordering Information
Ordering Information	EMX-R680P Intel® 12th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor

All data is for information purposes only. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-R680P
