EMX-EHLP
Price on request

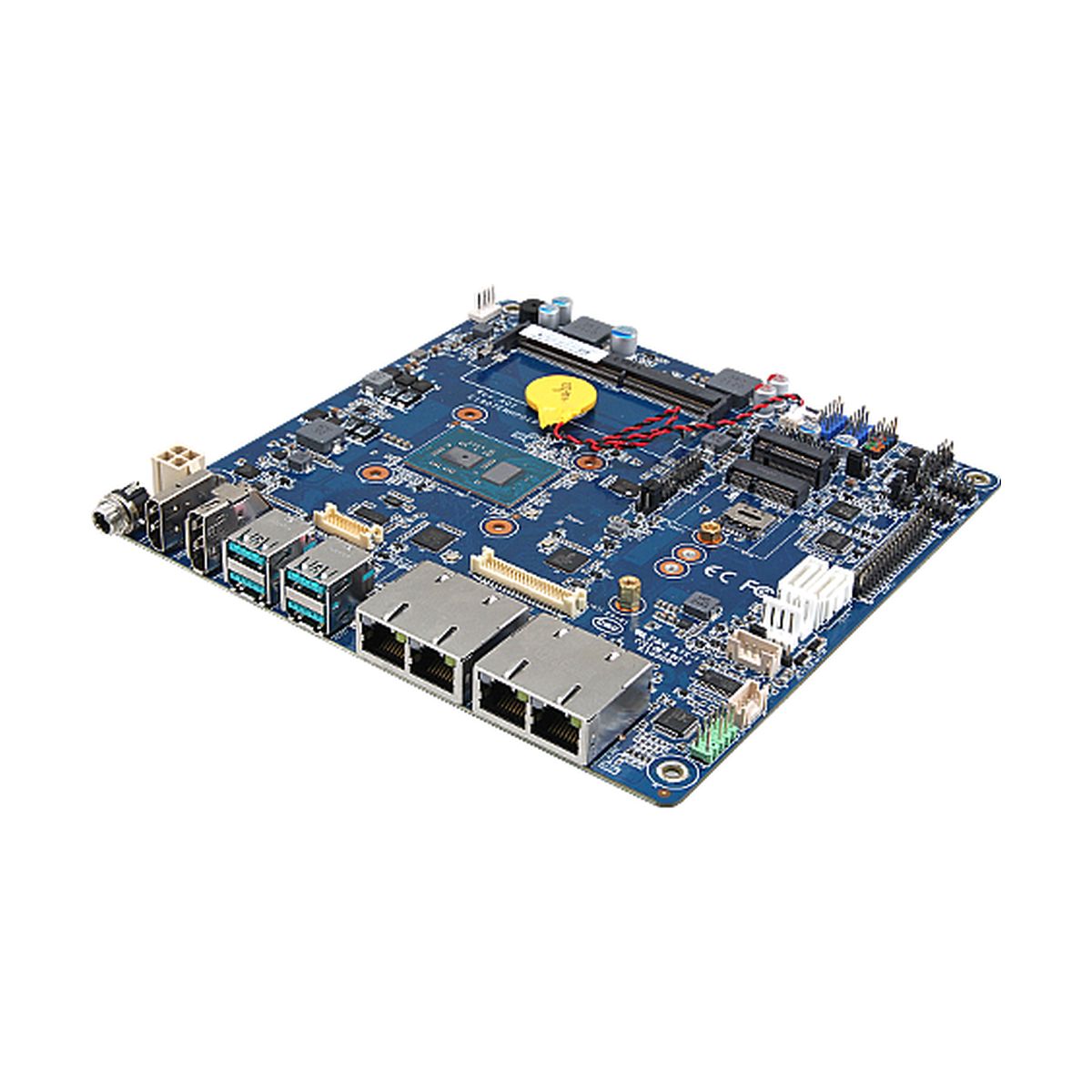

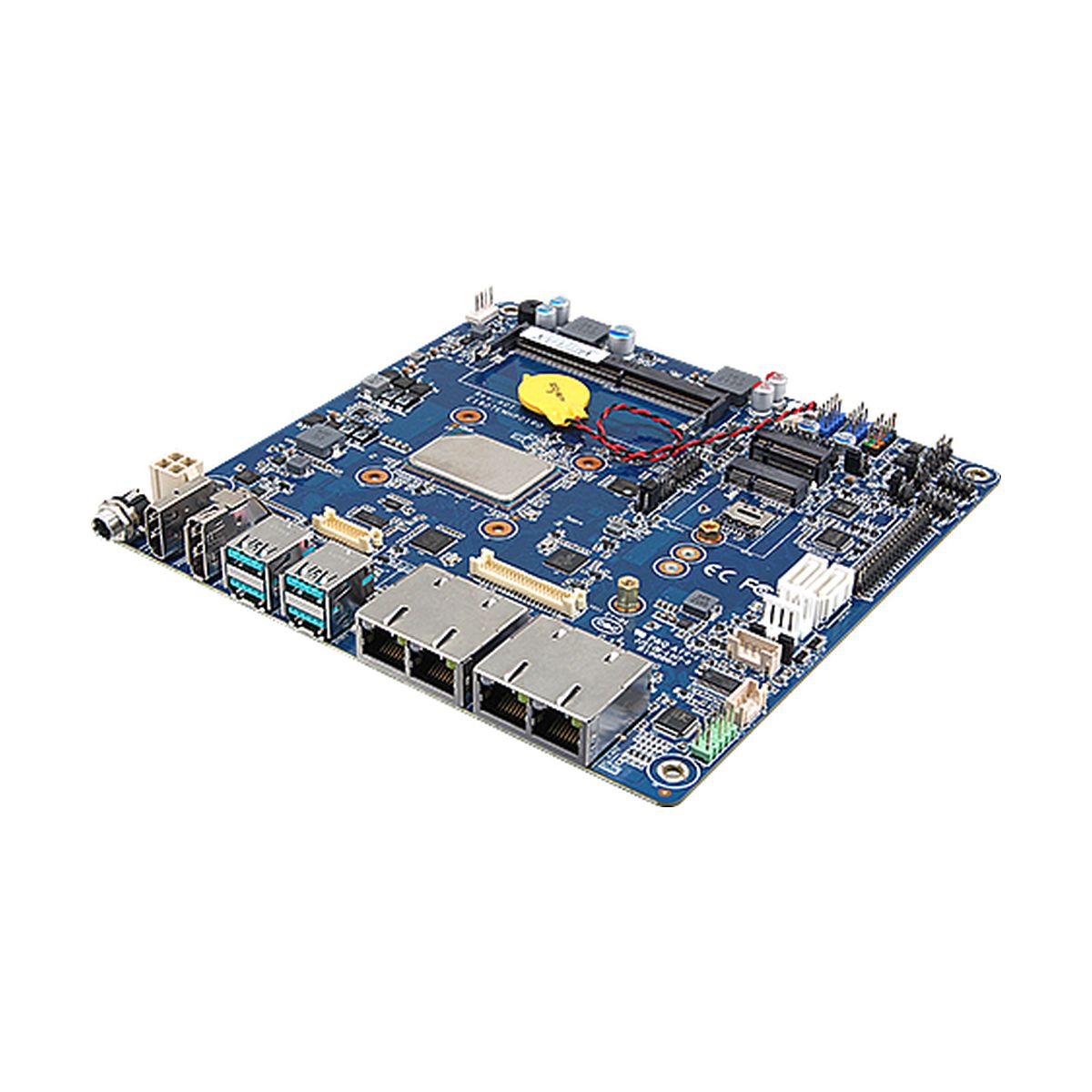

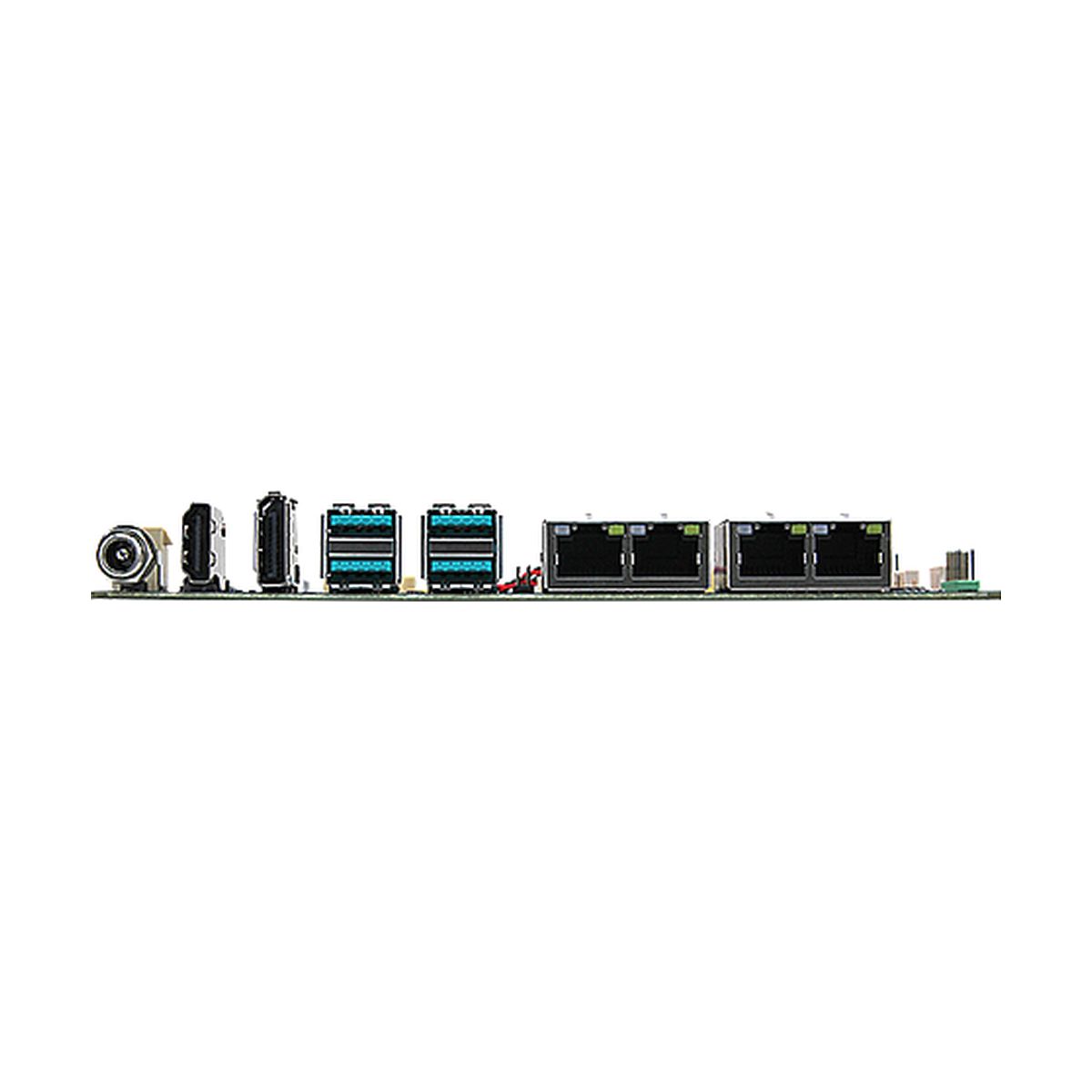

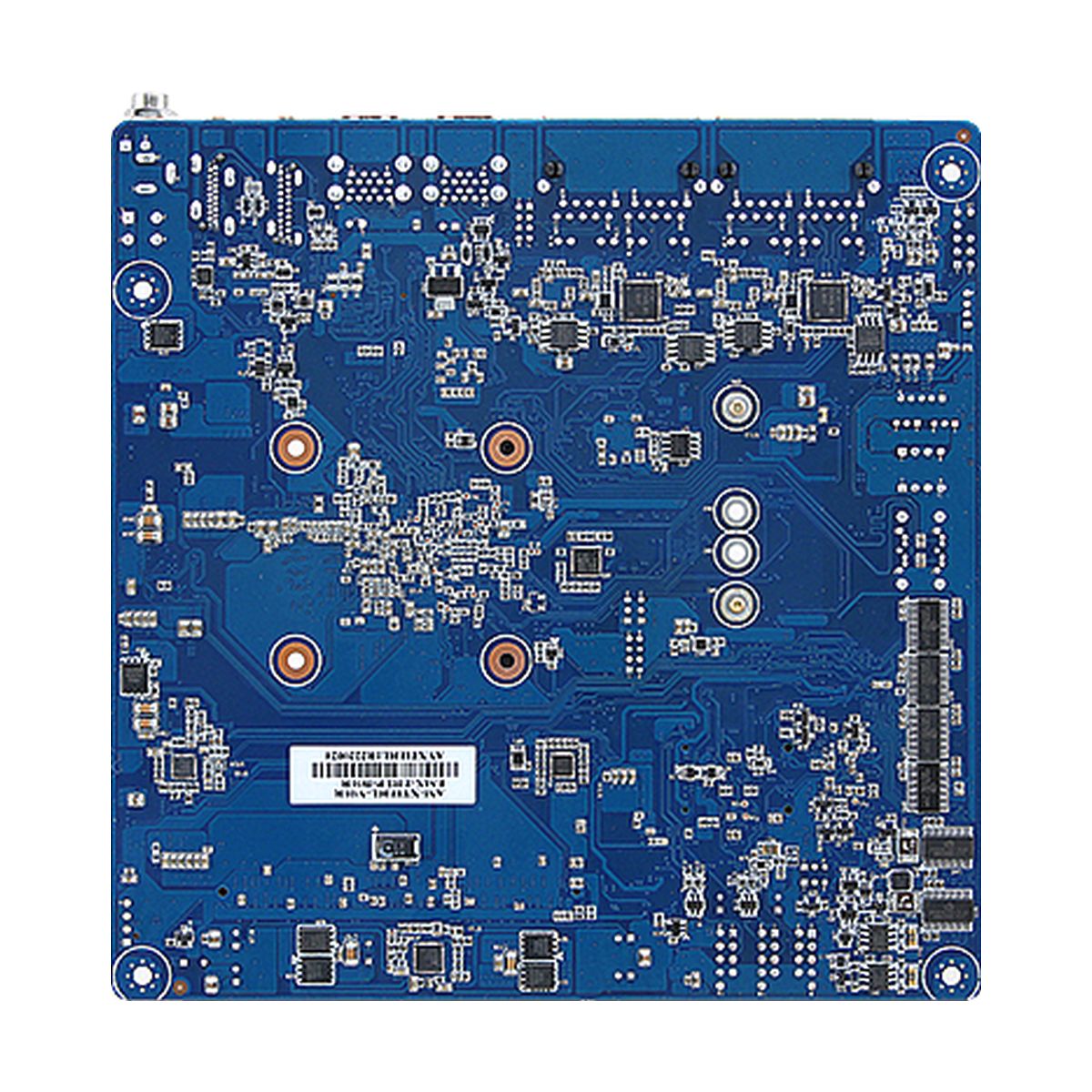

| Avalue EMX-EHLP - Mini-ITX Single-Board-Computer with Intel® Elkhart Lake |
|---|
| CPU: Intel® Atom® x6000E and Celeron® Processor, Chipset: Integrated, USB/SATA/COM/LAN: 8/2/6/4, Display: 1 x HDMI / 1 x DP / 1 x LVDS / co-lay eDP |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® J6413 | Intel® Celeron® J6412 |
|---|---|---|
| Processor Number | J6413 | J6412 |
| Cache | 1.5 MB L2 Cache | 1.5 MB L2 Cache |
| Total Cores | 4 | 4 |
| Total Threads | 4 | 4 |
| PCI Express Revision | 3.0 | 3.0 |
| Specification |
|---|
-System Information-
| Processor | Intel® Atom® x6000E and Celeron® Processor |
|---|---|
| System Memory | One 260-pin DDR4 3200MHz SO-DIMM socket, supports up to 32GB Max (Only Atom® x6000E Series Processors support IBECC) |
| I/O Chipset | EC iTE IT5571 |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
Expansion
| Expansion | 1 x M.2 Type B slot for 3042/3052/2242/2260/2280 size with SATAIII + USB 3.1 GEN2, USB 2.0, SIM Slot for SSD/LTE/IO Cards support WWAN+GNSS and SSD *3042/2242 bridge bracket to 3052 *SATA 2 share with M.2 key B SATA * Only supports one SIM card * Does not support I2S and PCM functions 1 x M.2 Key E 2230 support WiFi module (1 x PCI-e x1 & USB 2.0 Signal) * Does not support PCM/I2S and UART functions |
|---|
I/O
| USB Port | 4 x USB 2.0 by pin header 2 x USB3.1 Gen2 and 2 x USB3.1 Gen1 at I/O |
|---|---|
| COM Port | 4 x RS232, 2 x RS-232/RS422/485 |
| SATA | 2 x SATA Power 2 x SATA III |
| DIO | 1 x 16-bit GPIO |
Display
| Graphic Chipset | Intel® UHD Graphics for 10th Gen Intel® Processors |
|---|---|
| Spec. & Resolution | 1 x DP++: 4096 x 2160@60 Hz (DP: 4096 x 2160@60Hz) 1 x HDMI 2.0b: 4096 x 2160@60 Hz LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B-BFI eDP to LVDS) 1 x eDP 4096 x 2160@60 Hz LVDS and eDP via switch IC, either one display is functional. |
| LVDS | 2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter |
Audio
| Audio Codec | Realtek ALC888S & ALC897 (Co-lay) |
|---|---|
| Audio Interface | Support Line-out & Mic-in & Front audio pin-header |
| Audio Amplifier | TI TPA3113D2 Stereo Class-D 6W |
Ethernet
| LAN Chipset | 4 x Intel® i225/i226LM/IT(Default: i226LM/IT); (I225/i226IT for wide temp version) 2.5 Gigabit Ethernet (BOM optional for 1 x 2 RJ45 Thin Mini ITX Cost version design SKU) |
|---|---|
| Ethernet Interface | 10/100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet |
| LAN Port | 4 x RJ-45 |
Mechanical & Environmental
| Operating Temperature | 0 ~ 60°C (32 ~ 140 °F) Intel® Pentium®/Celeron®N/J Series CPU SKU -20~60°C (-8~140°F) Intel® Atom®x6000 Series CPU SKU w/HDD/SSD, ambient with 0.5 m/s Air flow |
|---|---|
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.88lbs (0.4Kgs) |
| Power Requirement | +12V~24V |
| Power Mode | AT/ATX |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
Software Support
| OS Information | Win10 64bit, Linux |
|---|
Ordering Information
| Ordering Information | EMX-EHLP-J6412-A1R EMX-EHLP-J6413-A1R EMX-EHLP-X13E-A1R EMX-EHLP-X25RE-A1R EMX-EHLP-J12-A1-1R (2LAN (i226V version)) Intel® Celeron®/Atom™ SoC BGA Processor Thin Mini ITX SBC Motherboard |
|---|
| Product Variants / Accessories |
|---|
| EMX-EHLP-J6412-A1R | |
| EMX-EHLP-J6413-A1R | |
| EMX-EHLP-X13E-A1R | |
| EMX-EHLP-X25RE-A1R | |
| EMX-EHLP-J12-A1-1R (2LAN, i226V version) |
