EMX-ADLP
Price on request

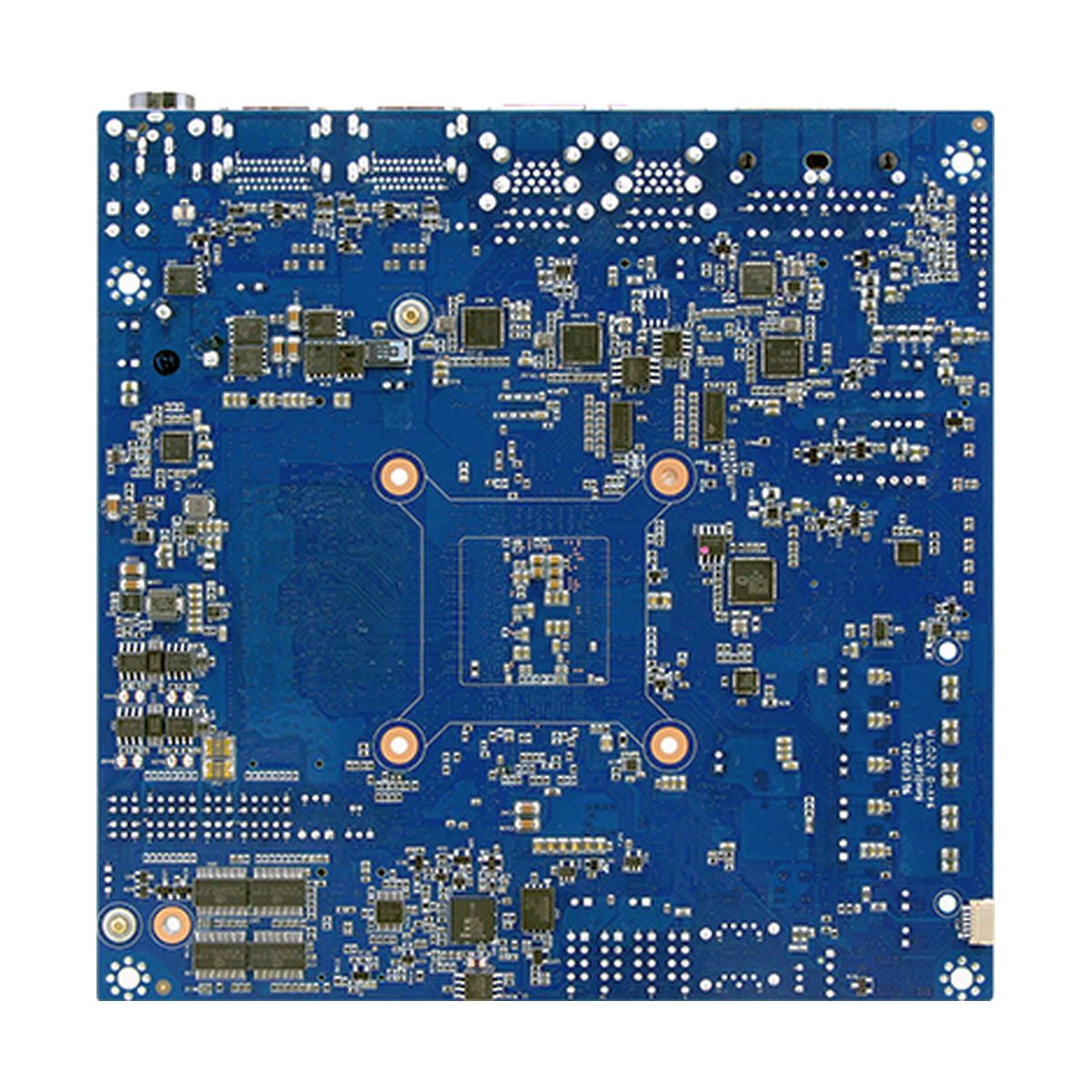

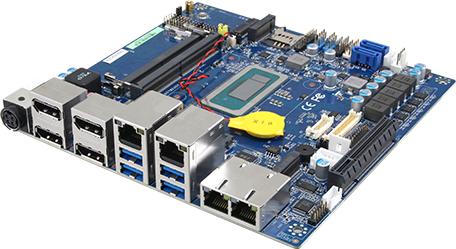

| Avalue EMX-ADLP - Mini-ITX Single-Board-Computer with Intel® Alder Lake |
|---|
| 12th Gen Intel® Core™ SoC i7/i5/i3 & Celeron BGA Processor Mini ITX Motherboard |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Alder Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Core™ i5-1245UE | Intel® Core™ i3-1220PE | Intel® Core™ i3-1215UE |
|---|---|---|---|
| Processor Number | i5-1245UE | i3-1220PE | i3-1215UE |
| Cache | 12 MB Intel® Smart Cache | 12 MB Intel® Smart Cache | 10 MB Intel® Smart Cache |
| Total Cores | 10 | 8 | 6 |
| Total Threads | 12 | 12 | 8 |
| Processor Base Power | 15 W | 28 W | 15 W |
| Specification |
|---|
-System Information-
| Processor | Onboard Alder Lake-P 12th Intel® Core™ SoC i7/i5/i3/Celeron Processor (TDP: 15~45W) H-Series: 25~45W, P-Series: 20~28W, U-Series: 12~15W |
|---|---|
| System Memory | 2 x 262-pin DDR5 4800 MHz SO-DIMM supports up to 64GB (non ECC only) |
| I/O Chipset | EC iTE IT5782VG MAX3243 for RS232, MAX13487 Transceiver & SP485 IC for RS422/485 |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Onboard NuvoTon NPCT754AABYX support TPM 2.0 |
Expansion
| Expansion | * 1 x M.2 Type B 3042/3052 (with 1 x PCI-e x1 (default), USB2.0, USB 3.2 Gen2 with 1 x SIM card slot support WWAN+GNSS * 1 x M.2 Key E 2230 support Wi-Fi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal) * 1 x M.2 Key B 2242 (SATA Signal, shared with SATA2) slot support SSD storage * 1 x M.2 Key M 2280 (PCI-e x4) slot for storage NVMe SSD * H-series: 1 x PCI-e x8 Gen 4 slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)) * P/U-series: 1 x PCI-e x4 Gen 4 slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)) |
|---|
I/O

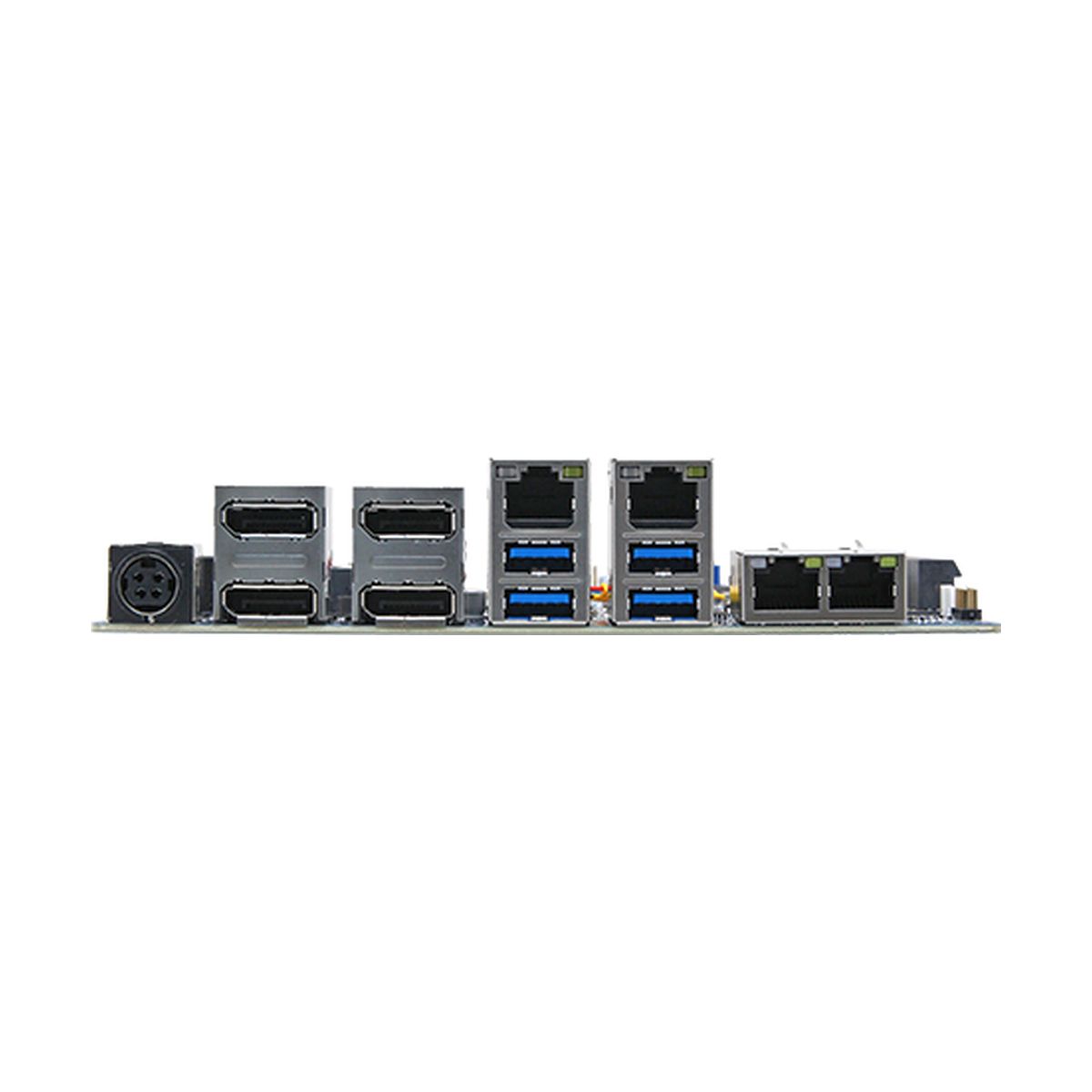

| USB Port | 2 x USB3.2 Gen2, 2 x USB 3.0 Gen2 at I/O 4 x USB2.0 by pin header |
|---|---|
| COM Port | 4 x RS232 2 x RS422/485 |
| SATA | 1 x SATA Power 2 x SATA III |
| DIO | 1 x 16-bit GPIO |
Display
| Graphic Chipset | Intel® Iris® Xe Graphics (For Core i5 & i7) Intel® UHD Graphics for 12th Gen Intel® Processors (For Core i3 & Celeron) |
|---|---|
| Spec. & Resolution | DP1+DP3 (DP1.4): Max: 7680 x 4320@60 Hz DP2+DP4 (DP1.4): Max: 7680 x 4320@60 Hz Intel resolution as below: 2 x DP++ : 1920 x 1080@60 Hz 2 x DP: 4096 x 2304@60 Hz LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP 4096 x 2304@60 Hz *2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for full height (Maximum: 6 for quadruple independent displays) |
| Multiple Display | 2 x DP++/2 x DP/1 x LVDS/1 x eDP (Maximum: 6 for quadruple independent displays) |
| LVDS | 2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter |
Audio
| Audio Codec | Realtek ALC888S |
|---|---|
| Audio Interface | Support Line-out & Mic-in & Front audio pin-header |
| Audio Amplifier | 2 x Stereo Class-D 6W Audio Amplifier |
Ethernet
| LAN Chipset | 3 x Intel® i226LM 2.5 Gigabit Ethernet (LAN2~4) 1 x Intel® i219LM Gigabit Ethernet PHY *LAN3~4 for Full height |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 4 x RJ45 |
Mechanical & Environmental
| Operating Temperature | 0~60C (32~140°F) w/HDD/SSD, ambient with 0.5 m/s Air flow |
|---|---|
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.88lbs (0.4Kgs) |
| Power Requirement | +12V~24V |
| Power Mode | AT/ATX |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
Software Support
| OS Information | Win11 64bit, Win10 64bit Linux |
|---|
Ordering Information
| Ordering Information | EMX-ADLP-U15-A1R (Core i3-1215UE Thin, 2DP/2LAN) EMX-ADLP-U45-A1R (Core i5-1245UE Thin, 2DP/2LAN) EMX-ADLP-P20-A1R (Core i3-1220PE Full, 4DP/4LAN) Intel® 12th Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Mini ITX Motherboard |
|---|
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMX-ADLP Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
