EMS-TGL-PSE

Price on request

Product number: EMS-TGL-PSE

Product information "EMS-TGL-PSE"

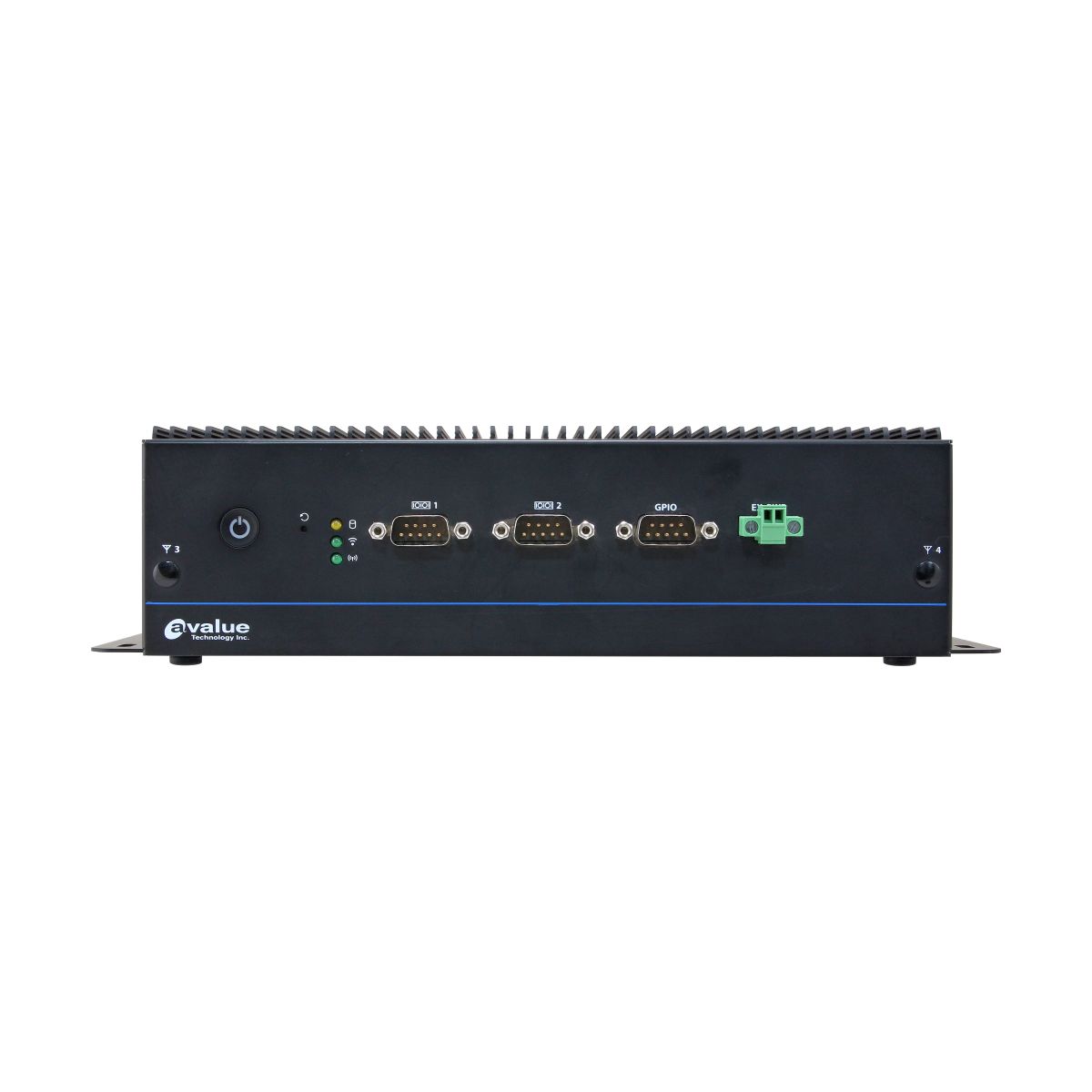

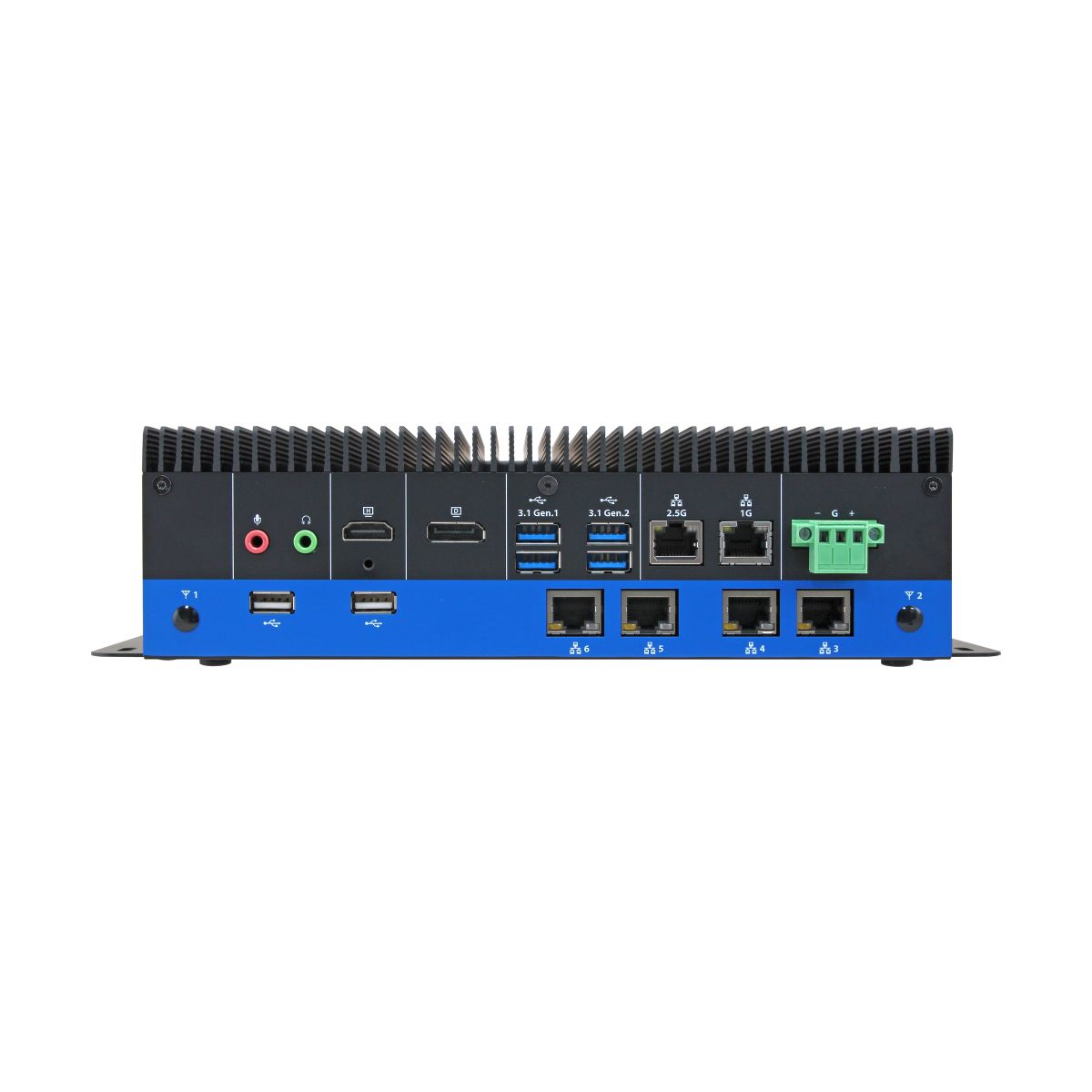

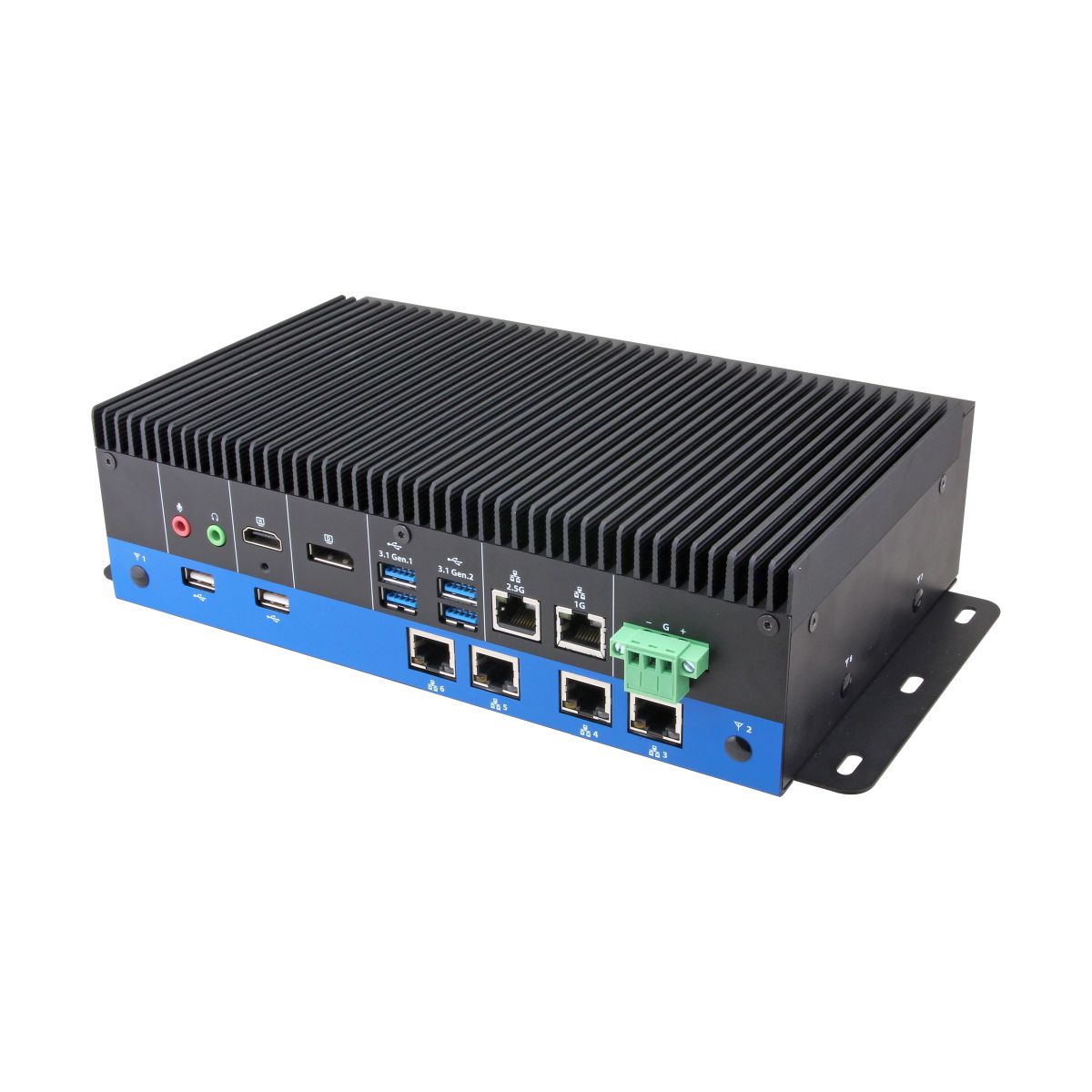

Avalue EMS-TGL-PSE - Modular Computer Embedded Box PC with Intel® Tiger Lake 11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System w_PoE IET Module

Avalue EMS-TGL-PSE - Modular Computer Embedded Box PC with Intel® Tiger Lake
11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System w_PoE IET Module

Overview

Key Features	Supported CPUs
On board 11th Gen. Intel® Core™ i7/i5/i3 BGA Processor 2x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s Rich I/O, 4-USB3.1, 2-USB2.0, 1-DP, 1-HDMI, 2-COM, 2-LAN, 4-PoE(af/at),1-8bit GPIO. Support 5G (Sub-6G) module, M.2 NVMe SSD Gen. III x 4, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE Fanless operation temperature from -40°C ~ 60°C (WT) / 0°C ~ 60°C (ST) CE, FCC Class A, IP50 Wide range DC power input from +9~36V Support HW TPM 2.0	CPU-Product Family: Intel® Tiger Lake Intel® Core™ i7-1185GRE (12M Cache, up to 4.40 GHz) Intel® Core™ i7-1185G7E (12M Cache, up to 4.40 GHz) Intel® Core™ i5-1145GRE (8M Cache, up to 4.10 GHz) Intel® Core™ i5-1145G7E (8M Cache, up to 4.10 GHz) Intel® Core™ i3-1115GRE (6M Cache, up to 3.90 GHz) Intel® Core™ i3-1115G4E (6M Cache, up to 3.90 GHz)

Key Features

Supported CPUs

On board 11th Gen. Intel® Core™ i7/i5/i3 BGA Processor
2x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
Rich I/O, 4-USB3.1, 2-USB2.0, 1-DP, 1-HDMI, 2-COM, 2-LAN, 4-PoE(af/at),1-8bit GPIO.
Support 5G (Sub-6G) module, M.2 NVMe SSD Gen. III x 4, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
Fanless operation temperature from -40°C ~ 60°C (WT) / 0°C ~ 60°C (ST)
CE, FCC Class A, IP50
Wide range DC power input from +9~36V
Support HW TPM 2.0

CPU-Product Family: Intel® Tiger Lake

CPU-Variants

CPU	Processor Number	Cache	Max Turbo Frequency	Total Cores	Total Threads
Intel® Core™ i7-1185GRE	i7-1185GRE	12 MB Intel® Smart Cache	4.40 GHz	4	8
Intel® Core™ i7-1185G7E	i7-1185G7E	12 MB Intel® Smart Cache	4.40 GHz	4	8
Intel® Core™ i5-1145GRE	i5-1145GRE	8 MB Intel® Smart Cache	4.10 GHz	4	8
Intel® Core™ i5-1145G7E	i5-1145G7E	8 MB Intel® Smart Cache	4.10 GHz	4	8
Intel® Core™ i3-1115GRE	i3-1115GRE	6 MB Intel® Smart Cache	3.90 GHz	2	4
Intel® Core™ i3-1115G4E	i3-1115G4E	6 MB Intel® Smart Cache	3.90 GHz	2	4

Specification

-System Information-

Processor	Intel® Core™ i7-1185GRE (15W, 12M Cache, up to 2.80 GHz), WT Intel® Core™ i5-1145GRE (15W, 8M Cache, up to 2.60 GHz), WT Intel® Core™ i3-1115GRE (15W, 6M Cache, up to 3.00 GHz), WT Intel® Core™ i7-1185G7E (15W, 12M Cache, up to 2.80 GHz), ST Intel® Core™ i5-1145G7E (15W, 8M Cache, up to 2.60 GHz), ST Intel® Core™ i3-1115G4E (15W, 6M Cache, up to 3.00 GHz), ST
System Memory	2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s
I/O Chipset	EC ITE IT8528E
BIOS Information	AMI uEFI BIOS 256 Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor	CPU & system temperature monitoring and Voltages monitoring
SBC	EBM-TGLS + IET-PSEB

Expansion

Expansion	1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

Storage

Storage	1 x M.2 Key-M 2242/2280, support PCIe Gen. III x 4 (NVMe SSD) 1 x M.2 Key-B 2242, support SATA (share with expansion slot)

I/O

USB Port	2 x USB 3.1 Gen.2 (10Gbp/s) 2 x USB 3.1 Gen.1 (5Gbp/s) 2 x USB 2.0
COM Port	2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)
GPIO	1 x 8-bit GPIO (DB9)
SIM Slot	1 x internal SIM slot
Antenna	8 x Antenna with dust cover (6 x LTE+GPS / 2 x Wifi)

Display

Graphic Chipset	Intel® Iris® Xe Graphics (i7-1185GRE/i5-1145GRE/i7-1185G7E/i5-1145G7E) Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE/i3-1115G4E)
Spec. & Resolution	DP++ 1.4: Max. resolution 4096x2304 @ 60Hz HDMI 2.0b: Max. resolution 4096x2304 @ 60Hz
Multiple Display	dual Displays

Audio

Audio Codec	Realtek ALC888S HD codec
Audio Interface	Mic-In, Line-Out

Certifications

Certification Information	CE FCC Class A

Ethernet

LAN Chipset	EMS-TGL-PSEBF 1 x Intel® I225-LM 1 x Intel® I219-LM 4 x Intel® I210IT EMS-TGL-PSEBT 1 x Intel® I225-LM 1 x Intel® I219-LM 2 x Intel® I210IT
Ethernet Interface	1 x 10/100/1000/2.5G Base-Tx GbE compatible 5 x 10/100/1000Base-Tx GbE compatible
LAN Port	EMS-TGL-PSEBF 6 x RJ45, 4 ports support IEEE 802.3af, total 60W EMS-TGL-PSEBT 4 x RJ45, 2 ports support IEEE 802.3at, total 60W

Power Requirement

DC Input	DC in 12/24V (+9V ~ +36V), wide voltage single power input TVS component for surge protection Reverse current/voltage protection (Max. Currency: 13A)
DC Input Connector	3-Pin Terminal Block (V+. V-, GND)
ACPI	Single power ATX Support S0,S3, S4, S5 ACPI 5.0 Compliant
Power Mode	AT/ATX (ATX is default setting)

Mechanical & Environmental

Operating Temperature	-40°C ~ 60°C (w/SSD) ambient w/ air flow, WT sku 0°C ~ 60°C (w/SSD) ambient w/ air flow, ST sku
Storage Temperature	-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	240mm x 150mm x 69 mm (w/ IET module)
Weight	TBD
Vibration Test	With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test	With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating	IP 50
Mounting Kit	Wall mount kit (standard) DIN RAIL (optional)

Software Support

OS Information	Win 10 64bit Linux

Ordering Information

Ordering Information	EMS-TGL-PSEBF 11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_PoE IET Module, support 4 port IEEE 802.3af EMS-TGL-W85-A1-DR (i7-1185GRE) EMS-TGL-W45-A1-DR (i5-1145GRE) EMS-TGL-W15-A1-DR (i3-1115GRE) EMS-TGL-S85-A1-DR (i7-1185G7E) EMS-TGL-S45-A1-DR (i5-1145G7E) EMS-TGL-S15-A1-DR (i3-1115G4E) EMS-TGL-PSEBT 11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_PoE IET Module, support 2 port IEEE 802.3at EMS-TGL-W85-A1-ER (i7-1185GRE) EMS-TGL-W45-A1-ER (i5-1145GRE) EMS-TGL-W15-A1-ER (i3-1115GRE) EMS-TGL-S85-A1-ER (i7-1185G7E) EMS-TGL-S45-A1-ER (i5-1145G7E) EMS-TGL-S15-A1-ER (i3-1115G4E)

EMS-TGL-PSEBF 11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_PoE IET Module, support 4 port IEEE 802.3af EMS-TGL-W85-A1-DR (i7-1185GRE) EMS-TGL-W45-A1-DR (i5-1145GRE) EMS-TGL-W15-A1-DR (i3-1115GRE) EMS-TGL-S85-A1-DR (i7-1185G7E) EMS-TGL-S45-A1-DR (i5-1145G7E) EMS-TGL-S15-A1-DR (i3-1115G4E) EMS-TGL-PSEBT 11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_PoE IET Module, support 2 port IEEE 802.3at EMS-TGL-W85-A1-ER (i7-1185GRE) EMS-TGL-W45-A1-ER (i5-1145GRE) EMS-TGL-W15-A1-ER (i3-1115GRE) EMS-TGL-S85-A1-ER (i7-1185G7E) EMS-TGL-S45-A1-ER (i5-1145G7E) EMS-TGL-S15-A1-ER (i3-1115G4E)

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: EMS-TGL-PSE
Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.
