EMS-TGL-4COM isolation
Price on request

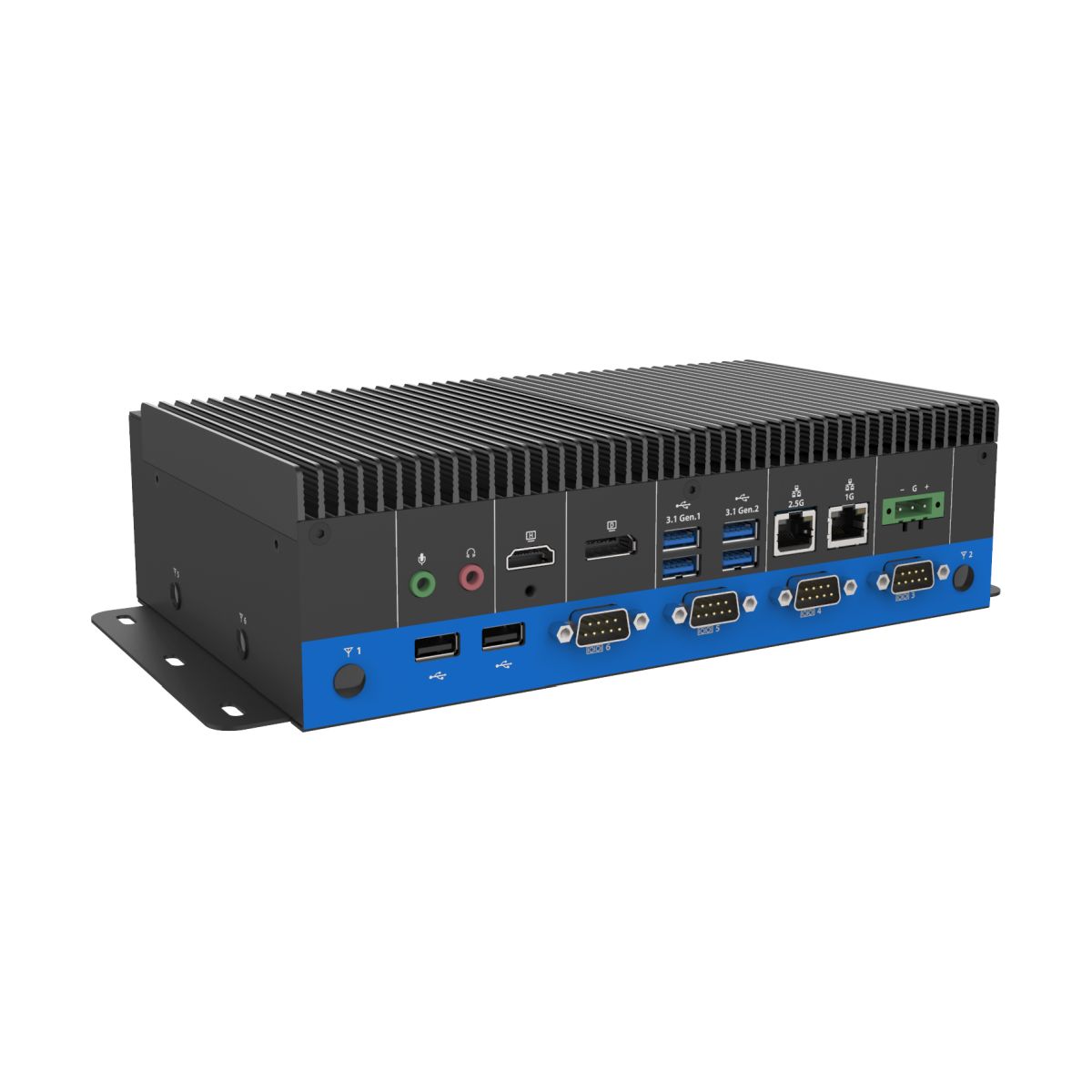

| Avalue EMS-TGL-4COM isolation - Modular Computer Embedded Box PC with Intel® Tiger Lake |
|---|
| 11th Gen Intel® Core™ Processor i7/i5/i3Fanless Rugged Embedded System w_4COM isolation IET Module |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| CPU-Variants |
|---|
| CPU | Processor Number | Cache | Max Turbo Frequency | Total Cores | Total Threads |
|---|---|---|---|---|---|
| Intel® Core™ i7-1185GRE | i7-1185GRE | 12 MB Intel® Smart Cache | 4.40 GHz | 4 | 8 |
| Intel® Core™ i7-1185G7E | i7-1185G7E | 12 MB Intel® Smart Cache | 4.40 GHz | 4 | 8 |
| Intel® Core™ i5-1145GRE | i5-1145GRE | 8 MB Intel® Smart Cache | 4.10 GHz | 4 | 8 |
| Intel® Core™ i5-1145G7E | i5-1145G7E | 8 MB Intel® Smart Cache | 4.10 GHz | 4 | 8 |
| Intel® Core™ i3-1115GRE | i3-1115GRE | 6 MB Intel® Smart Cache | 3.90 GHz | 2 | 4 |
| Intel® Core™ i3-1115G4E | i3-1115G4E | 6 MB Intel® Smart Cache | 3.90 GHz | 2 | 4 |
| Specification |
|---|
-System Information-
| Processor | Intel® Core™ i7-1185GRE (15W, 12M Cache, up to 2.80 GHz), WT Intel® Core™ i5-1145GRE (15W, 8M Cache, up to 2.60 GHz), WT Intel® Core™ i3-1115GRE (15W, 6M Cache, up to 3.00 GHz), WT Intel® Core™ i7-1185G7E (15W, 12M Cache, up to 2.80 GHz), ST Intel® Core™ i5-1145G7E (15W, 8M Cache, up to 2.60 GHz), ST Intel® Core™ i3-1115G4E (15W, 6M Cache, up to 3.00 GHz), ST |
|---|---|
| System Memory | 2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s |
| I/O Chipset | EC ITE IT8528E |
| BIOS Information | AMI uEFI BIOS 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | CPU & system temperature monitoring and Voltages monitoring |
| SBC | EBM-TGLS + AUX-M07 |
Expansion
| Expansion | 1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1 1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi) |
|---|
Storage
| Storage | 1 x M.2 Key-M 2242/2280, support PCIe Gen. III x 4 (NVMe SSD) 1 x M.2 Key-B 2242, support SATA (share with expansion slot) |
|---|
I/O
| USB Port | 2 x USB 3.1 Gen.2 (10Gbp/s) 2 x USB 3.1 Gen.1 (5Gbp/s) 2 x USB 2.0 |
|---|---|
| COM Port | 2 x COM RS232/422/485 (select via BIOS, auto flow control via HW) 4 x COM RS232/422/485, w/2.5KV isolation |
| GPIO | 1 x 8-bit GPIO (DB9) |
| SIM Slot | 1 x internal SIM slot |
| Antenna | 8 x Antenna with dust cover (6 x LTE+GPS / 2 x Wifi) |
Display
| Graphic Chipset | Intel® Iris® Xe Graphics (i7-1185GRE/i5-1145GRE/i7-1185G7E/i5-1145G7E) Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE/i3-1115G4E) |
|---|---|
| Spec. & Resolution | DP++ 1.4: Max. resolution 4096x2304 @ 60Hz HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz |
| Multiple Display | Dual Displays |
Audio
| Audio Codec | Realtek ALC888S HD codec |
|---|---|
| Audio Interface | Mic-In, Line-Out |
Certifications
| Certification Information | CEFCC Class B |
|---|
Ethernet
| LAN Chipset | 1 x Intel® I225-LM 1 x Intel® I219-LM |
|---|---|
| Ethernet Interface | 1 x 10/100/1000/2.5G Base-Tx GbE compatible 1 x 10/100/1000Base-Tx GbE compatible. |
| LAN Port | 2 x RJ-45 |
Power Requirement
| DC Input | DC in 12/24V (+9V ~ +36V), wide voltage single power input TVS component for surge protection Reverse current/voltage protection (Max. Currency: 13A) |
|---|---|
| DC Input Connector | 3-Pin Terminal Block (V+. V-, GND) |
| ACPI | Single power ATX Support S0,S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
Mechanical & Environmental
| Operating Temperature | -40°C ~ 70°C (w/SSD) ambient w/ air flow, WT sku 0°C ~ 70°C (w/SSD) ambient w/ air flow, ST sku |
|---|---|
| Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 240mm x 150mm x 69 mm (w/ IET module) |
| Weight | TBD |
| Vibration Test | With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
| Shock Test | With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms |
| IP Rating | IP 50 |
| Mounting Kit | Wall mount kit (standard) DIN RAIL (optional) |
Software Support
| OS Information | Win 10 64bit Linux |
|---|
Ordering Information
| Ordering Information | EMS-TGL-4COM isolation11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_4COM isolation IET Module EMS-TGL-W85-A1-4R (i7-1185GRE)EMS-TGL-W45-A1-4R (i5-1145GRE)EMS-TGL-W15-A1-4R (i3-1115GRE)EMS-TGL-S85-A1-4R (i7-1185G7E)EMS-TGL-S45-A1-4R (i5-1145G7E)EMS-TGL-S15-A1-4R (i3-1115G4E) |
|---|
