EEV-EX16
Price on request

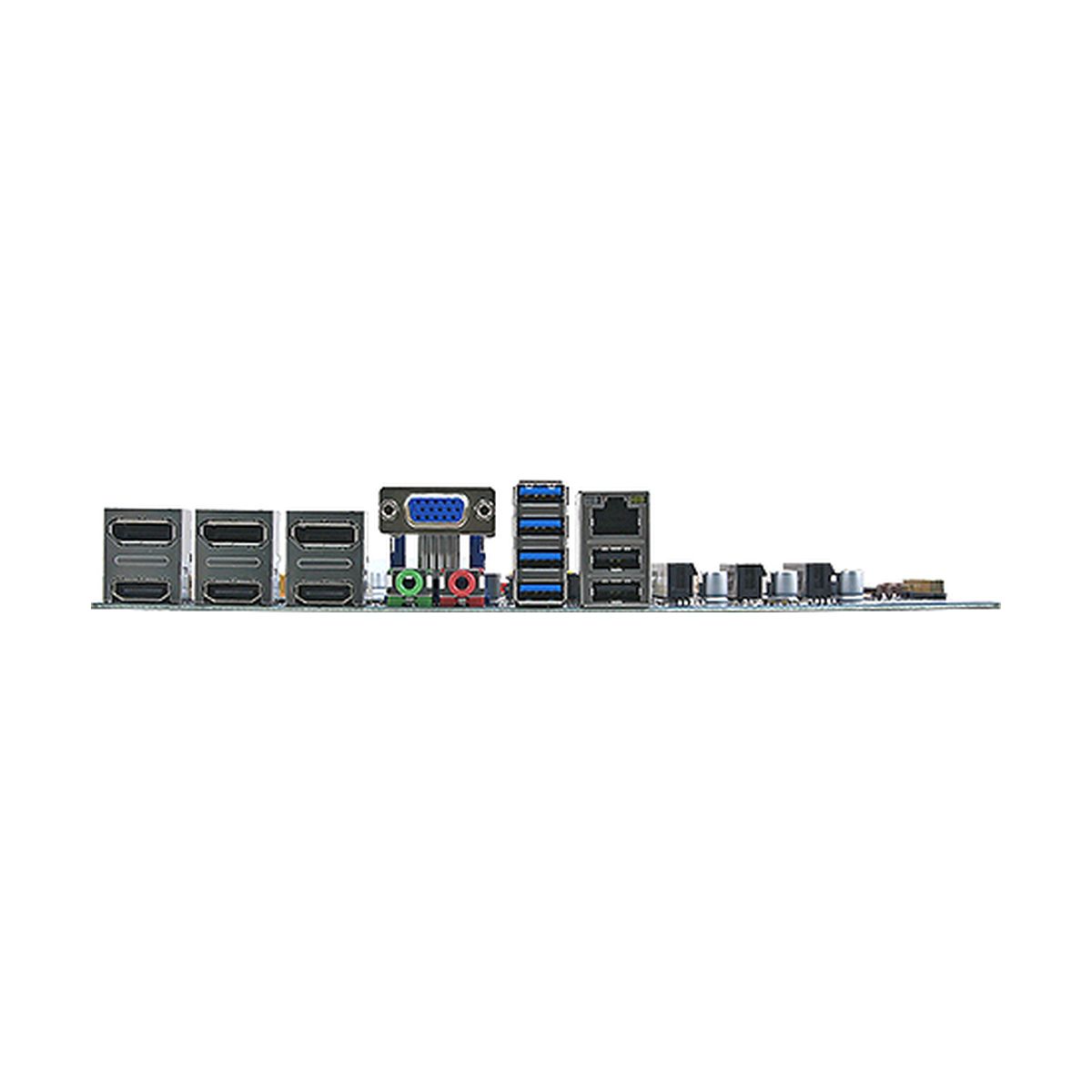

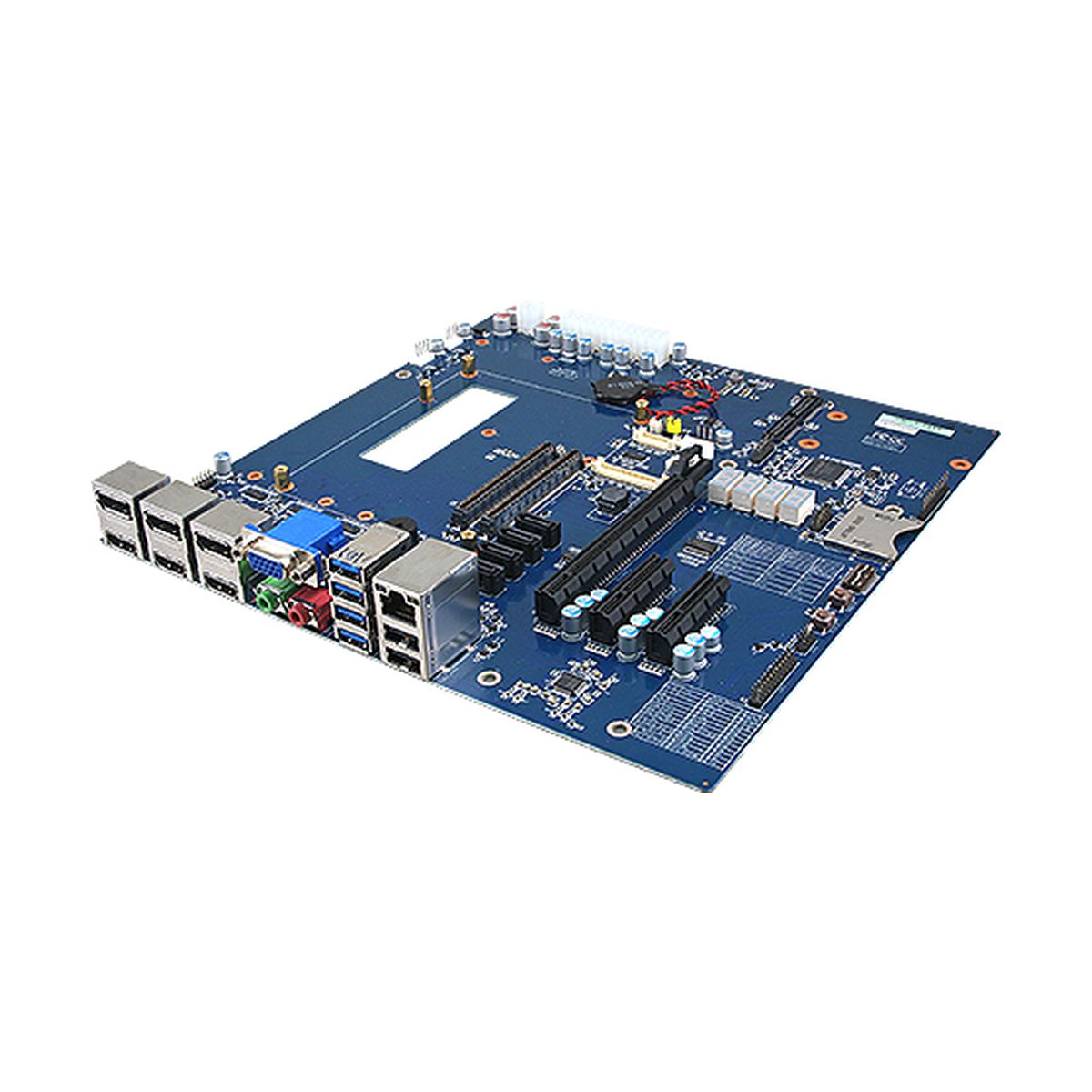

| Avalue EEV-EX16 - Eval Carrier Board |
|---|
| USB/SATA/COM/LAN: 8/4/1/1, Display: 1 x VGA / 3 x HDMI / 3 x DP / 1 x eDP / 1 x LVDS |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
System Information
| Processor | Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.0 |
|---|
Expansion
| Expansion | 1 x PCIe x16 2 x PCIe x4 |
|---|
Display
| Spec. & Resolution | 3 x DP 3 x HDMI 1 x VGA |
|---|---|
| Multiple Display | Depends on the COMe module |
| LVDS | 1 x LVDS 1 x eDP |
Audio
| Audio Codec | X86 Platform Realtek ALC892 HD Audio Decoding Controller ARM Platform WM8962 |
|---|---|
| Audio Interface | Line-out. Mic-in |
Ethernet
| Ethernet Interface | 1 x Gigabit Ethernet Connector |
|---|
Software Support
| OS | According to COMe Module Solution |
|---|
Certification
| Certification Information | CE, FCC, RoHS Compliant |
|---|
I/O
| USB | 4 x USB 3.1 4 x USB 2.0 |
|---|---|
| GPIO | 1 x 8-bit GPIO |
| SATA | 4 x SATA III |
| MIO | 1 x LPC 1 x SD Card Slot 1 x IET Connector (BOM optional) 1 x Multi-function Select (SW1) |
Mechanical & Environmental
| Operating Temp. | -40 ~ 85°C (-40 ~ 185°F) |
|---|---|
| Storage Temp. | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.91lbs (0.412kg) |
| Power Requirement | +12V/+5V/5VSB/+3.3V/-12V |
| Dimension (L x W) | 9.6" x 9.6" (243.84mm x 243.84mm) |
Ordering Information
| Ordering Information | EEV-EX16-B1R Type 6 Micro ATX Ev. Board for COM Express Rev.3.0 A1 |
|---|
| Product Variants / Accessories |
|---|
| EEV-EX16-B1R |
