ECM-WHL
Price on request

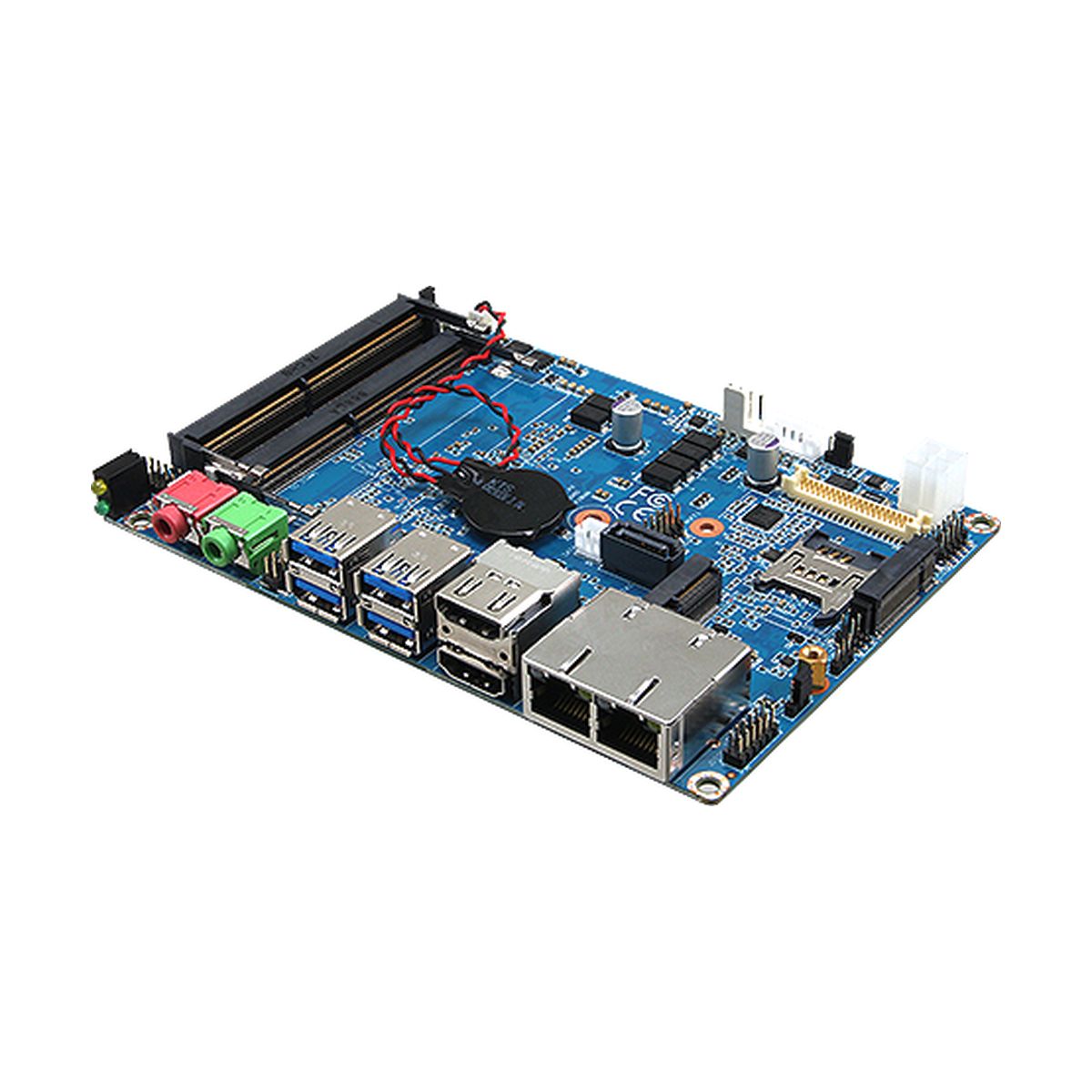

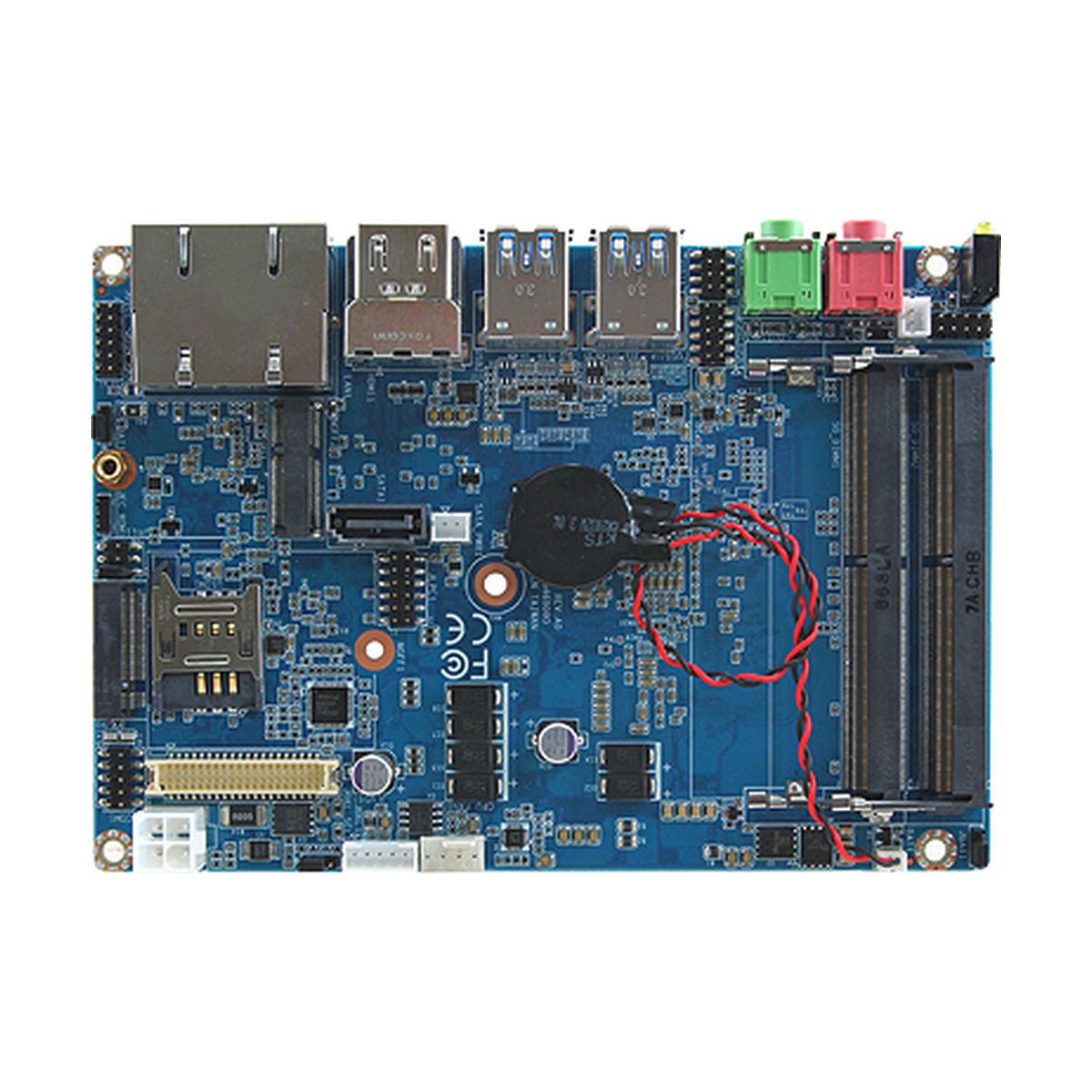

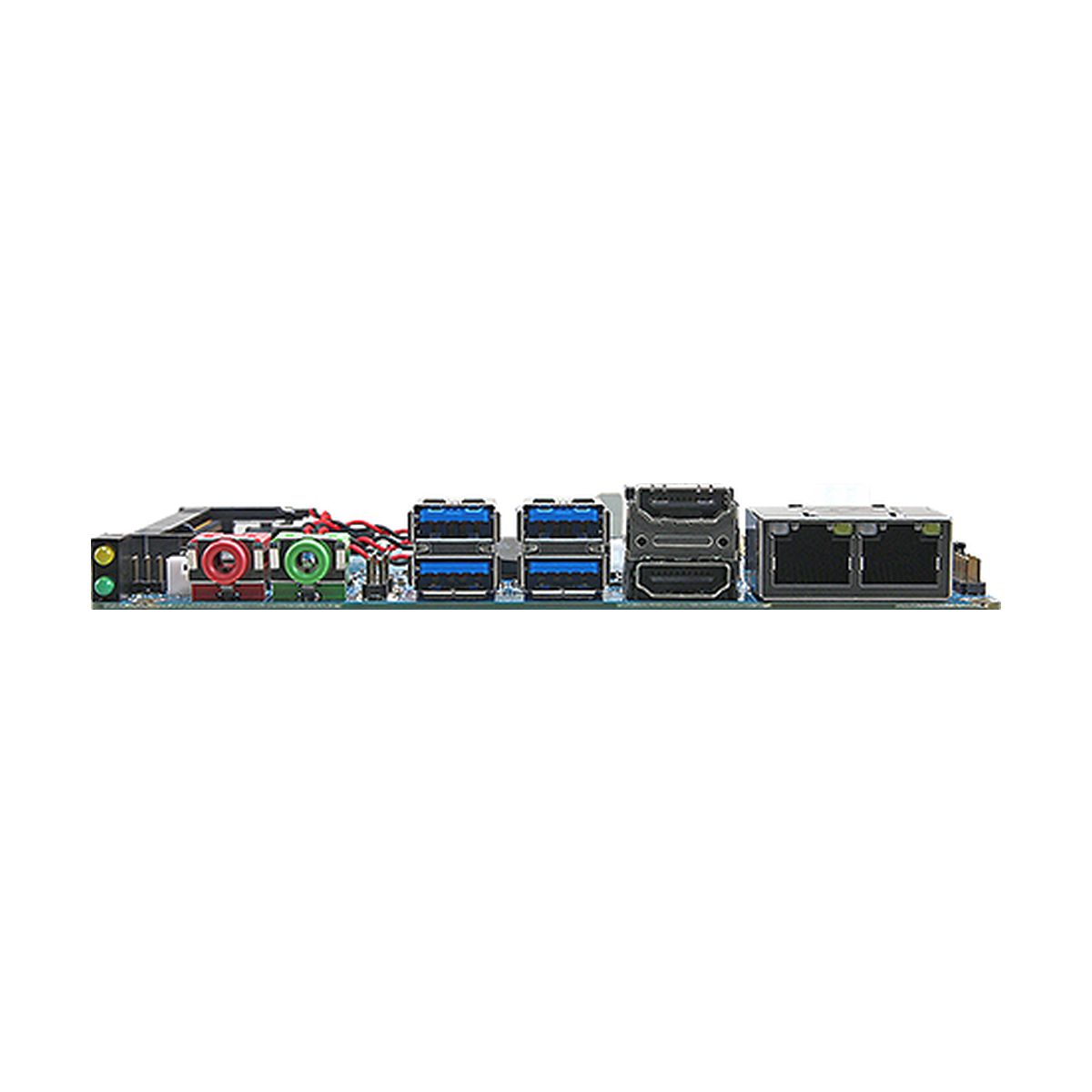

| Avalue ECM-WHL - 3.5" SBC Single-Board-Computer with Intel® Whiskey Lake |
|---|
| CPU: 8th Gen Intel® Core™ SoC i7/i5/i3 & Celeron®BGA Processor, Chipset: Integrated, USB/SATA/COM/LAN: 6/1/1/2, Display: 2 x HDMI / 1 x LVDS |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Whiskey Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Core™ i7-8665UE | Intel® Core™ i5-8365UE | Intel® Core™ i3-8145UE | Intel® Celeron® 4305UE |
|---|---|---|---|---|
| Processor Number | i7-8665UE | i5-8365UE | i3-8145UE | 4305UE |
| Cache | 8 MB Intel® Smart Cache | 6 MB Intel® Smart Cache | 4 MB Intel® Smart Cache | 2 MB Intel® Smart Cache |
| Total Cores | 4 | 4 | 2 | 2 |
| Total Threads | 8 | 8 | 4 | 2 |
| PCI Express Revision | 3.0 | 3.0 | 3.0 | 3.0 |
| Max Turbo Frequency | 4.40 GHz | 4.10 GHz | 3.90 GHz |
| Specification |
|---|
System Information
| Processor | Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz) Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz) Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.90 GHz) Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz) |
|---|---|
| System Memory | 2 x 260-Pin DDR4 2400Mhz SO-DIMM Socket, Supports Up to 64GB Max. |
| I/O Chipset | EC iTE IT8528E |
| Watchdog Timer | H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step |
| BIOS | AMI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage and FAN Status with Auto Throttling Control |
| TPM | Onboard TPM 2.0 |
| Board | 3.5" |
Expansion
| Expansion | 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot) 1 x M.2 (Key-E, 2230, PCIe, USB2.0, CNVi) |
|---|
Storage
| Storage | 1 x M.2 (Key-B, 2242) 1 x SATA III Support RAID 0/1 |
|---|
Display
| Graphic Chipset | Intel® UHD Graphics 620 (i7-8665UE, i5-8365UE, i3-8145UE) Intel® UHD Graphics 610 (4305UE) |
|---|---|
| Spec. & Resolution | 2 x HDMI 1.4: Max. resolution 4096 x 2160@24/30Hz 1 x Dual Channel 18/24-bit LVDS: Max. resolution 1920 x 1200@60Hz |
| Multiple Display | Triple Display |
| LVDS | 1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS |
Audio
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
|---|---|
| Audio Interface | Mic-In, Line-Out |
Ethernet
| LAN Chipset | 1 x Intel® I210AT 1 x Intel® I219LM |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
Power Requirement
| Power Mode | AT/ATX (Default Setting: AT) |
|---|
Software Support
| OS | Windows 10, Linux |
|---|
Certification
| Certification Information | CE, FCC Class, RoHS Compliant |
|---|
I/O
| USB | 4 x USB 3.1 (Gen. 2) 2 x USB 2.0 |
|---|---|
| COM Port | 1 x RS-232 |
| SATA | 1 x SATA III |
| DIO | 1 x 8-bit GPIO |
| MIO | 1 x LPC 1 x SPI 1 x SMBus 1 x SIM Card Slot |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 60°C (32°F ~ 140°F), with 0.2m/s Air Flow |
|---|---|
| Storage Temp. | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.041lbs(0.03kg) |
| Power Requirement | DC in +12V |
| Dimension (L x W) | 5.7" x 4" (146mm x 101mm) |
Ordering Information
| Ordering Information | ECM-WHL-4305-B2R 3.5” w/Celeron 4305UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler ECM-WHL-8145-B2R 3.5” w/i3-8145UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler ECM-WHL-8365-B2R 3.5” w/i5-8365UE /2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler ECM-WHL-8665-B2R 3.5” w/i7-8665UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler |
|---|
| Product Variants / Accessories |
|---|
| ECM-WHL-4305-B2R | |
| ECM-WHL-8145-B2R | |
| ECM-WHL-8365-B2R | |
| ECM-WHL-8665-B2R |
