Datasheet
User Manual
System Integration
Get Expert Support Now: +49 (0)7665 9390 185
OverviewKey FeaturesSupported CPUsIntel® Alder Lake-N SoC Processors N971 x 262-pin SO-DIMM DDR5 4800 MHz, up to 16GB1 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM1 x MIOe slot1 x Realtek 2.5 Gigabit LANSupports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS or eDP12V DC-In
CPU-Product Family: Intel® Alder Lake-N
Intel® N97 (6M Cache, up to 3.60 GHz)CPU-Variants
CPU
Intel® N97
Processor Number
N97
Cache
6 MB Intel® Smart Cache
Max Turbo Frequency
3.60 GHz
Total Cores
4
Specification
Processor System
CPU
Intel Alder Lake-N SoC Processors
SOM-P104J (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales for availability
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Form Factor
Dimensions
Pico-ITX (3.9-in x 2.8-in x 0.76-in, 10 cm x 7.2 cm x 1.93 cm)
Memory
Technology
Dual Channel DDR5 4800 MHz
Capacity
16 GB
Socket
1 x 262-pin SO-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort
Display Port 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay
Triple display
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
MIOe
1 (HDMI or DP, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1)
Audio
Interface
Realtek ALC897 HD, High Definition Audio. Line-in, Line-out, Mic-in
Ethernet
Controller/ Speed
Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector
1 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0b
Ethernet
1 x 2.5 Gigabit LAN
USB
1 x USB 3.2 Gen2 (Type A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
COM1, COM3 (RS-232/422/485)
GPIO
4 x GPI, 4 x GPO
LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
MIPI Camera Header
1 (Optional)
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 and USB 2.0 for SSD
SATA
1 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V DC-In
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
Accessories
Gift Package
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x CPU SINK FOR SOM-P104 (13G07P012000AK)
1 x COM Cable (14G000000340AK)
Bulk Package
2 x SCREW M2*2,D=5 (13G020302031AK)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: SOM-P104JProduct names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.DatasheetUser Manual
Price on request
ASROCK Industrial
CAB-202
ASROCK Industrial CAB-202 - Pico-ITX Carrier Board Pico-ITX Motherboard - Supports Pico-ITX module
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

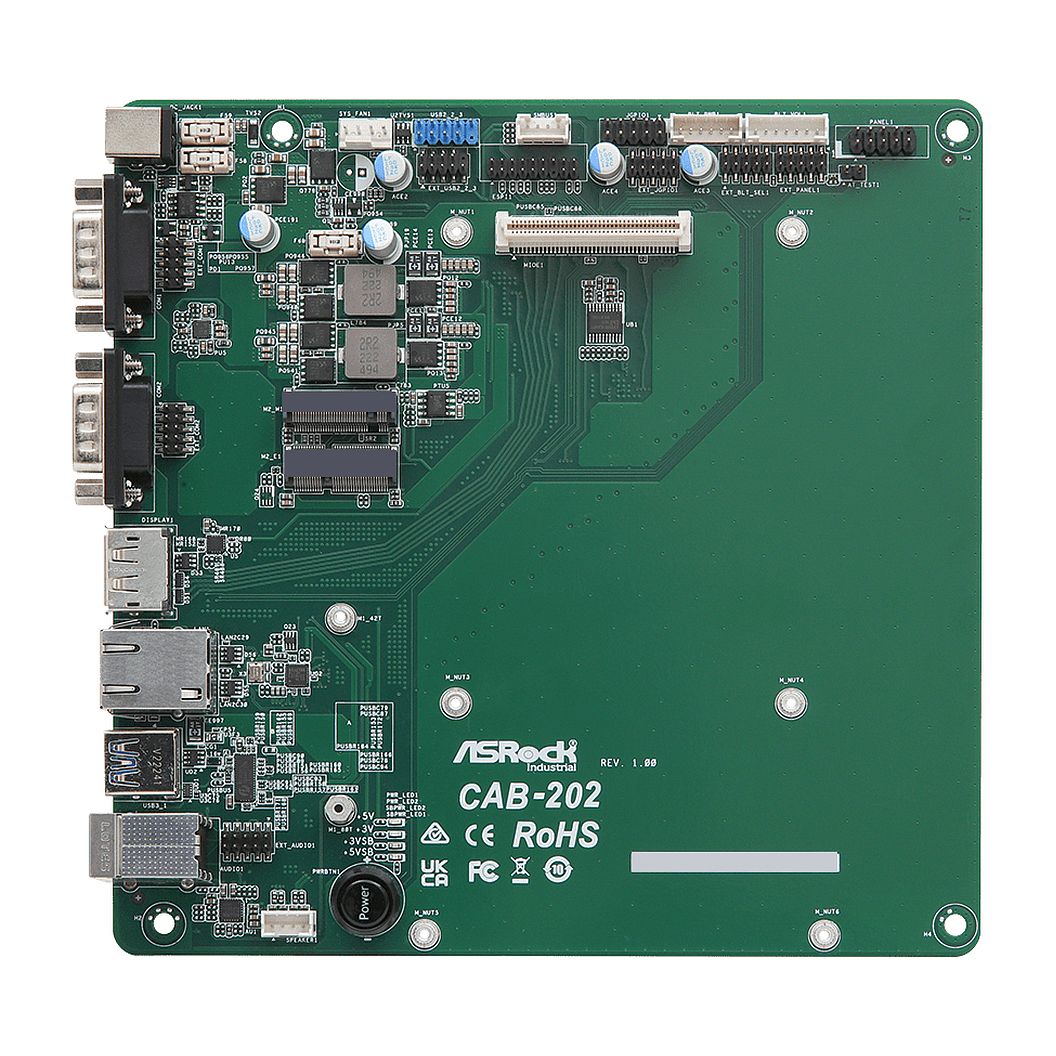

ASROCK Industrial CAB-202 - Pico-ITX Carrier BoardPico-ITX Motherboard - Supports Pico-ITX module
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datasheet
User Manual
System Integration
Get Expert Support Now: +49 (0)7665 9390 185
OverviewKey FeaturesSupports Pico-ITX module1 x DisplayPort1 x USB 3.2 Gen2, 2 x USB 2.01 x M.2 Key E, 1 x M.2 Key M1 x MIOe12V DC-inSpecification
Form Factor
Dimensions
mini-ITX (6.7-in x 6.7-in x 1.46-in, 17.0 cm x 17.0 cm x 3.71 cm)
Graphics
DisplayPort
Display Port 1.4a, DP++
Max resolution up to 4096x2160@60Hz
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1
MIO
1 (DP++, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1, eSPI bus, SBMus)
Audio
Interface
Realtek ALC122 HD, High Definition Audio
Ethernet
Controller/ Speed
1 x slot 10/100/1000 Mbps
Connector
1 x RJ-45
Rear I/O
DisplayPort
1 x DP 1.4a
Ethernet
1 x 1 Gigabit LAN
USB
1 x USB 3.2 Gen2
Audio
3 (Line-in, Line-out, Mic-in)
DC Jack
1 x DC in
Internal Connector
USB
2 x USB 2.0 (1x2.54 pitch header)
GPIO
4 x GPI, 4 x GPO
Speaker Header
1 x 3W Speaker Header
Storage
M.2
1 x M.2 (Key M, 2242/2280) with PCIe x1
Power Requirements
Input PWR
12V DC-in
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 70ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: CAB-202Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.Datasheet
Price on request
ASROCK Industrial
CAB-201
ASROCK Industrial CAB-201 - Pico-ITX Carrier Board Pico-ITX Motherboard - Supports PICO-ITX module
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
color: #4B70B2;}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-left: 10px;
padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;word-break: break-word;
}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_spec_embed {
word-break: break-word;
font-size: 90%;
padding-top: 10px;width: 100%;}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
word-break: break-word;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
ASROCK Industrial CAB-201 - Pico-ITX Carrier BoardPico-ITX Motherboard - Supports PICO-ITX module
Beispiel Menü
/* CSS-Variable für die Breite der schwarzen Buttons */
:root {
--black-button-width: 120px;
}
/* Menüleiste: Flexbox für gleichmäßig verteilte Menüeinträge */
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;
background-color: white;
overflow: hidden;
font-family: 'Ubuntu', sans-serif;
display: flex; /* Flexbox */
width: 100%;
}
/* Menüeinträge */
li.menu-item {
padding: 0;
text-align: center;
border-right: 5px solid white;
display: block;
text-align: center;
text-decoration: none;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
li.menu-item a {
display: block;
color: white;
text-align: center;
text-decoration: none;
padding: 10px 20px;
font-size: 16px;
font-weight: 500;
border-radius: 3px;
transition: background-color 0.3s, color 0.3s; /* Smooth transition for hover effect */
}
/* Stretch-Element */
.stretch {
flex-grow: 1;
height: 30px;
}
li.menu-item a:hover {
color: black !important; /* Ensures text color change on hover */
background-color: #f7c13d !important; /* Ensures background color change on hover */
}
/* Aktiver Menüeintrag: Hintergrundfarbe und Schriftgewicht bei Aktivierung */
li.menu-item a:active {
color: #2b3136; /* Textfarbe beim aktiven Zustand */
font-weight: bolder; /* Fettere Schrift */
background-color: CornflowerBlue; /* Hintergrundfarbe beim aktiven Zustand */
}
Datasheet
User Manual
System Integration
Get Expert Support Now: +49 (0)7665 9390 185
OverviewKey FeaturesSupports PICO-ITX module1 x DisplayPort1 x USB 3.0, 1 x USB 2.0, 2 x SATA31 x PCIe1 x mini-PCIe1 x M.2(Key E)1 x MIOeDC 12V DC-inSpecification
Form Factor
Dimensions
Micro ATX (9.6-in x 6.7-in, 24.4 cm x 17.0 cm)
Expansion Slot
PCIe
1 x PCIe x1
mini-PCIe
1 x full size(Mini PCIe only)
M.2
1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module
MIO
HDMI or DP , 3 x USB 2.0 or 1 x USB 3.0 + 1 x USB 2.0
4 x PCIe x1 , LPC bus , SMBus
Rear I/O
DisplayPort
1
USB
1 x USB 3.0 , 1 x USB 2.0
DC Jack
1
Internal Connector
USB
1 x USB 2.0
SATA PWR Output
1
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V DC-in
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0ºC ~ 60ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: CAB-201Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.Datasheet
Price on request
