SOM-P104J
Price on request
| ASROCK Industrial SOM-P104J - Pico-ITX Single-Board-Computer with Intel® Alder Lake-N |
|---|
| Pico-ITX Motherboard - Intel®Alder Lake-N SoC Processors N97 |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Alder Lake-N
|
| CPU-Variants |
|---|
| CPU | Intel® N97 |
|---|---|
| Processor Number | N97 |
| Cache | 6 MB Intel® Smart Cache |
| Max Turbo Frequency | 3.60 GHz |
| Total Cores | 4 |
| Specification |
|---|
Processor System
| CPU | Intel Alder Lake-N SoC Processors SOM-P104J (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Pico-ITX (3.9-in x 2.8-in x 0.76-in, 10 cm x 7.2 cm x 1.93 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 4800 MHz |
|---|---|
| Capacity | 16 GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | Display Port 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless |
|---|---|
| MIOe | 1 (HDMI or DP, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1) |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Line-in, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 1 x RJ-45 |

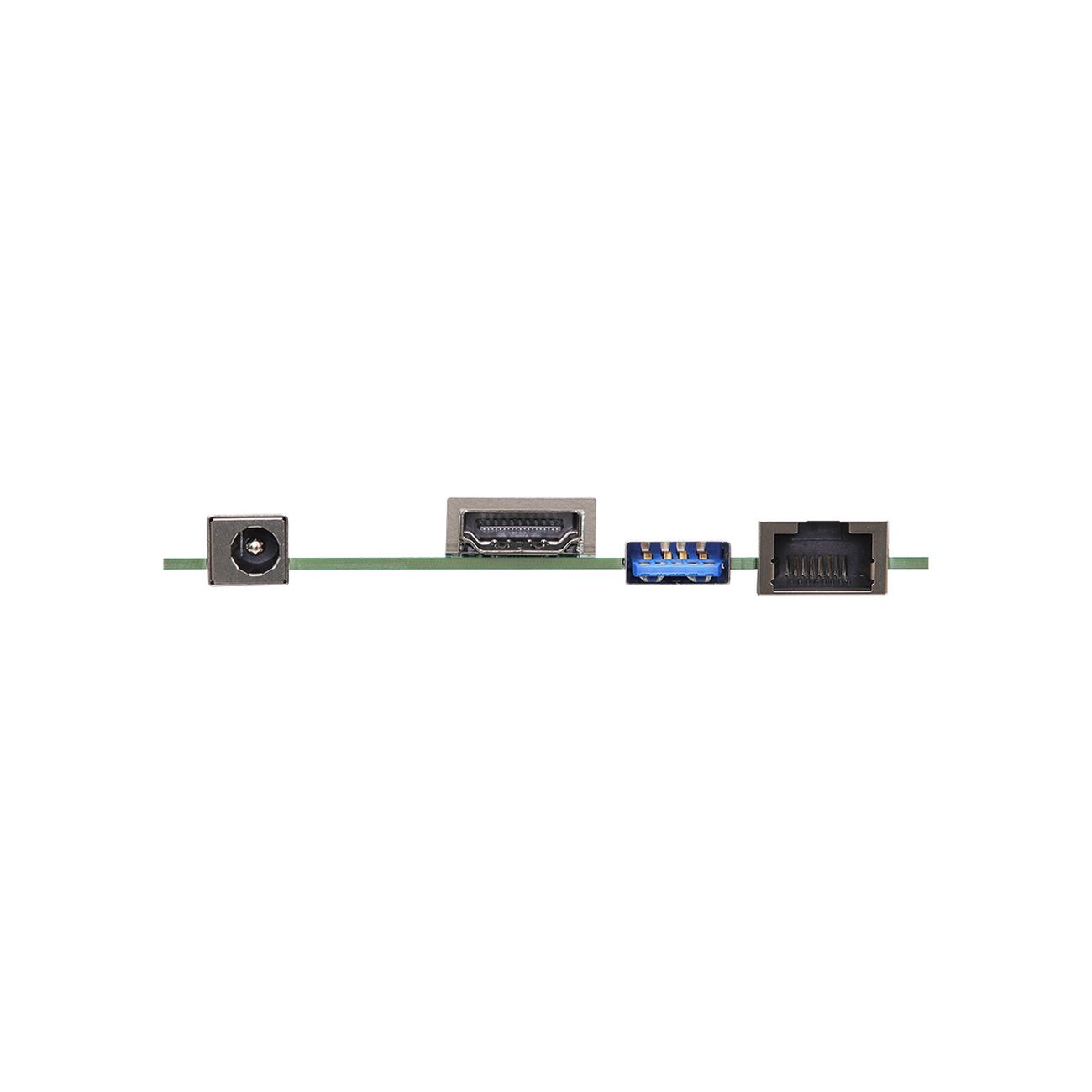

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| Ethernet | 1 x 2.5 Gigabit LAN |
| USB | 1 x USB 3.2 Gen2 (Type A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | COM1, COM3 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| MIPI Camera Header | 1 (Optional) |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 and USB 2.0 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-In |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x CPU SINK FOR SOM-P104 (13G07P012000AK) 1 x COM Cable (14G000000340AK) |
|---|---|
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) |
