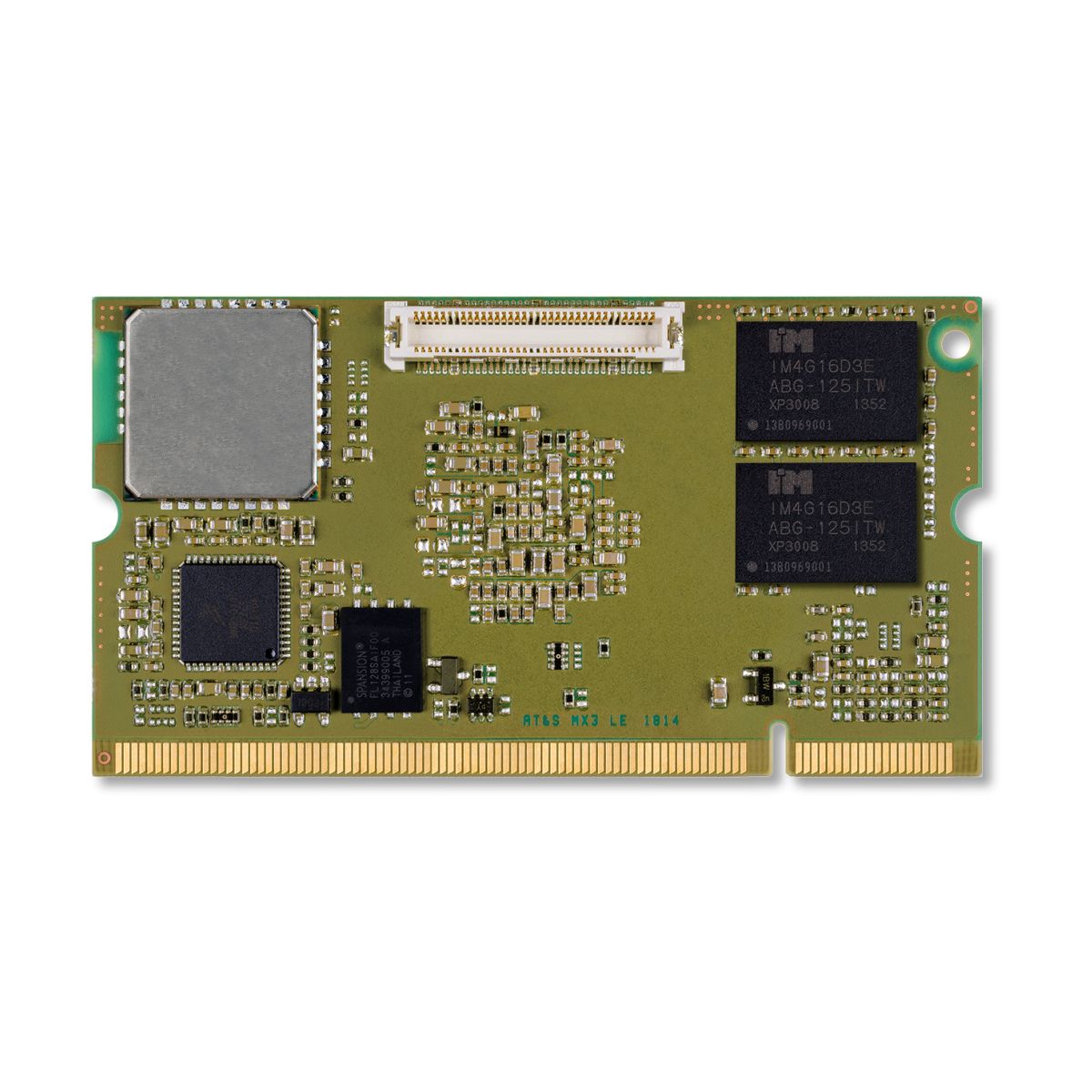

SOM-Trizeps-VII-MX6

SECO

Price on request

Product number: SOM-Trizeps-VII-MX6

Product information "SOM-Trizeps-VII-MX6"

SECO SOM-Trizeps-VII-MX6 - Trizeps SODIMM SOM CPU Module The SOM-Trizeps-VII-MX6 is one of the world‘s most powerful NXP i.MX6 CPU Computer on Modules (CoM) and is suitable for multimedia, multitouch and multidisplay applications as well as for demanding control tasks. It uses the full performance potential of the NXP i.MX6 processor with the compact form factor of the SODIMM 200 standard.

SECO SOM-Trizeps-VII-MX6 - Trizeps SODIMM SOM CPU Module
The SOM-Trizeps-VII-MX6 is one of the world‘s most powerful NXP i.MX6 CPU Computer on Modules (CoM) and is suitable for multimedia, multitouch and multidisplay applications as well as for demanding control tasks. It uses the full performance potential of the NXP i.MX6 processor with the compact form factor of the SODIMM 200 standard.

Overview

Key Features
NXP i.MX6 Applications Processors, Solo up to QuadCore Vivante GC3500 2D accelerator + Vivante GC2000 3D accelerator 1x 100/1000 Megabit Ethernet, WiFi/Bluetooth, USB 2.0, PCIe, HDMI Up to 2 GB LPDDR3-1066 RAM memory, 64 Bit

Specification

Description	The SOM-Trizeps-VII-MX6 is one of the world‘s most powerful NXP i.MX6 CPU Computer on Modules (CoM) and is suitable for multimedia, multitouch and multidisplay applications as well as for demanding control tasks. It uses the full performance potential of the NXP i.MX6 processor with the compact form factor of the SODIMM 200 standard.
Cpu	NXP i.MX M6 Family based on ARM® Cortex®-A9 cores • i.MX 6Solo - 1x Cortex®-A9 core up to 1.0GHz • i.MX 6DualLite - 2x Cortex®-A9 cores up to 1.0GHz • i.MX 6Dual - 2x Cortex®-A9 cores up to 1.0GHz • i.MX 8Quad - 4x Cortex®-A9 cores up to 1.0GHz
Memory	Soldered down LPDDR3-1066 memory up to 2 GB, 64-bit interface
Graphics	Vivante GC3500 2D Hardware accelerator Vivante GC2000 3D Hardware accelerator, supports OpenGL® ES 2.0 3D Dedicated Vector Graphics accelerator, supports OpenVG™ (only i.MX 6Dual and i.MX 6Quad) Supports up to 3 independent displays with i.MX 6Dual and i.MX 6Quad Supports 2 independent displays with i.MX 6DualLite and i.MX 6Solo
Video Interfaces	HDMI v1.4, 2x LVDS, LCD 24 Bit RGB, MIPI
Video Resolution	LVDS, up to 1920x1200 HDMI, up to 1080p
Mass Storage	Onboard 4 Bit wide μSD Card Socket or onboard 8 Bit wide eMMC
Networking	1x 100 Mbit Ethernet RGMII PHY or 1000 Mbit Ethernet RGMII interface Optional: WiFi 802.11 a/b/g/n/e/i/h/d/k/r/w, Bluetooth 3.0+ EDR
Usb	1x USB 2.0 OTG and 1x USB 2.0 Host
Pci	1x PCIe
Audio	AC‘97 Audio Codec with 4/5 wires res. Touch and 4x 12 Bit ADC (2x comparator inputs for battery monitoring); Stereo: Line-in, Mic-in, Speaker-out, Headphone out
Serial Ports	3x UART
Other Interfaces	2x FlexCAN S-ATAII 2x 4 Bit wide SDIO RTC SPDIF Adress-Data-Bus 2x I2C 2x SPI GPIOs 2x PWM
Power Supply	3.3 VDC
Operating System	Linux / Android / Windows Embedded Compact 7, 2013, Windows 10 IoT Core
Operating Temperature	-40 ÷ 85°C (industrial) / -25 ÷ 85°C (Extended Consumer) / 0 ÷ 70°C (Consumer)
Dimensions	67.6 x 36.7 x 6.4 mm

Product Variants / Accessories

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: SOM-Trizeps-VII-MX6
