uATX-Q670A
Price on request
| GIGAIPC uATX-Q670A - Micro-ATX Motherboard |
|---|
| Micro-ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 12 x USB, 6 x SATA 6Gb/s |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Form Factor | Micro ATX 244W x 244D(mm) |
| CPU | Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package TDP under 125W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® Q670 Chipset |
| Memory | 4 x DDR4 DIMM sockets, Max. Capacity 128 GB Support Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219LM) 1 x 2.5GbE LAN Port (Intel® I226V) |
| Video | Integrated Graphics Processor - depends on CPU: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (4 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 6 x SATA 6Gb/s Ports |
| RAID | RAID 0/1/5/10 |
| Expansion Slots | 1 x PCIe x16 (Gen 4x16)(PCIEX16_A) * The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot. * The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot. 1 x PCIe x16 (Gen 4x8)(PCIEX16_B) 1 x PCIe x1 (Gen 3x1) 1 x PCIe x4 (Gen 3x4) 1 x 2280/2242 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x Case open header 6 x USB 2.0 headers 2 x USB 3.2 Gen 1 headers 3 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x Buzzer 1 x AT/ATX mode select jumper |

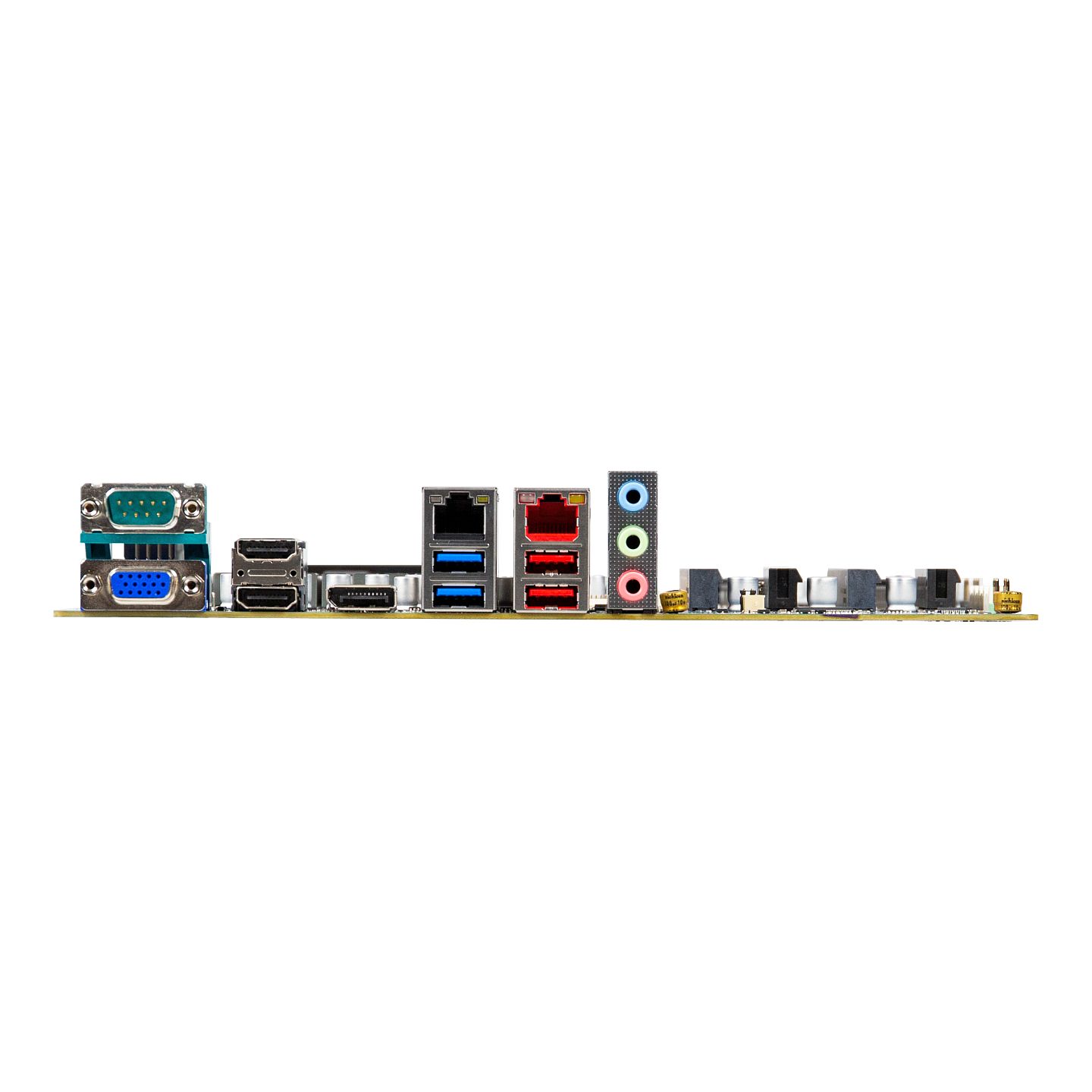

| Rear I/O | 3 x Audio Jacks (Line in, Line out, Mic in) 2 x HDMI 1 x Display Port 1 x VGA 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header (SPI) |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 360 x 354 x 390 (mm) Packing Capacity: 5pcs Single Box size: 350 x 330 x 65 (mm) Single Box weight: Approx. 0.65kg Including: IO Shield x 1 (P/N: 12AIO-MQ67EA-00R) SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R) |
| Order Information | 9MQ670AMMR-SI (Box packing) |
| Optional Kit | CPU Cooler : 12SF1-SK1700-01R (For CPU TDP 125W, Push-pin type) CPU Cooler : 25ST0-037820-Y0R (For CPU TDP 65W) CPU Cooler Backplate : 12KRH-0A1700-00R (Used with P/N: 25ST0-037820-Y0R) TPM 2.0 module : 9CTM010NR-00 VR Heatsink : 12SP2-090027-00R (Suggest to be used if CPU real power is over 100W) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: uATX-Q670A Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
