QBiX Plus Systems
GIGAIPC
QBiX-Plus-EHLA6412-A1
GIGAIPC QBiX-Plus-EHLA6412-A1 - QBiX Plus Systems Embedded Box PC with Intel® Elkhart Lake Industrial system with Intel® Celeron® J6412 Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
GIGAIPC QBiX-Plus-EHLA6412-A1 - QBiX Plus Systems Embedded Box PC with Intel® Elkhart LakeIndustrial system with Intel® Celeron® J6412 ProcessorOverviewKey FeaturesSupported CPUsSystem Size : 165W x 105D x 27H (mm)Intel® Celeron® J6412 ProcessorDual Channel DDR4, 2 x SO-DIMMs3 x HDMI for Multiple display2 x GbE LAN PortsSupport Micro SD CardSupport COM (RS-232 mode, pass through RJ45 Port)
CPU-Product Family: Intel® Elkhart Lake
Intel® Celeron® J6412 (1.5M Cache, up to 2.60 GHz)CPU-Variants
CPU
Intel® Celeron® J6412
Processor Number
J6412
Cache
1.5 MB L2 Cache
Total Cores
4
Total Threads
4
PCI Express Revision
3.0
SpecificationDimension165W x 105D x 27H (mm)CPUIntel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10WMemory2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 3200 MHz memory modulesEthernet2 x GbE LAN PortsGraphic SupportIntegrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors: 3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (3 independent display outputs)AudioRealtek® audio codecStorage—Expansion Slots1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x 3042 M.2 B-key with SIM Slot (USB 3.2 Gen 1)Front I/O2 x USB 3.2 Gen 1 1 x COM Port (RS-232)(RJ45 Type) 1 x Micro SD card slot 1 x Power button 1 x HDMIRear I/O1 x Headphone Jack 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x HDMI 1 x DC JackSide I/O3 x External Antenna Holes (Optional)Power+12~19VDC (Adapter 19V/65W)Operation TemperatureOperating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)Vibration During OperationOperation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per AxisShock During OperationOperation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSDPackaging ContentCarton size: 416 x 359 x 257 (mm) Packing Capacity: 10pcs Single Box size: 209 x 169 x 75 (mm) Single Box weight: Approx. 1.5kg Including: Power Cord : Optional (by region) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065U-A3S) RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150402-S9R) VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R) VESA Mount screws x 1 (P/N: 25KSD-000002-C0R)Order InformationSystem: 6BQS6412AMR-SI (Box packing)All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-Plus-EHLA6412-A1Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
GIGAIPC
QBiX-Plus-APLA3450-A1
GIGAIPC QBiX-Plus-APLA3450-A1 - QBiX Plus Systems Embedded Box PC Industrial system with Intel® Celeron® N3450 Processor
.product-menu-page {
font-family: 'Ubuntu', sans-serif;
color: #3f4c58;
}
.text_bold {
font-weight: bolder;
}
.product-menu-page {
display: none;
}
.product-menu-page:target {
display: block;
}
.head_sec {
background-color: #e9e9f0;
}
.col_a {
background-color: #798490;
}
.head_subsec {color: CornflowerBlue;
padding-top: 10px;padding-right: 25px;
vertical-align: bottom;
}
.chead {
border: 1px solid Lavender;
font-size: 90%;
font-weight: bolder;}
.ckey {
width: 25%;white-space: nowrap;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;}
.copt {
width: 25%;text-align: left;font-size: 90%;
font-weight: bolder;
border: 1px solid Lavender;}
.cval {
width: auto;text-align: left;
border: 1px solid Lavender;
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;}
.rowspecsim {
font-size: 110%;
white-space: nowrap;text-align: left;
}
.column_1 {
width: 250px;white-space: nowrap;text-align: left;
}
.column_2 {
width: 250px;white-space: nowrap;text-align: left;
}
ul.menu {
list-style-type: none;
margin: 0;
padding: 0;background-color: #798490;overflow: hidden;font-family: 'Ubuntu', sans-serif;
}
li.menu-item {float: left;padding: 0px 16px;
}
ul.menu li.selected a {
display: block;
color: #2b3136;
text-align: center;
text-decoration: none;
background-color: CornflowerBlue;}
li.menu-item a {display: block;
color: white;text-align: center;
text-decoration: none;
}
li.menu-item a:hover {
color: white;
background-color: #f7c13d;}
.li.menu-item a:active {color: #2b3136;
font-weight: bolder;
background-color: CornflowerBlue;}
table {
margin-top: 10px;
width: 100%;
border-collapse: collapse;
table-layout: fixed;
}
th, td {
border: 1px solid White;text-align: left;
word-break: break-word;
font-size: 100%;
line-height: 1.5;
padding-top: 5px;
padding-left: 10px;
padding-bottom: 5px;
}
th {
font-size: 90%;
padding-left: 25px;
}
td {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_kf {
font-size: 100%;width: 100%;}
#prod_spec {
font-size: 100%;word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}
#prod_disc {
font-size: 90%;
width: 100%;}
#prod_cpo {font-size: 90%;
width: 100%;
}
#prod_var {
word-break: break-word;
font-size: 90%;
padding-top: 10px;
padding-left: 25px;
padding-right: 25px;
vertical-align: top;
}

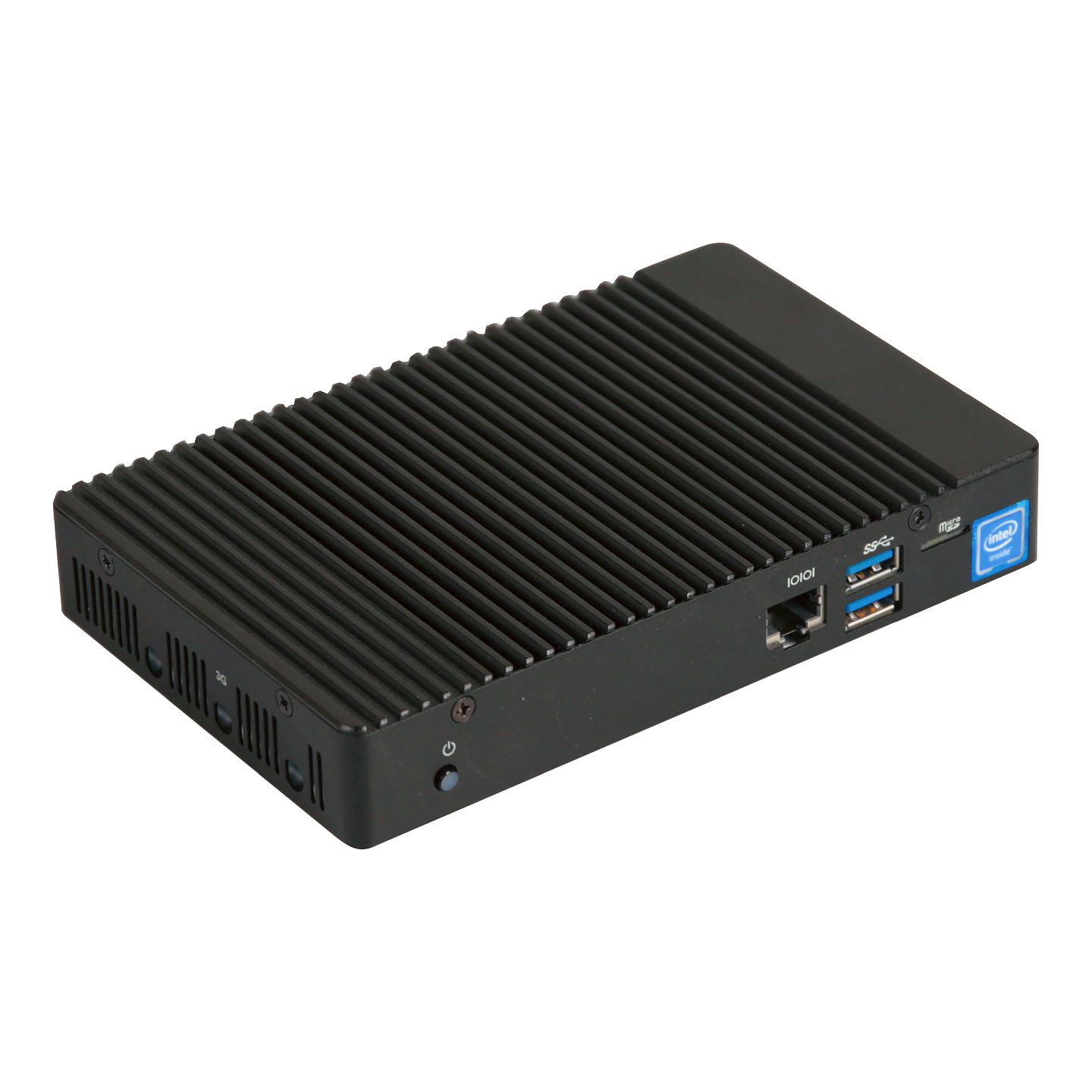

GIGAIPC QBiX-Plus-APLA3450-A1 - QBiX Plus Systems Embedded Box PCIndustrial system with Intel® Celeron® N3450 ProcessorOverviewKey FeaturesSystem Size : 165W x 105D x 27H (mm)Intel® Celeron® N3450 ProcessorDual Channel DDR3L, 2 x SO-DIMMs2 x HDMI for Dual display2 x GbE LAN PortsIntroductionThe Perfect Fit for IoT Applications
Being an associate member of the Intel IoT Solutions Alliance, GIGAIPC is devoting efforts to present solutions for Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, QBiX-Plus-APLA3450-A1 is made a perfect fit for various IoT applications.
Intel® Celeron Processor
Thhe new generationi of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance of graphics and computations. Intel® Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making QBiX-Plus-APLA3450-A1 the ideal solution for thin clients, POS solutions, and digital signage.
Rich in Connectivity Options
QBiX-Plus-APLA3450-A1 ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.
Dual Display
With two HDMI outputs, QBiX-Plus-APLA3450-A1 can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.
VESA Mount Support
Bundled with a VESA bracket, QBiX-Plus-APLA3450-A1 can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
SuperSpeed USB 3.0
Equipped with 4 x USB 3.0 ports, QBiX-Plus-APLA3450-A1 is flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.
Support RS232 / 422 / 485
QBiX-Plus-APLA3450-A1 is equipped with 1 x RJ45 connector with D-SUB 9-pin adapter cable to support RS-232 / 422 / 485 w/o RI via settings in the BIOS.SpecificationDimensionSystem Size : 165W x 105D x 27H (mm)CPUIntel® Celeron® N3450 Processor 14nm, 4 cores, 4 threads, up to 2.2 GHz TDP 6W 2MB L2 cacheChipsetSoCMemory2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual Channel DDR3L 1866 MHz memory modulesEthernet2 x GbE LAN Ports (Realtek® RTL8111HS)Graphic SupportIntegrated Graphics Processor - Intel® HD Graphics 500: 2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz (2 independent display outputs)AudioRealtek® Audio CodecExpansion Slots1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)Front I/O2 x USB 3.0 1 x COM Port (RS-232/422/485)(RJ45 Type) 1 x Micro SD card slot 1 x Power buttonRear I/O1 x Combo Audio Jack (Microphone & Headphone) 2 x RJ45 LAN Ports 2 x USB 3.0 2 x HDMI 1 x DC JackSide I/O3 x External Antenna Holes (Optional)Power+19VDC (Adapter 19V/65W)Operation TemperatureOperating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)Packaging ContentCarton size: 416 x 359 x 257 (mm) Packing Capacity: 10pcs Including: Power Cord 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S) RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R) Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)Order InformationSystem: 9BCBBAZAMR-SI (CTO) (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com)Optional KitInternal Antenna 200mm : 25CA0-200006-A5S Internal Antenna 230mm : 25CA0-230001-A5S Internal Antenna 150mm : 25CA0-150002-A5S WiFi/BT module : 25FC7-3165N0-10R Antenna_WiFI x 2 : 25CA0-111000-A5S Antenna_3G x 1 : 25CA0-111001-A5SAll data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-Plus-APLA3450-A1Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.OEM System Integration Support
All documents found on this page are subject to change without notification. Always ensure that you work with the latest version.
Price on request
