SDM-4000L
Price on request

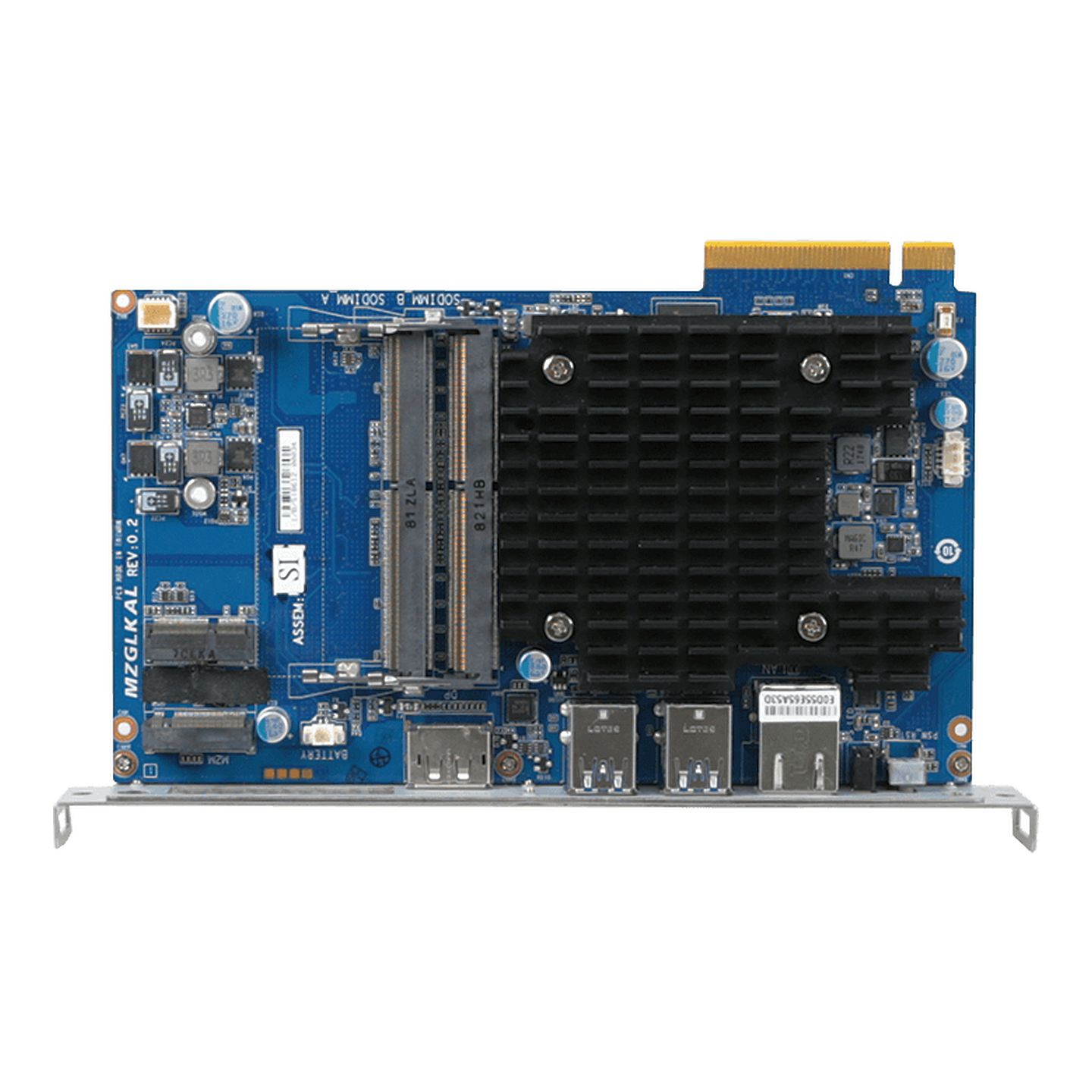

| GIGAIPC SDM-4000L - SDM CPU Module |
|---|
| Intel® Smart Display Module with Intel® Celeron® N4000 Processor, Fanless Design |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| As display panels become thinner and power-effecient with high performance, Intel® is presenting Smart Display Module (SDM), it's almost one-third size of OPS, but still an all-in-one integrated board with full computing capability powered by Intel® Celeron® N4000 processor and Intel® UHD Graphics 600 chipset - support dual independent display output of 1 x HDMI and 1 x Display Port up to 4K resolution as well as 4 x USB 3.2 Gen 1 for various peripheral connections. Its form factor without enclosure brings the benefit of cost-effective on total solution design and integration flexibility to meet space-limited requirement. It can be built in or externally plugged into a display panel to work mainly for commercial and retail markets, such as Interactive Whiteboard, menuboard, video wall, KIOSK and digital signage, etc. The end user can update software content from remote location, and furthermore, quickly remove and replace SDM for maintainance or hardware upgrade purpose to save CAPEX and OPEX. |
| Specification |
|---|
| Form Factor | SDM-Large 175W x 100D(mm) |
| CPU | Intel® Celeron® N4000 Processor 14nm, 2 cores, 2 threads, up to 2.6 GHz TDP 6W |
| Socket | 1 x FCBGA 1090 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 8 GB Support Dual channel DDR4 2400 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics 600: 1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Intel® Integrated Audio |
| Storage | 1 x eMMC 32GB |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-key (WiFi/BT) |

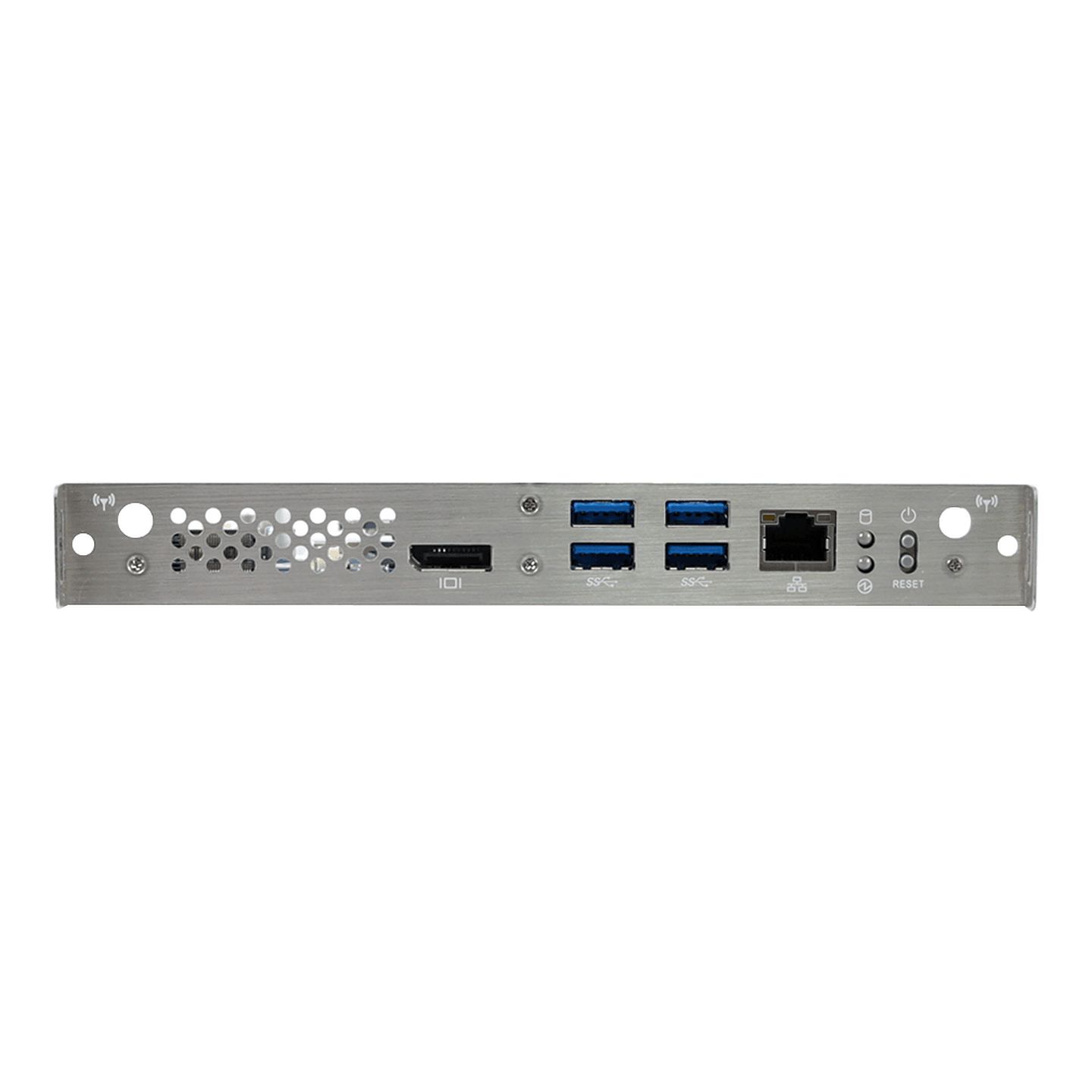

| Rear I/O | 1 x Display Port 1 x RJ45 LAN Port 4 x USB 3.2 Gen 1 1 x PWR LED 1 x HDD LED 2 x External Antenna Holes (Optional) 1 x Reset button 1 x Power button |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to +55°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.46kg Including: Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R) |
| Order Information | 9MZGLKALMR-SI (Box packing) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: SDM-4000L Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
