QBiX-WP-WHLA8265H-A1
Price on request
| GIGAIPC QBiX-WP-WHLA8265H-A1 - QBiX WP Systems Embedded Box PC |
|---|
| IP67 - Industrial water proof system with Intel® Core™ i5-8265U Processor |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| QBiX-WP (Water Proof) Embedded System is designed for harsh conditions, such as in chemical, food and beverage factory, outdoor digital signage and automation/robotic control where the systems are in constant threat of water splash and dust immersion. It offers IP67-rated protection with waterproof and dustproof capability in -20°C to 70°C wide range of operating temperatures. The hermetic and rugged enclosure of extruded aluminum protects the system from corrosion and M12 connectors secure the cable connectivities. |
| Specification |
|---|
| Dimension | 188W x 155D x 72H(mm) |
| CPU | Intel® Core™ i5-8265U Processor14nm, 4 cores, 8 threads, up to 3.9 GHzTDP 15W |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 2400 MHz memory modules(Integrated 8GB memory) |
| Ethernet | 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® UHD Graphics 620: 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module (please contact with your sales representative for more information) (Integrated M.2 SSD 256GB) |
| Front I/O | 2 x (M12) LAN Ports 2 x (IP67) USB 2.0 connector 1 x (IP67) HDMI connector 1 x (IP67) Power switch 1 x (M8) Power & HDD LED |

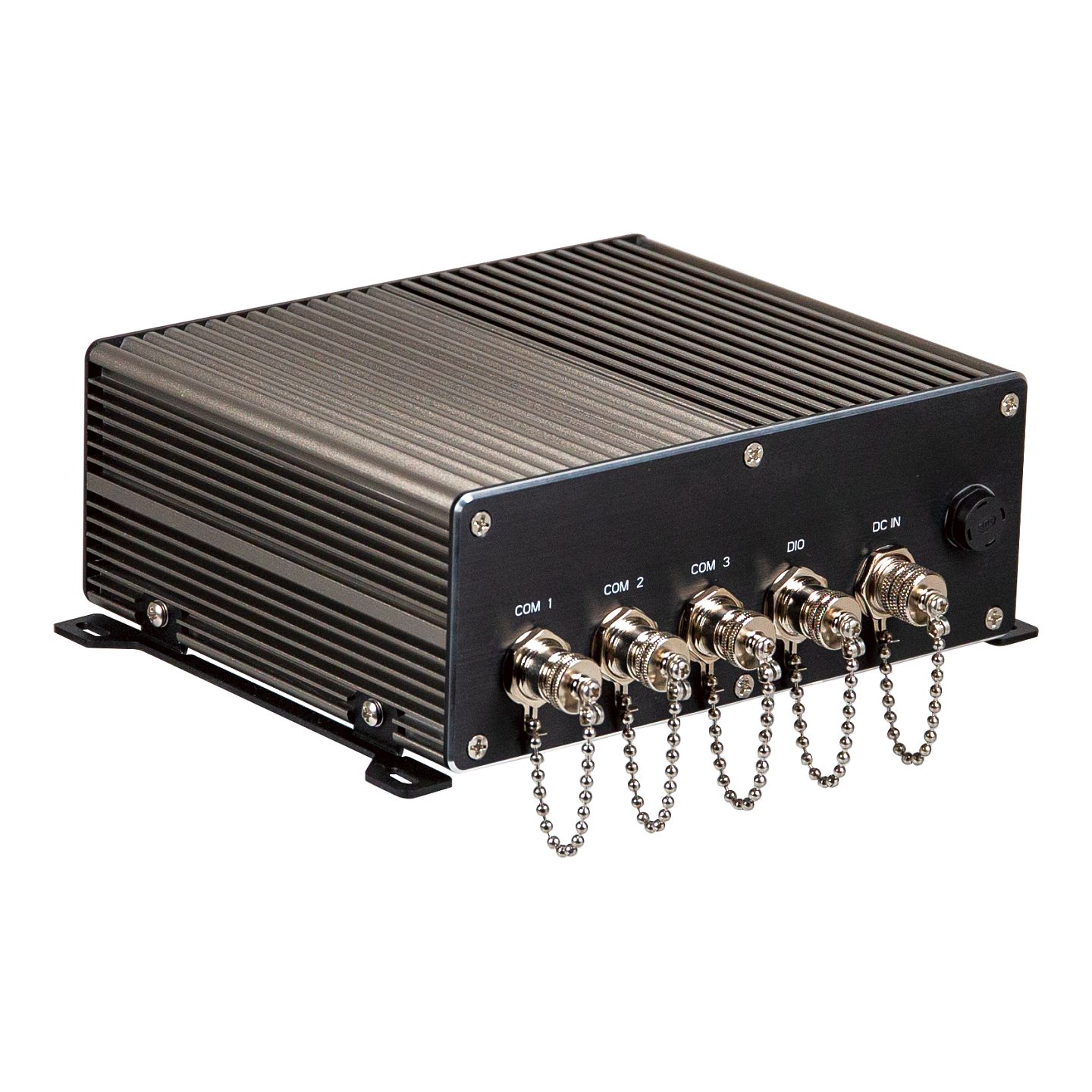

| Rear I/O | 1 x (M12) COM Port (RS-232/422/485 & RI/5V/12V) 2 x (M12) COM Port (RS-232) 1 x (M12) GPIO (8 bits) 1 x (M12) DC Jack |
| Power | +9V~36VDC (Full Range) |
| Operation Temperature | Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 305 x 285 x 265 (mm) Packing Capacity: 1pc Including: COM Cable, waterproof, x 3 (P/N: 25CF8-1K8400-O0S) USB 2.0 Cable, waterproof, x 2 (P/N: 25CFA-1K8000-O0R) RJ45 Cable, waterproof, x 2 (P/N: 25CR0-1K8401-O0S) SIGNAL Cable, waterproof, x 1 (P/N: 25CR5-1K8500-O0R) HDMI Cable, waterproof, x 1 (P/N: 25CRC-180720-O0S) DC JACK Cable, waterproof, x 1 (P/N: 25CRD-1K8300-O0S) Wall mount bracket, x 2 (P/N: 25HBA-826520-H5R) |
| Order Information | 9BQW8265AMR-SI (Box packing) (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-WP-WHLA8265H-A1 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
