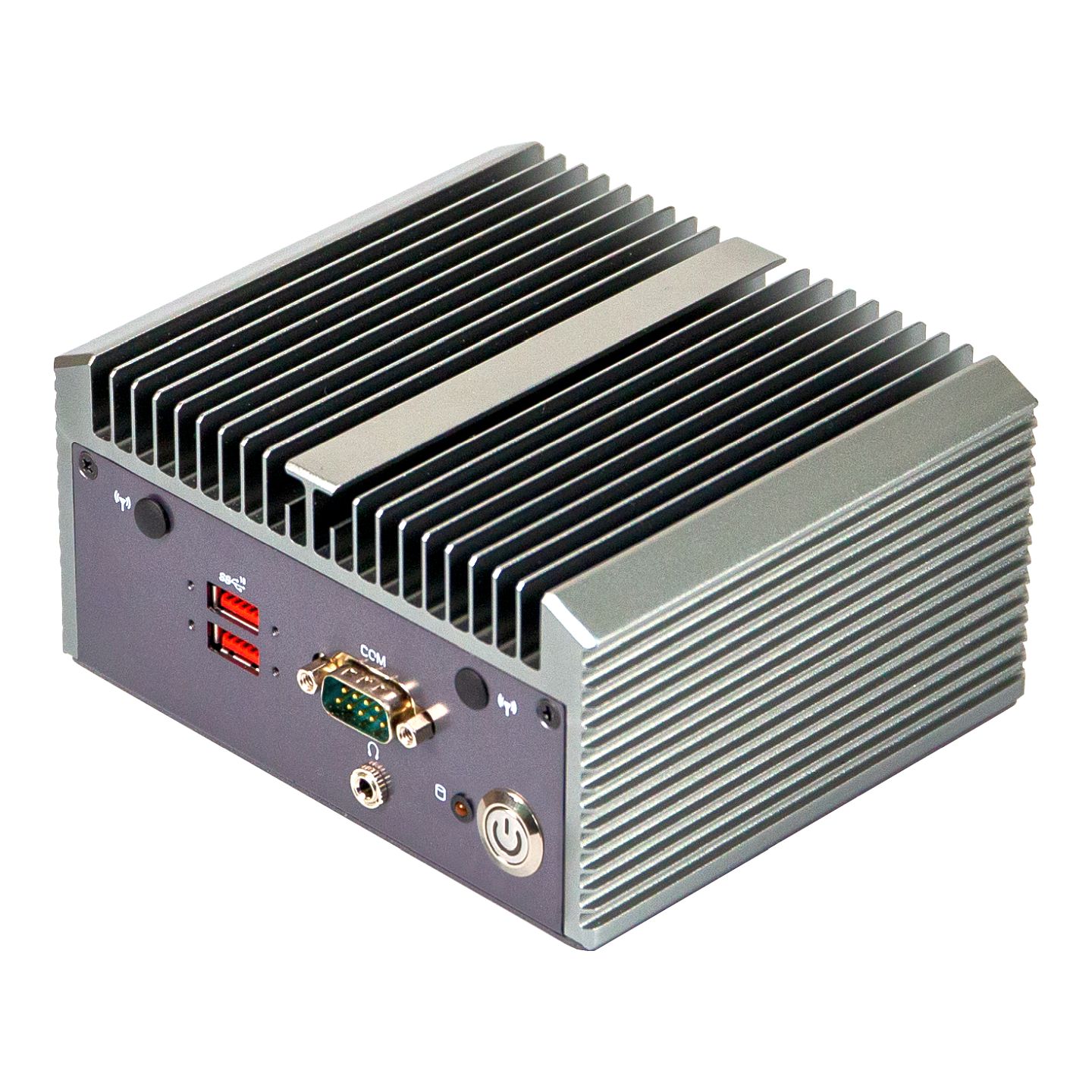

QBiX-WHLA8265H-A1
Price on request
| GIGAIPC QBiX-WHLA8265H-A1 - QBiX Systems Embedded Box PC |
|---|
| Industrial system with Intel® Core™ i5-8265U Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options . QBiX-WHLA8265H-A1 is powered by Intel® Core™ i5-8265U Whiskey Lake Processor to provide high performance and stability. It is designed with full range +9V-36V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard. It's available with rich features of HDMI, 4 x USB 3.2 Gen 2x1, 1 x switchable COM Port to work with different peripherals of devices and M.2 2230/2280 slots for expansion. |
| Specification |
|---|
| Dimension | 138W x 118D x 74.2H(mm) |
| CPU | Intel® Core™ i5-8265U Processor 14nm, 4 cores, 8 threads, up to 3.9 GHz TDP 15W |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM socket, Max. Capacity 64 GB Support Dual Channel DDR4 2400 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219V) 1 x GbE LAN Port (Realtek® RTL8111HS) |
| Graphic Support | Integrated Graphics Processor - Intel® UHD Graphics 620: 2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Vertical USB 3.2 Gen 1 |
| Front I/O | 2 x USB 3.2 Gen 2x1 1 x Power button with LED 2 x External Antenna Holes (Optional) 1 x HDD LED 1 x COM Port (RS-232/422/845) 1 x Headphone Jack |
| Rear I/O | 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw type DC Jack |
| Power | +9V~36VDC (Adapter 19V/90W) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature:-40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSDNon-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 416 x 409 x 296 (mm) Packing Capacity: 6pcs Single Box size: 258 x 191 x 130 (mm) Single Box weight: Approx. 2.4kg Including: PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-10090A-F3S) Power Cord : Optional (by region) Wall Mount Bracket (P/N: 25HB2-CGAA20-CHR) Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad HDD x 2 (P/N: 25ST3-200052-T5R) Thermal Pad DRAM2 x 1 (P/N: 25ST3-200051-T5R) SATA power Cable x 1 (P/N: 25CRI-075630-S9R) SATA Cable x 1 (P/N: 25CF4-075500-S9R) |
| Order Information | 6BQB8265AMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
