QBiX-Pro-TGLA1115G4EH-A2
Price on request
| GIGAIPC QBiX-Pro-TGLA1115G4EH-A2 - QBiX Pro Systems Embedded Box PC with Intel® Tiger Lake |
|---|
| Industrial system with Intel® Core™ i3-1115G4E Processor/ Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Tiger Lake
|
| Introduction |
|---|
| QBiX-Pro-TGLA1115G4EH-A2 is bundled with GIGAIPC 3.5" SBC QBiP-1115G4EB, powered by the onboard Intel® Core™ i3-1115G4E Processor. It provides high-performance, power-efficient but low power consumption features. This fanless embedded system can operate under wide temperatures ranging from -10°C to 50°C and pass industrial-grade standard of 50G shock and 5rms vibration. Moreover, it supports independent 4K Ultra HD displays via 2 x HDMI for multi-display applications. This product is suitable for space-limited applications with highly strict performance requirements for industrial computers, control system and more. |
| CPU-Variants |
|---|
| CPU | Intel® Core™ i3-1115G4E |
|---|---|
| Processor Number | i3-1115G4E |
| Cache | 6 MB Intel® Smart Cache |
| Max Turbo Frequency | 3.90 GHz |
| Total Cores | 2 |
| Total Threads | 4 |
| Specification |
|---|
| Dimension | 178W x 125D x 52.7H(mm) |
| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.9 GHz |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® UHD Graphics for 11th Gen Intel® Processors : 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

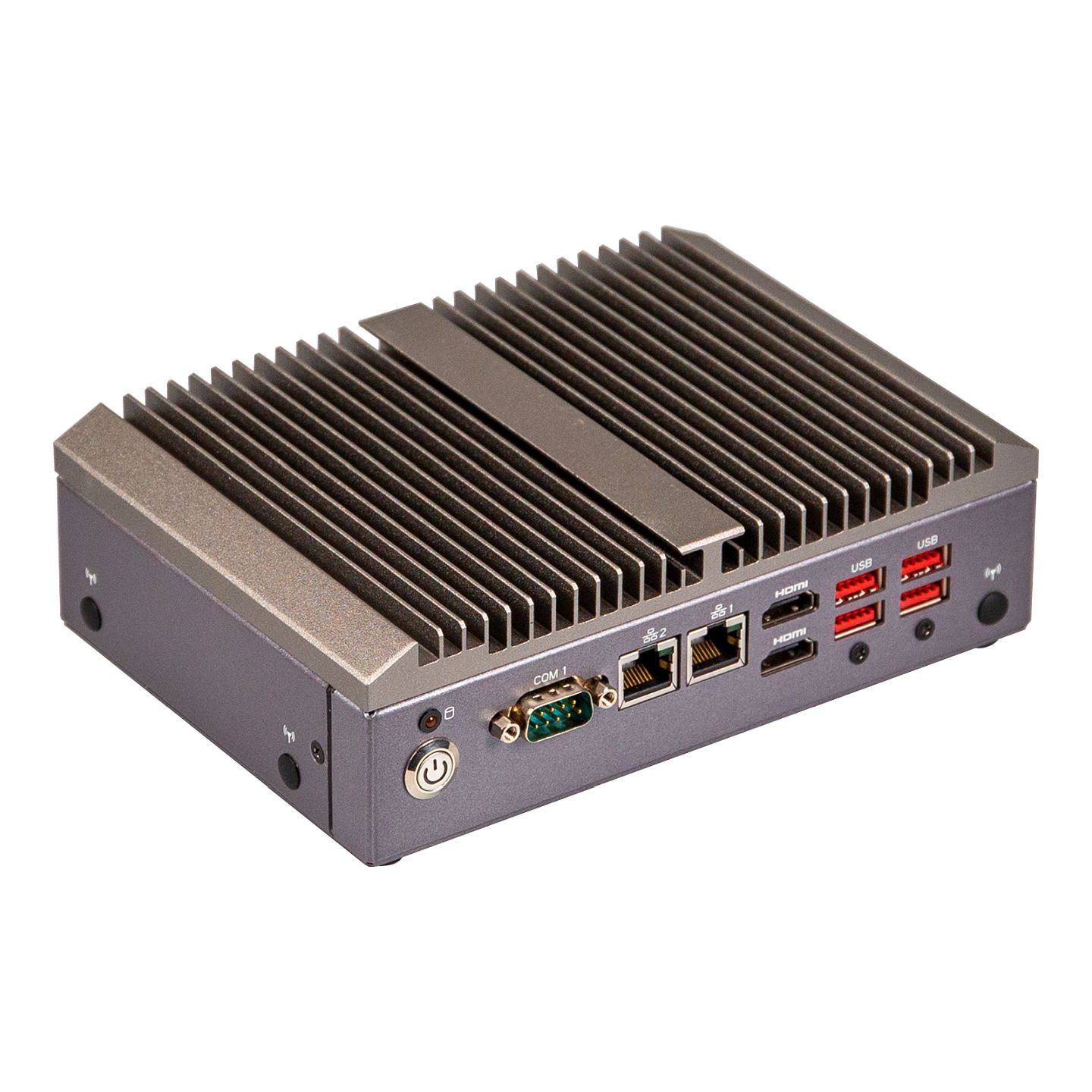

| Front I/O | 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) |

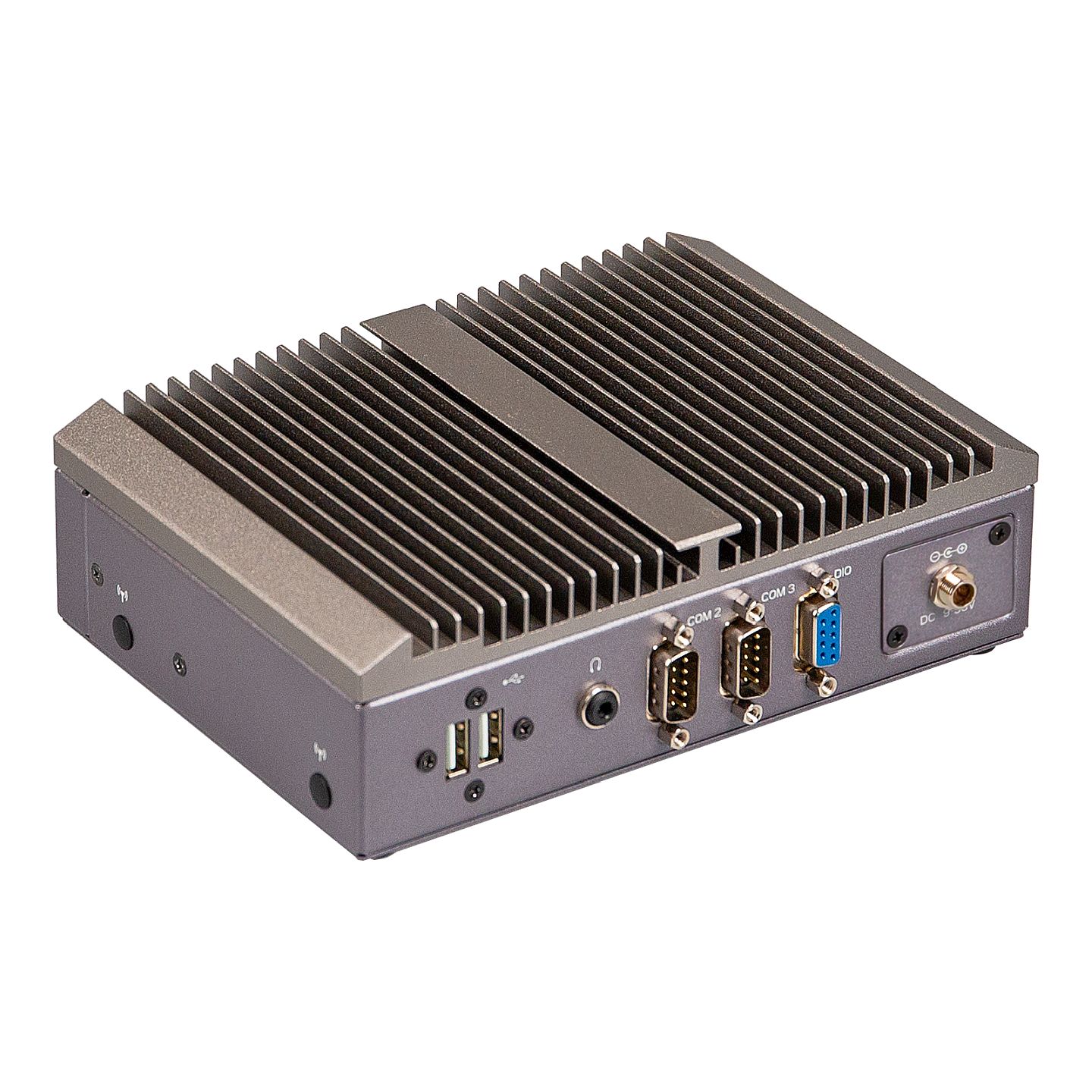

| Rear I/O | 2 x USB 2.0 2 x COM Ports (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x Screw Type DC Jack |
| Side I/O | 2 x External Antenna Holes (Optional) |
| Power | +9V~36VDC (Adapter 19.5V/135W) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 505 x 333 x 231 (mm) Packing Capacity: 5pcs Single Box size: 313 x 191 x 95 (mm) Single Box weight: Approx. 1.9kg Including: Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R) SATA Cable x 1 (P/N: 25CRI-070000-S9R) Power Cord : Optional (by region) PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S) |
| Mounting | Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional) VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional) |
| Order Information | 6BQP1115AMR-SI (Box Packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM010NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-Pro-TGLA1115G4EH-A2 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
