QBiX-Pro-APLB4200H-A1
Price on request
| GIGAIPC QBiX-Pro-APLB4200H-A1 - IoT Gateway Computer Embedded Box PC with Intel® Apollo Lake |
|---|
| Industrial system with Intel® Pentium® N4200 Processor |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Apollo Lake
|
| Introduction |
|---|
| QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market. QBiX-Pro-APLB4200H-A1 is powered by Intel® Pentium® N4200 processor, to provide "low power but high performance" for energy-saving requests. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard. |
| CPU-Variants |
|---|
| CPU | Intel® Pentium® N4200 |
|---|---|
| Processor Number | N4200 |
| Cache | 2 MB L2 Cache |
| Total Cores | 4 |
| Total Threads | 4 |
| PCI Express Revision | 2.0 |
| Specification |
|---|
| Dimension | 178W x 125D x 52.7H(mm) |
| CPU | Intel® Pentium® N4200 Processor 14nm, 4 cores, 4 threads, up to 2.5 GHz TDP 6W 2MB L2 cache |
| Chipset | SoC |
| Memory | 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual Channel DDR3L 1866MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® HD Graphics 505: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays) (2 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

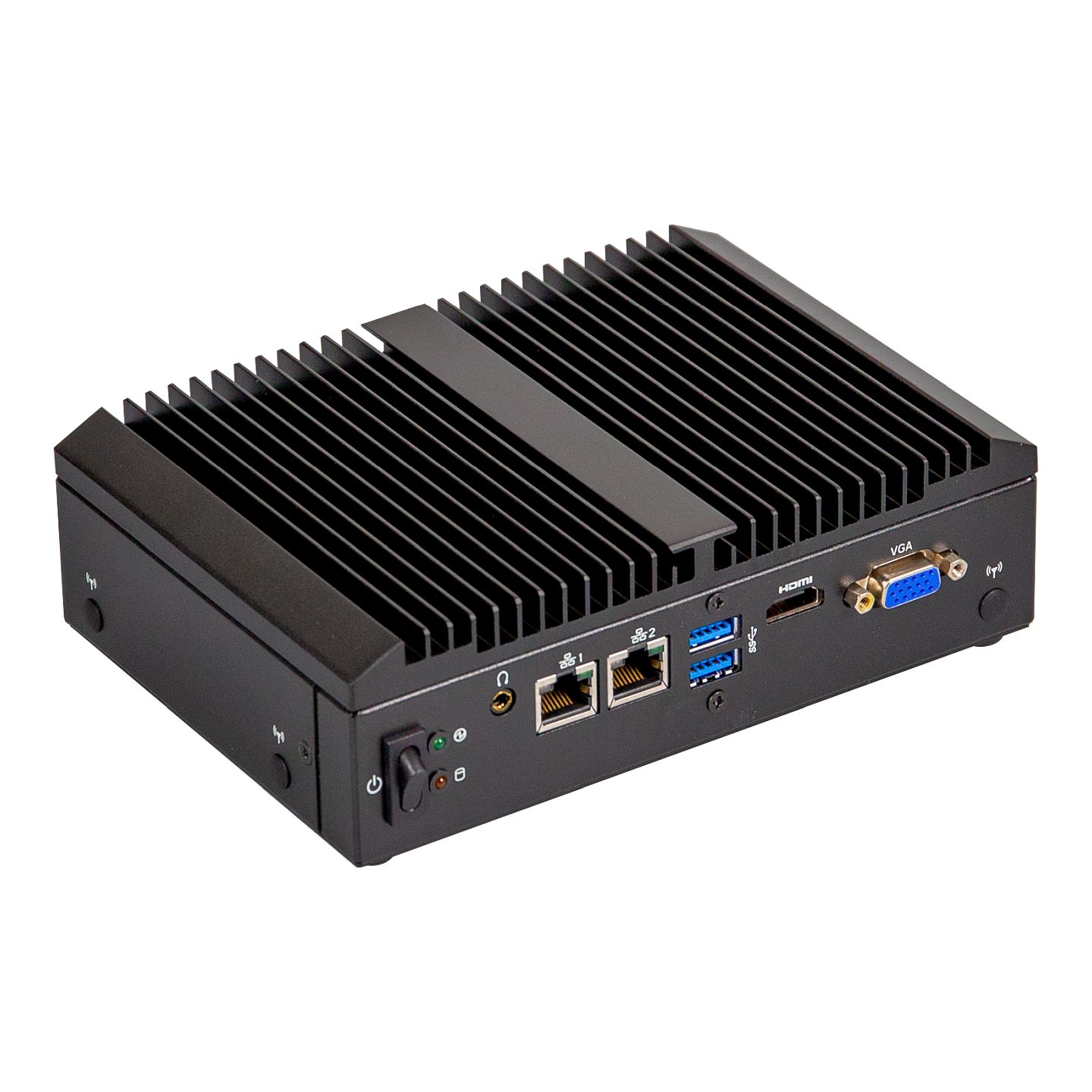

| Front I/O | 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 1 x HDMI 1 x VGA 1 x Power switch 1 x Power & HDD LED 1 x Headphone Jack |

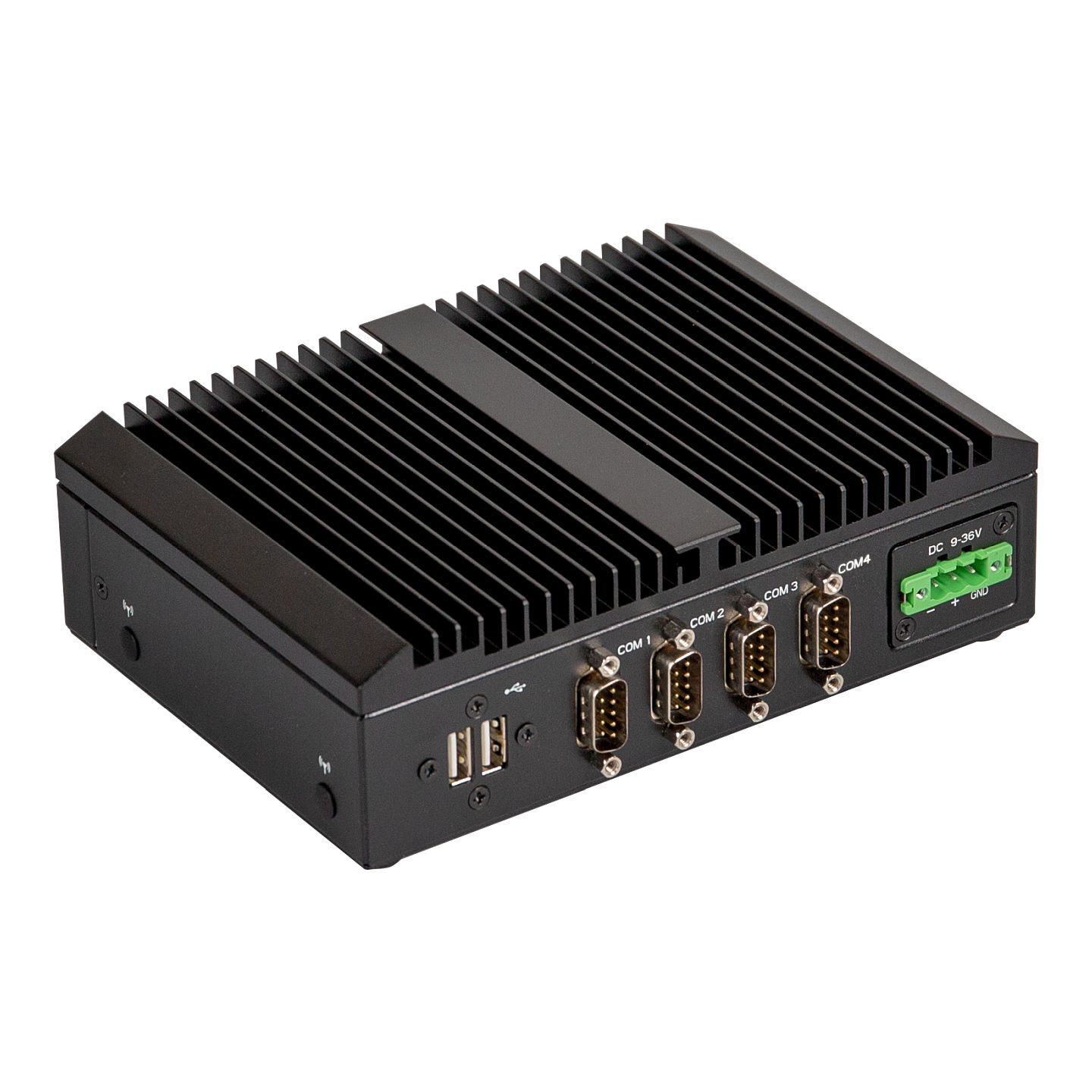

| Rear I/O | 2 x USB 2.0 1 x COM Port (RS-232/422/485 & RI/5V/12V) 3 x COM Ports (RS-232) 1 x 3-pin Terminal Block |
| Side I/O | 2 x External Antenna Holes (Optional) |
| Power | +9V~36VDC (Full Range) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 505 x 333 x 231 (mm) Packing Capacity: 5pcs Single Box size: 313 x 191 x 95 (mm) Single Box weight: Approx. 1.5kg Including: Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad x 2 (P/N: 25ST3-200052-T5R) SATA Cable x 1 (P/N: 25CF4-170020-S9R) Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R) |
| Mounting | Wall mount (Optional) |
| Order Information | 6BCBABMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
