QBiX-Lite-AMDA1605H-A1
Price on request

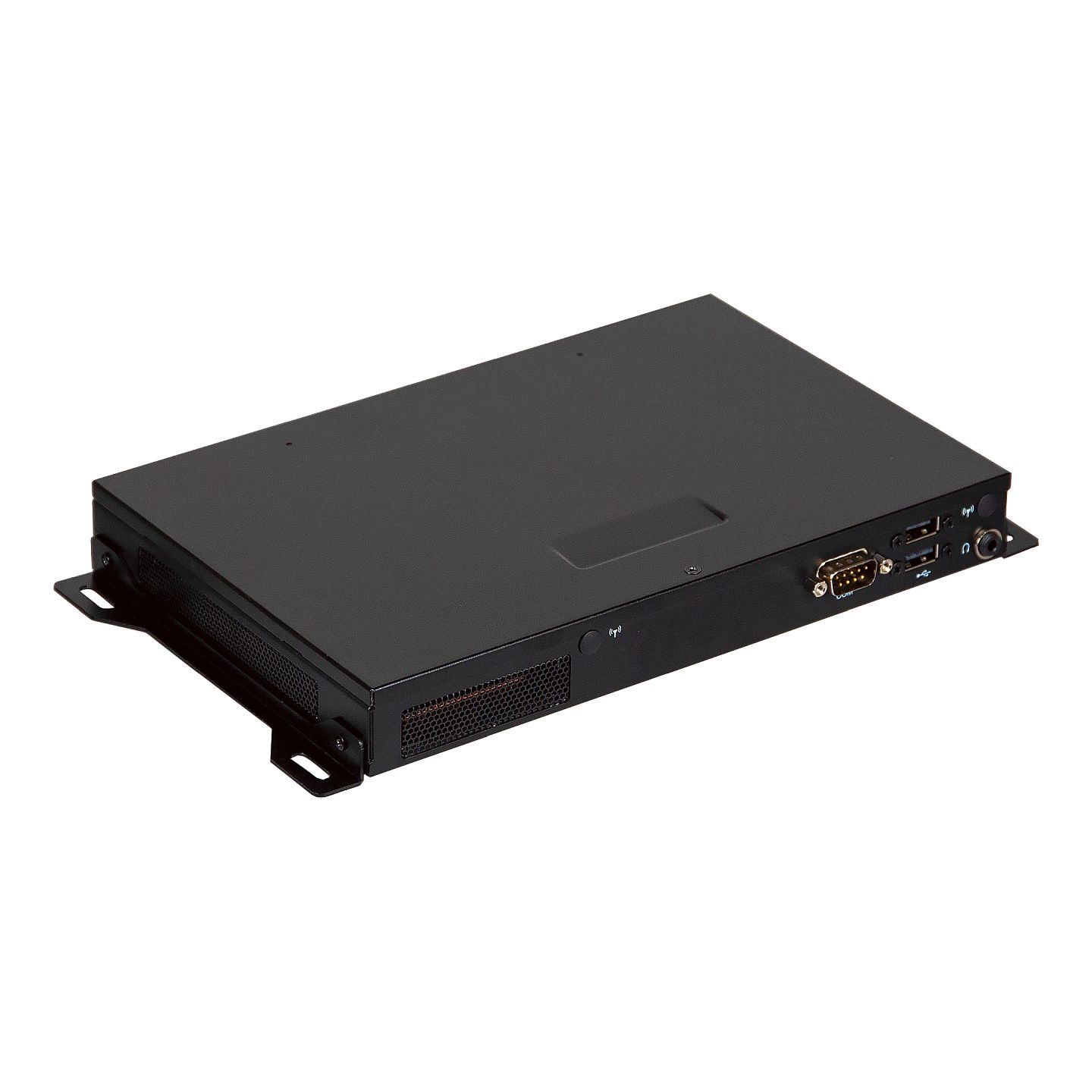

| GIGAIPC QBiX-Lite-AMDA1605H-A1 - QBiX Lite Systems Embedded Box PC |
|---|
| Industrial system with AMD® RYZEN™ Embedded V1605B / Fan Design / Dual Channel DDR4 up to 32GB/ 4 x HDMI |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| QBiX-Lite series, a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market. QBiX-Lite-AMDA1605H-A1 is one of the product line to be integrated with GIGAIPC 3.5" SBC (QBiP-1605B), it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel vertically or horizontally, based on your product design. With powerful AMD Ryzen™ V1605B Embedded Processor, it provides up to 4 independent display outputs of 4K resolutions with high computing performance and stability. It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan design for heat dissipation. |
| Specification |
|---|
| Dimension | 234W x 155D x 30H (mm) |
| CPU | AMD Ryzen™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, up to 3.6 GHz TDP 25W 2MB of shared L2 plus 4MB of shared L3 total |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2400 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphic Support | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz *Support EDID emulation with AMD graphic driver/utility (4 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6 Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Front I/O | 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x USB 2.0 4 x HDMI 1 x Power button with LED 1 x HDD LED 1 x Screw type DC Jack |
| Rear I/O | 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x USB 2.0 1 x Line out phone jack 2 x External Antenna Holes (Optional) |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9665TT2.0 |
| Power | +9V~36VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 481 x 300 x 375 (mm) Packing Capacity: 5pcs Single Box size: 336 x 279 x 90 (mm) Including: Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R PSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3S Power Cord : Optional (by region) |
| Mounting | Wall mount (Default) VESA 75/100 (Optional) |
| Order Information | 6BQL1605AMR-SI (Box packing) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-Lite-AMDA1605H-A1 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
