QBiX-JMB-CMLA47EHG-B1
Price on request

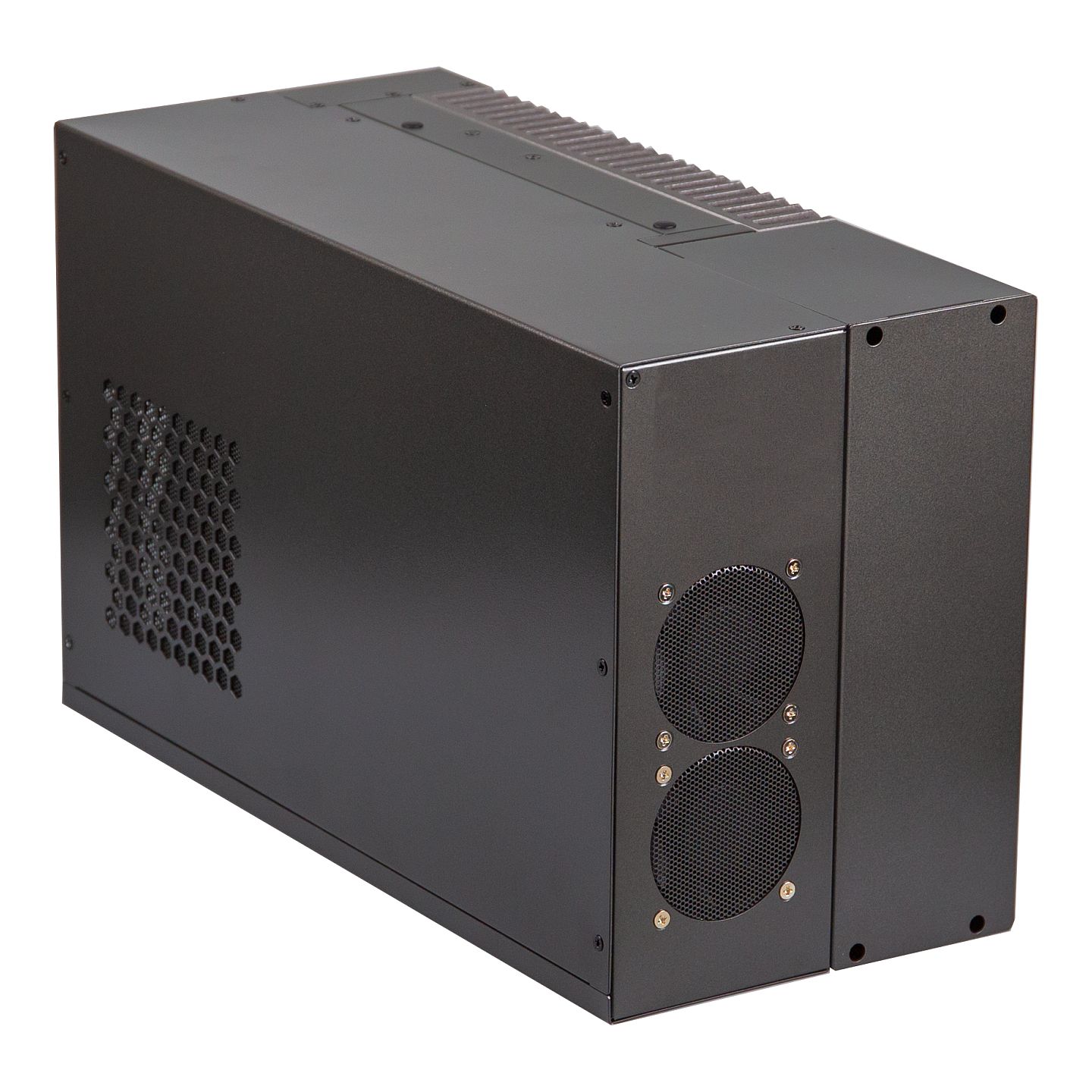

| GIGAIPC QBiX-JMB-CMLA47EHG-B1 - QBiX Jumbo Systems Embedded Box PC |
|---|
| Industrial system with Intel® Q470E Chipset, support for Intel® 10th Gen Processors and Discrete GFX card |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Dimension | 224W x 368D x 166.3H(mm) - Discrete GFX support (Optional) |
| CPU | Support for 10th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1200 package TDP under 65W |
| Chipset | Intel® Q470E Express Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 2933/2666 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219V) 3 x GbE LAN Ports (Intel® I211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® HD Graphics support: 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio codec |
| Storage | 4 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4 & SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size mini PCIe with SIM slot 1 x PCIe slot -- Discrete riser card support |
| Front I/O | 1 x Power Switch/Power/HDD LED 3 x Audio Jacks (Line in, Line out, Mic in) 1 x Display Port 1 x DVI-D 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x COM Ports (RS-232) 4 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 6 x USB 2.0 1 x 4-pin Terminal Block 2 x External Antenna Holes (Optional) |
| Riser card (Optional) | 1 x PCIe x4 (Gen3 x4) 2 x PCIe x16 — Single at Gen3 x16 only or — Dual at Gen3 x8 + Gen3 x8 |
| Power | +24V~48VDC (Full Range) -- Support discrete GFX card |
| Operation Temperature | For Main system : Operating temperature: -20°C to 50°C (CPU TDP 65W) Operating temperature: -20°C to 60°C (CPU TDP 35W) For Full system : Depends on the Graphic cards installed in the system Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 & Without Graphics Cards Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | For Main system : 9BQJQ47EAMR-SI Carton size: 351 x 300 x 166 (mm) Packing Capacity: 1pc Including: Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R) Screw M3x4L x 16 (P/N : 25984G-1C014-S00) For Expansion slot kit : 6BQJH310BPR-SI Carton size: 460 x 315 x 279 (mm) Packing Capacity: 1pc Including: Power Cable #18 350mm x 2 (P/N: 25CRI-35030I-S9R) Screw #6-32x4L x16 (P/N: 25KS2-13004F-S0R) |
| Order Information | System : 9BQJQ47EAMR-SI & 6BQJH310BPR-SI (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 |
