QBiX-JMB-CFLA310H-A1
Price on request
| GIGAIPC QBiX-JMB-CFLA310H-A1 - QBiX Jumbo Systems Embedded Box PC |
|---|
| Industrial system with Intel® H310 Chipset, support for Intel® 9th/8th Gen Processor / Display Port/ DVI-D port/ VGA port/ USB 3.2 Gen 1/ USB 2.0/COM Ports /4 GbE LAN Ports /M.2 slots |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|

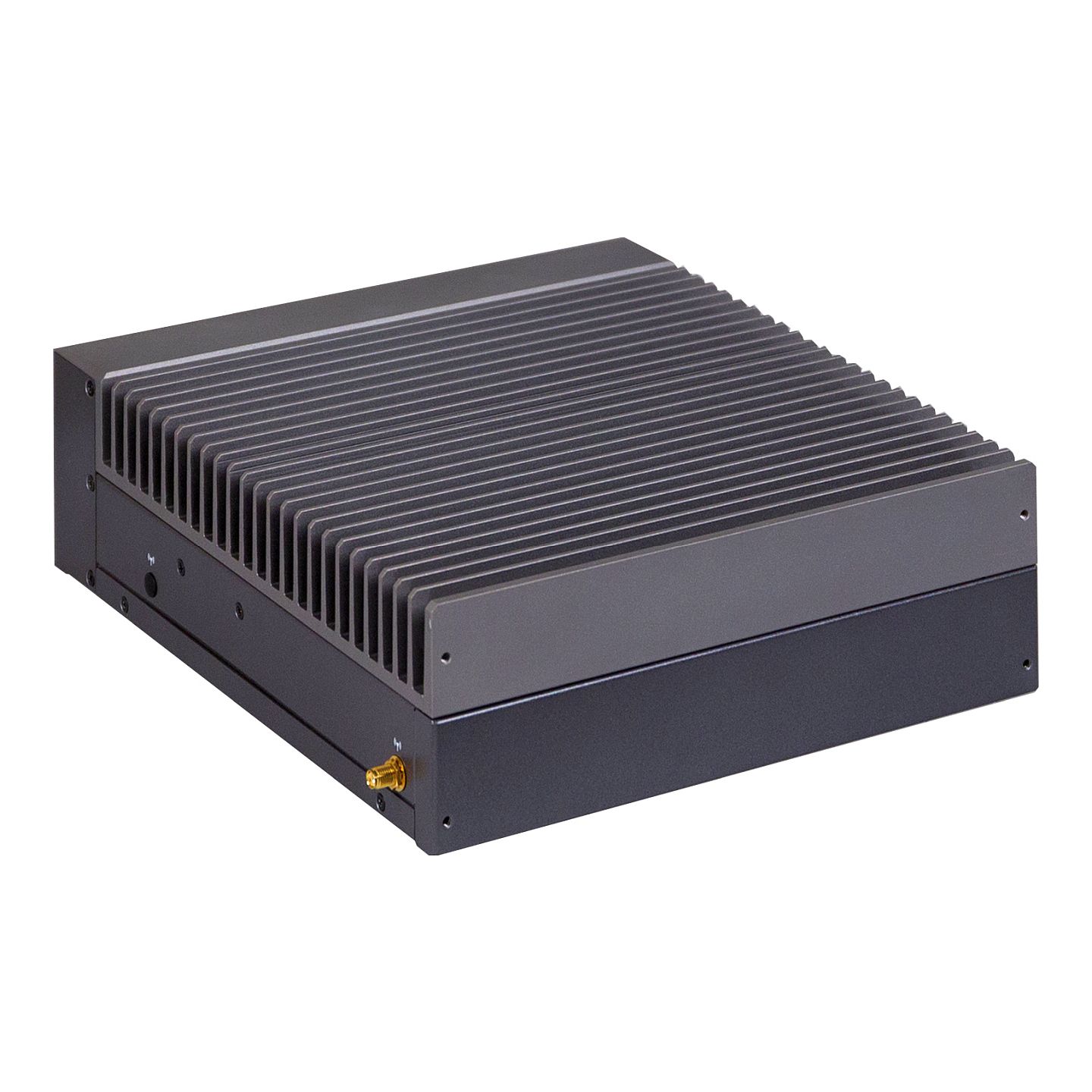

| QBiX-JMB-CFLA310H-A1 is a high-performance fanless embedded computer featured with Intel® H310 Express Chipset and supported Intel® 9th/8th gen Core™ i processor in LGA1151 package, to provide powerful computing and excellent graphic performance. It's mainly designed for edge computing applications, machine vision, robotic image detection, machine automation, surveillance system in factory, logistics and even healthcare systems, to increase production efficiency. In addition, it offers 1 x Display Port, 1 x DVI-D Port and 1 x VGA Port for two independent display outputs, rich I/O interface of 4 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x switchable COM Ports (RS-232/422/485 & RI/5V/12V), 2 x RS232 COM Ports, 4 GbE LAN Ports and expantion M.2 slots to connect multiple devices and implement industrial applications. This system supports full range 12-48V DC power inputs for operating temperature of -20°C~50°C . The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 3 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard. With an optional riser card support, GIGAIPC offers another Machine Vision Solution : QBiX-JMB-CFLA310HG-A1, the integration system of QBiX-JMB-CFLA310H-A1 and discrete GFX card. QBiX-JMB-CFLA310H-A1 QBiX-JMB-CFLA310HG-A1 |
| Specification |
|---|
| Dimension | 224W x 257D x 77H(mm) |
| CPU | Support for 9th/8th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package TDP under 65W |
| Chipset | Intel® H310 Express Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2666/2400 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219V) 3 x GbE LAN Ports (Intel® I211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® HD Graphics support: 1 x DP port, supporting a maximum resolution of 4096x2160 @30Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 3 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

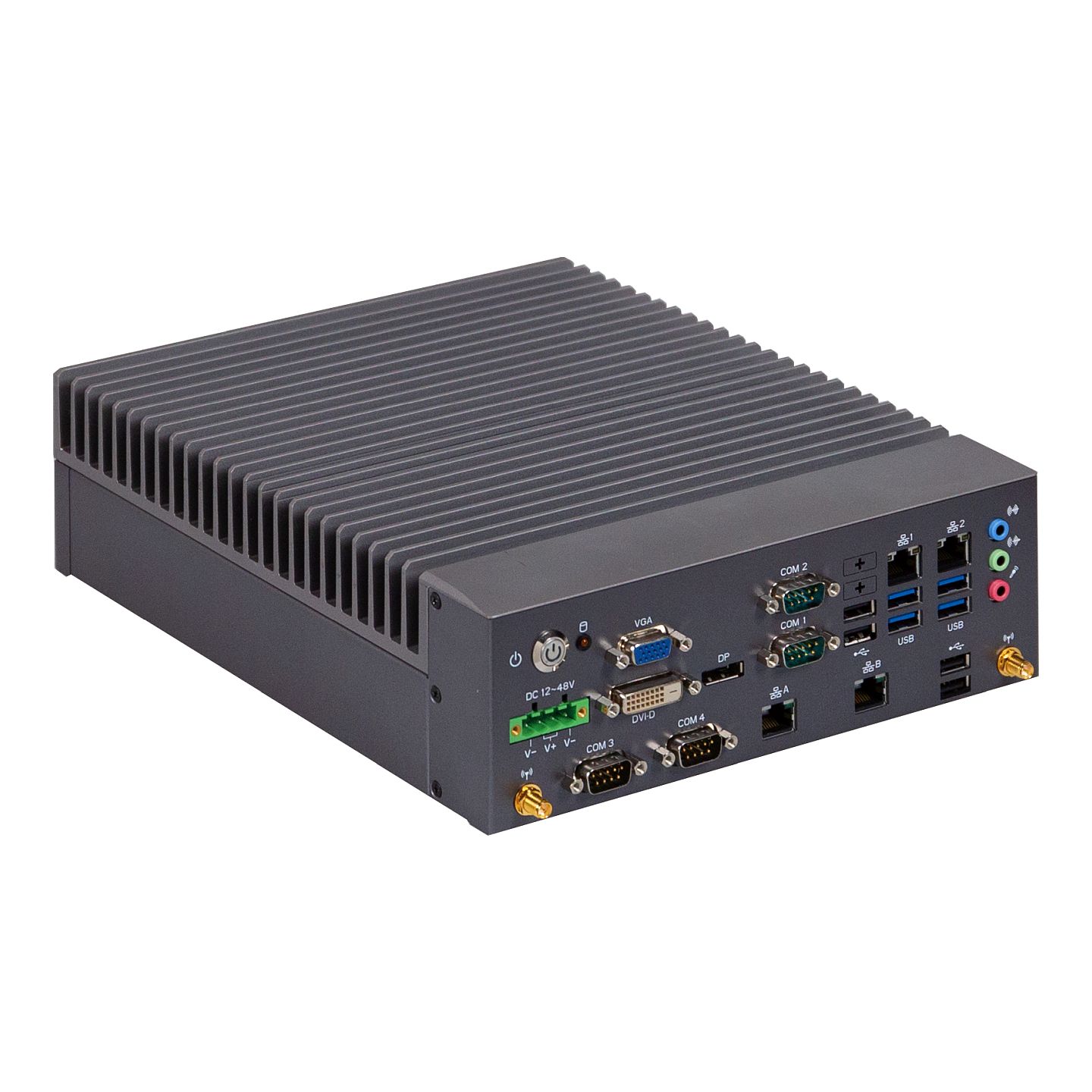

| Front I/O | 1 x Power Switch/Power/HDD LED 3 x Audio Jacks (Line in, Line out, Mic in) 1 x Display port 1 x DVI-D 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x COM Ports (RS-232) 4 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x 4-pin Terminal Block 2 x External Antenna Holes (Optional) |
| Rear I/O | -- |
| Power | +12V~48VDC (Full Range) |
| Operation Temperature | Operating temperature: -20°C to 50°C (CPU 65W TDP)Operating temperature: -20°C to 60°C (CPU 35W TDP)Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 300 x 351 x 166 (mm) Packing Capacity: 1 Weight: Approx. 4.7kg Including: Screw M3x4L x 12 (P/N: 25984G-1C014-S00) Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R) |
| Order Information | 9BQJH310AMR-SI (Box packing) (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 |
