QBiX-Jetson-XavierAHP-A1
Price on request
| GIGAIPC QBiX-Jetson-XavierAHP-A1 - QBiX Jetson Systems Embedded Box PC |
|---|
| Industrial system with NVIDIA® Xavier™ NX System-on-Module, including Carmel CPU/ Volta GPU/ 8GB LPDDR4/ 16GB eMMC5.1 |
| Overview |
|---|
| Key Features |
|---|
|
| Specification |
|---|
| Dimension | 210W x 169.8D x 55.2H(mm) |
| CPU | 6-core NVIDIA® Carmel Arm® v8.2 64-bit CPU6MB L2 cache + 4MB L3 cache |
| Memory | 8GB 128-bit LPDDR4 DRAM 1600MHz (Module) |
| Ethernet | 8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W2 x GbE LAN Ports |
| Graphic Support | 384-core NVIDIA® Volta™ GPU with 48 Tensor Cores 1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz |
| Storage | 1 x 16GB eMMC 5.1 (Module) 1 x SATA 6Gb/s Port (Swappable 2.5" HDD/SSD) |
| Expansion Slots | 1 x 3052 M.2 B-Key 1 x Mini PCIe slot 1 x 2230 M.2 E-Key 1 x SIM slot |

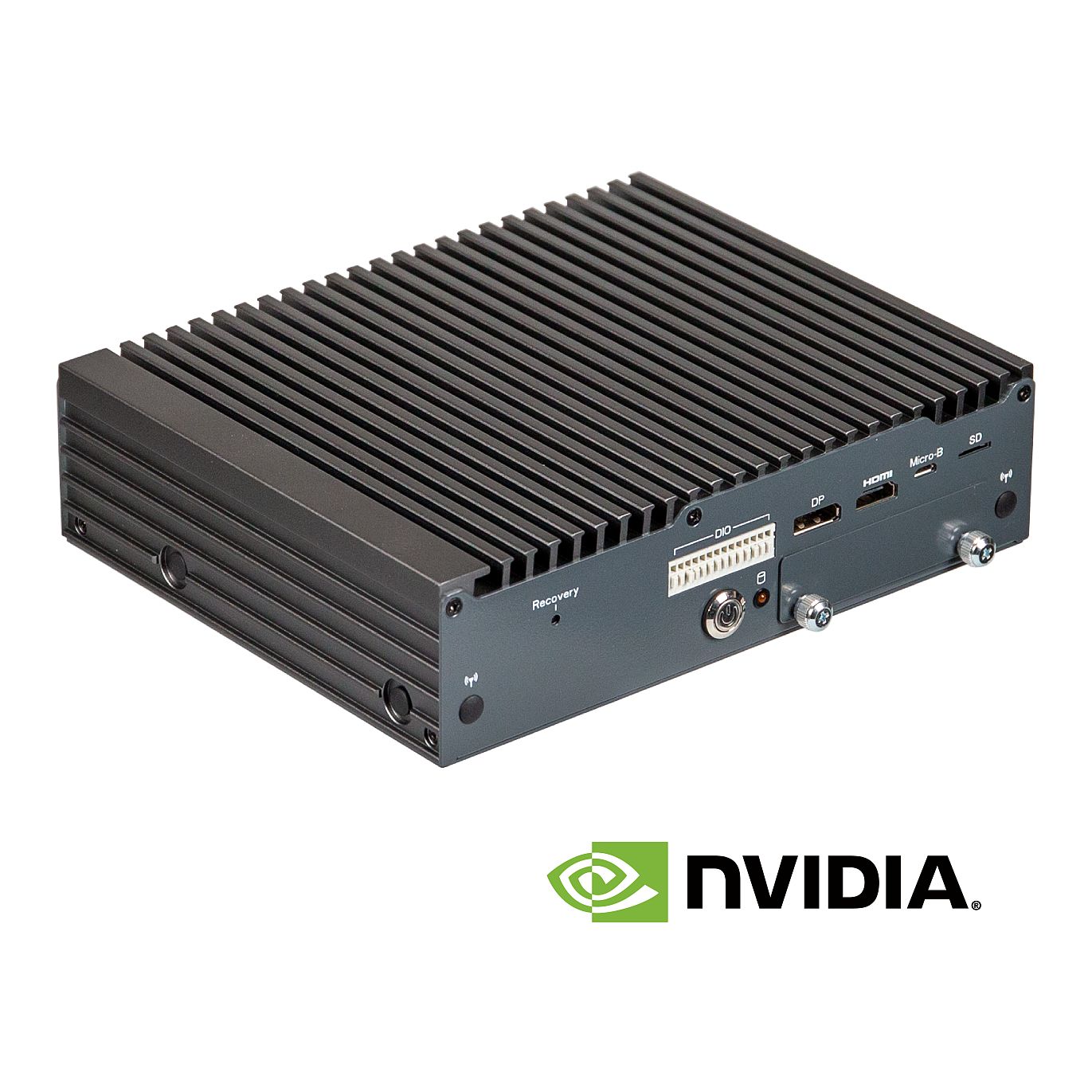

| Front I/O | 1 x Power button with LED 1 x HDD LED 1 x GPIO (12 bits) 1 x DP 1 x HDMI 1 x USB 2.0 Type Micro B 1 x SD slot (Micro SD) 1 x Recovery button 2 x External Antenna Holes (Optional) |

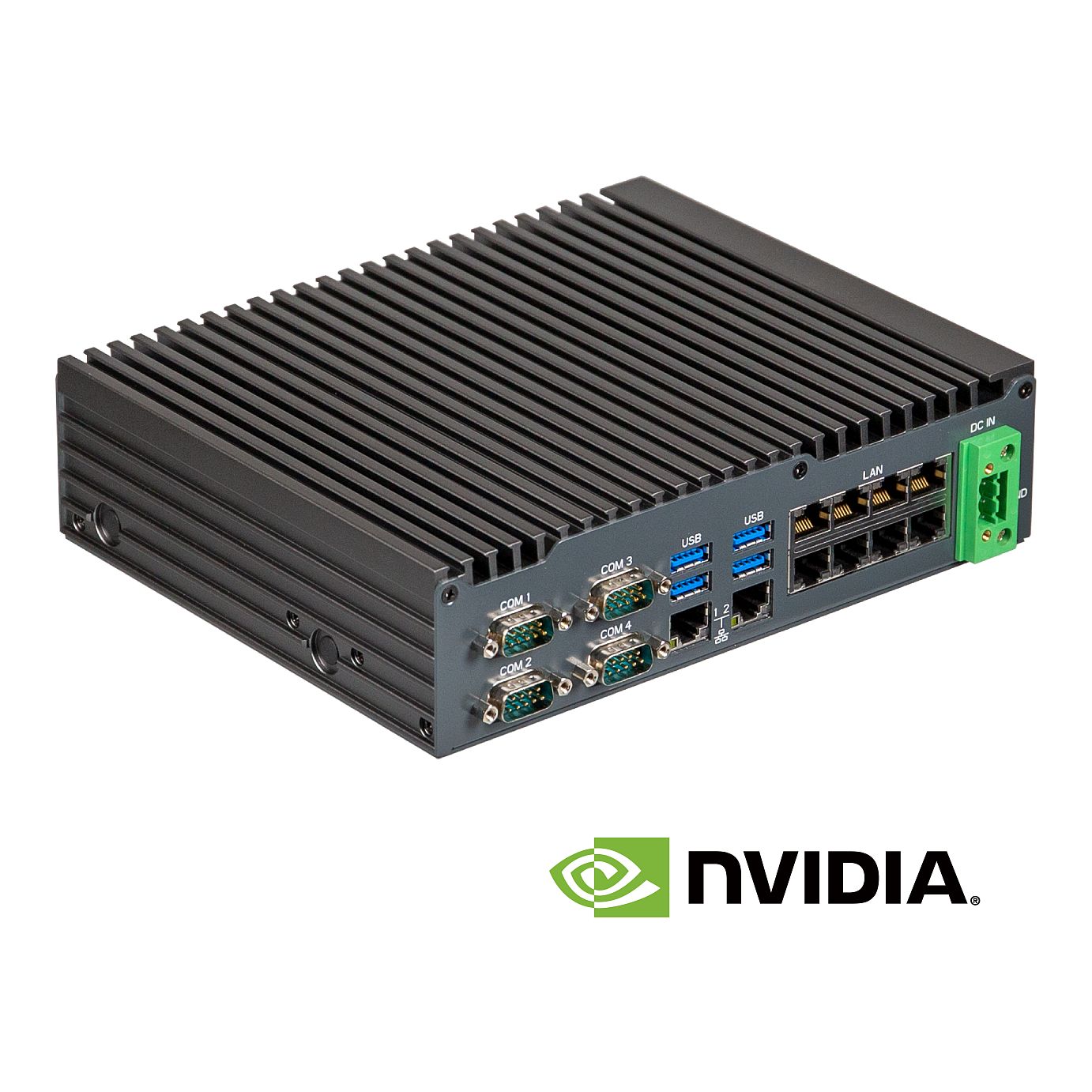

| Rear I/O | 4 x COM Ports (RS-232/422/485) 4 x USB 3.2 Gen 1 8 x GbE LAN Ports with PoE 15W/Port 2 x GbE LAN Ports 1 x 3-pin Terminal Blcok |
| Side I/O | 4 x External Antenna Holes (Optional) |
| Power | +12V~54VDC (non PoE) +54VDC (PoE support) |
| Operation Temperature | Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Packaging Content | Carton size: 523 x 297 x 339 (mm) Packing Capacity: 4pcs Single Box size: 316 x 281 x 125 (mm) Including: 54V/180W adapter x 1 (P/N: 25EP4-101807-F3S) Power cord x 1 (By region) Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00) |
| Order Information | 9BQNXAVNAMR-SI (Box Packing) |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-Jetson-XavierAHP-A1 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
