QBiX-GLKB4125-A1
Price on request
| GIGAIPC QBiX-GLKB4125-A1 - QBiX Systems Embedded Box PC |
|---|
| Industrial system with Intel® Celeron® J4125 Processor/ Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports/ 1 x Headphone Jack |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|
| QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options. QBiX-GLKB4125-A1 is powered by Intel® Celeron® J4125 Processor to provide "low power but high performance" feature. It is designed with full range 12V-19V DC power inputs for operating temperature of 0°C~50°C. The system supports is available with rich features of HDMI output, 4 x USB 3.2 Gen 1 Port to work with different peripherals of devices, and 1 x M.2 2280 M-Key (SATA 6GB/S) & 1 x M.2 2230 E-Key for expansion. |
| Specification |
|---|
| Dimension | 118W x 109.4D x 44.4H(mm) |
| CPU | Intel® Celeron® J4125 Processor 14nm, 4 cores, 4 threads, up to 2.7 GHz TDP 10W 4MB Cache |
| Chipset | SoC |
| Memory | 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB Support Single Channel DDR4 2400 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT and Realtek® RTL8111HS) |
| Graphic Support | Integrated Graphics Processor - Intel® UHD Graphics 600: 2 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |

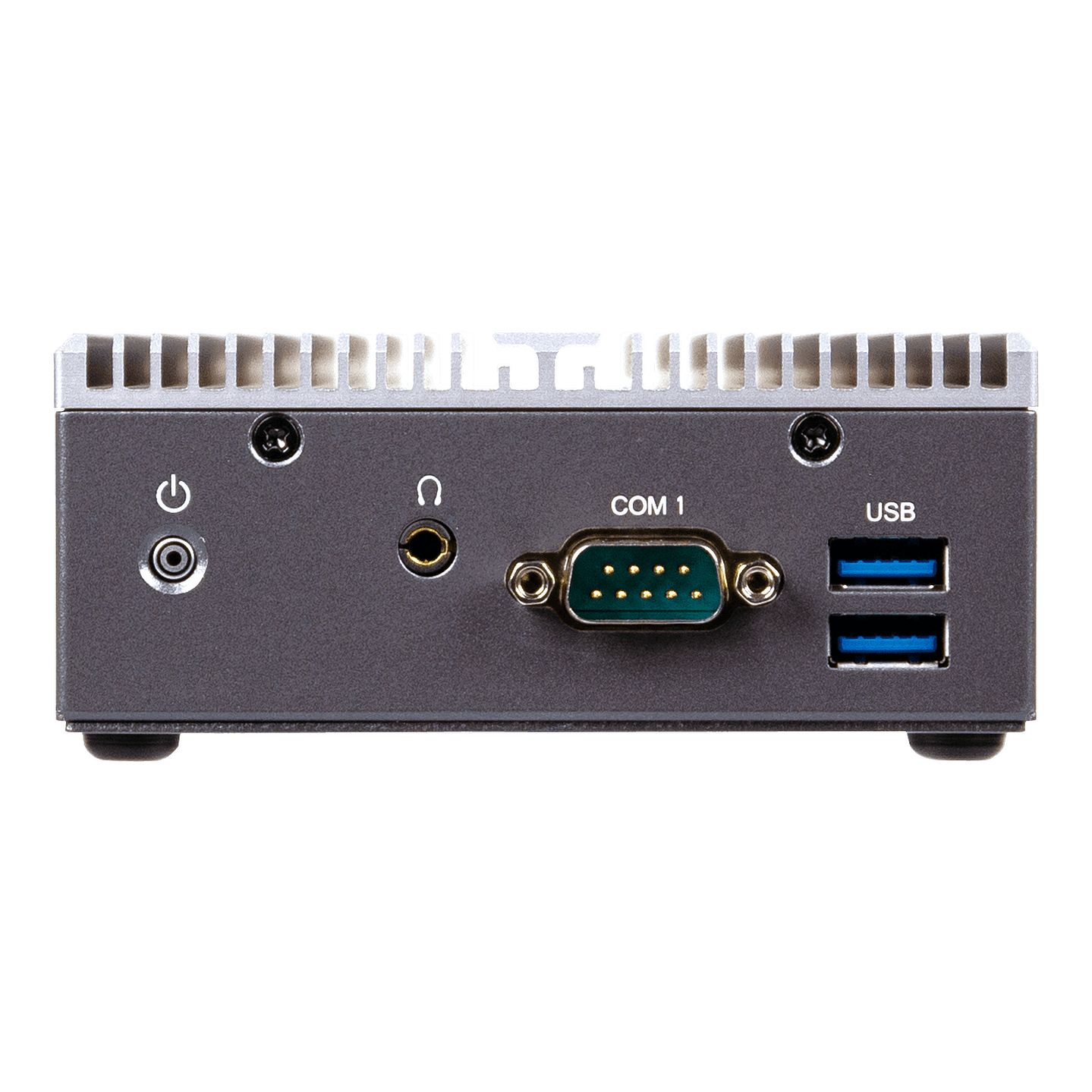

| Front I/O | 2 x USB 3.2 Gen 1 1 x COM Port (RS-232) 1 x Headphone Jack 1 x Power button with LED |

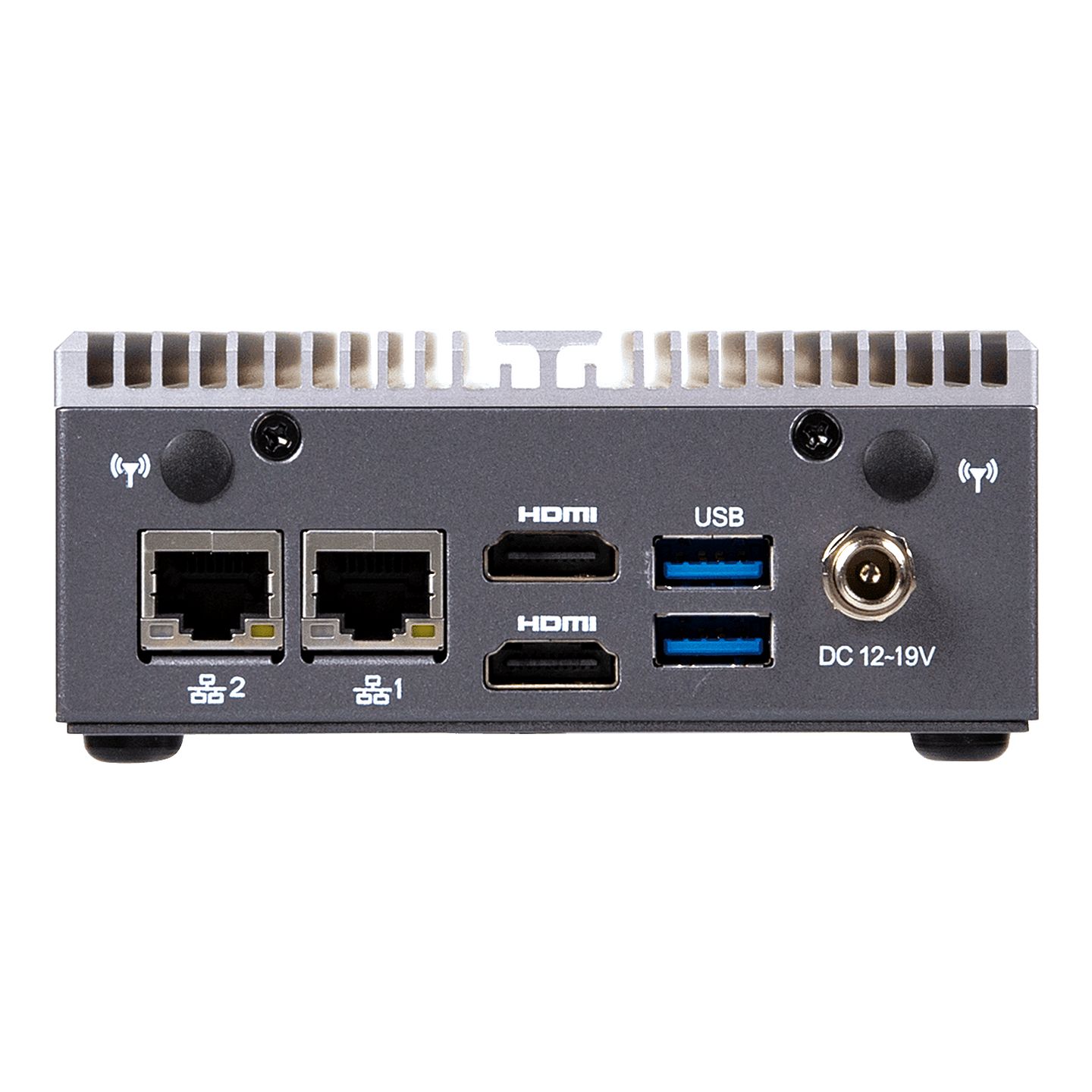

| Rear I/O | 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x HDMI 2 x External Antenna Holes (Optional) 1 x Screw Type DC Jack |
| Power | +12V~19VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSDNon-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 416 x 409 x 296 (mm) Packing Capacity: 6pcs Single Box size: 258 x 191 x 130 (mm) Single Box weight: Approx. 1.5kg Including: Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S) VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R) VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R) |
| Order Information | 6BQB4125AMR-SI (Box packing) |
| Optional Kit | WiFi module (Intel 3168AC) : 25FC7-3168N0-10R Internal Antenna (300mm) : 25CA0-300003-A5S Internal Antenna (230mm) : 25CA0-230003-A5S WiFi/BT Antenna x 2 : 25CA0-111000-A5S |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: QBiX-GLKB4125-A1 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
