QBiX-DR-EHLA6412H-A1
Price on request

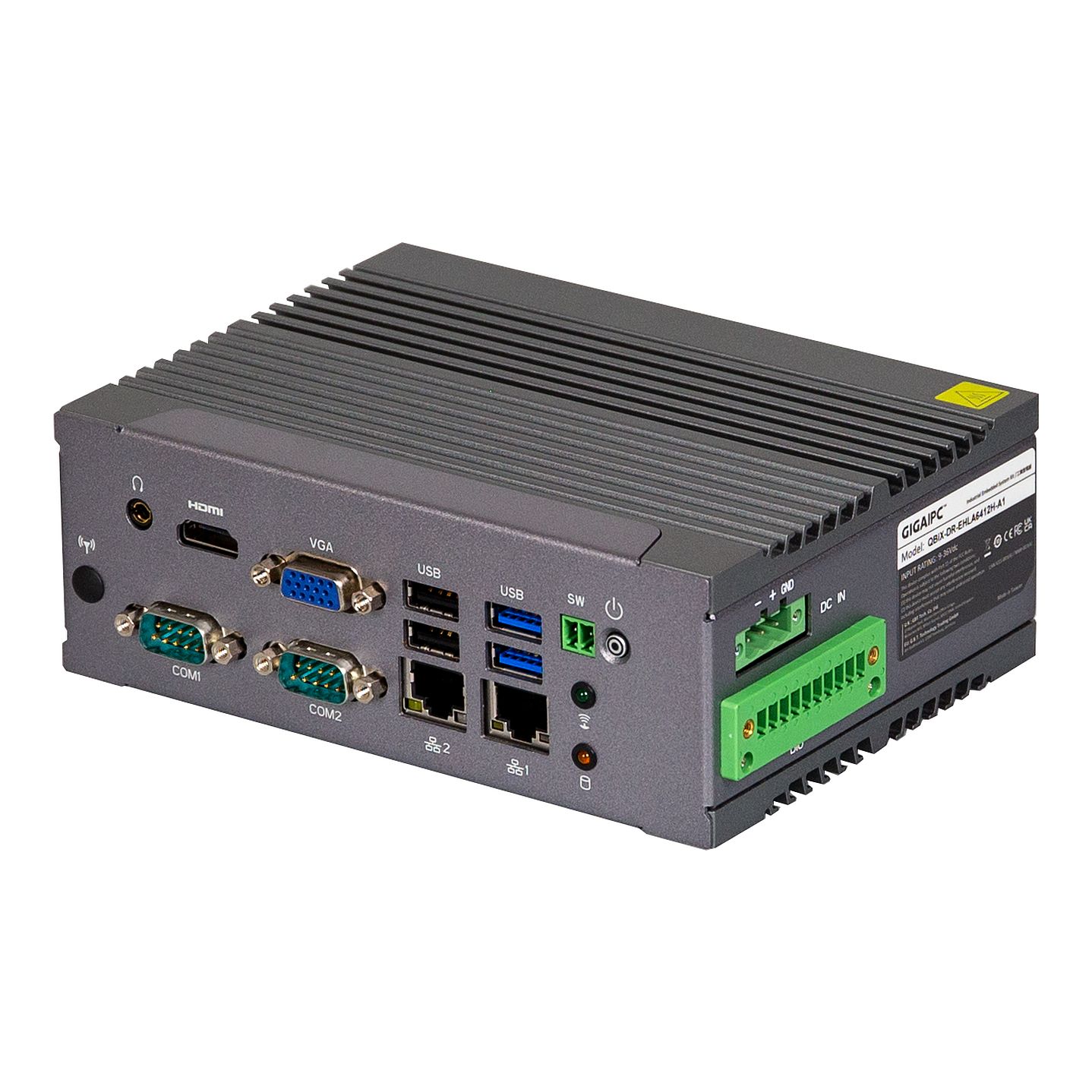

| GIGAIPC QBiX-DR-EHLA6412H-A1 - DIN Rail Computer Embedded Box PC with Intel® Elkhart Lake |
|---|
| DIN Rail industrial system with Intel® Celeron® J6412 Processor |
| Overview |
|---|
| Key Features | Supported CPUs |
|---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
| CPU-Variants |
|---|
| CPU | Intel® Celeron® J6412 |
|---|---|
| Processor Number | J6412 |
| Cache | 1.5 MB L2 Cache |
| Total Cores | 4 |
| Total Threads | 4 |
| PCI Express Revision | 3.0 |
| Specification |
|---|
| Dimension | 160W x 118D x 62.6H (mm) |
| CPU | Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Memory | 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I210AT) |
| Graphic Support | Integrated Graphics Processor- Intel® UHD Graphics for 10th Gen Intel® Processors: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio codec |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support 1 x Vertical USB 2.0 |
| Front I/O | 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 1 x Power button with LED 1 x WiFi/HDD LED 1 x Remote control connector 1 x Headphone Jack 1 x External Antenna Hole (Optional) |

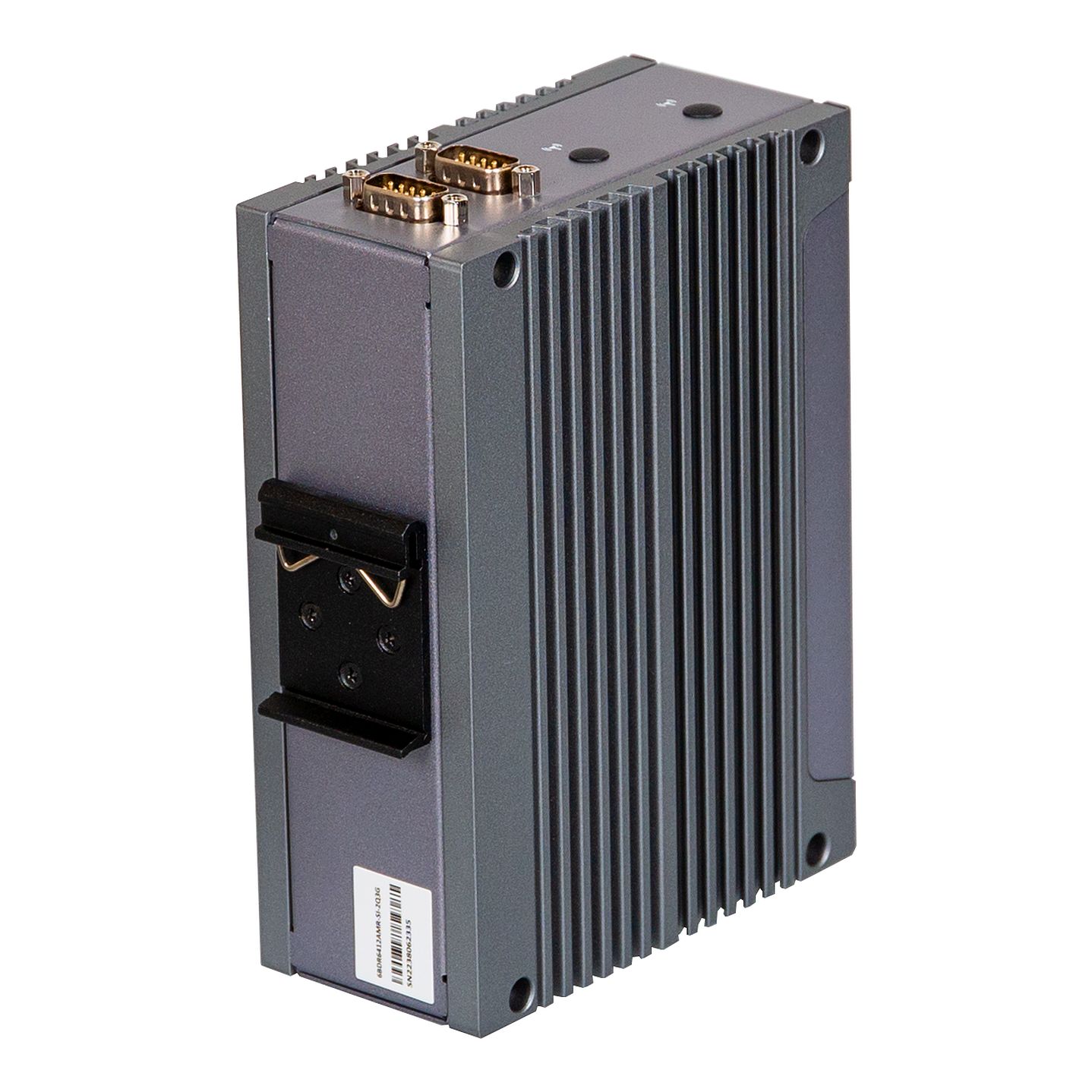

| Rear I/O | 1 x Din Rail Mounting Support |
| Side I/O | 1 x GPIO (8 bits) 1 x 3-pin Terminal Block 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x External Antenna Holes (Optional) |
| Power | +9V~36VDC (Full Range) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 416 x 409 x 347 (mm) Packing Capacity: 6pcs Single Box size: 308 x 191 x 130 (mm) Single Box weight: Approx. 1.8kg Including: Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R) Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R) Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R) SATA cable x 1 (P/N: 25CF4-500500-S9R) SATA power cable x 1 (P/N: 25CRI-190920-S9R) Screw HDD M3x4L x 4 (P/N: 25984G-1C014-S00) |
| Mounting | DIN Rail Wall mount (Optional) |
| Order Information | 6BDR6412AMR-SI (Box packing) |
